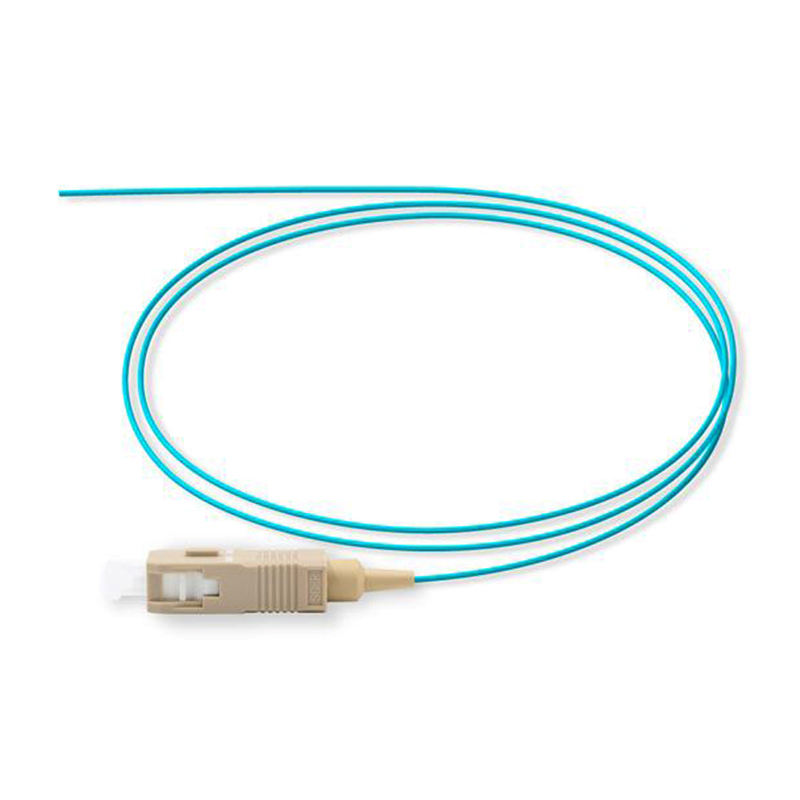

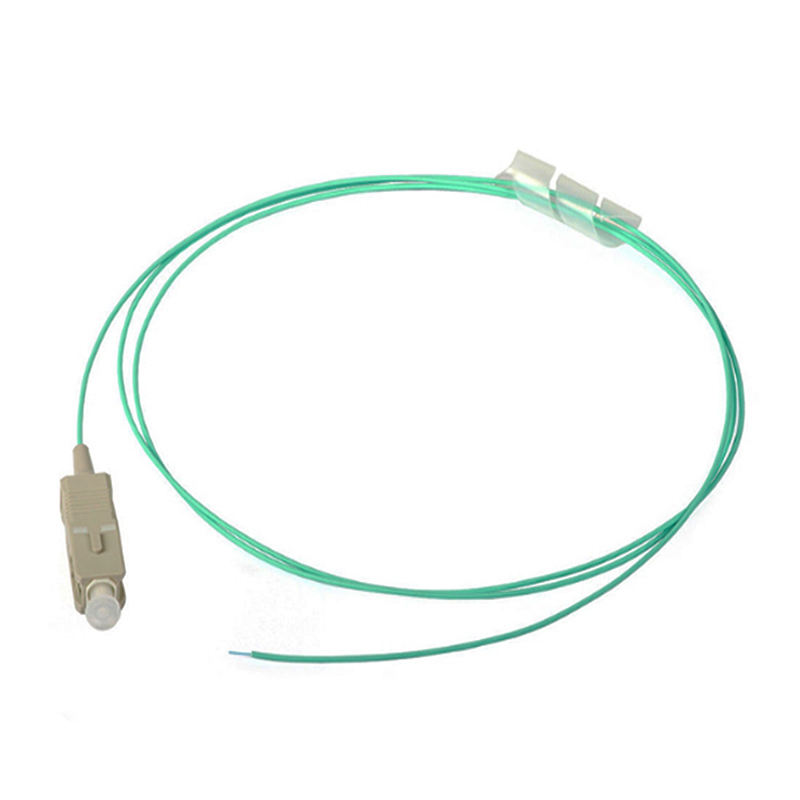

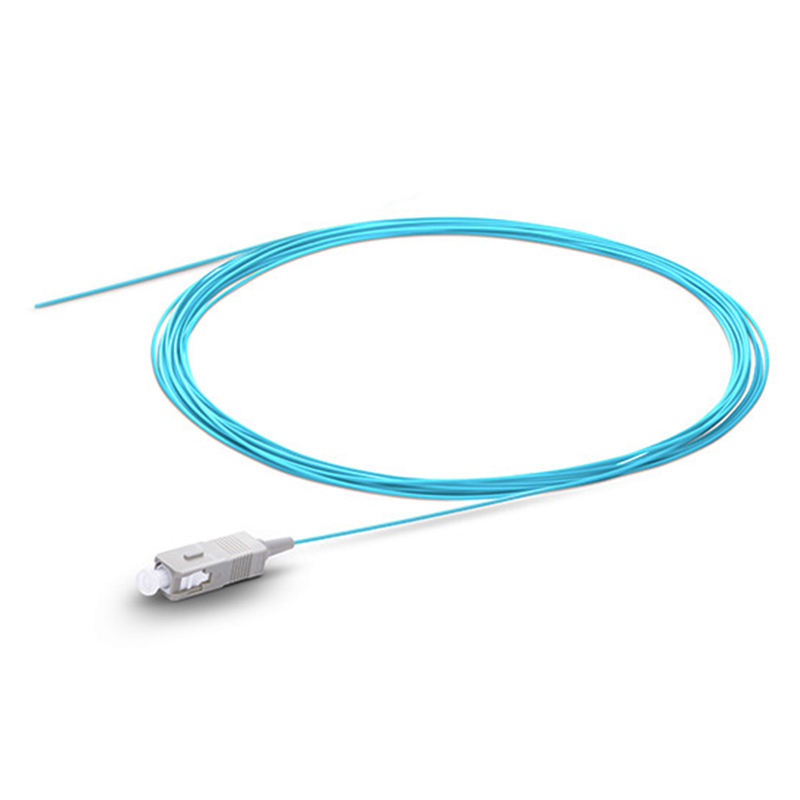

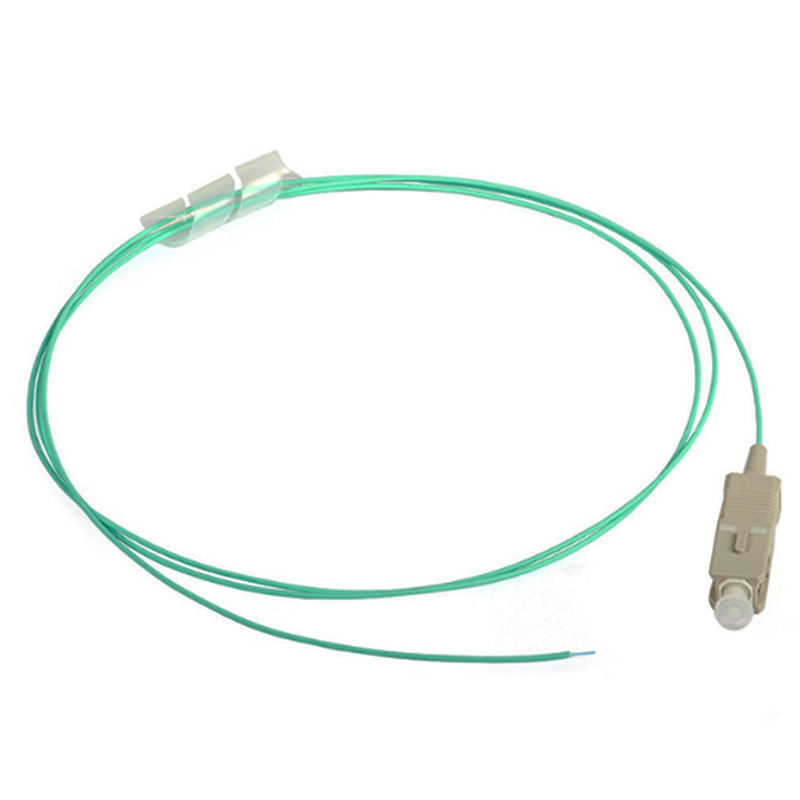

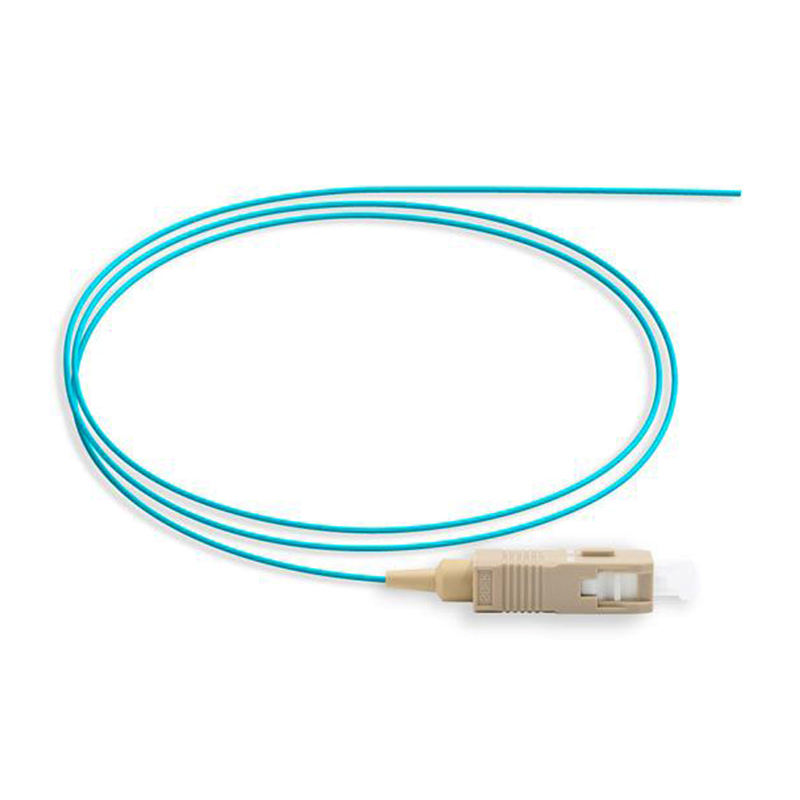

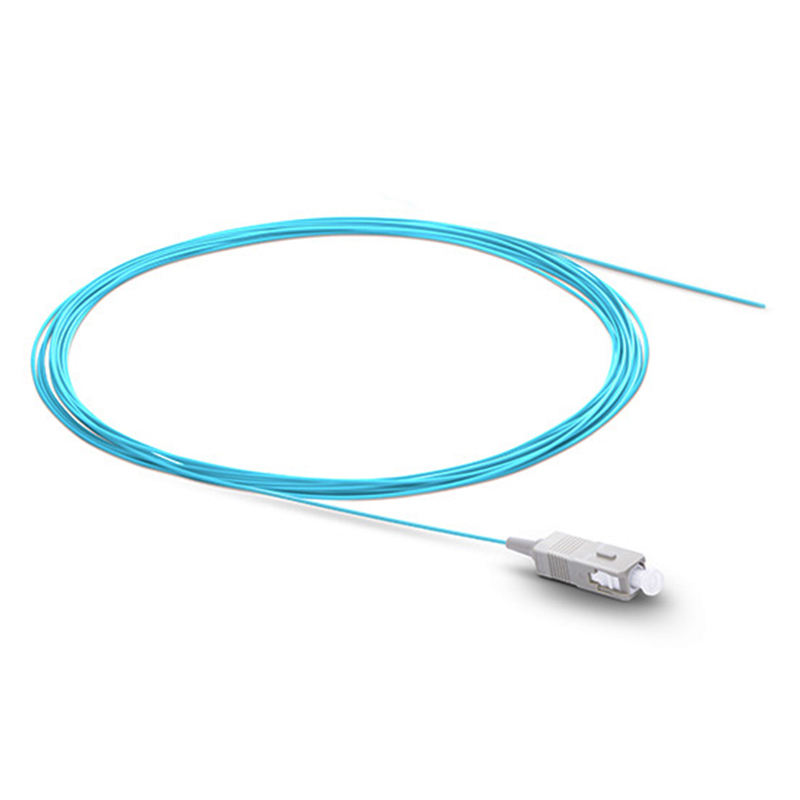

0.9mm MM SX Fiber Optic Pigtail SC UPC
Fiber Optic Pigtail is also called the tail line, only one end has a connector, and the other end is a fiber optic cable core of the broken, through the welding and other fiber optic cable core connected, often appear in the fiber terminal box, for connecting fiber optic cable and fiber transceiver (Also used between couplers, jumpers, etc.).
Features
* PC/UPC/APC polish
* Comply with Telcordia GR-326-CORE Specification
* The material of plastic plug comply with the request of UL94V-O And Standard of RoHS
Application
* Telecom network
* Ethernet network
* CATV network
|
Parameter |
Unit |
Value |
|||
|
Connector Type |
FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO |
||||
|
Fiber Type |
Multi-Mode |
Single Mode |
|||
|
Insertion Loss |
dB |
Typ.≤0.1 Max.≤0.2 |
Typ.≤0.1 Max.≤0.3 |
||
|
Return Loss (Typ.) |
dB |
≥36 (no APC connector)
|
/PC |
/UPC |
/APC |
|
|
|
≥45 |
≥50 |
≥55 |
|
|
Repeatability |
dB |
≤0.1 |
|||
|
Interchangeability |
dB |
≤0.2 |
|||
|
Connection Durability |
times |
≥1000 |
|||
|
Operating/Storage Temperature |
°C |
-40~+80 |
