- Warranty Time:3 years
- Name:Fiber Optic Pigtail Sc/upc
- Fiber Type:G652D, G657A
- Connector Type:LC/UPC
- Insertion loss:IL<0.3db
- Certification:CE/ROHS/ISO9001
- Material:PVC LSZH
- Length:1 Meter
- Wavelength:1310nm/1490nm/1550nm
- Brand:Wolon
- No. of Fiber:1
-
- Packaging Details

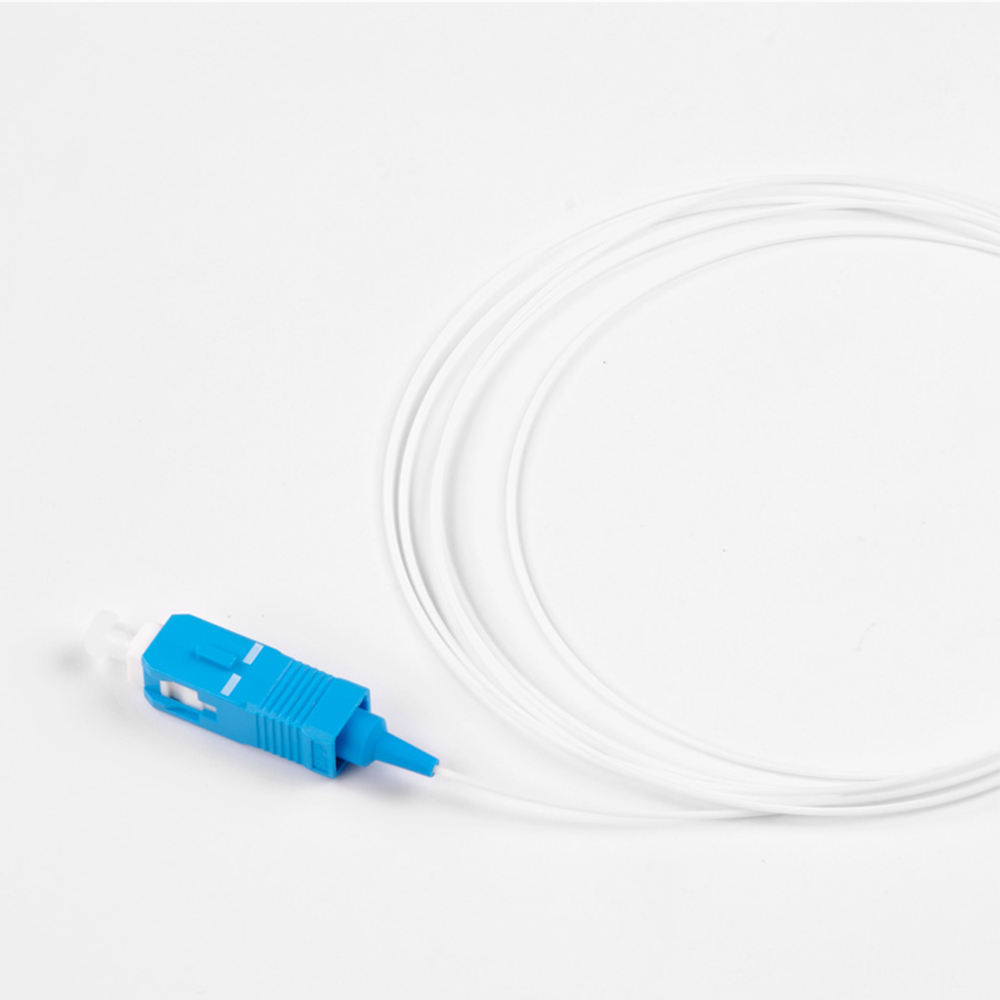

Plastic/ Carton/Customized for SC/UPC-0.9-1M pigtail PVC white G652D
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)7To be negotiated

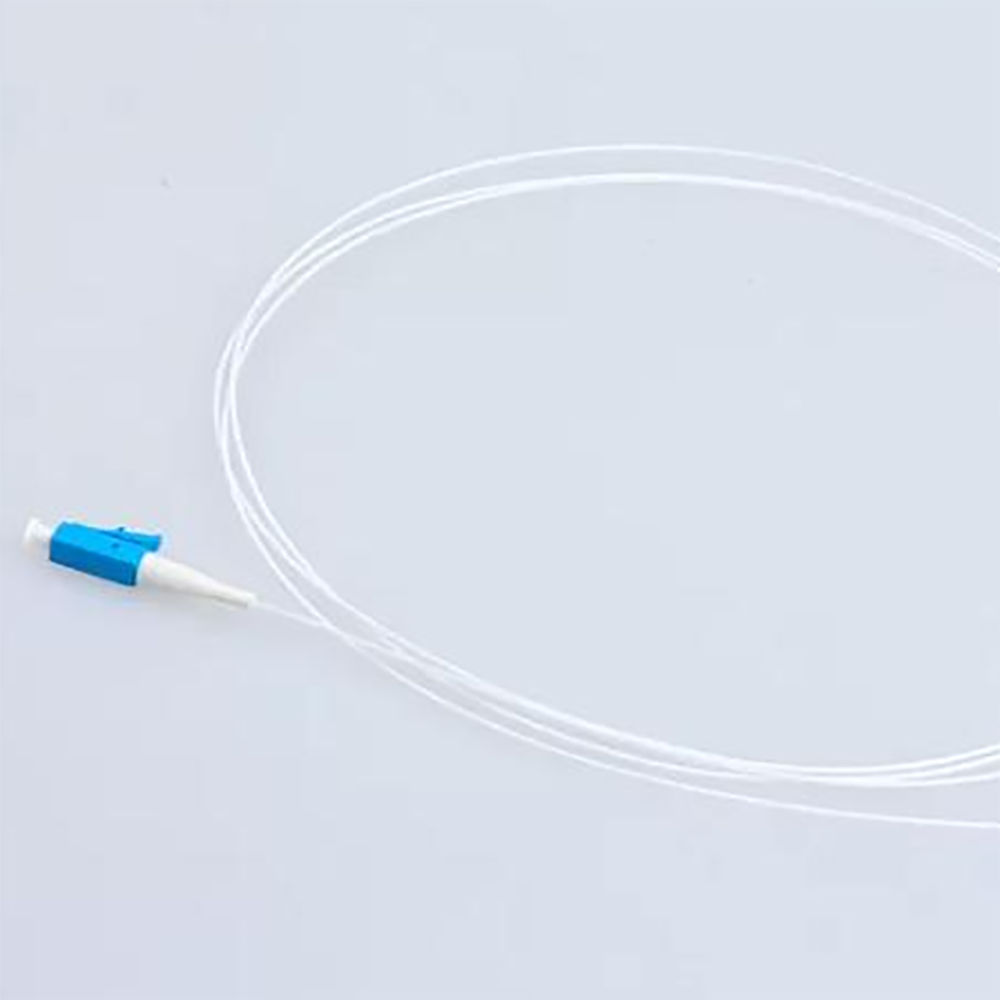

0.9mm Simplex Fiber Optic Pigtail White Color for Ftth
Fiber Optic Pigtail is also called the tail line, only one end has a connector, and the other end is a fiber optic cable core of the broken, through the welding and other fiber optic cable core connected, often appear in the fiber terminal box, for connecting fiber optic cable and fiber transceiver (Also used between couplers, jumpers, etc.).
Tehnical data
|
Range of Mode |
Single mode |
|
Cable Type |
Simplex |
|
Connector Style |
LC/UPC |
|
Polish or Ferrule Interface Type |
PC, UPC, APC |
|
Cable Diameter |
0.9mm |
|
Outer Jacket |
PVC /LSZH/OFNP |
|
Jacket Color |
SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
|
Durability |
500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
|
Operating Temp. |
-40℃ to +80℃ |
|
Storage Temp. |
-40℃ to +80℃ |
Features
♦Compliant with international standard such as ANSI,Bellcore, TLA/EIA, IEC,also according with the industrial standards of Telecom in China
♦Realize the active-link of optic fiber transmission
♦Low insertion loss and high return loss
♦Excellent repeatability and interchangeability
Application
♦ FTTH, LAN, PON & Optical CATV, Local ring net
♦ Optical fiber communication system
♦ Optical fiber test equipment
♦ Optical fiber sensor
♦ Industry and military application
