- Products Status:Stock
- Ports:6
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:12Gbps
- Model Number:TS8204P-1G1F
- Place of Origin:Guangdong, China
- Product Name:4 Port network switch PoE
- Device Type:Switch – 4 Ports – Unmanaged
- PoE Ports:1-4 Ports
- Uplink Ports:1*1Gb RJ45+1*1Gb SFP
- Applications:Support PoE IP Cameras
- Power Supply:DC 48/52V,65W/78W
- PoE Standard:IEEE802.3af /IEEE802.3at
- Keywords:4 port PoE+ switch,network switch PoE
- Warranty:1-year
- Certification:CE FCC RoHS
-
- Supply Ability
- 5000 Piece/Pieces per Month
-
- Packaging Details

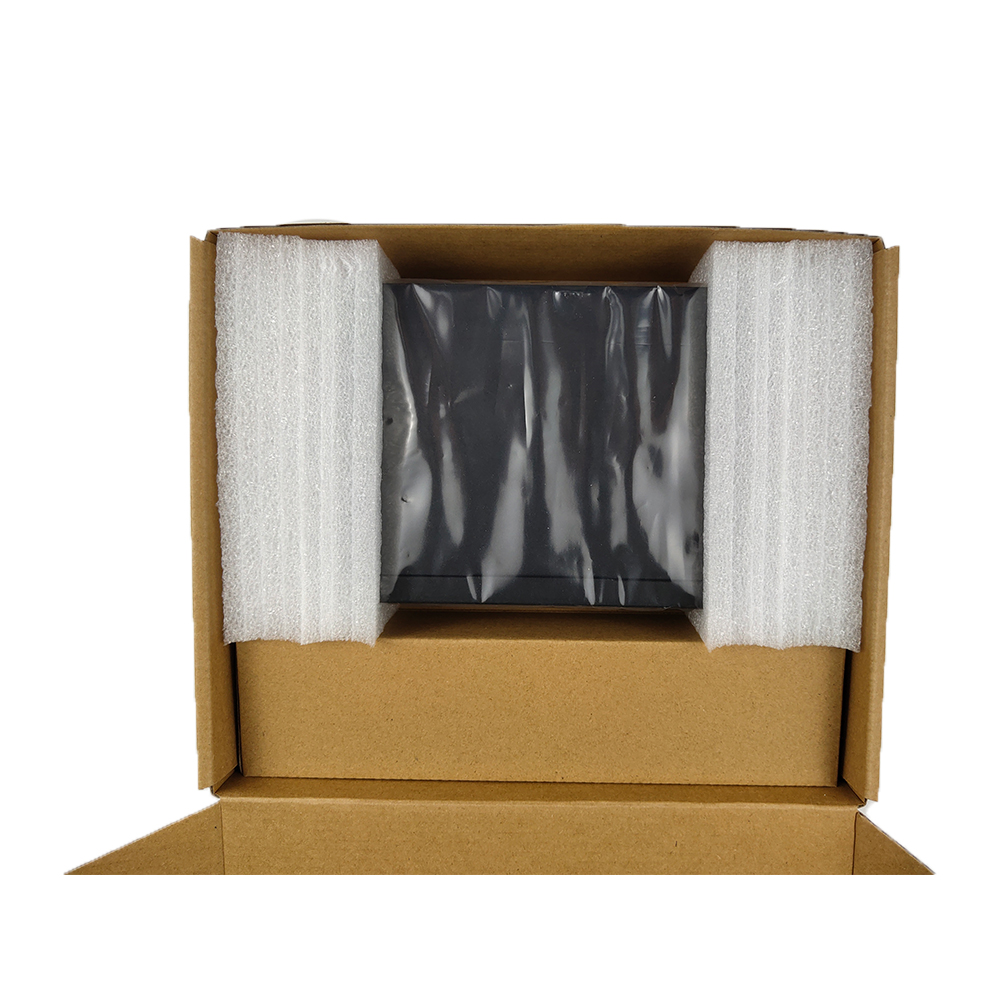

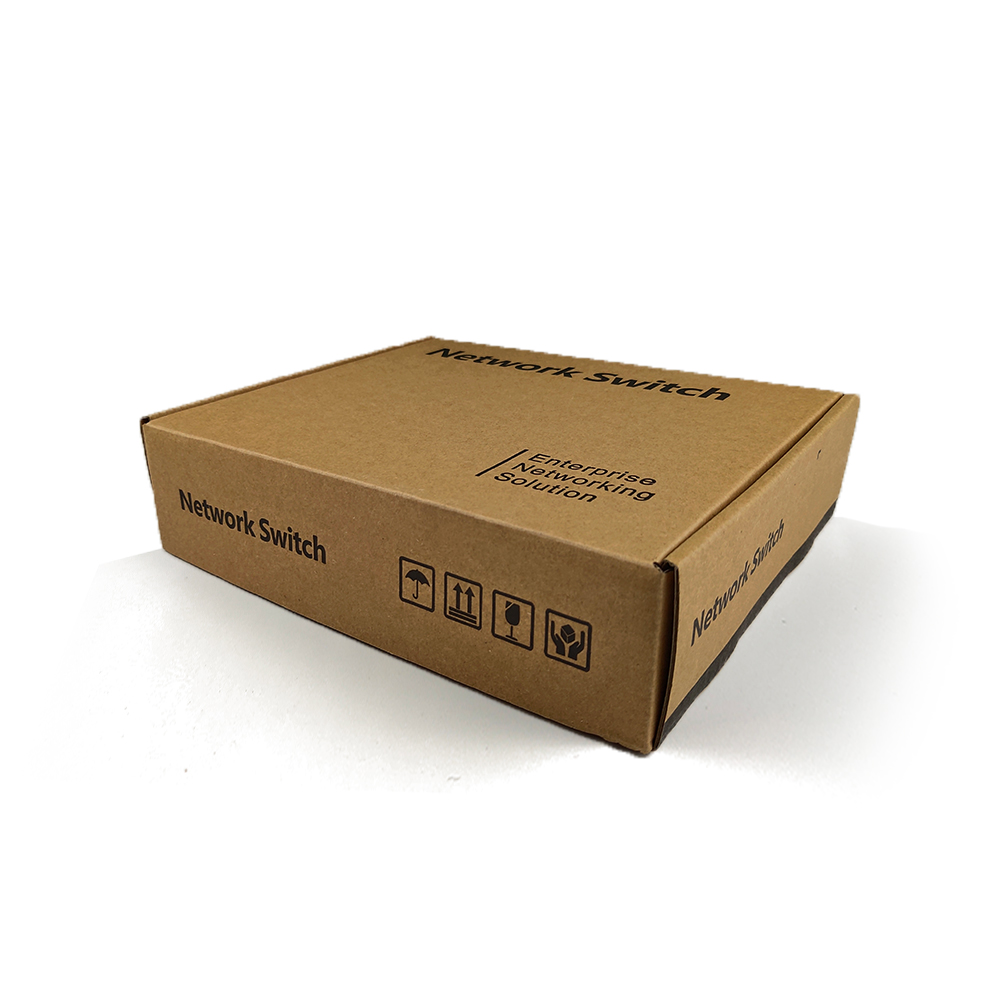

ESD bag+kraft paper box
-
- Port
Guangzhou,Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 100101 – 500>500Lead time (days)71217To be negotiated
Product Description

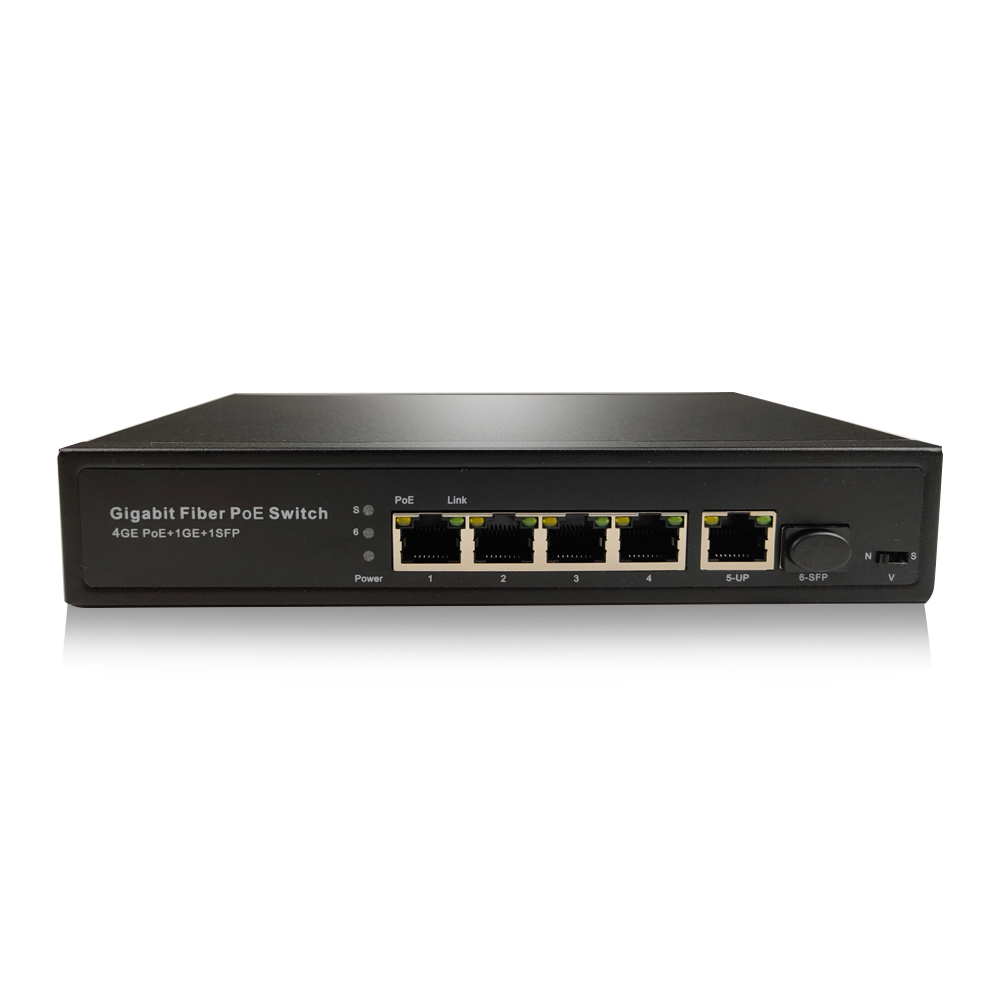

10/100/1000M 4 port PoE+ Ethernet switch with 1Gb optic fiber SFP uplink network switch PoE for CCTV IP Camera
Easy To Use
TS8204PF is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8204PF 6-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
TS8204PF is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TS8204PF 6-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
Key Features
* Supports PoE power up to 15.4W for each PoE port
* Supports PoE power up to 15.4W for each PoE port
* Supports PoE power up to 60W for all PoE ports
* Supports PoE IEEE 802.3af compliant PDs
* Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
* 4 ports with poe, 1 port 10/100/1000M RJ45 and 1Port Gigabit SFP
* External power adapter supply
Specification
|
Model
|
TS8204P-1G1F
|
|
Interface
|
5 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps SFP Solt AUTO Negotiation/AUTO MDI/MDIX |
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
HARDWARE FEATURES
|
Fan Quantity
|
Fanless
|
|
External Power Supply
|

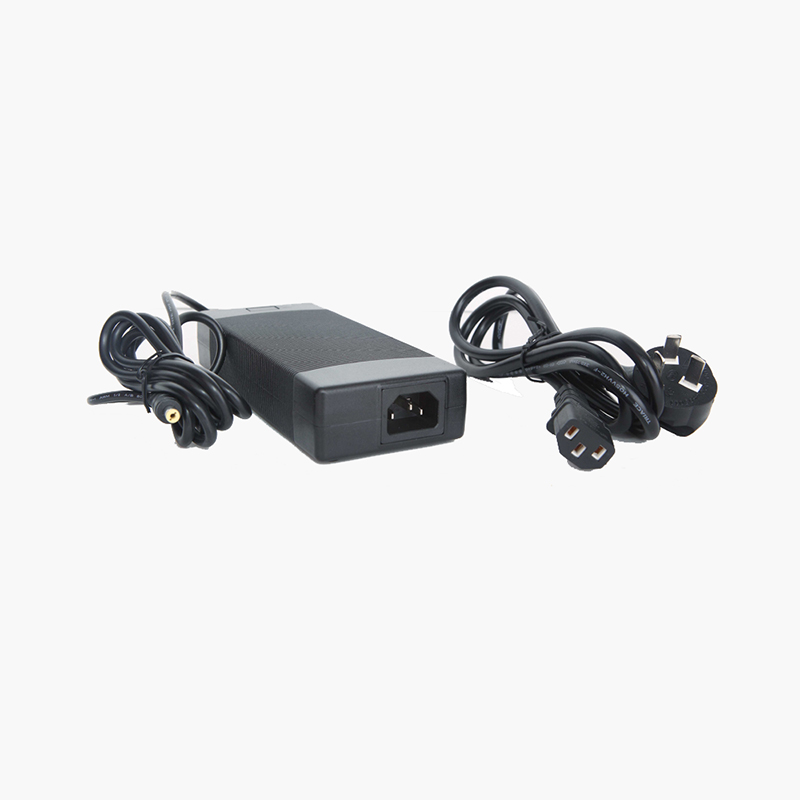

External Power Adapter(Output: 48VDC /1.25A)
|
|
PoE Ports (RJ45)
|
PoE standard: 802.3af/at
PoE Ports: Port 1- Port 4 Power Supply: 65W/78W |
|
Backbound Bandwidth
|
10Gbps
|
|
Mac Address Table
|
4K
|
|
Dimensions ( W x D x H )
|
(160*90*28 mm)
|
|
Certification
|
CE, FCC, RoHS
|
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
