- Products Status:Stock
- Ports:10
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:5.6Gbps
- Model Number:TS6208P-1G1F
- Place of Origin:Guangdong, China
- PoE Standard:IEEE02.3af/at
- Product Name:Ethernet PoE switch 8 port
- PoE Ports:1-8 ports
- Uplink Ports:2*1.25G SFP Uplink Ports

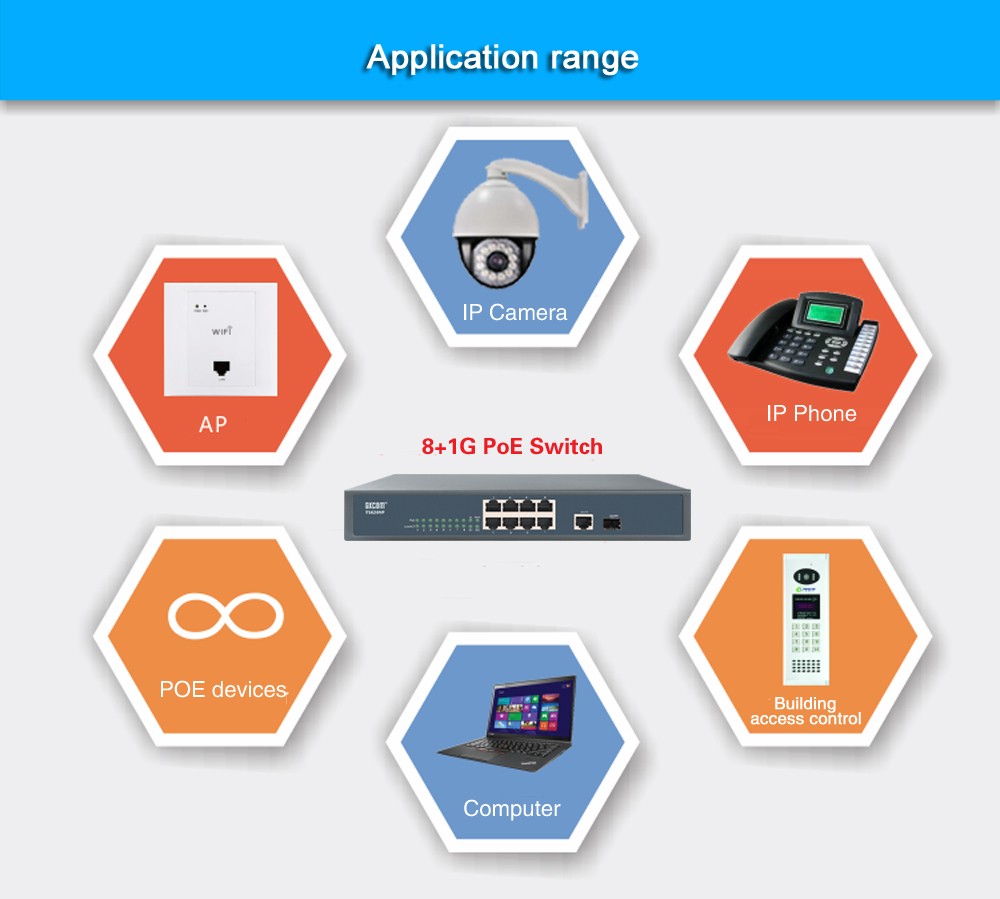

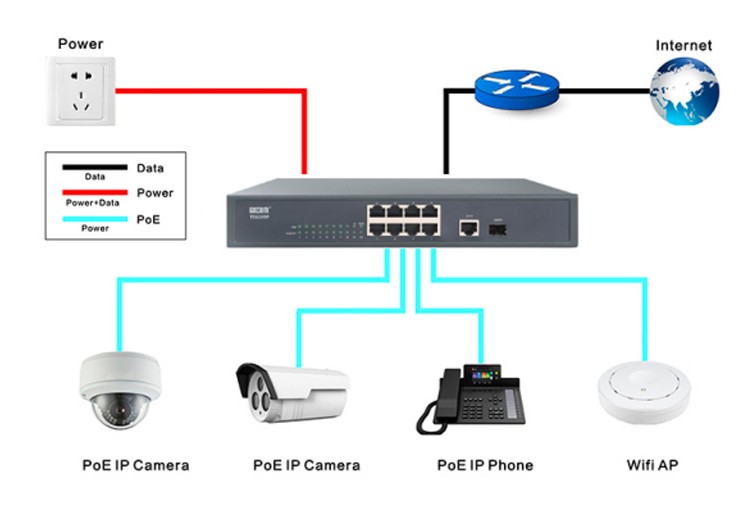

- Applications:CCTV IP Camera,IP Phone,WIFI APs
- Power Supply:Input AC100-240V 50/60Hz
- Power Budget:120W/150W
- Manufacturer:GXCOM Technology
- Keywords:PoE switch 8 ports
- Warranty:1 Year
- Certification:CE FCC RoHS
-
- Supply Ability
- 2000 Piece/Pieces per Month
-

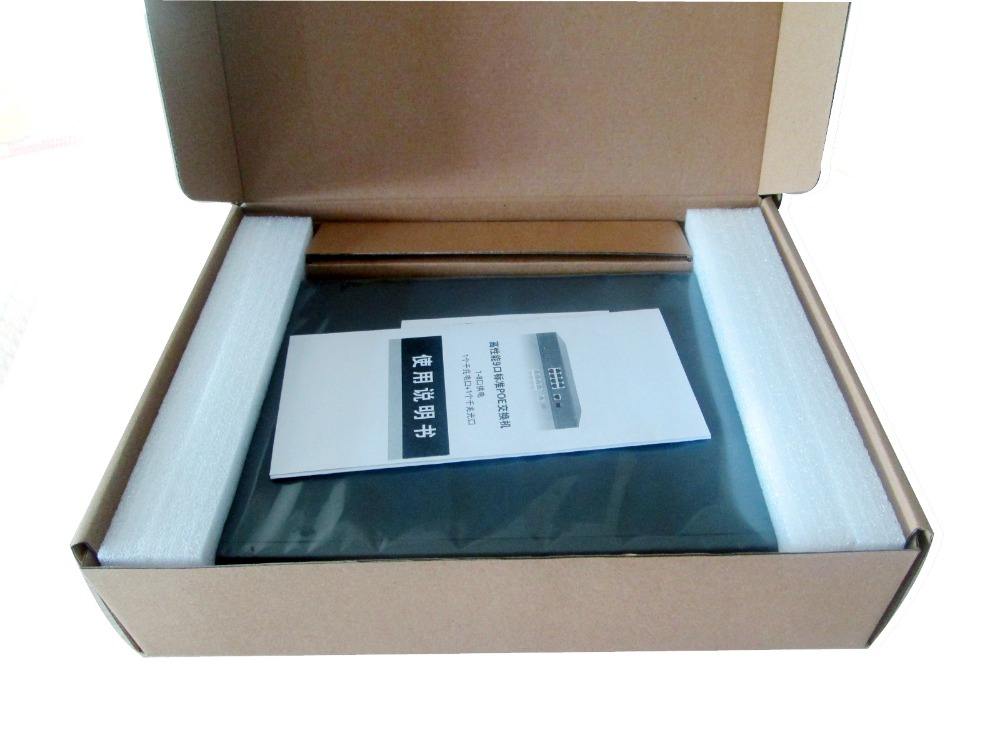

- Packaging Details
ESD bag+kraft paper box+carton
-
- Port
Shenzhen,Guangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 100101 – 500>500Lead time (days)71520To be negotiated
Product Description
10/100Mbps fast Ethernet PoE network switch 8 10 port gigabit RJ45 SFP uplink PoE switch
Features:
– RTL8310 chipset, support 2 port gigabit uplink RJ45 plus SFP fiber
– 1U rack mount with ears
– Fully IEEE80.2af/at standard compliant
– Support poe poer up to 15.4w/30w for each port, total PoE power 120W/150W
– Fully IEEE80.2af/at standard compliant
– Support poe poer up to 15.4w/30w for each port, total PoE power 120W/150W
– Auto detect powered device(PD)
– Safe and reliable power to ech of poe end device
– Plug&play,no configuration required
– Safe and reliable power to ech of poe end device
– Plug&play,no configuration required
Specifications:
|
Technical Items
|
Description
|
|
Interface
|
8*100Mbps LAN PoE ports
1*1Gb RJ45+fiber SFP uplink ports
|
|
PoE Standard
|
IEEE802.3af (15.4w)
IEEE802.3at (30W) |
|
PoE power pin
|
1/2(+) ,3/6 (-)
|
|
Network protocol
|
IEEE802.3
IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
|
PoE output
|
DC 48-52V
|
|
Power supply
|
100-240vac 50/60hz input,52v 2.5A output
120W/150W
|
|
Chipset
|
RTL8310s
|
|
Bandwidth
|
5.6Gbps
|
|
Dimension
|
280*250*45mm (L*W*H)
|

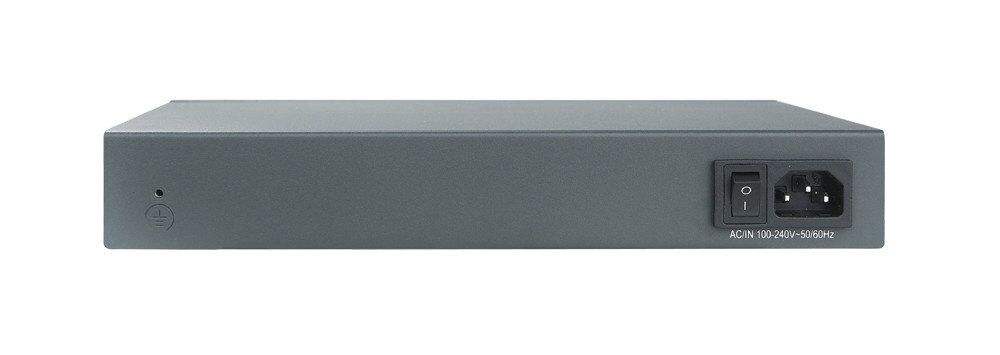

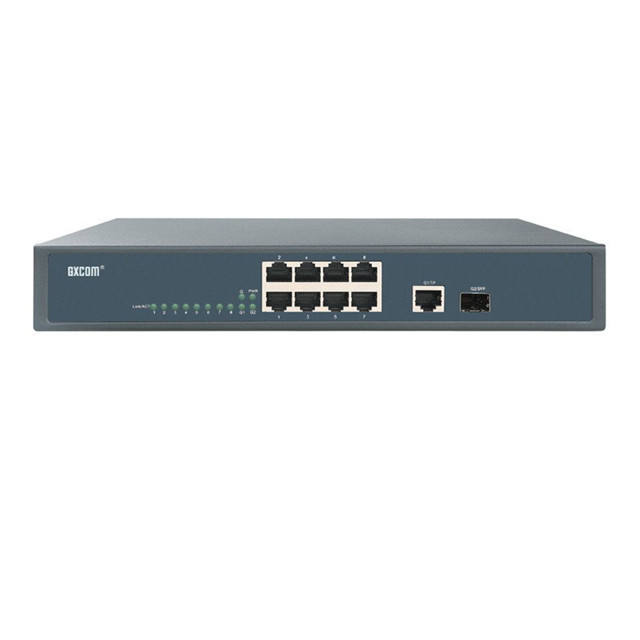

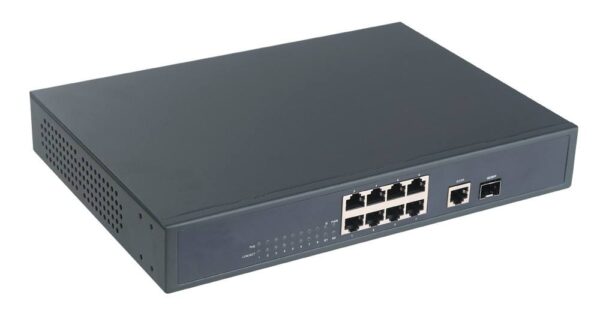

Detailed Images
