- Use:data center
- Warranty Time:1 year
- Insertion loss:≤0.35dB(max)
- Return Loss:MPO≥55dB
- Wavelength:850nm/1310nm
- Min. Bend Radius Installation:29 mm
- Min. Bend Radius Operation:15 mm
- Durability:≥500 times
- Fiber Category:SM
- Fiber Count:12
- Fiber Type:SIMPLEX
- No. of Fiber:12.
- Selling Units:Single item
- Single package size: 20X20X2 cm
- Single gross weight:0.200 kg
- Package Type:plastic bag
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)5To be negotiated
Features:
1.High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2.3D interferometer provides verification of MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
4.All kinds mpo brand for choice like SENKON, NISSIN, USCONEC.
MTP products’ Standard:
-Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
-Structured cabling per TIA-568-C
-Parallel Optics
–Optical Internetworking Forum (OIF) Compliant
–InfiniBand Compliant
-InfiniBand
— 10G Fiber Channel Compliant
— 40G and 100G IEEE 802.3
— QSFP
Specification.
|
Connector A |
MPO female |
Connector B |
MPO female |
|
Fibre Category |
OM3 |
Fiber Count |
12 |
|
Fiber Type |
simplex |
Wavelength |
850nm/1310nm |
|
Cable Jacket |
3.0mm LSZH |
Polarity |
B (or A,C) |
|
Insertion loss, max. |
≤0.35dB |
Return Loss, Min. |
≥55dB |
|
Cable Length |
10m or customized |
Durability |
≥500 times |
|
Min. Bend Radius Installation |
29 mm |
Min. Bend Radius Operation |
15 mm |
|
Tensile strength |
400 N |
Crush resistance (Reversible) |
750 N/10 cm |

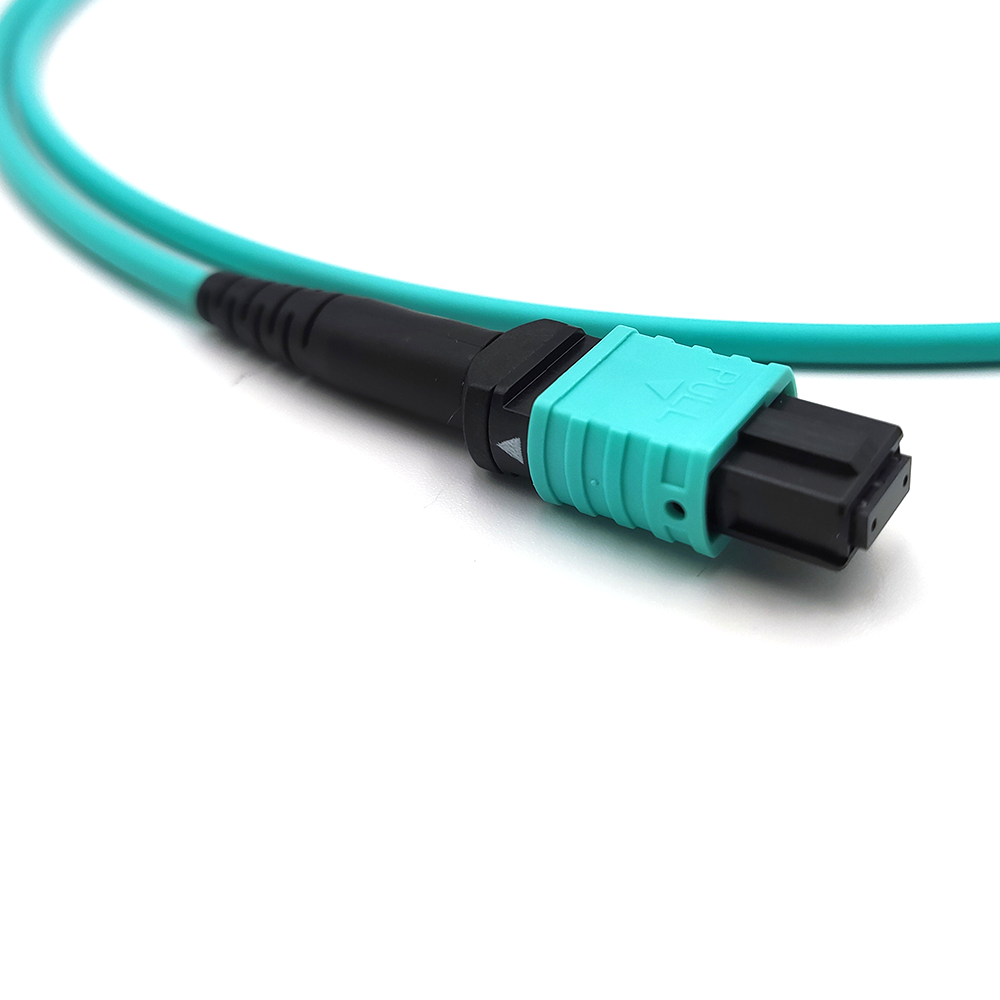

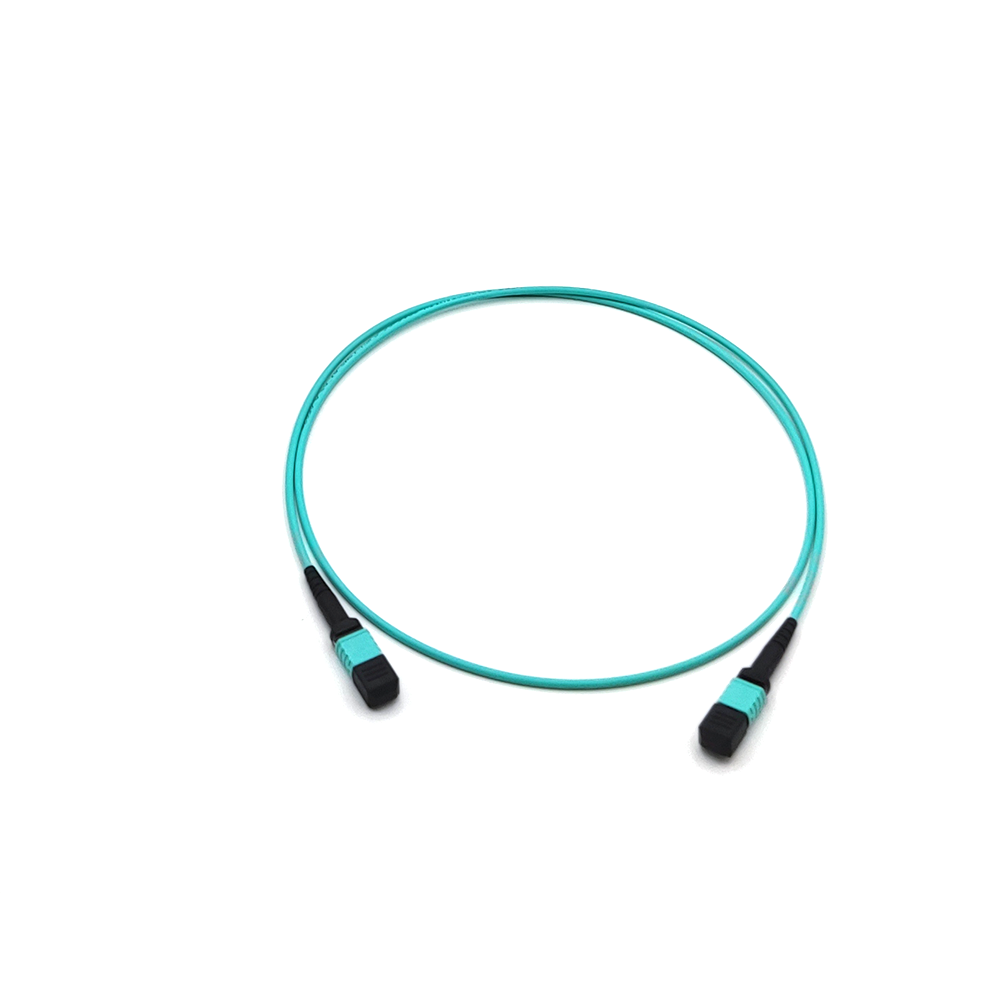

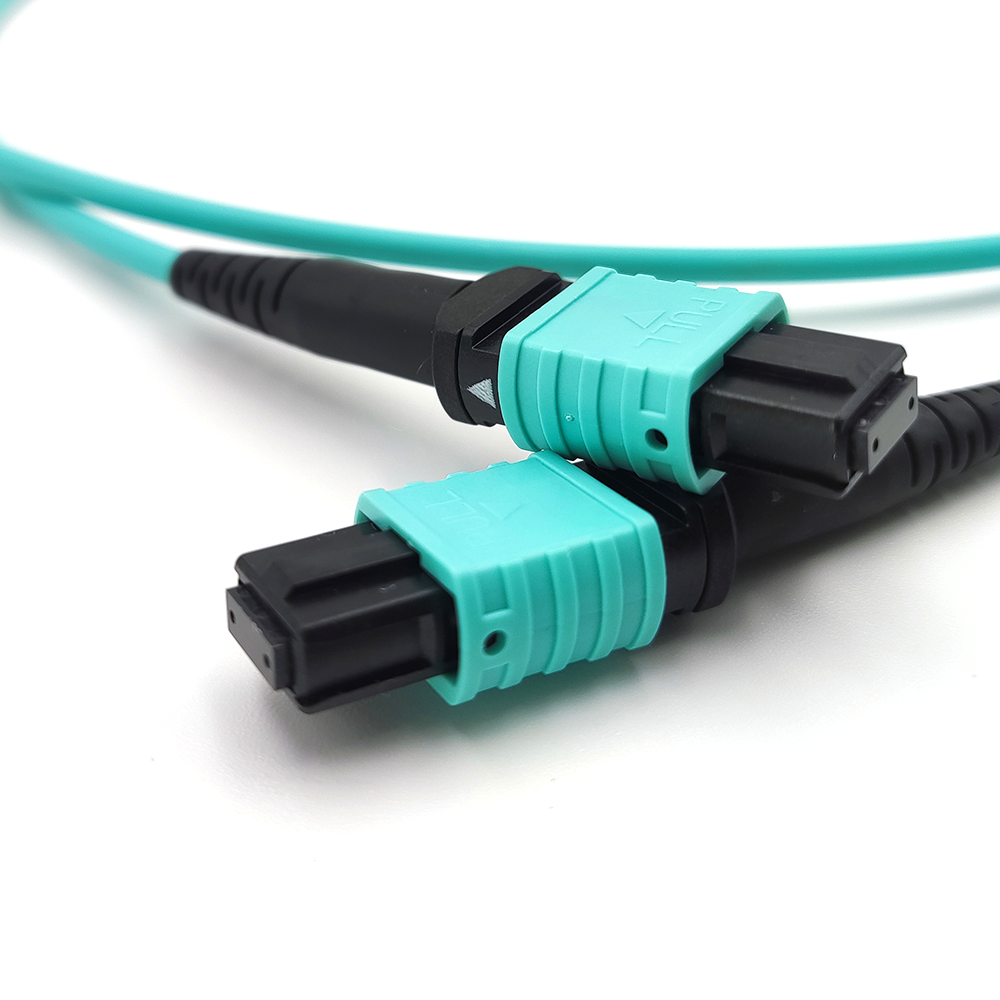

Products detail
