- No. of Fiber:12.
- Use:FTTX
- Product name:Fiber Optic Patch Cord
- Certification:CE RoHS, ISO
- Connector:MPO male lc
- Jacket:LSZH OFNP OFNR
- Length:1m
- Color:Customized
- Application:Telecom
- Selling Units:Single item
- Single package size: 20X20X8 cm
- Single gross weight:0.500 kg
- Package Type:PE bags and carton,customized 10 Years Manufacturer 12 Core Mpo Mtp Lc Fiber Optic Patch Cord
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)10To be negotiated
Product Description

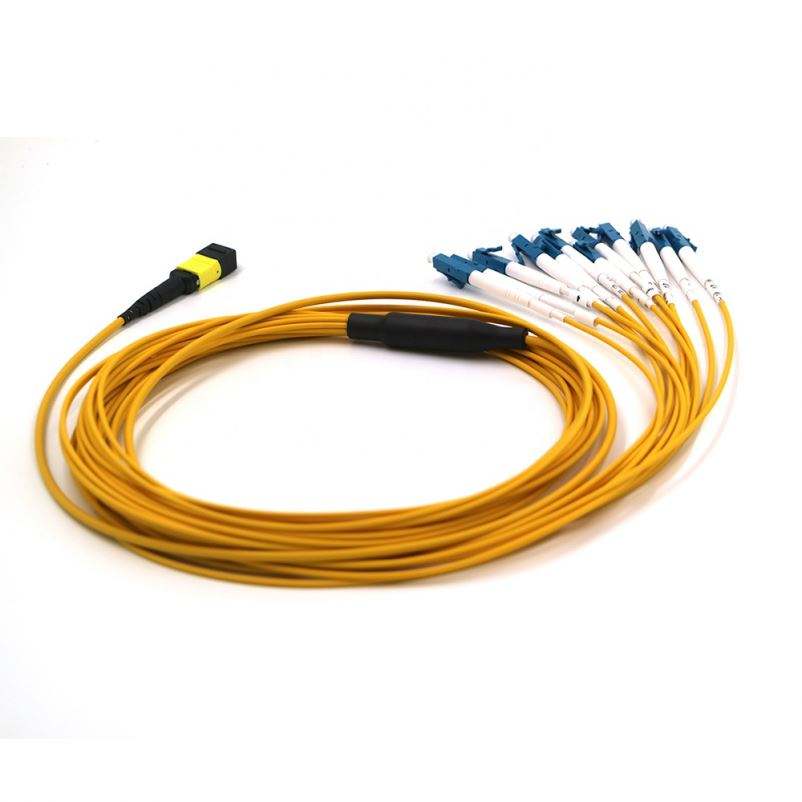

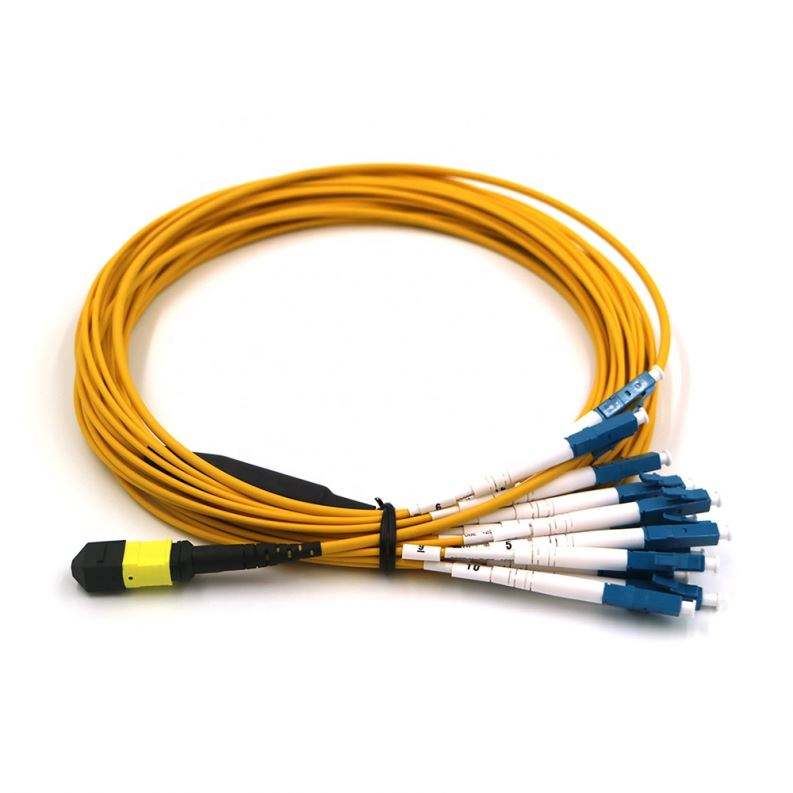

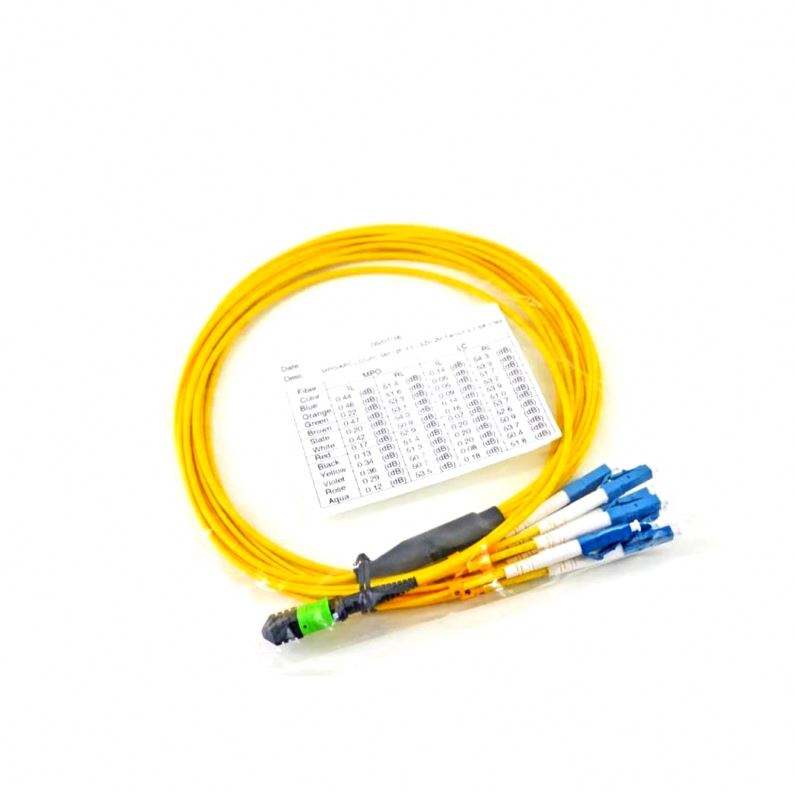

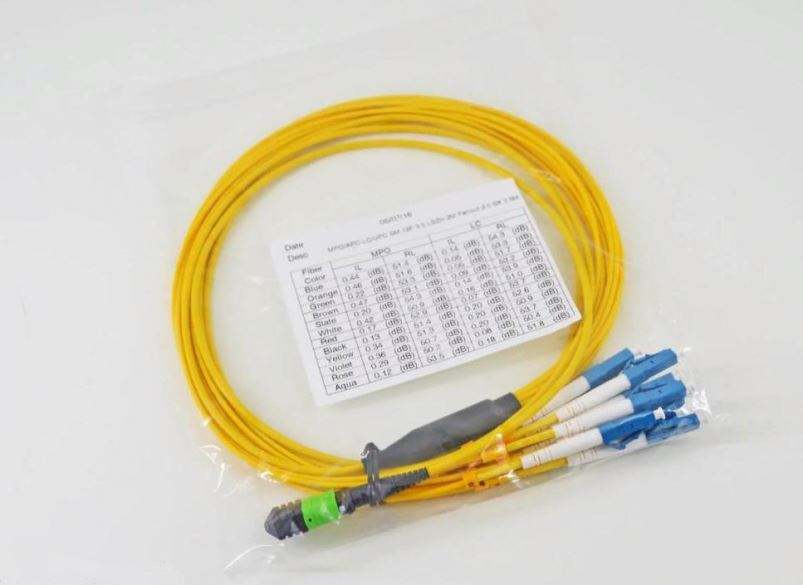

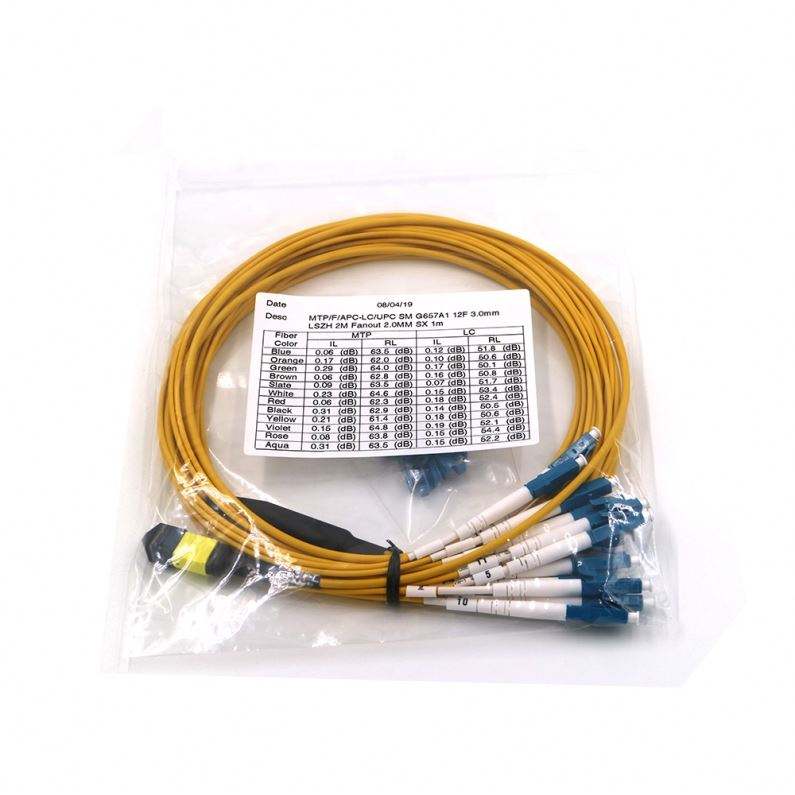

12 cores MPO Cable Optical Fiber Patch Cord MPO to LC Fan-out Fiber Optic jumper
MPO cable assemblies are with 12 core MPO connector female to female. cable type OS1, the cable is widely used for cable expanding in the data center.
Structure
Features
- 12 core cable connection
- OM3 fiber optic cable
- Smoothly upgrade 10G network to 40G, 100G network, support 100G transmission latency requirement
- Adopts mini round type cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
- Use dustproof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
Specifications
|
MPO/MTP Connector |
SM |
MM |
|
Insertion Loss (dB) |
≤0.75 |
≤0.50 |
|
Return Loss (dB)
|
≥60for A PC |
—— |
|
≥50for pc |
—— |
|
|
Male/Female |
Male:With Pins;Female;Without Pins |
|
|
Exchangeability (dB) |
≤0.2(Connect Randomly) |
|
|
Tensile Strength (dB) |
≤0.2(0-15Kgf) |
|
|
Vibration (dB) |
≤0.2(5-50Hz) |
|
|
Temp.Range (dB) |
≤0.2(-40°C~85°C ) |
