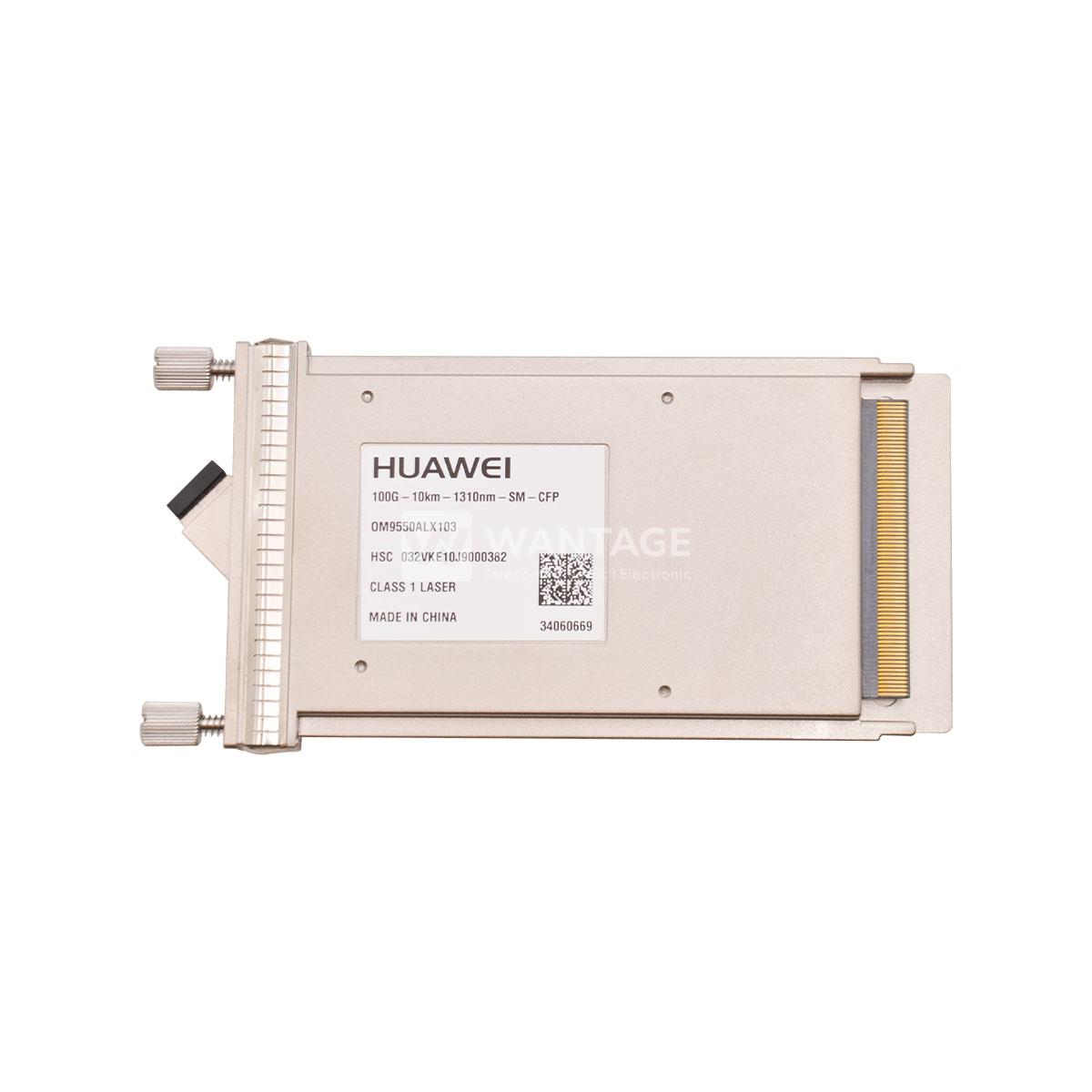

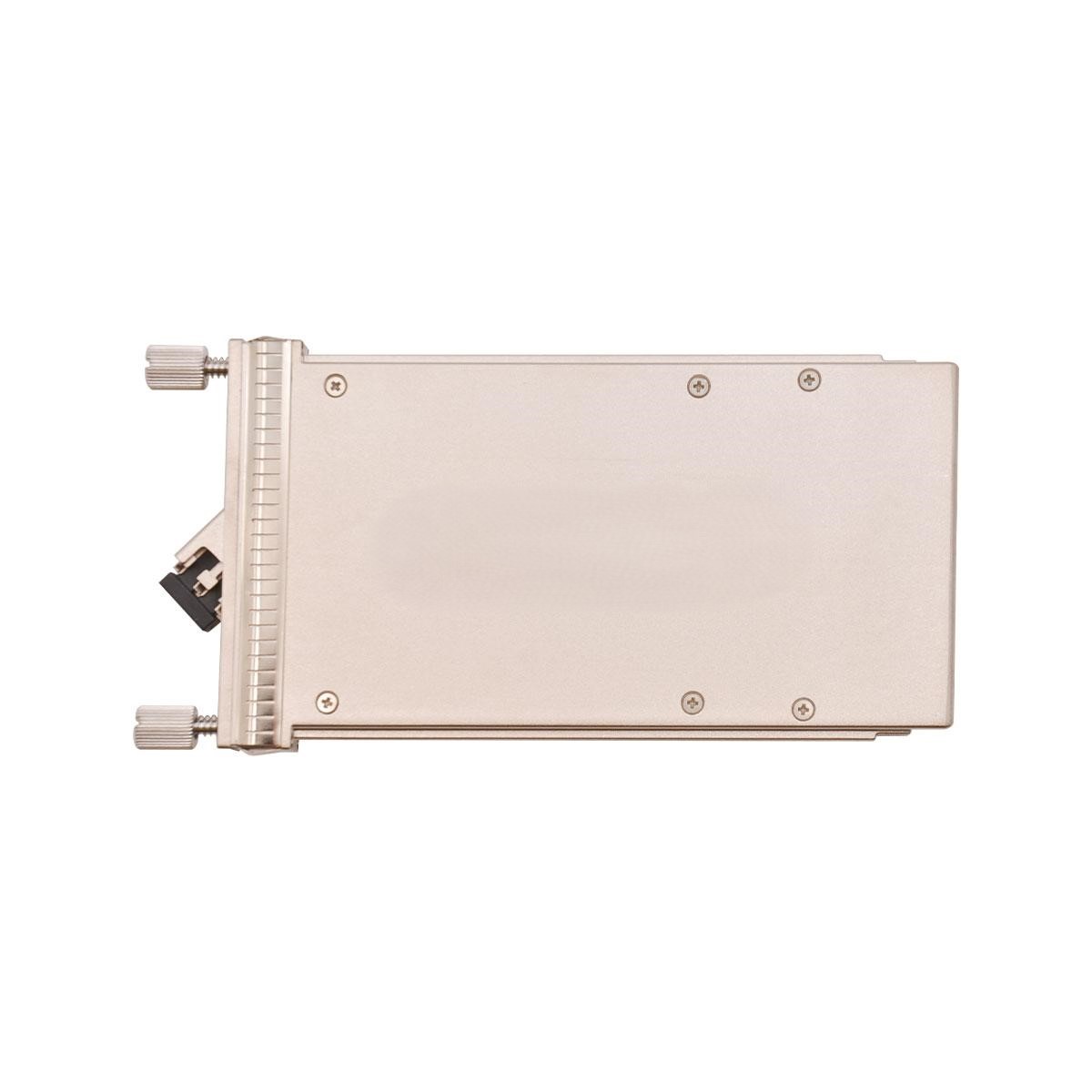

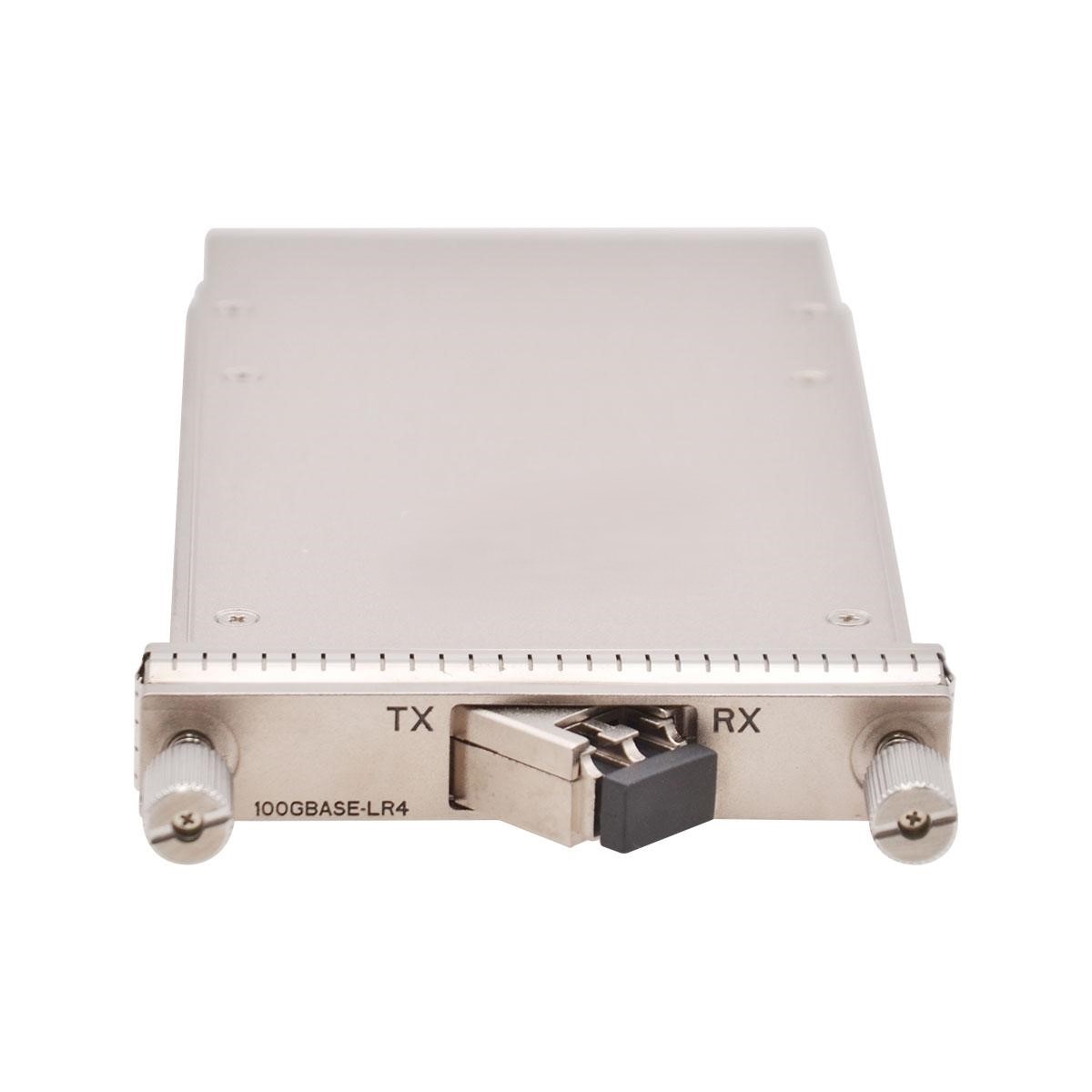

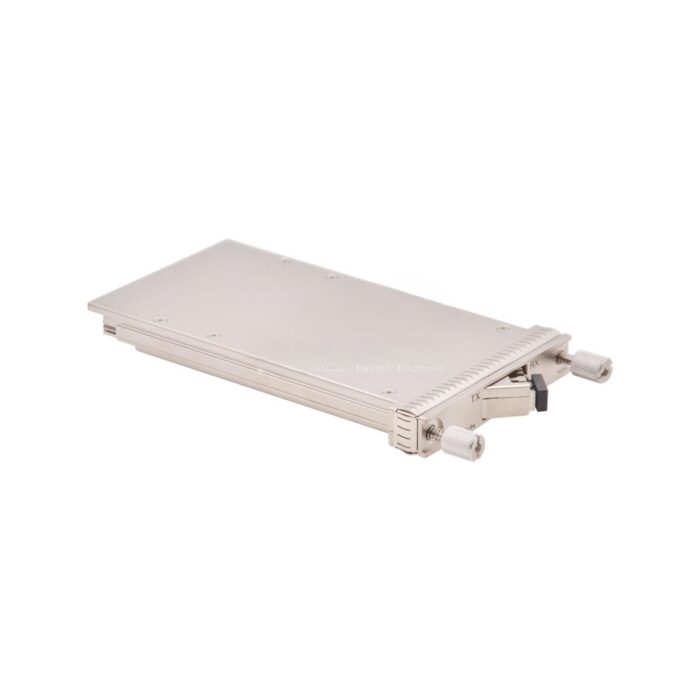

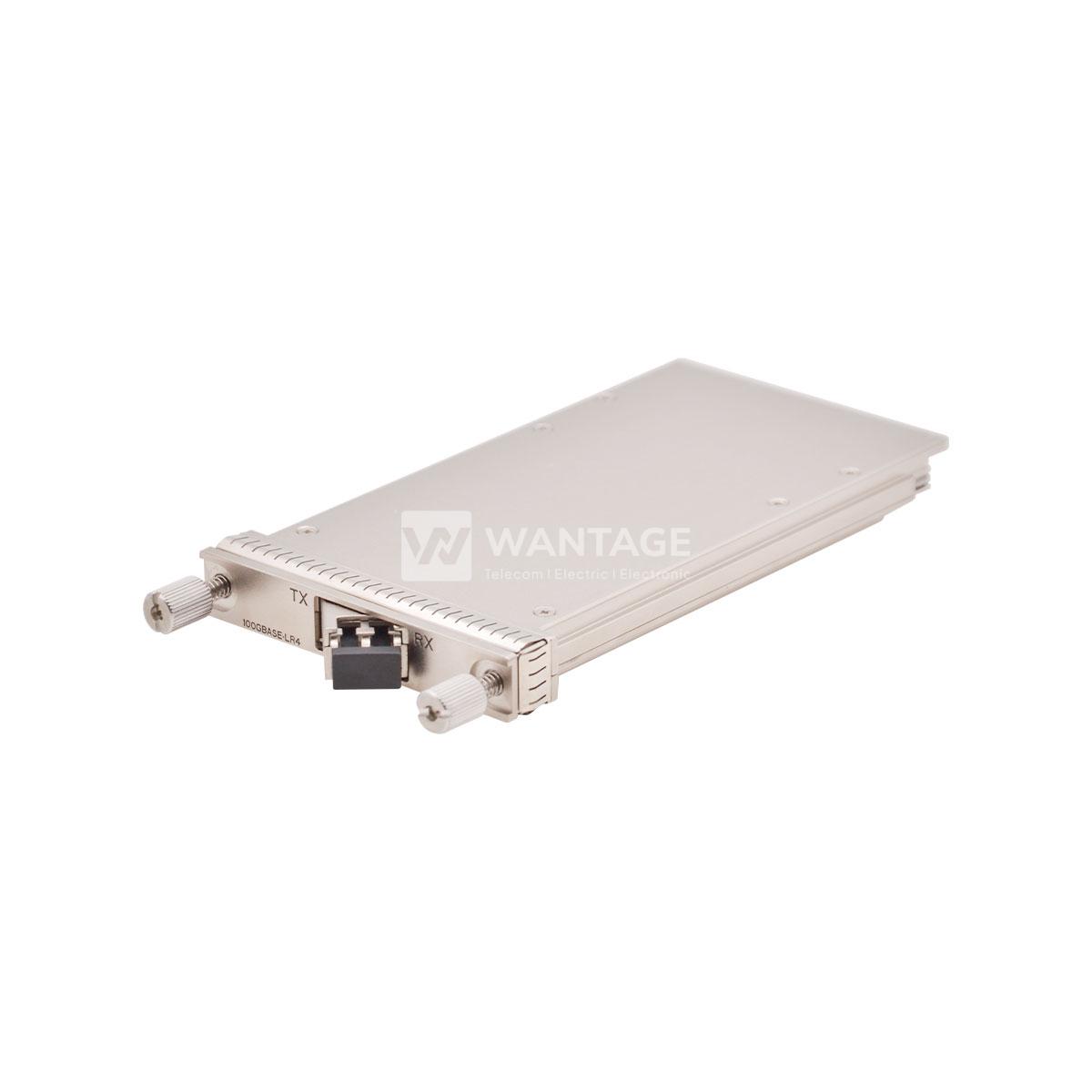

100G-10KM-1310-SM-CFP Optical Transceiver Module
The 100G-10KM-1310-SM-CFP is a high-performance, hot-swappable optical transceiver designed for 100 Gigabit Ethernet (100GbE) and OTN (Optical Transport Network) applications. It uses CFP (C Form-factor Pluggable) technology, operating over single-mode fiber (SMF) with a 1310 nm wavelength and a maximum reach of 10 kilometers.
This module provides a reliable, cost-effective, and high-speed optical link, ideal for use in data centers, enterprise networks, service provider backbone networks, and metro Ethernet infrastructures.
Key Features
-
Form Factor: CFP (C Form-factor Pluggable)
-
Data Rate: Up to 103.125 Gbps
-
Transmission Distance: Up to 10 km on single-mode fiber (SMF)
-
Wavelength: 1310 nm (center wavelength, LAN-WDM or CWDM depending on design)
-
Connector: Duplex LC connector
-
Laser Type: EML (Electro-absorption Modulated Laser)
-
Receiver Type: PIN photodiode
-
FEC Support: Forward Error Correction (typically required for 100GBASE-LR4 standard)
-
Compliance Standards:
-
IEEE 802.3ba 100GBASE-LR4
-
CFP MSA (Multi-Source Agreement)
-
OTN OTU4 standard compatible
-
-
Digital Diagnostics Monitoring (DDM): Supported, for real-time monitoring of parameters like optical power, temperature, voltage, and laser bias current
-
Power Consumption: Typically less than 24W
-
Hot-Pluggable: Enables easy installation and replacement without network interruption
-
Operating Temperature Range: 0°C to 70°C (commercial grade)
Applications
-
100G Ethernet links in data centers
-
Telecom backbone networks
-
Enterprise core switching
-
Metro and long-haul optical transmission
-
Cloud service providers and ISP infrastructures
Technical Specifications: 100G-10KM-1310-SM-CFP
| Parameter | Specification |
|---|---|
| Form Factor | CFP |
| Interface | Duplex LC |
| Maximum Data Rate | 103.125 Gbps |
| Wavelength | 1310 nm (typically LAN-WDM, 4 channels) |
| Reach | Up to 10 km over single-mode fiber |
| Transmitter | EML Laser |
| Receiver | PIN Photodiode |
| Operating Voltage | 3.3V typical |
| Power Consumption | <24W |
| Digital Diagnostics Monitoring | Yes |
| Fiber Type | Single-Mode Fiber (SMF) |
| Standard Compliance | IEEE 802.3ba, CFP MSA, ITU-T G.709 (OTU4) |
Summary:
The 100G-10KM-1310-SM-CFP module is a robust, scalable solution for high-speed 100G Ethernet and OTN links, providing reliable performance over long distances with minimal power consumption. It is an ideal choice for upgrading network infrastructures that demand high bandwidth and long-distance transmission capabilities.
