- Products Status:Stock
- Ports:9
- Transmission Rate:10/100Mbps
- Function:POE, QoS, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.8G
- Model Number:TS6208P-1
- Place of Origin:Guangdong, China
- PoE Standard:IEEE802.3af /IEEE802.3at
- PoE power:52VDC 2.5A
- Power input:100-240VAC 50/60HZ
- Product Name:8 Port PoE Switch
- Uplink Ports:1*100Mbps RJ45
- PoE Ports:1-8 Port Support PoE
- Applications:CCTV Security System
- Manufacturer:GXCOM Technology
- Warranty:1 Year
- Keywords:PoE switch 8 port
- Certification:CE FCC
- Supply Ability2000 Piece/Pieces per Month
- Packaging Detailscarton ,bubble box
- PortShenZhen/Guangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 23 – 100101 – 500>500Lead time (days)51015To be negotiated
100Mbps fast Ethernet 24V 48V PoE Switch 8 9 port for Hikvision CCTV Camera
Overview

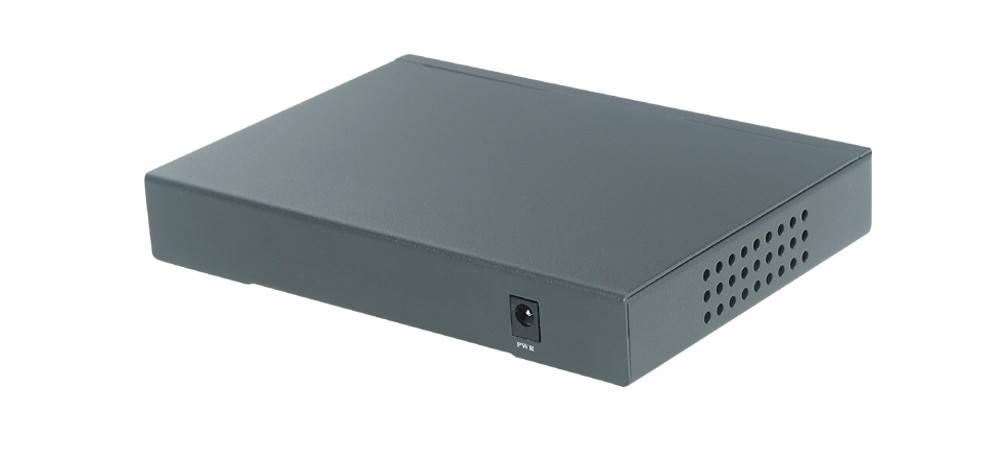

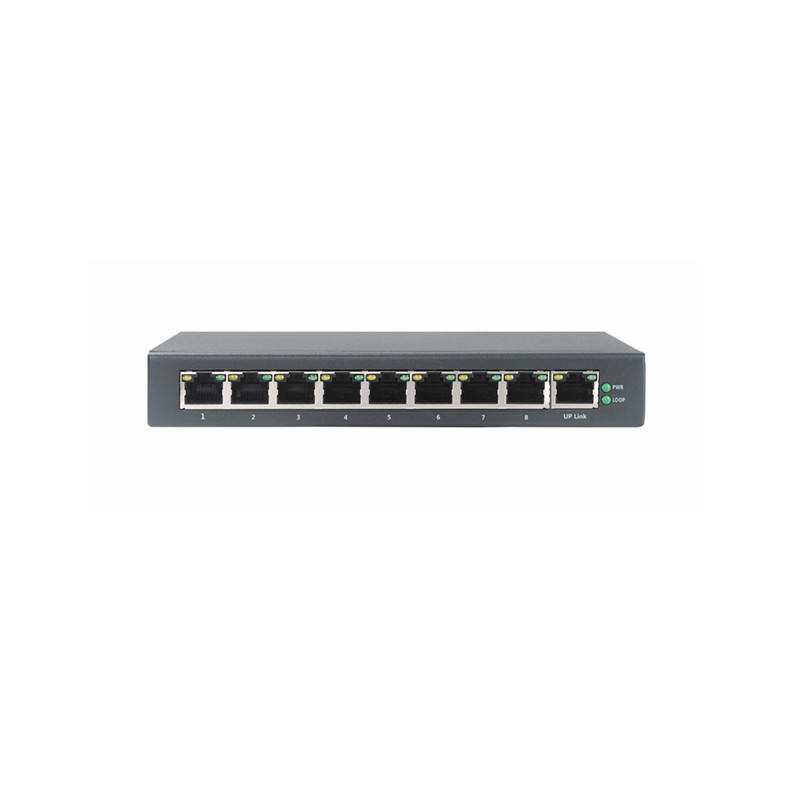

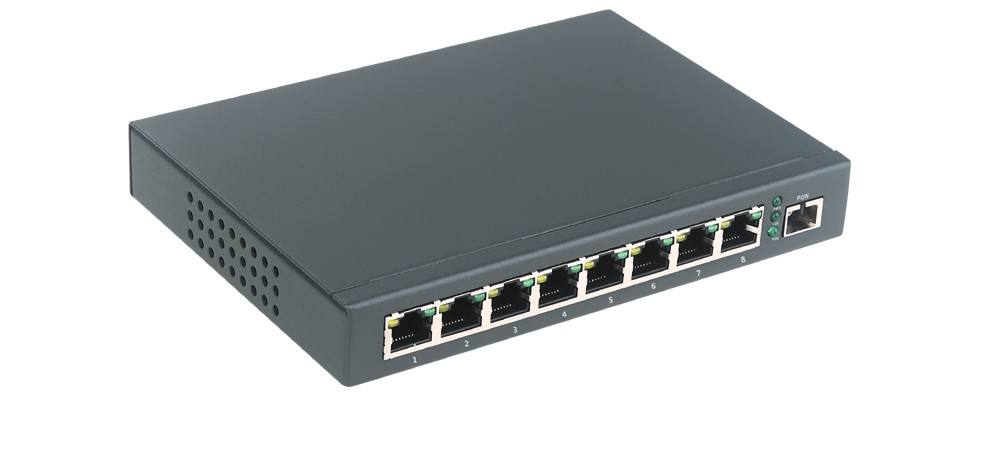

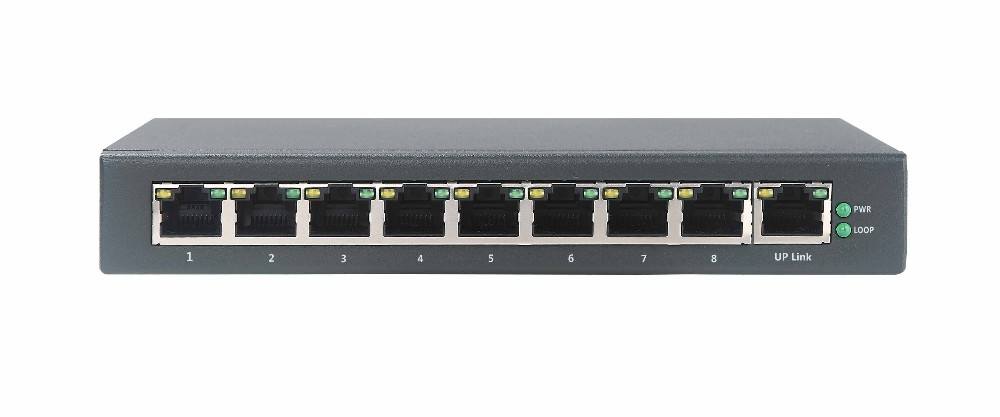

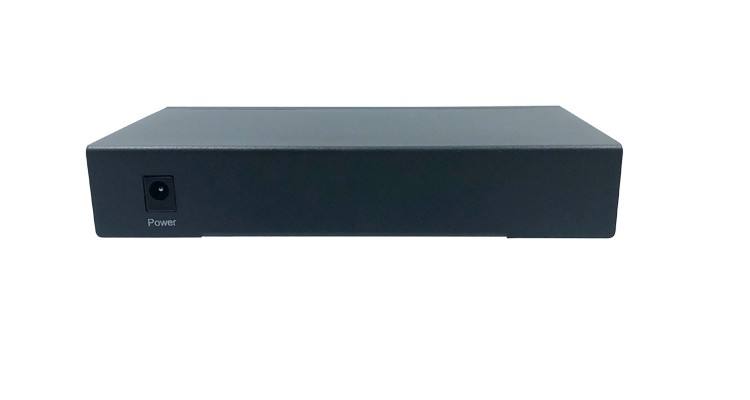

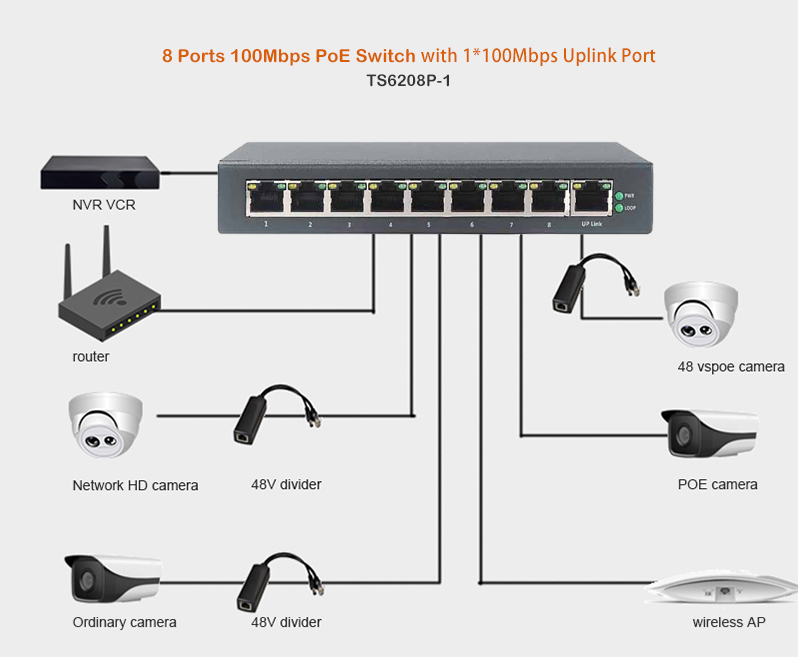

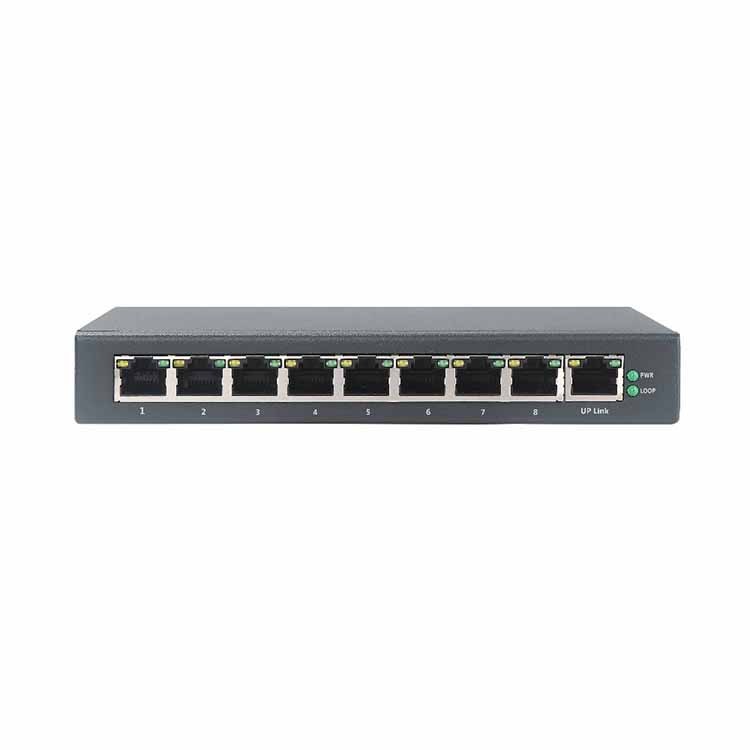

TS6208P-1 is one 8 ports fast Ethernet PoE switch. It supply with 8*100Mbps PoE ports and 1*100Mbps uplink port. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Features:
— 8 ports with PoE, 1 uplink port 10/100M RJ45
— VLAN mode port isolation
— Fully IEEE802.3af/at standard compilant
— Support PoE power up to 30w for each port
— Auto detect powered device(PD)
— Safe and reliable power to each of PoE end device
— Plug&play,no configuration required
|
Technical items
|
Description
|
|
Chipset
|
Realtek RTL8309m
|
|
Interface
|
8×10/100Mbps rj45+1x100Mbps uplink rj45
|
|
PoE port
|
Port 1-8
|
|
PoE power
|
30w per port
Wiring: Data & Power provided over pairs 12& 3 6 Cable: UTP cat.5 or higher |
|
Bandwidth
|
1.8G
|
|
Transmission Method
|
Store and forward
|
|
PoE Standard
|
IEEE802.3 af/at
|
|
LED indicator
|
Per port: Link,speed,PoE active
|
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
