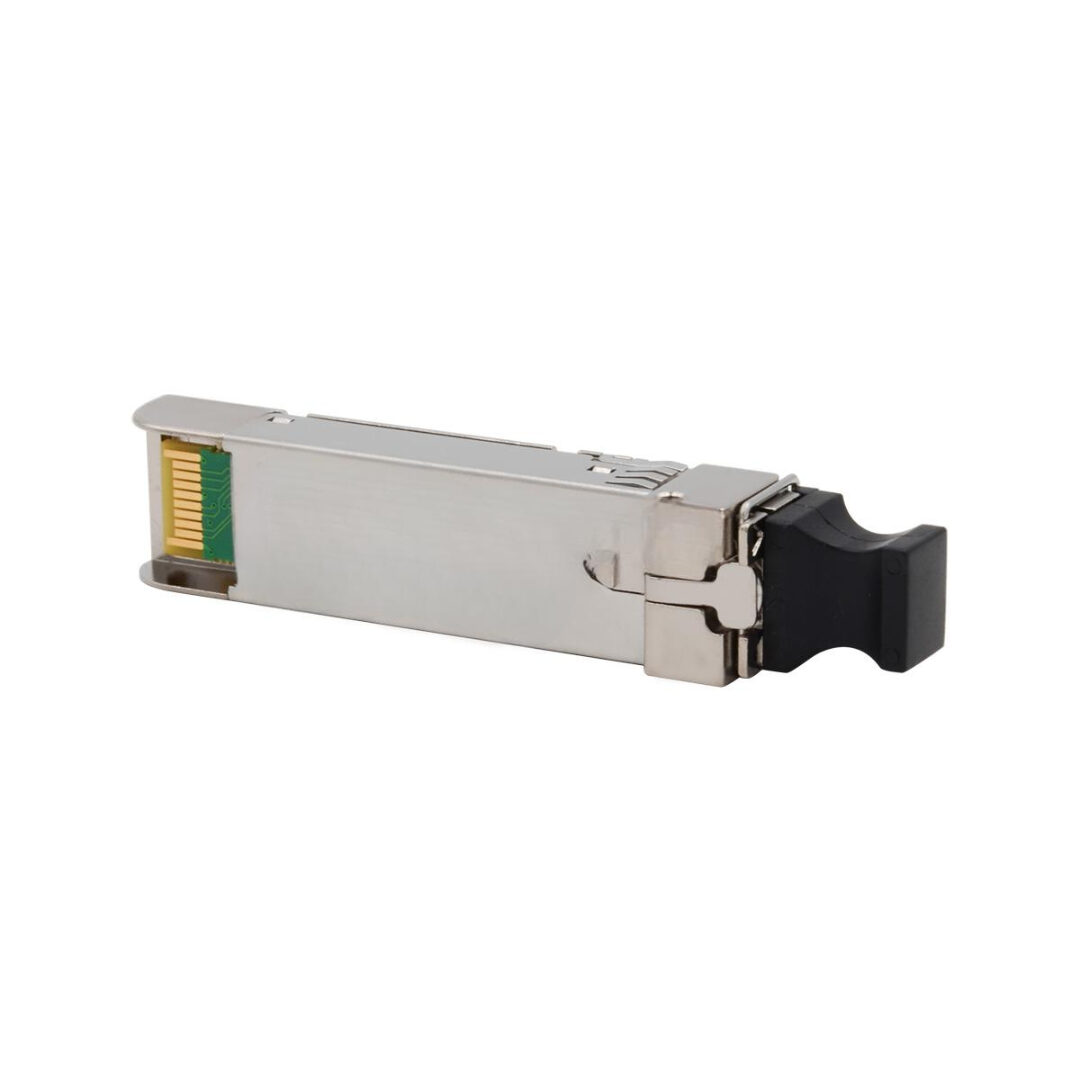

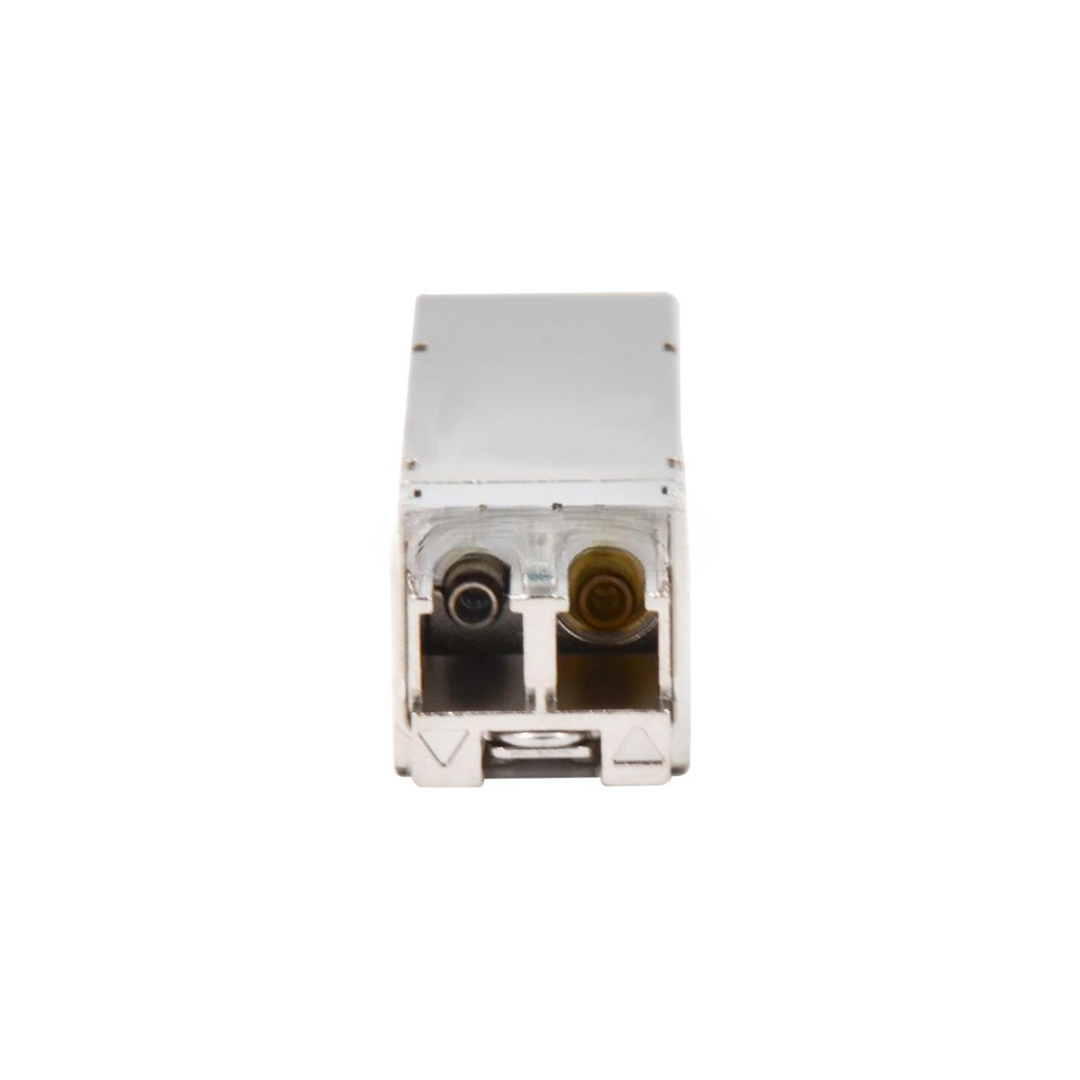

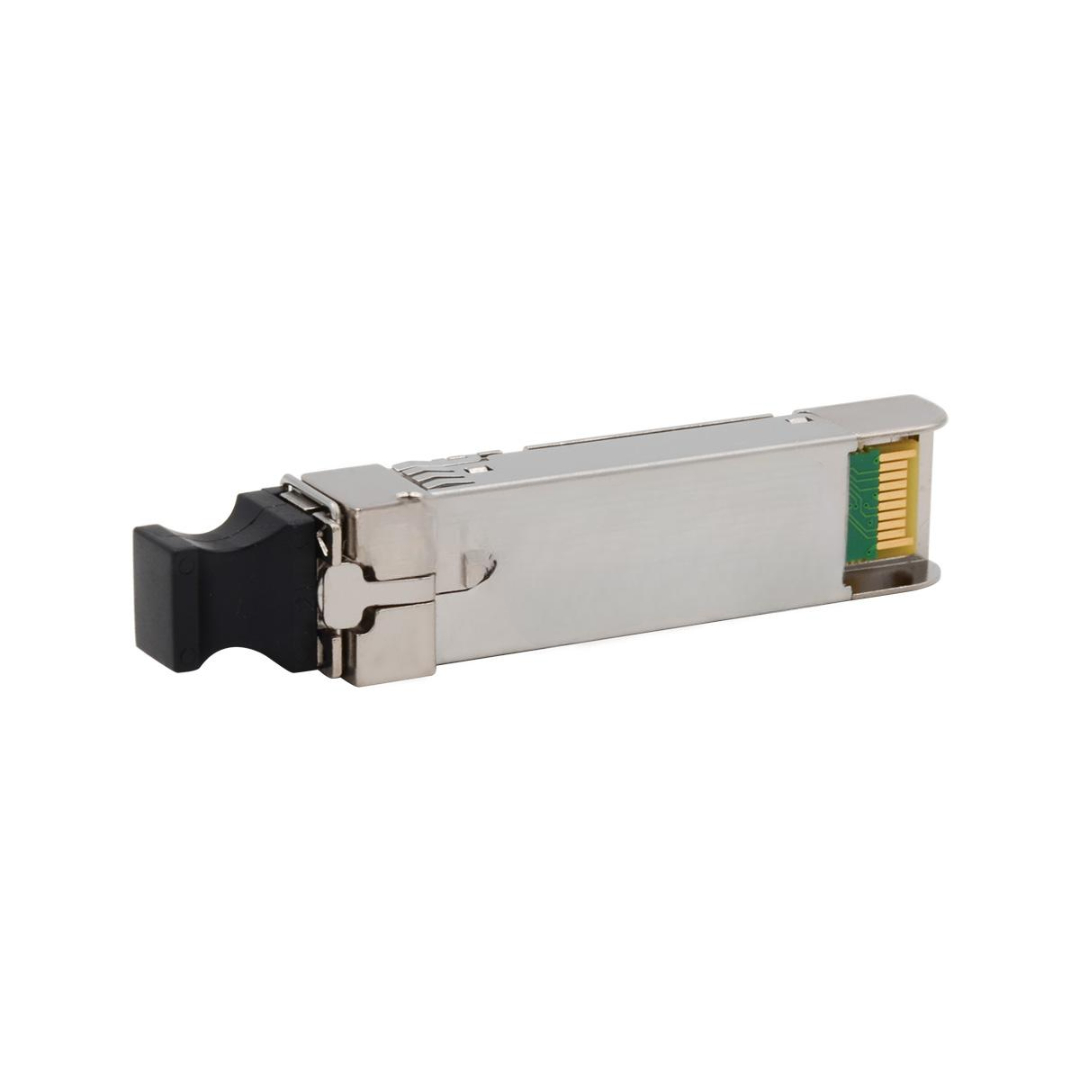

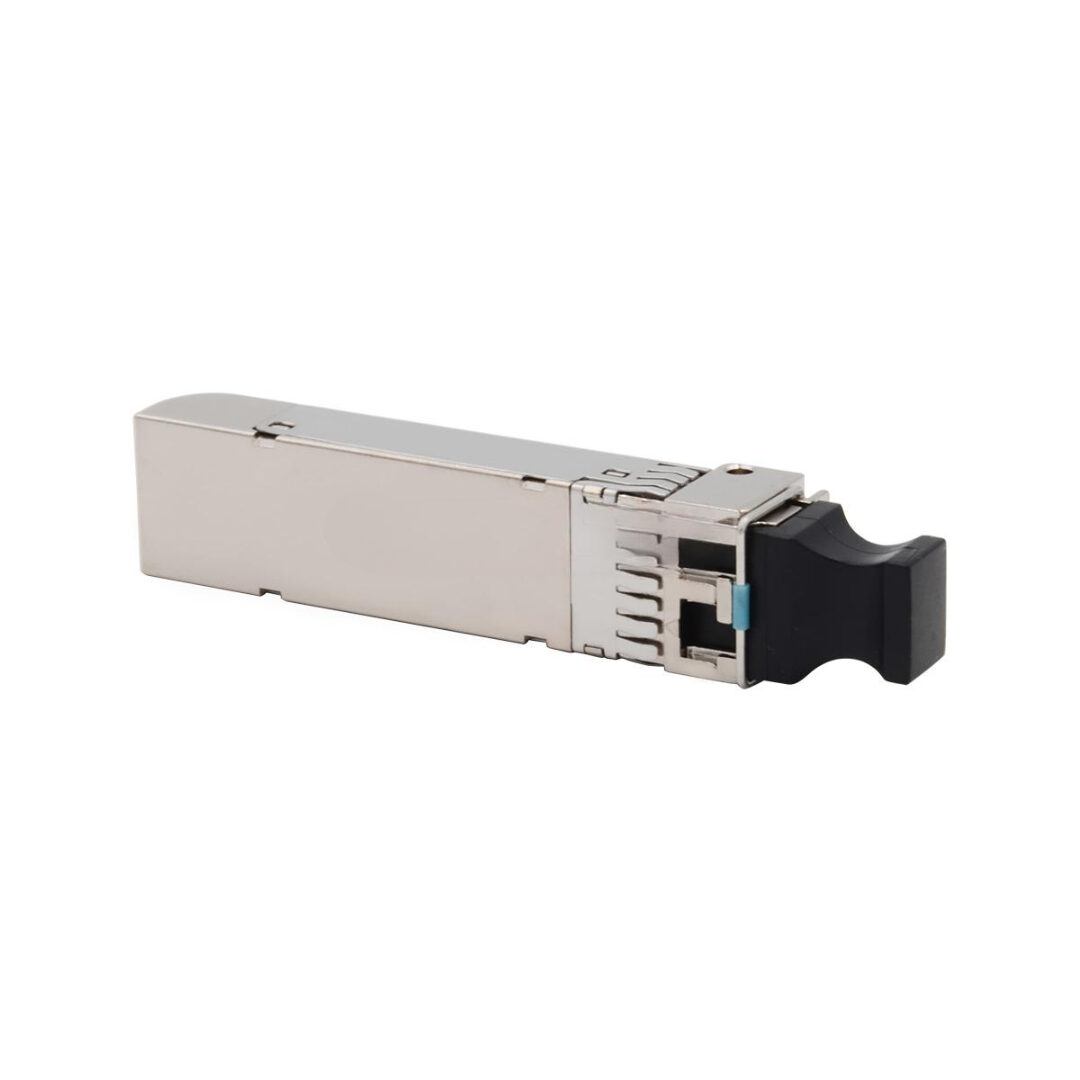

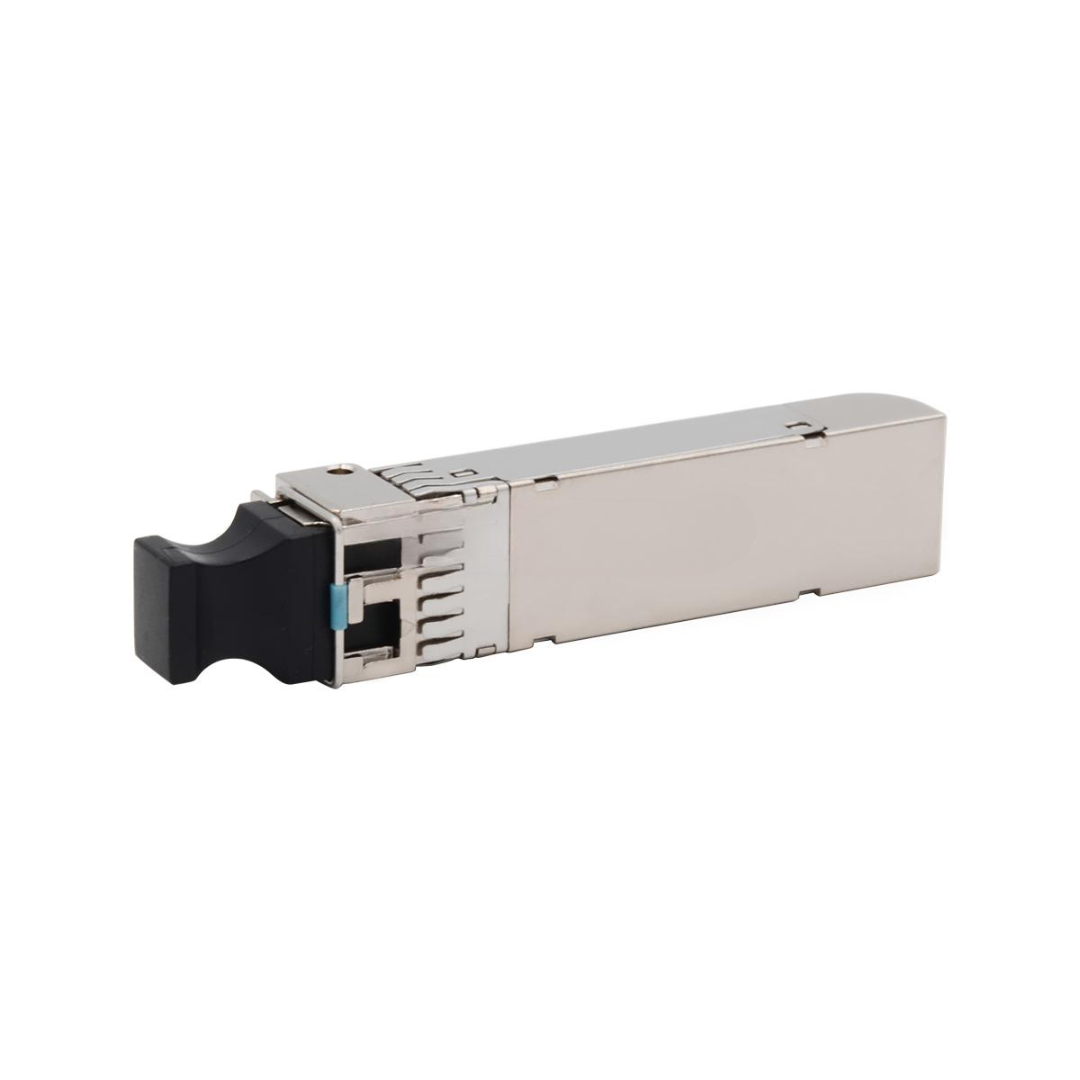

10G 10KM SFP+/OSX010000 FNS Huawei Brand New Transceiver
The 10G 10KM SFP+/OSX010000 FNS Huawei 10G SFP+ Optical Transceiver is a high-quality, hot-swappable module engineered for 10 Gigabit Ethernet (10GbE) and SDH/SONET applications over single-mode fiber (SMF) with transmission distances of up to 10 kilometers. Designed to meet the demands of modern enterprise, metro, and carrier networks, this transceiver ensures exceptional performance, stability, and Huawei system compatibility.
Ideal for integration with Huawei switches, routers, and optical transport equipment, the module adheres to MSA (Multi-Source Agreement) and IEEE 802.3ae standards, ensuring broad interoperability and easy deployment.
Key Features
- Model: OSX010000 FNS
- Condition: 100% Brand New and Original Huawei
- Transmission Speed: 10.3125 Gbps (10G Ethernet), 9.953 Gbps (SDH/SONET)
- Reach: Up to 10 km over single-mode fiber
- Wavelength: 1310 nm
- Connector Type: LC Duplex
- Form Factor: SFP+ (Small Form-factor Pluggable Plus)
- Digital Diagnostic Monitoring (DDM): Supported
- Hot-Pluggable: Enables easy module replacement without service interruption
- Protocol Compliance: IEEE 802.3ae, SFF-8472, ITU-T G.959.1
Technical Specifications
| Specification | Details |
|---|---|
| Model | OSX010000 FNS |
| Data Rate | 10.3125 Gbps |
| Transmission Distance | 10 km (SMF) |
| Wavelength | 1310 nm |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Connector | LC Duplex |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| Storage Temperature | -40°C to +85°C |
| Digital Diagnostics | Yes (DDM/DOM) |
| Power Supply Voltage | 3.3V |
| Power Consumption | <1.5W |
| Protocols | 10GBASE-LR, SDH STM-64 |
| Compatibility | Huawei switches (S-series, CloudEngine), routers, OSN equipment |
10G 10KM SFP+/OSX010000 Applications
- Enterprise Networks – High-speed backbone interconnects over 10 km
- Data Centers – Server, storage, and TOR switch connections
- Metro Ethernet – Optical access and aggregation layers
- Carrier-Grade Networks – Huawei OSN series and 10G SDH/SONET transport
- Campus Connectivity – Long-distance link between remote buildings
Customization & OEM Options
- Logo & Label Customization – Add your company branding or serials
- Performance Tuning – Custom optical power range and sensitivity settings
- Extended Temp Models – Industrial temperature range available upon request
- Bulk Packing – Tray, foam or sealed ESD packaging for large volume shipments
- Protocol-Specific Variants – Support for additional protocols as required
Wholesale & Global Delivery Services
- Genuine Huawei OEM Stock – Guaranteed authentic with serial verification
- Bulk Pricing Available – Discounts for orders of 10, 50, 100+ units
- Fast Dispatch – Same-day or next-day shipping for stocked items
- Worldwide Logistics – International delivery with tracking & compliance
- Tech Support – Assistance with installation, compatibility, and NMS integration
Why Choose the Huawei 10G 10KM SFP+/OSX010000
Proven Reliability – Stable, long-term performance across Huawei ecosystems
Long-Reach Support – Covers up to 10 km without repeaters
Low Power Consumption – Ideal for energy-efficient network design
Full DDM Support – Monitor optical power, temperature, voltage, and more
Huawei Certified – Compatible with wide range of Huawei transport and switching gear
Contact Us for Datasheets, Bulk Orders & Pricing
Whether you’re building a 10G backbone, upgrading your telecom core, or expanding a metro network, the Huawei OSX010000 FNS SFP+ is your trusted, high-performance transceiver.
Get in touch now for expert support, technical specifications, and bulk procurement offers!
