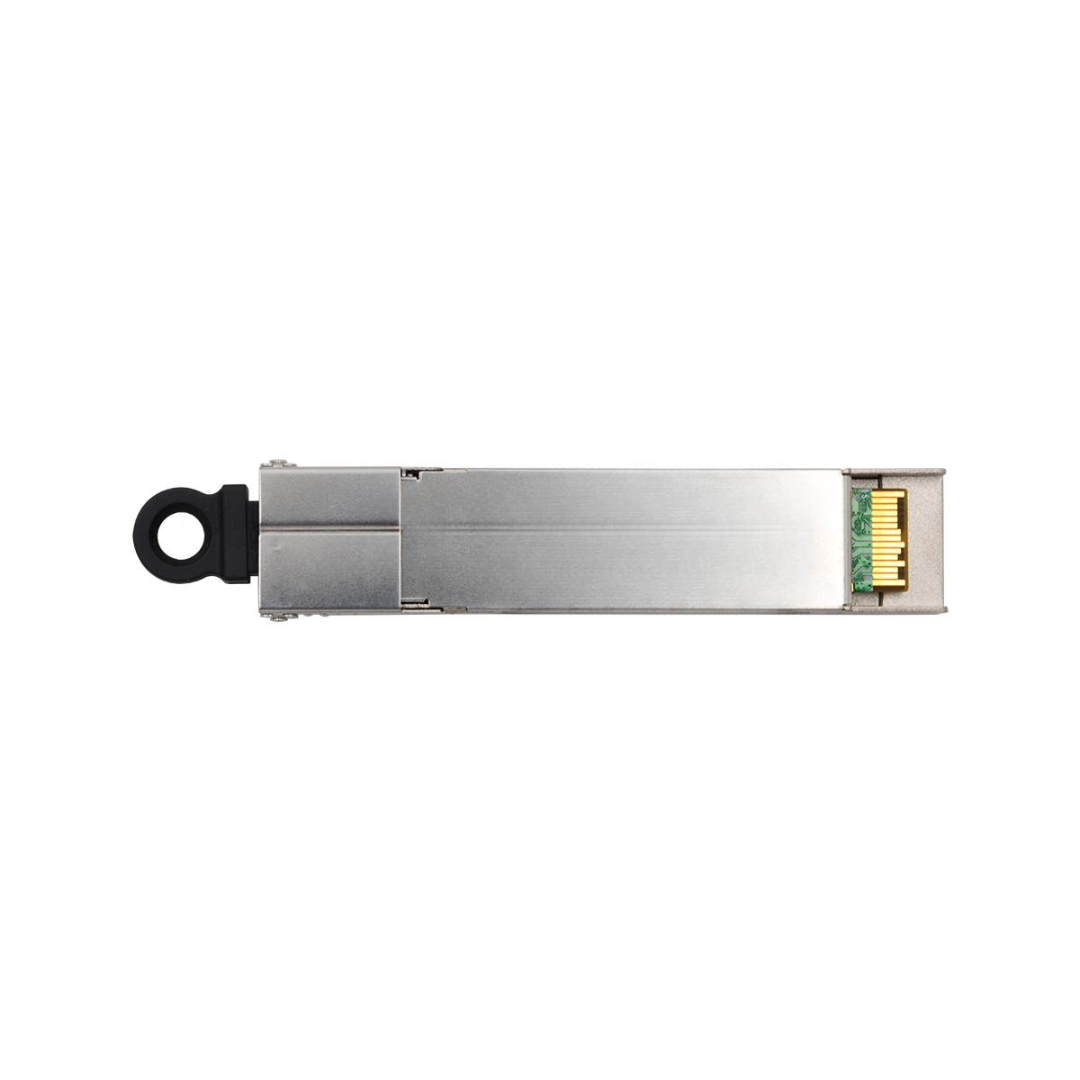

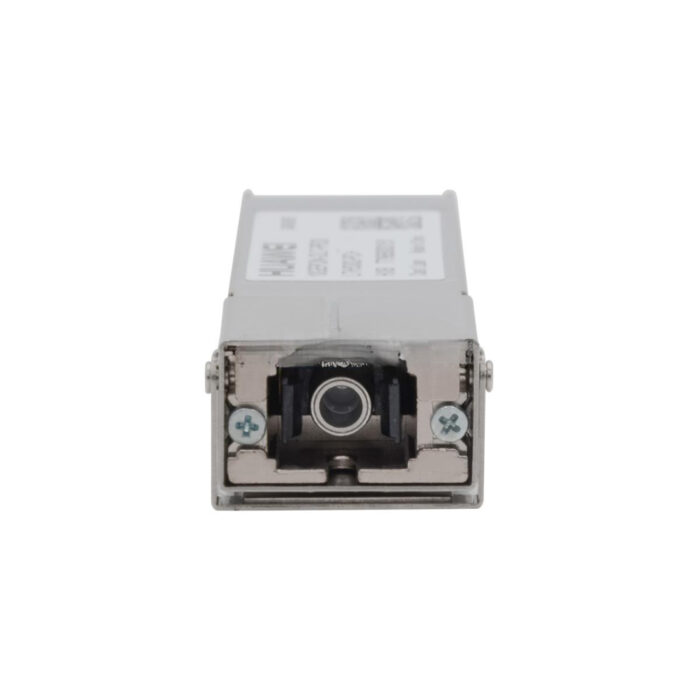

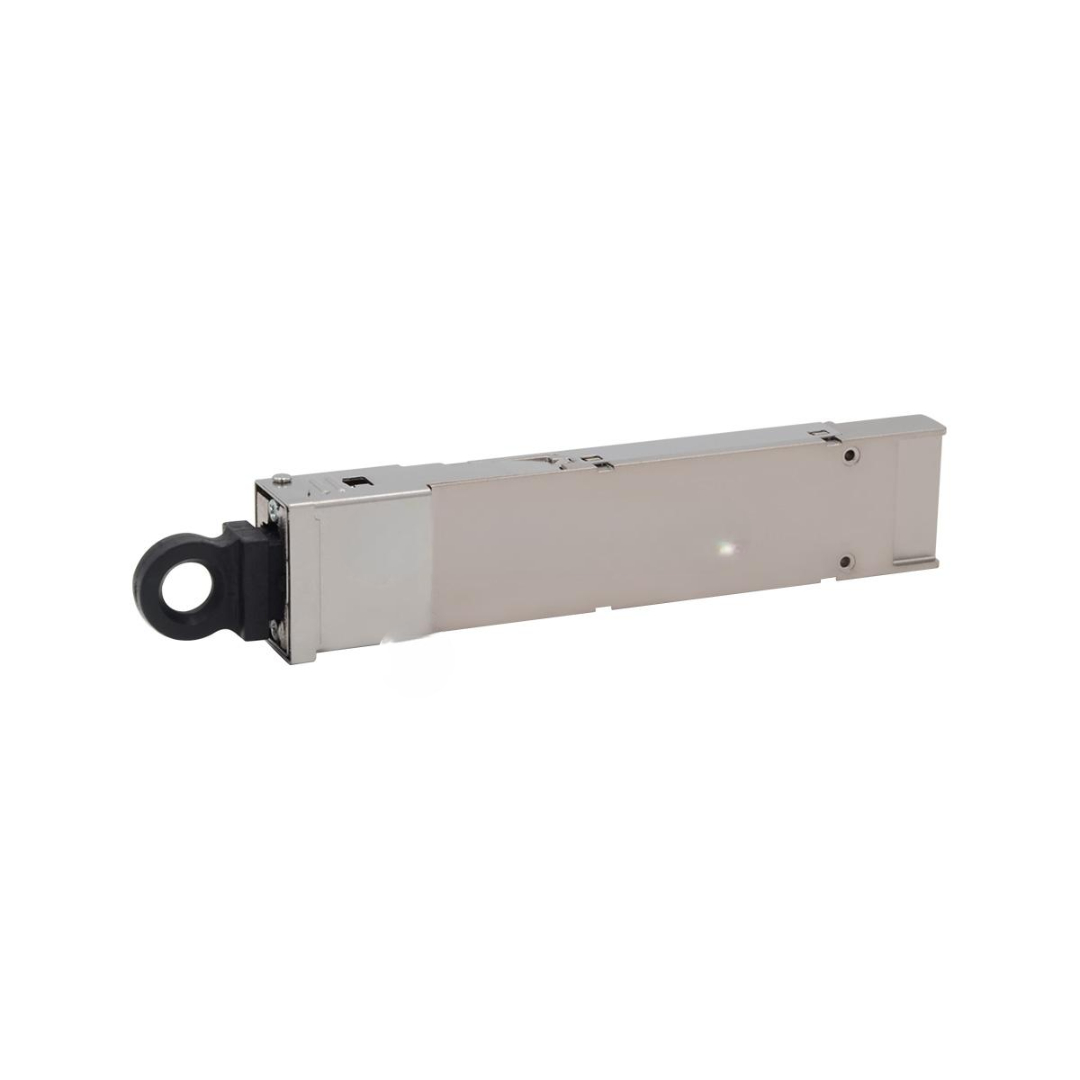

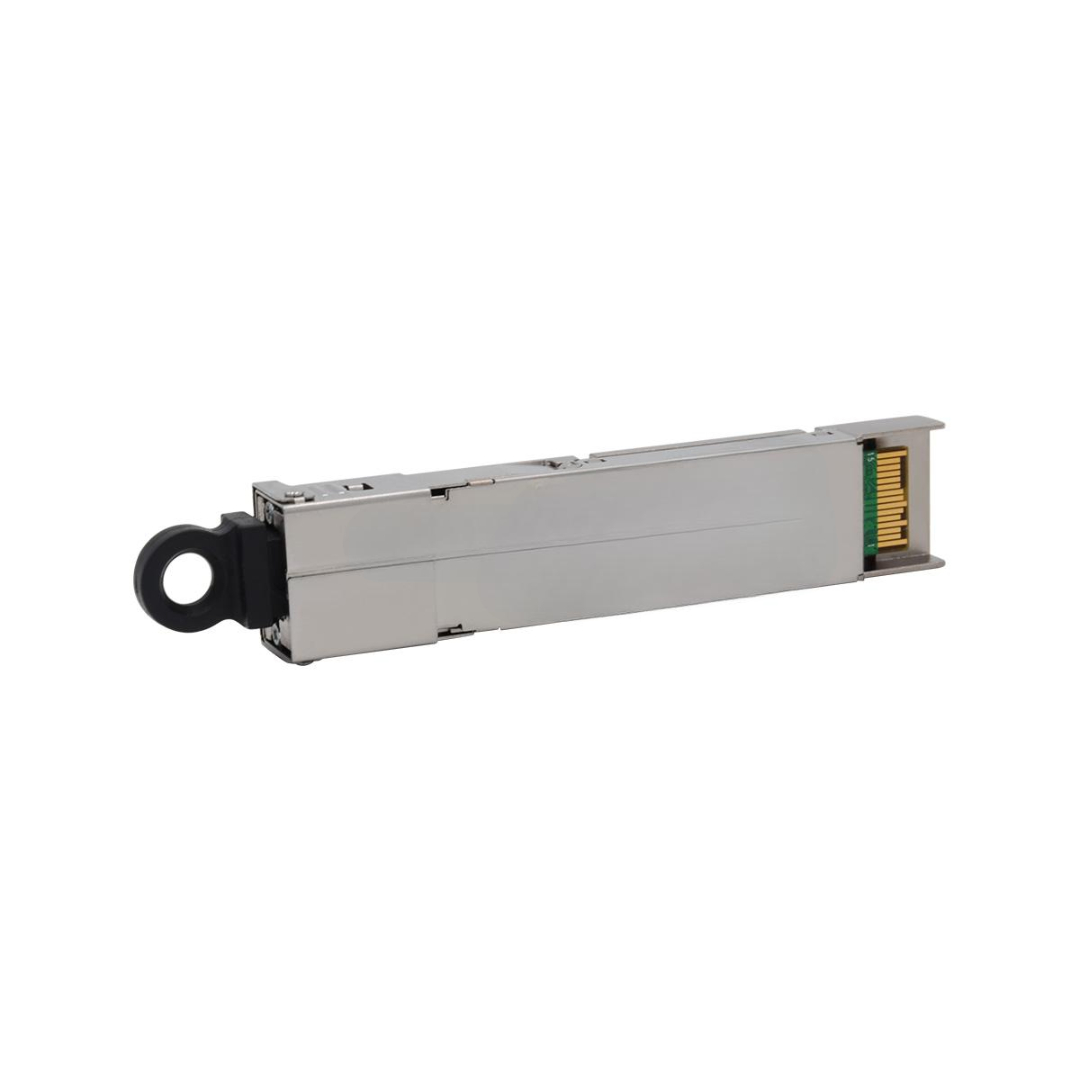

10G EPON OLT PR30 Huawei High Quality Optical Transceiver
The 10G EPON OLT PR30 Huawei Optical Transceiver is a high-performance, original optical module designed for 10G EPON OLT (Optical Line Terminal) applications. Engineered to comply with IEEE 802.3av and China Telecom standards, this module offers stable, high-speed upstream and downstream transmission over single-mode fiber (SMF) with distances up to 20–30 km, making it ideal for next-generation broadband deployments.
Key Features
- Model: 10G EPON OLT PR30
- Brand: Huawei (Original & New)
- Application: 10G EPON Optical Line Terminal (OLT)
- Transmission Rate: 10.3125 Gbps downstream / 1.25 Gbps upstream
- Distance Support: Up to 30 km over SMF
- Connector Type: SC/UPC, single-fiber bidirectional
- Wavelength: 1577 nm TX / 1270 nm RX
- Form Factor: SFP+
- Digital Diagnostics: DDM/DOM support for real-time performance monitoring
- Hot-Pluggable: Yes — supports live insertion and removal
Technical Specifications
| Specification | Details |
|---|---|
| Form Factor | SFP+ |
| Standard Compliance | IEEE 802.3av, PX30+, PX20+, PX10, RoHS |
| Data Rate (Downstream) | 10.3125 Gbps |
| Data Rate (Upstream) | 1.25 Gbps |
| Wavelength TX/RX | 1577 nm TX / 1270 nm RX |
| Distance | Up to 30 km over single-mode fiber |
| Connector Interface | SC/UPC simplex |
| Transmission Type | BiDi (Bidirectional over one fiber) |
| Tx Power | +4 to +9 dBm |
| Rx Sensitivity | ≤ -28 dBm |
| Power Supply Voltage | 3.3V |
| Power Consumption | ≤ 2W |
| Operating Temperature | -5°C to +85°C (industrial grade available) |
| Digital Diagnostics | DOM/ DDM compliant |
| Compatible Equipment | Huawei MA5800, MA5608T, and other Huawei OLTs |
10G EPON OLT PR30 Applications
- 10G EPON OLT Deployments — Delivers high-speed broadband to subscribers
- FTTH Networks — Ideal for fiber-to-the-home and multi-dwelling units (MDUs)
- Carrier Networks — Centralized OLT transmission across metro areas
- ISP Infrastructure — Perfect for upstream aggregation and downstream access
- Smart City & Enterprise Fiber Access — Stable and scalable transmission
10G EPON OLT PR30 Customization & OEM Options
- Label Customization — White-label service with company logo and serial numbers
- EEPROM Programming — Vendor-coded transceivers for compatibility across platforms
- Performance Binning — Tailored TX/RX power levels for different network conditions
- Temperature Options — Extended industrial versions for outdoor environments
- Bundled Supply — Available in kit with OLT chassis or PON interface boards
Wholesale & Global Supply
- Bulk Availability — Sourced directly from Huawei-authorized inventory
- Competitive Pricing — Discounted rates for resellers, ISPs, and integrators
- Fast Shipping — Export-compliant packaging and express global delivery
- Warranty Support — 1–3 year limited warranty included
- Technical Assistance — Expert consultation for network deployment and tuning
Why Choose 10G EPON OLT PR30 Huawei Optical Transceiver
Huawei OEM Quality – Original components ensure reliability and performance
Long-Reach Transmission – Up to 30 km over SMF without signal degradation
Full EPON Standard Compliance – Interoperable with standard-compliant ONUs
Cost-Effective – Ideal balance of performance, durability, and pricing
Low Power & Heat – Highly energy-efficient, suited for dense OLT deployments
Contact Us for Datasheets, Samples, or Bulk Pricing
Upgrade your fiber access infrastructure with the Huawei 10G EPON OLT PR30 Transceiver — a trusted, high-efficiency solution for high-speed broadband access. Contact us now for real-time stock, OEM support, and wholesale offers.
