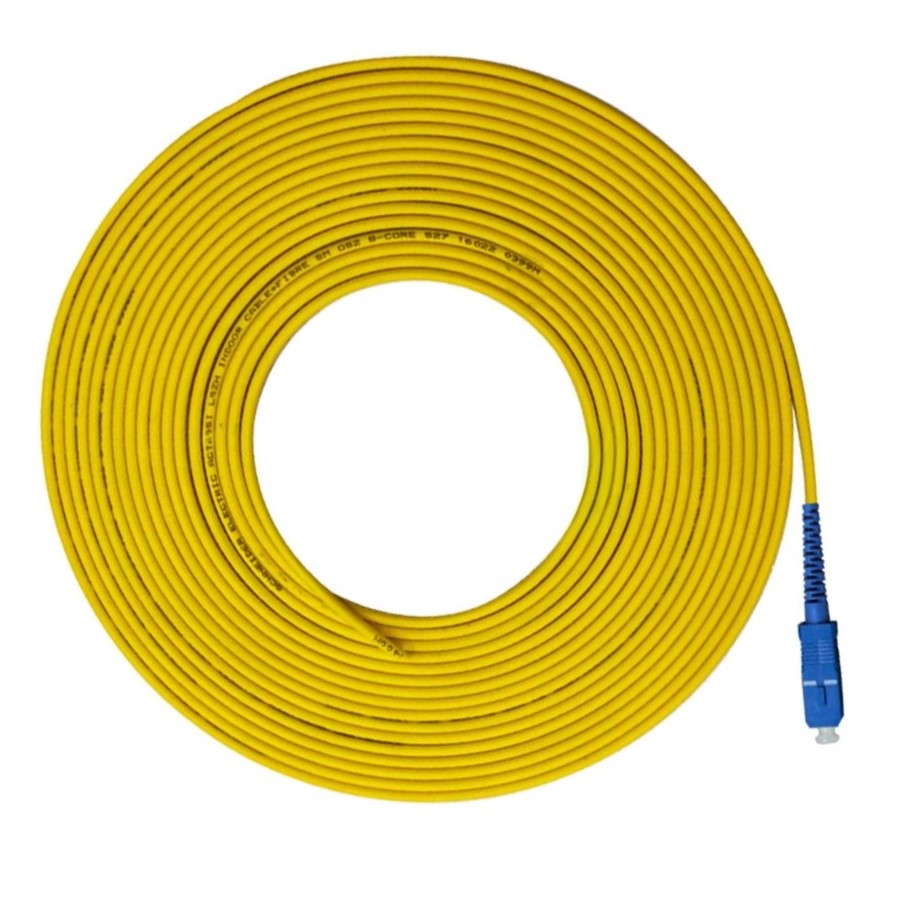

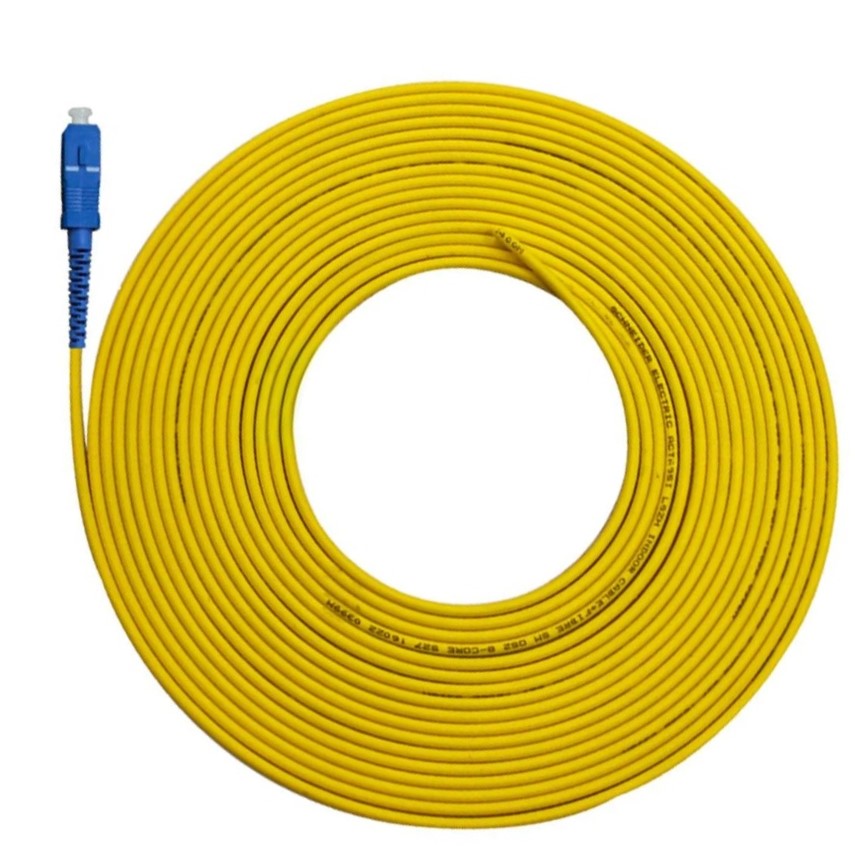

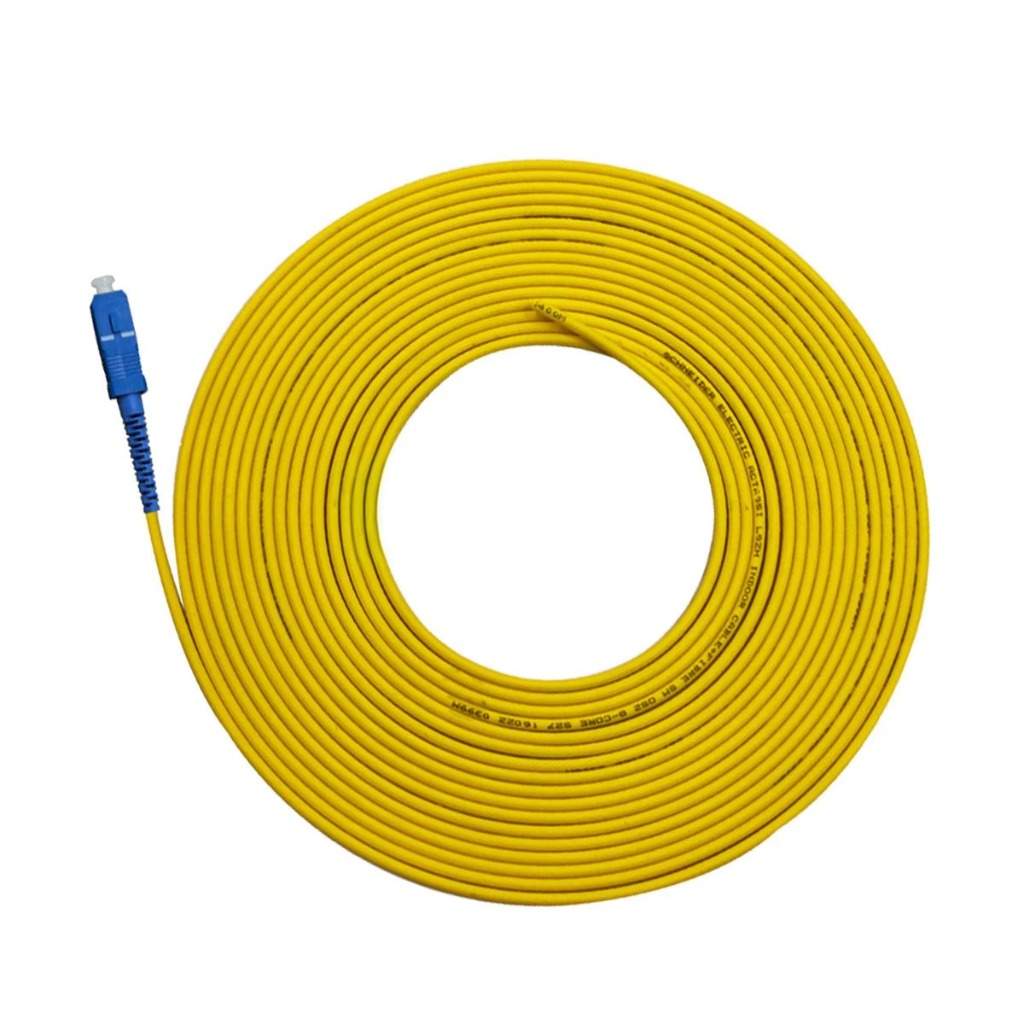

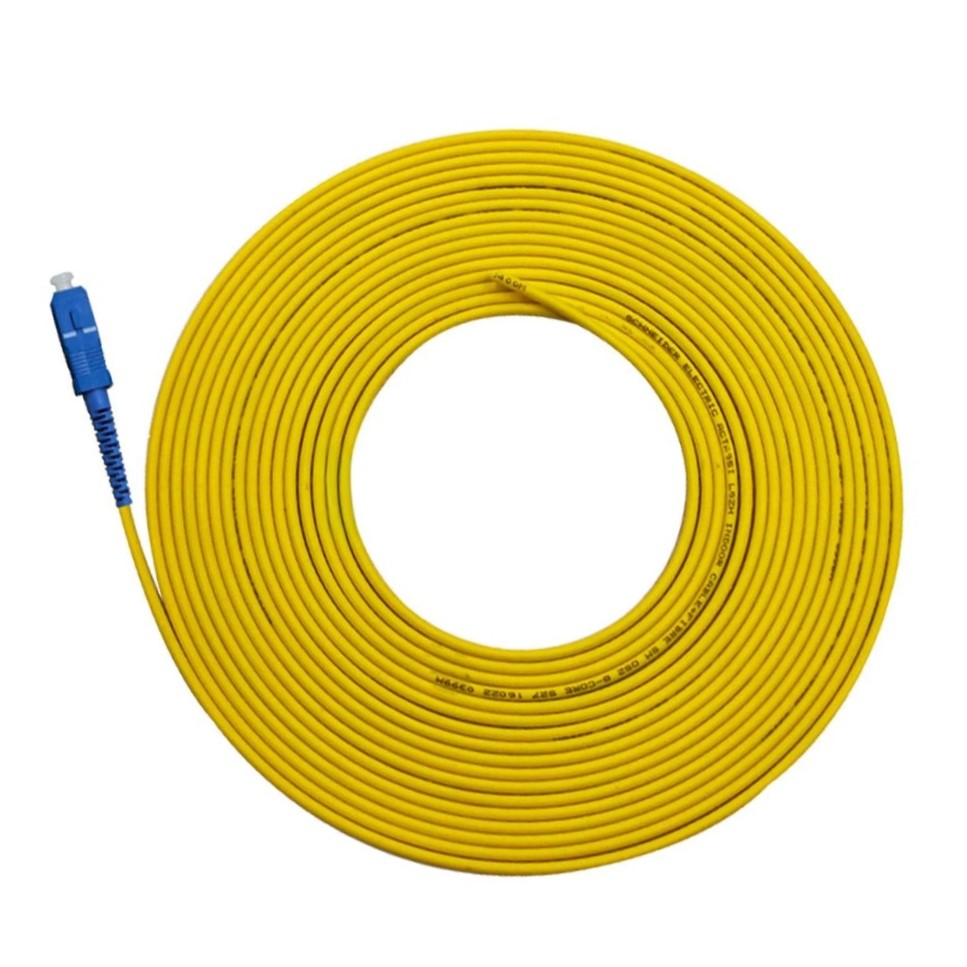

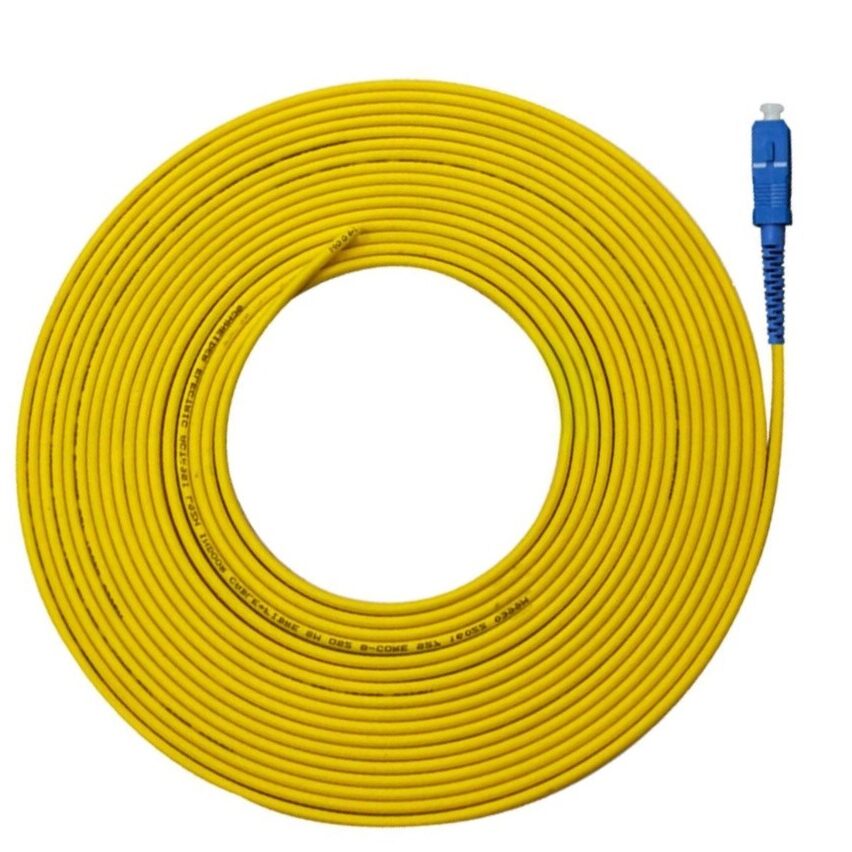

10M 2mm SC/UPC Original New Single Mode Fiber Pigtail
The 10M 2mm SC/UPC Single Mode Fiber Pigtail is a precision-manufactured, factory-polished optical pigtail designed to deliver low-loss, high-performance splicing and patching for modern FTTx, backbone, and enterprise fiber optic networks.
Featuring a standard SC/UPC connector, this pigtail offers low insertion loss, high return loss, and stable optical performance, making it ideal for applications where precise, low-reflectance connections are essential. The 10-meter length provides convenient flexibility for splicing, routing, or connecting to patch panels and ODFs over longer distances inside racks or buildings.
Each unit is produced with premium single mode fiber (G.652.D or G.657.A1), tightly buffered in a 2mm jacket for durability, easy handling, and secure installation.
Key Features
-
Length: 10 meters (custom lengths available)
-
Fiber Type: Single Mode (SM), standard G.652.D or G.657.A1
-
Connector: SC/UPC with precision UPC polish for optimal performance
-
Cable Diameter: 2mm tight-buffered jacket
-
Insertion Loss: ≤0.3dB typical
-
Return Loss: ≥50dB (UPC)
-
Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC available
-
Color: Standard yellow jacket for SM fiber; other colors on request
-
Compliance: Fully compliant with IEC, Telcordia GR-326, RoHS standards
Tech Specs
| Connector | Return Loss | Insertion Loss | Repeatability | Reliability | Operating Temperature |
|---|---|---|---|---|---|
| PC (SM) | ≥50 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40°C ~ +80°C |
| UPC (SM) | ≥55 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40°C ~ +80°C |
| APC (SM) | ≥60 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug | –40°C ~ +80°C |
10M 2mm SC/UPC Applications
The 10M 2mm SC/UPC Single Mode Fiber Pigtail is perfect for:
• FTTx (FTTH, FTTC, FTTB) fiber access networks
• Data center interconnections and fiber patching
• Telecom backbone or long-haul splicing
• Optical Distribution Frames (ODFs) and patch panels
• CATV, broadband, and high-speed internet networks
• Secure enterprise or campus networks
Customization & OEM Services
We offer full customization for the 10M SC/UPC pigtail to match your project needs:
• Custom lengths: Any length from 0.5M to 100M+
• Connector options: SC, LC, FC, ST, E2000 with UPC/APC polish
• Fiber type: SM (G.652.D, G.657.A1/A2) or MM (OM2/OM3/OM4)
• Jacket material: LSZH, PVC, Armored, or outdoor-rated
• Color coding: Different jacket colors for easy ID & management
• Private labeling: Custom logo, barcodes & reseller packaging available
• Testing & reports: 100% tested for insertion & return loss with detailed reports on request
10M 2mm SC/UPC Wholesale & Bulk Orders
Ideal for installers, system integrators, ISPs, and distributors:
• Direct factory pricing with attractive volume discounts
• Stable stock & fast lead times to meet urgent deployment needs
• Export-standard secure packaging to protect connectors during transit
• Dedicated account managers for bulk projects & repeat orders
• Full technical support & warranty service for total peace of mind
Why Choose Us
100% Original & Brand New — Quality-tested for stable performance
Customizable & Flexible — Tailored to your project’s exact specs
Competitive Wholesale Pricing — Ideal for FTTx rollouts & backbone expansion
Safe Global Logistics — Professionally packaged for damage-free delivery
Expert Technical Support — Guidance from pre-sale to deployment
Contact Us for a Quote
Build a stable, high-performance fiber network with the 10M 2mm SC/UPC Original New Single Mode Fiber Pigtail — your trusted choice for low-loss splicing and secure connections over extended runs.
