- Use:ftth
- Warranty Time:3 years
- Insertion loss:0.3dB
- Fiber Type:G657A1
- Connector:SC APC
- Material:PVC
- Certification:ISO9001:2015
- Warranty:3 Years
- Length:1M, 2M, Customized
- Wavelength:1310nm/1490nm/1550nm
- No. of Fiber:12.
-
- Supply Ability
- 150000 Piece/Pieces per Month
-
- Packaging Details
Plastic/ Carton/Customized for 12 colored Fiber optical patch cord cable 3 meter pigtail jumper cable price per meter
-
- Port
Wuhan/Shanghai/shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)3To be negotiated

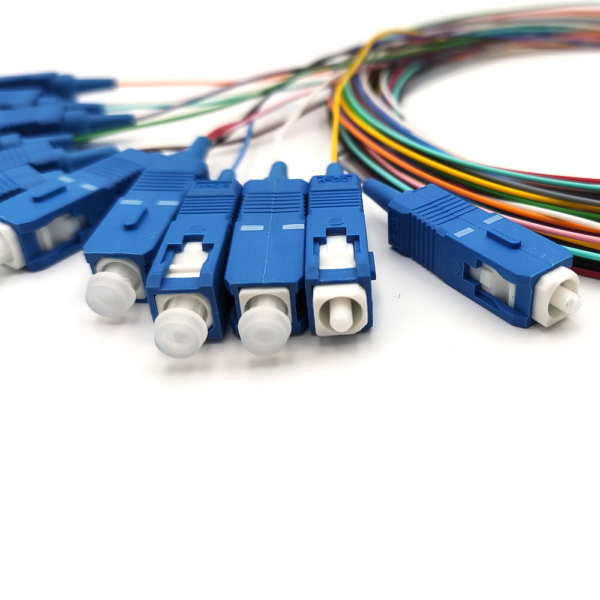

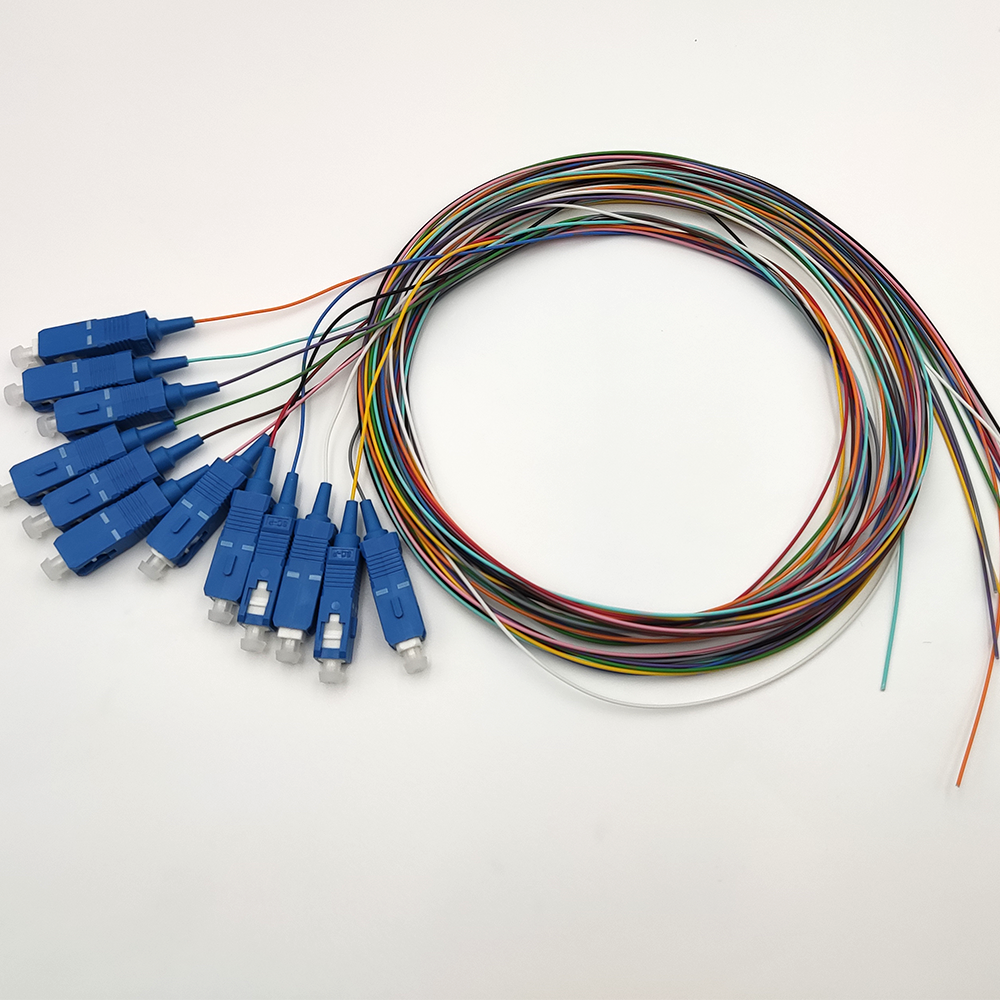

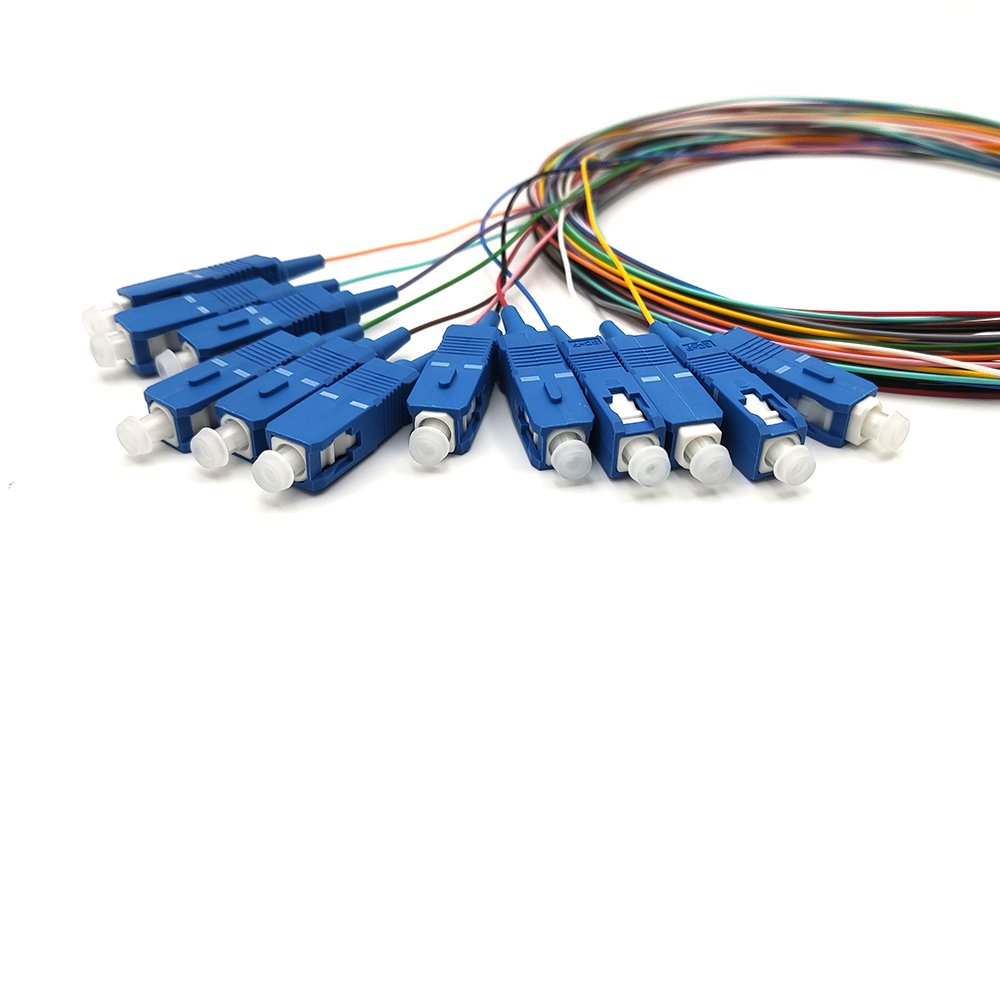

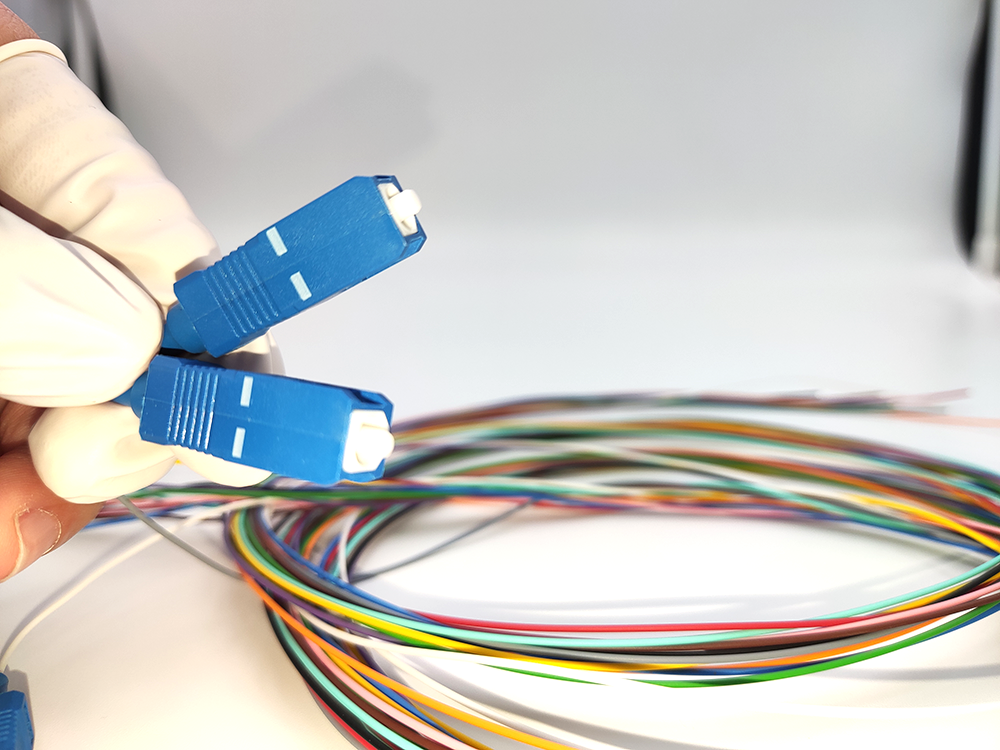

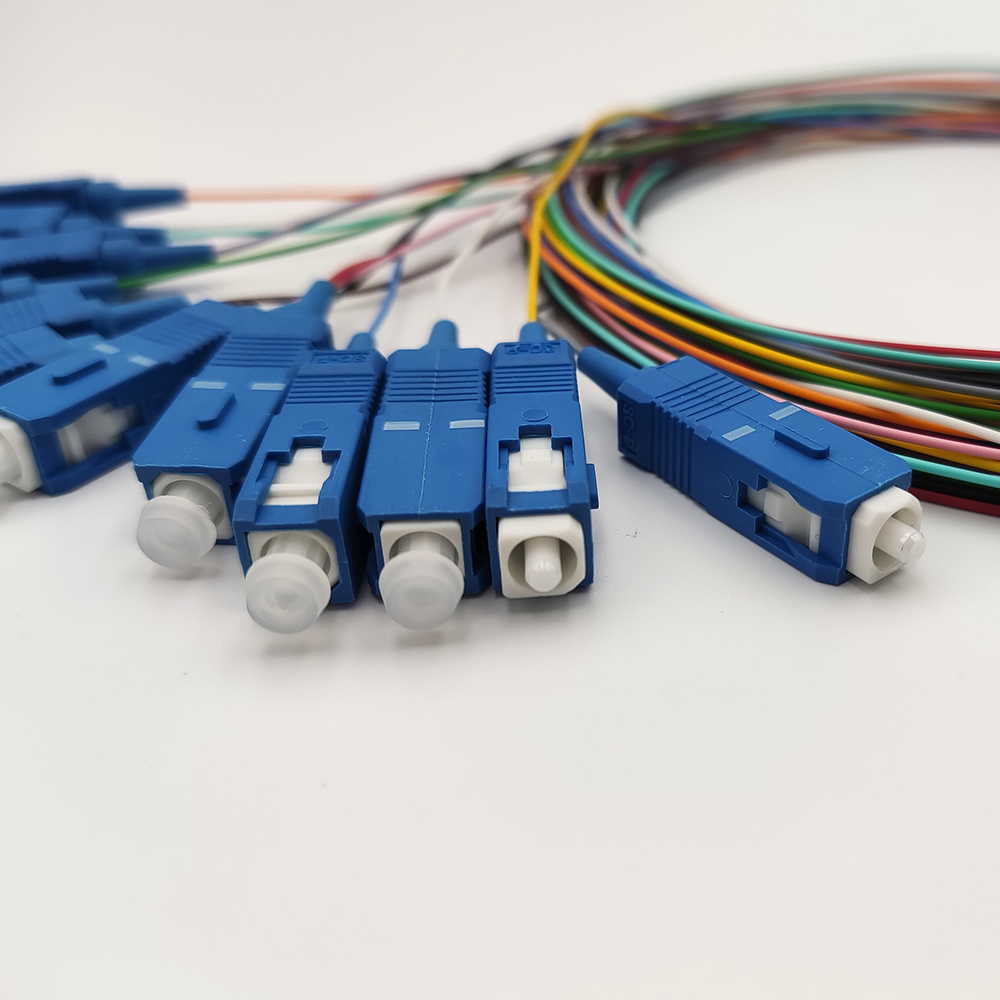

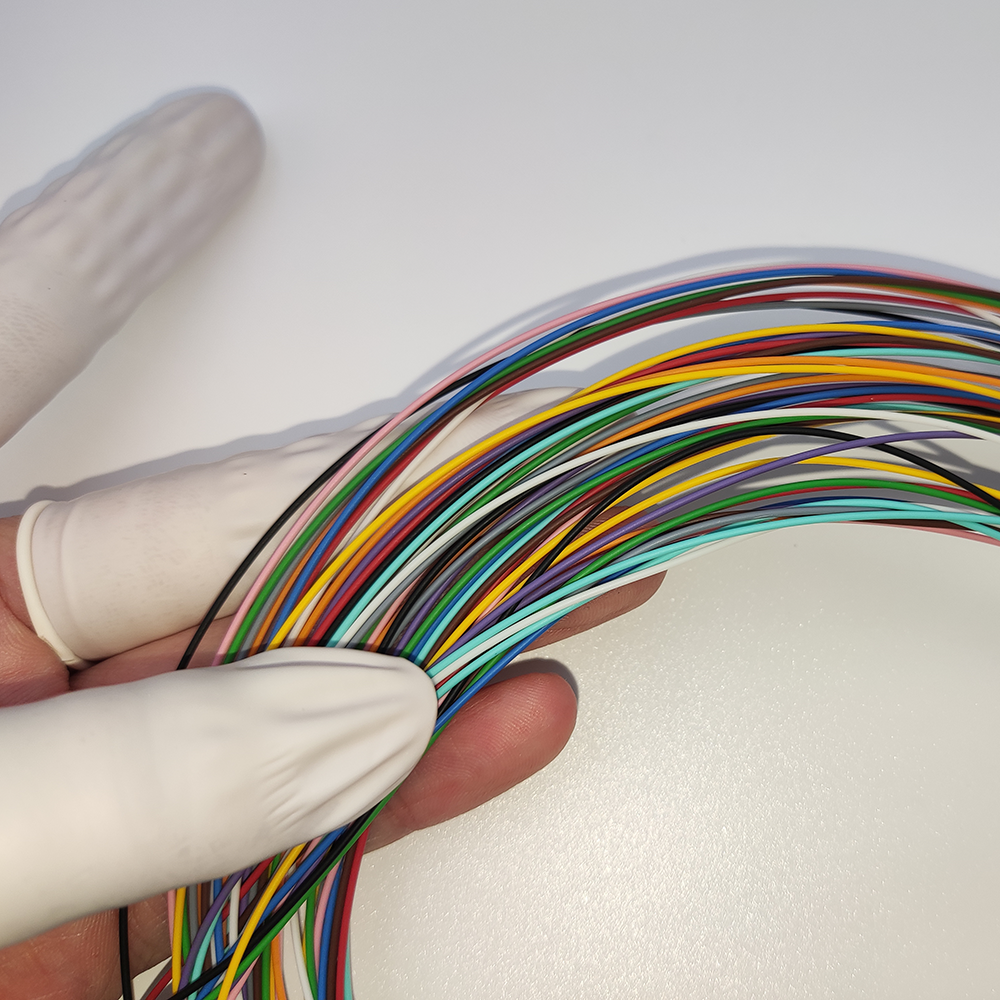

12 colored Fiber optical patch cord cable 3 meter pigtail jumper cable price per meter
Detailed Images
Product Description
| Parametor | Unit | Value | |||
| Connector Type | FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO | ||||
| Fiber Type | Multi-Mode | Single Mode | |||
| Insertion Loss | dB | Max.≤0.2 | Max.≤0.3 | ||
| Return Loss(Typ.) | dB | ≥36(no APC connector) | /PC | /UPC | /APC |
| ≥45 | ≥50 | ≥60 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| Connection Durability | times | ≥1000 | |||
| Operating/Storage Temperature | ℃ | -40~+80 |
|
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ……… Customized |
Product pictures show
