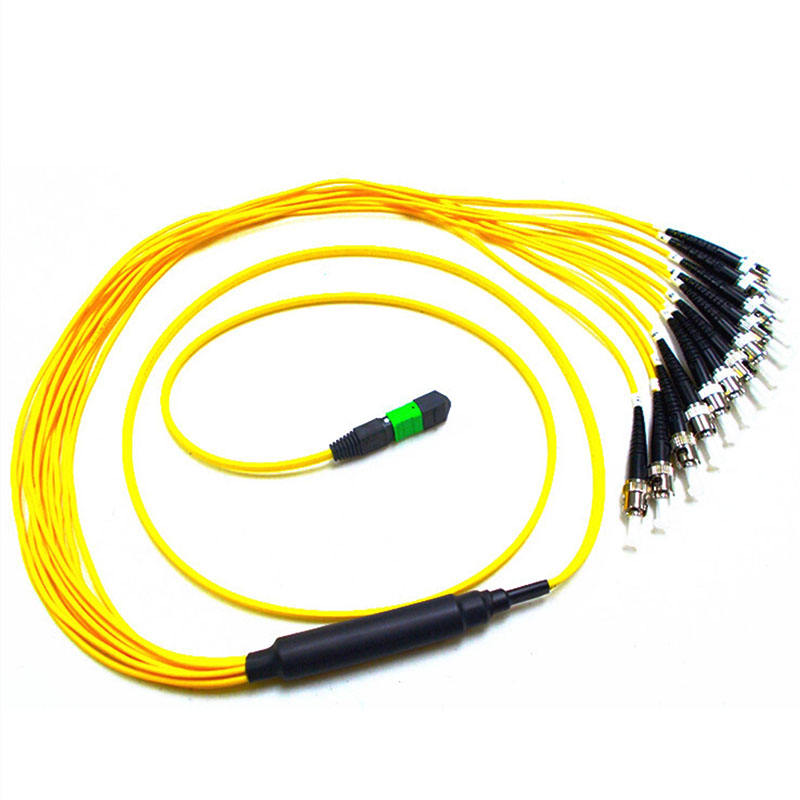

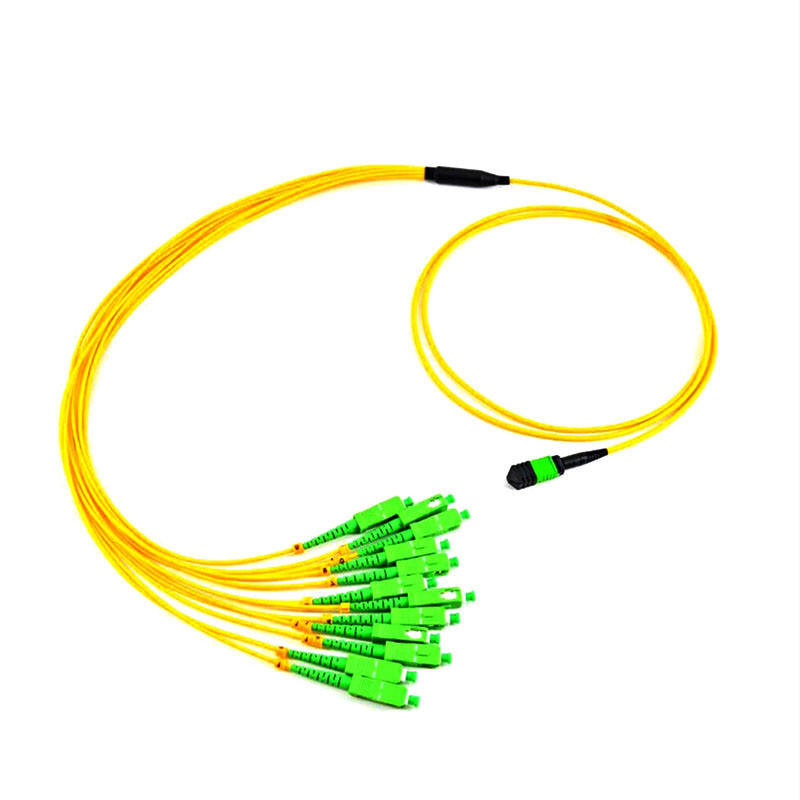

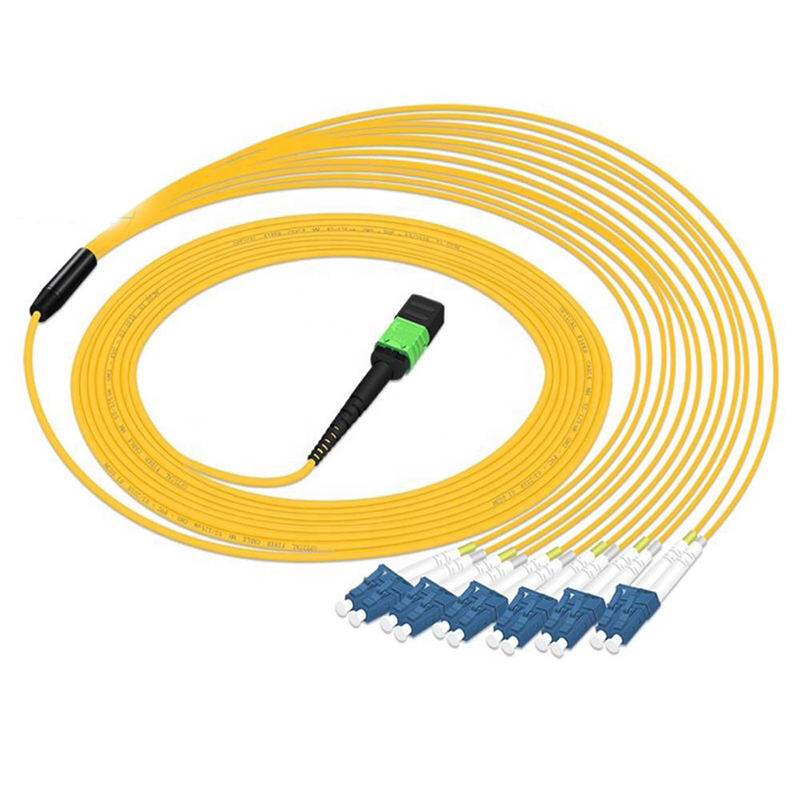

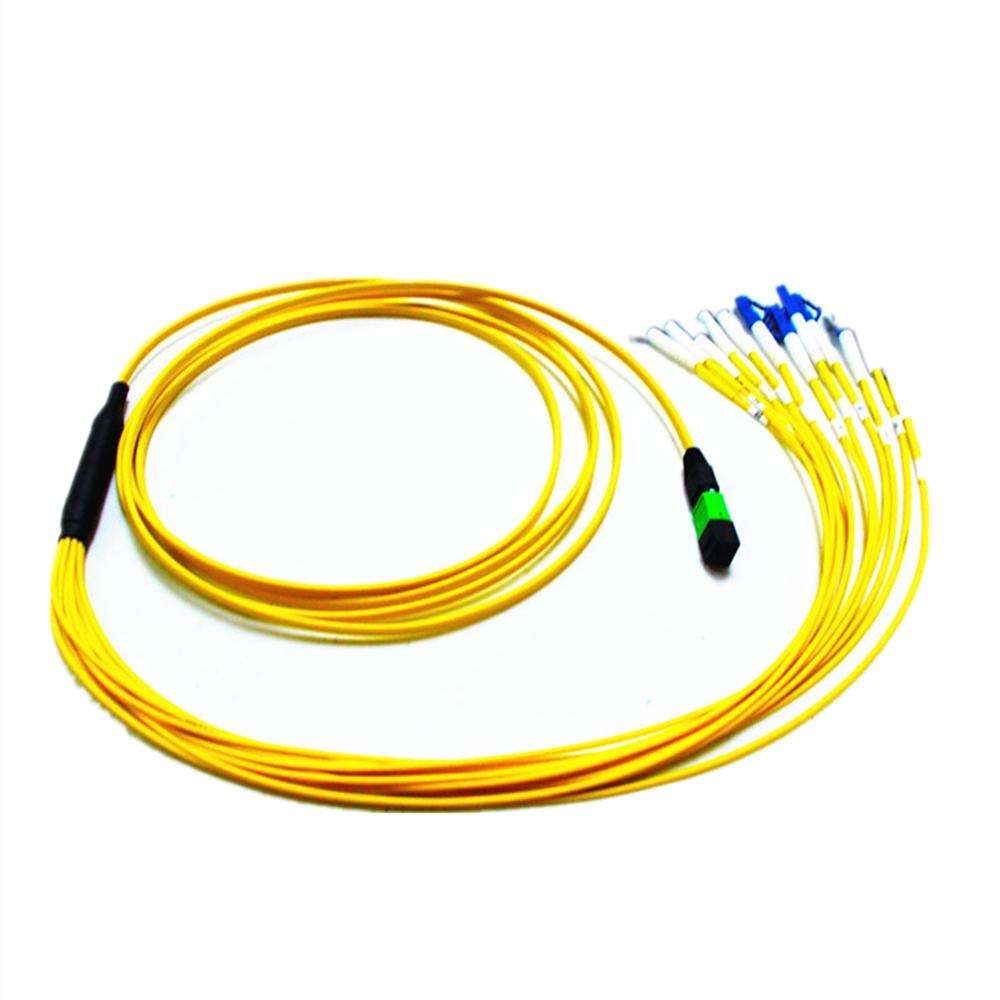

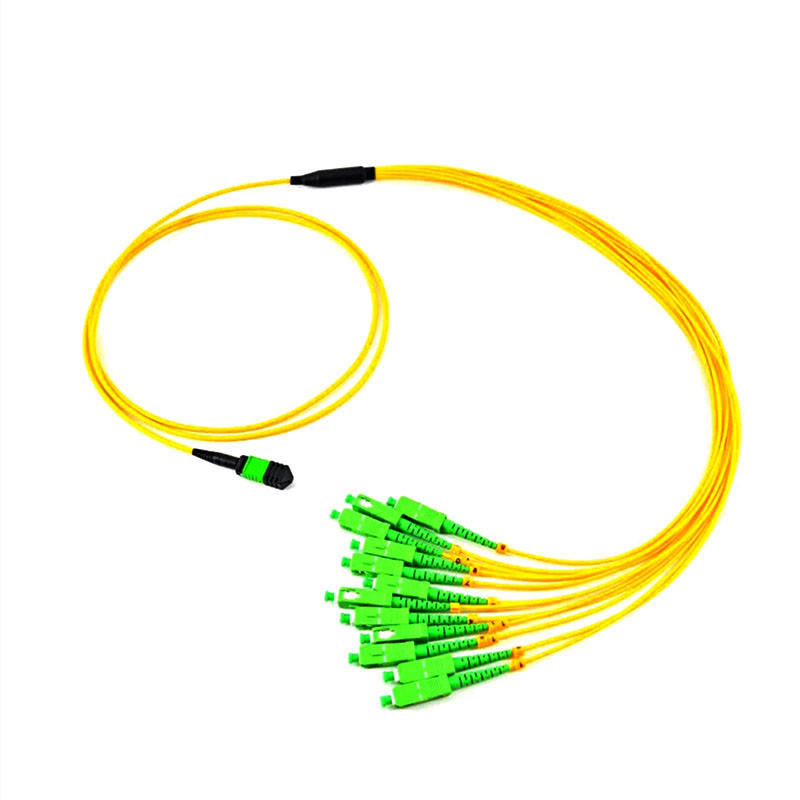

MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex.There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers,12fibers,24fibers. MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and Lclass(super low loss).

Features:

1. Single mode and Multimode (Flat/Round) available
2. High fiber density (maximum 24 fibers)
3. Fiber in single connector: 4, 8, 12 24
4. Insert/Pull latching connector
5. High reflection loss with APC

6. small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.

Applications:

1. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2. Active Device Termination
3. Premise Installations
4. Telecommunication and Data processing Networks

5. Video transmission , Data transmission





   Insertion Loss dB	≤0.35
   Return Loss dB	≥50 for PC, ≥65 for APC
   Tensile dB	≤0.30( Max 66N)
   Vibration dB	≤0.30 (10~ 50HZ)
   Operating Temperature dB	≤0.30 ( -40°C ~ +75°C  5Cycles )

                                                                                                                                                                           ♦ Product Details



        MPO Test
