- Private Mold:NO
- Products Status:Stock
- Ports:12
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex
- Switch Capacity:24Gbps (Non-blocking)
- Place of Origin:Guangdong, China
- Device Type:Switch
- Screen Size:2.4
- Product status:Stock
- type:Ethernet Switch
- Forwarding Rate@64byte:17.86Mpps
- MAC:4K
- Buffer Memory:4M
- Max Power Per Port:30W; IEEE802.3af/at
- Net /Gross Weight:<1.5kg /<2.0kg
- Certification:CCC,CE, FCC, RoHS.
- Selling Units:Single item
- Single package size: 32X26X8 cm
- Single gross weight:1.000 kg
- Lead time:Quantity(pieces)1 – 5051 – 100>100Lead time (days)1216To be negotiated
Product Description
|
Model
|

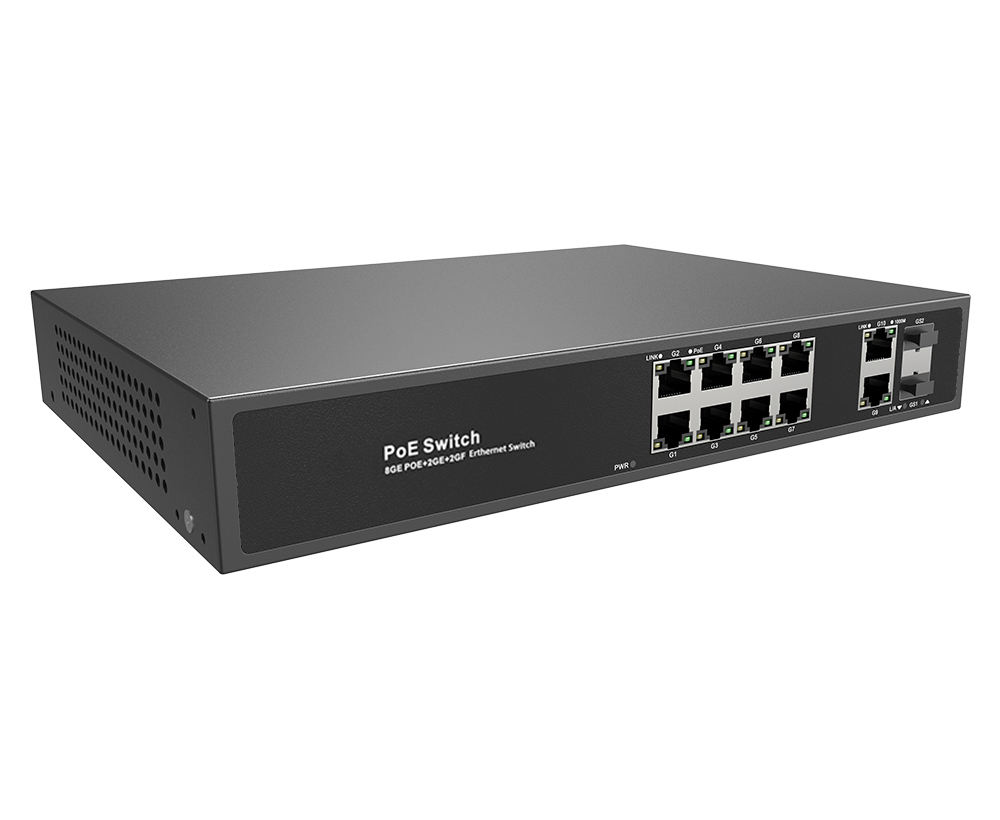

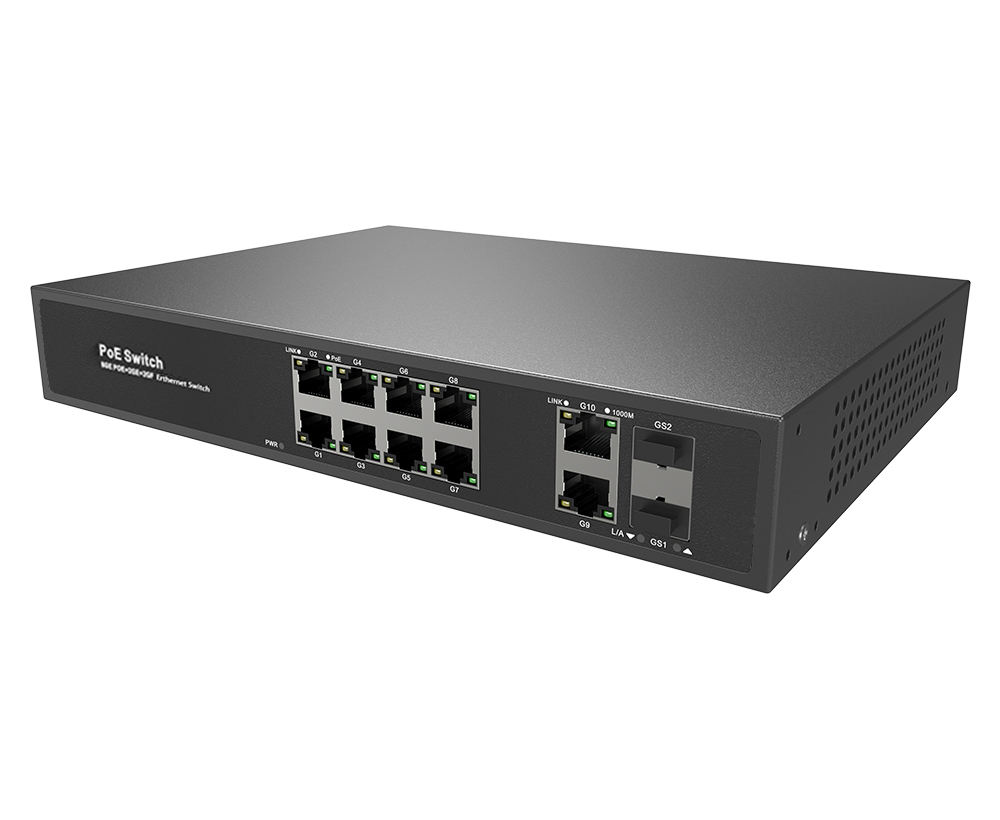

POE33128P
|
|
Interface Characteristics
|
|
|

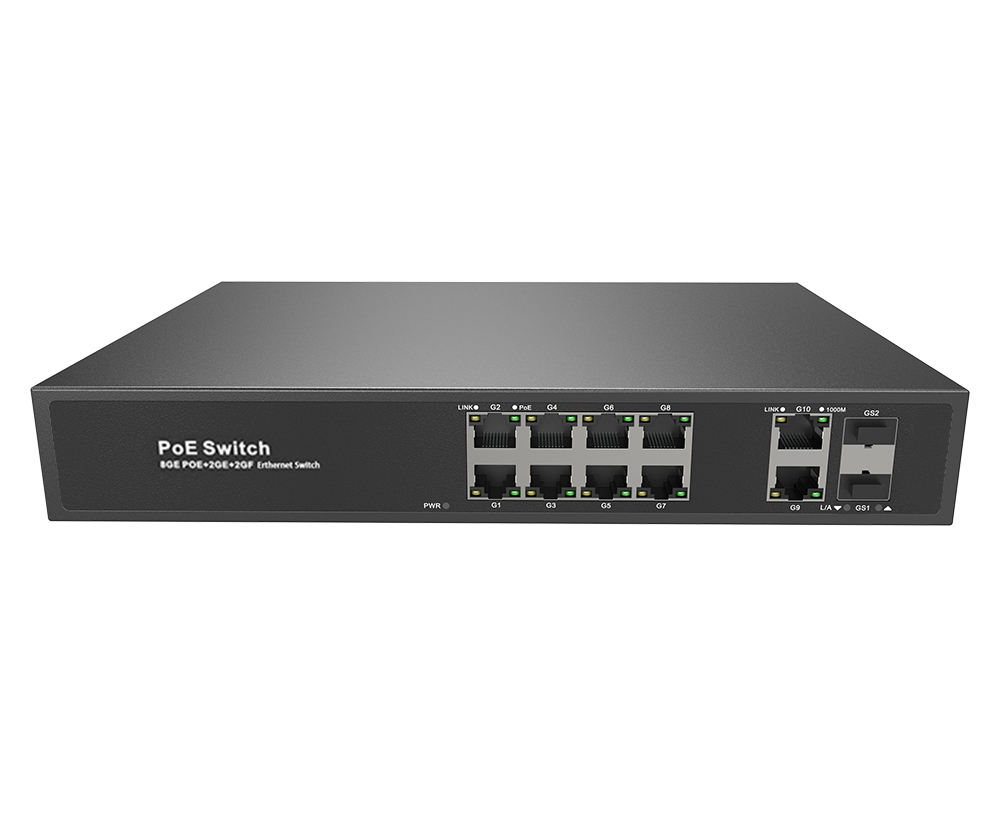

Fixed Port
|
8*10/100/1000Base-T PoE ports (Data /Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) 2*1000Base-X uplink SFP ports (Data) |
|
Ethernet Port
|
10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
SFP Slot Port
|
Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber /
dual fiber optical module. LC) |
|
Optical Cable/ Distance
|
Multi-mode: 850nm /0 ~ 500M,single mode: 1310nm /0 ~ 40KM, 1550nm/ 0 ~ 120KM.
|
|
Chip Parameter
|
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
Switching Capacity
|
24Gbps (Non-blocking)
|
|
Forwarding
Rate@64byte |
17.86Mpps
|
|
MAC
|
4K
|
|
Buffer Memory
|
4M
|
|
Jumbo Frame
|
9.6K
|
|
LED Indicator
|
Power: PWR (green), network:Link, Link/Act (yellow),PoE: PoE(green) SFP port: L/A (green), speed : 1000M (green)
|
|
PoE & Power Supply
|
|
|
PoE Port
|
Port 1 to 8 IEEE802.3af/at @ POE
|
|
Power Supply Pin
|
Default 1/2 (+), 3/6 (-)
|
|
Max Power Per Port
|
30W; IEEE802.3af/at
|
|
Total PWR / Input Voltage
|
130W (AC100-240V)
|
|
Power Consumption
|
Standby:<8W, Full Load:<120W
|
|
Power Supply
|

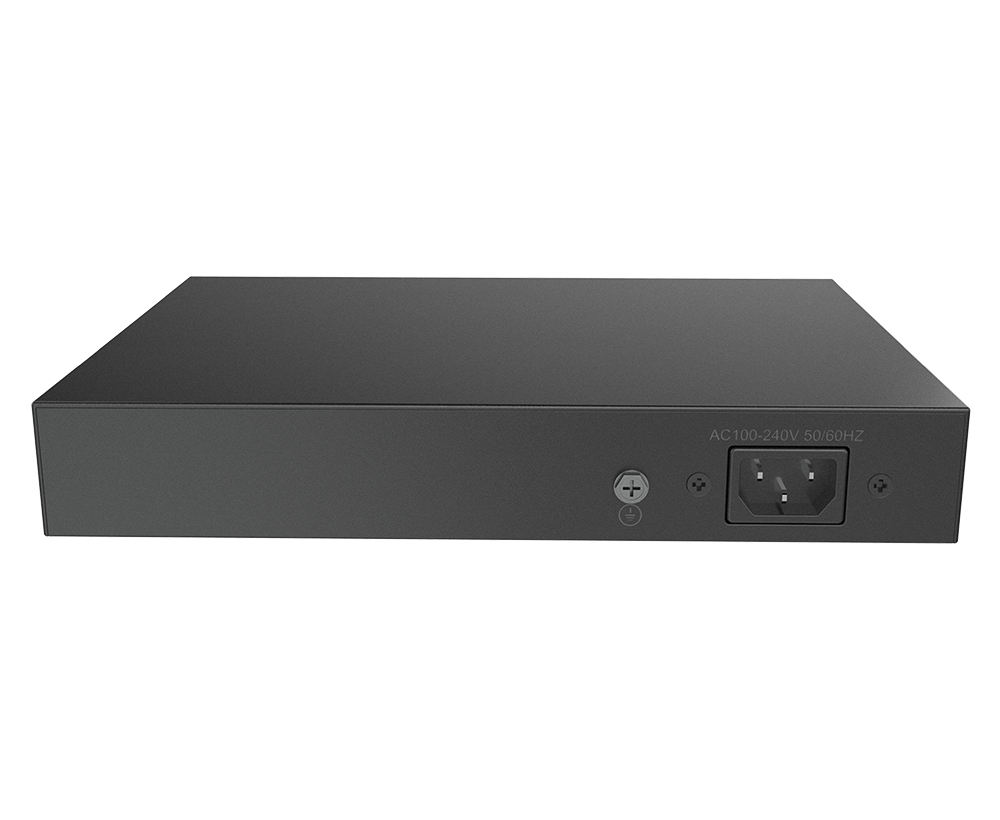

Built-in power supply, AC100~240V 50-60Hz 2.3A
|
|
Physical Parameter
|
|
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH Non condensing
|
|

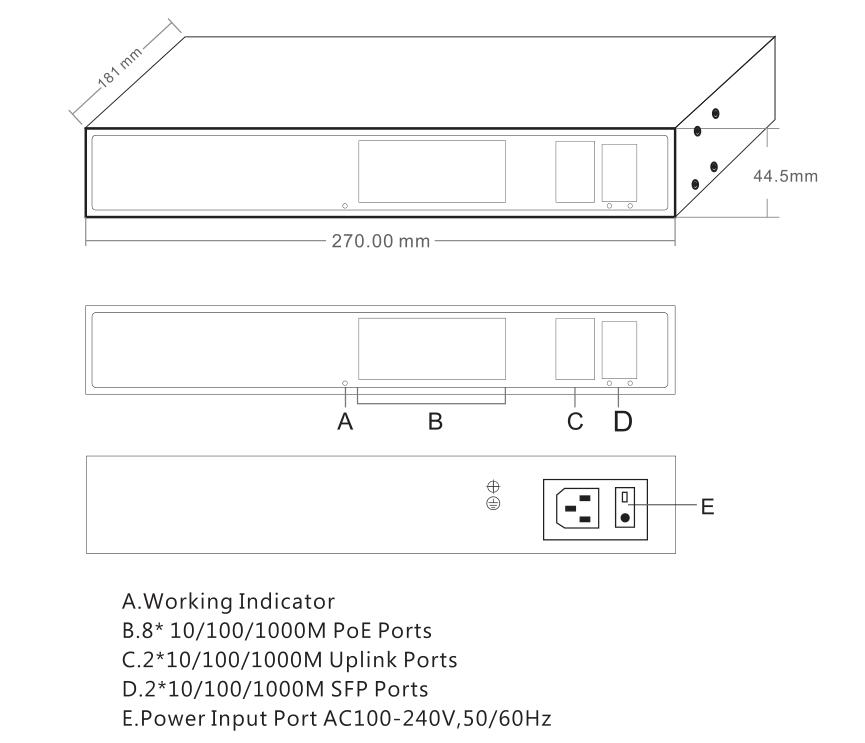

Dimension (L*W*H)
|
270*181*44.5mm
|
|
Net /Gross Weight
|
<1.5kg /<2.0kg
|
|
Installation
|
Desktop, wall mounted,19 inch 1U cabinet
|
|
Certification & Warranty
|
|
|
Lightning protection / protection level
|
Lightning protection: 4KV 8/20us; Protection level: IP30
|
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
