- Product Name:Mtp/mpo Patch Cord
- Return Loss:MPO≥55dB
- Wavelength:850nm/1310nm
- Min. Bend Radius Installation:29 mm
- Min. Bend Radius Operation:15 mm
- Durability:≥500 times
- Fiber Count:12
- Fiber Type:Om4
- No. of Fiber:12.
- Insertion loss:≤0.35dB(max)
-
- Supply Ability
- 60000 Piece/Pieces per Month Mtp/mpo Patch Cord
-
- Packaging Details
Plastic bag inside, outer package is carton case for Mtp/mpo Patch Cord
-
- Port
Wuhan, Shanghai, Ningbo, shenzhen, tianjin, qingdao
- Picture Example:
- Lead time:Quantity(pieces)1 – 1000>1000Lead time (days)5To be negotiated

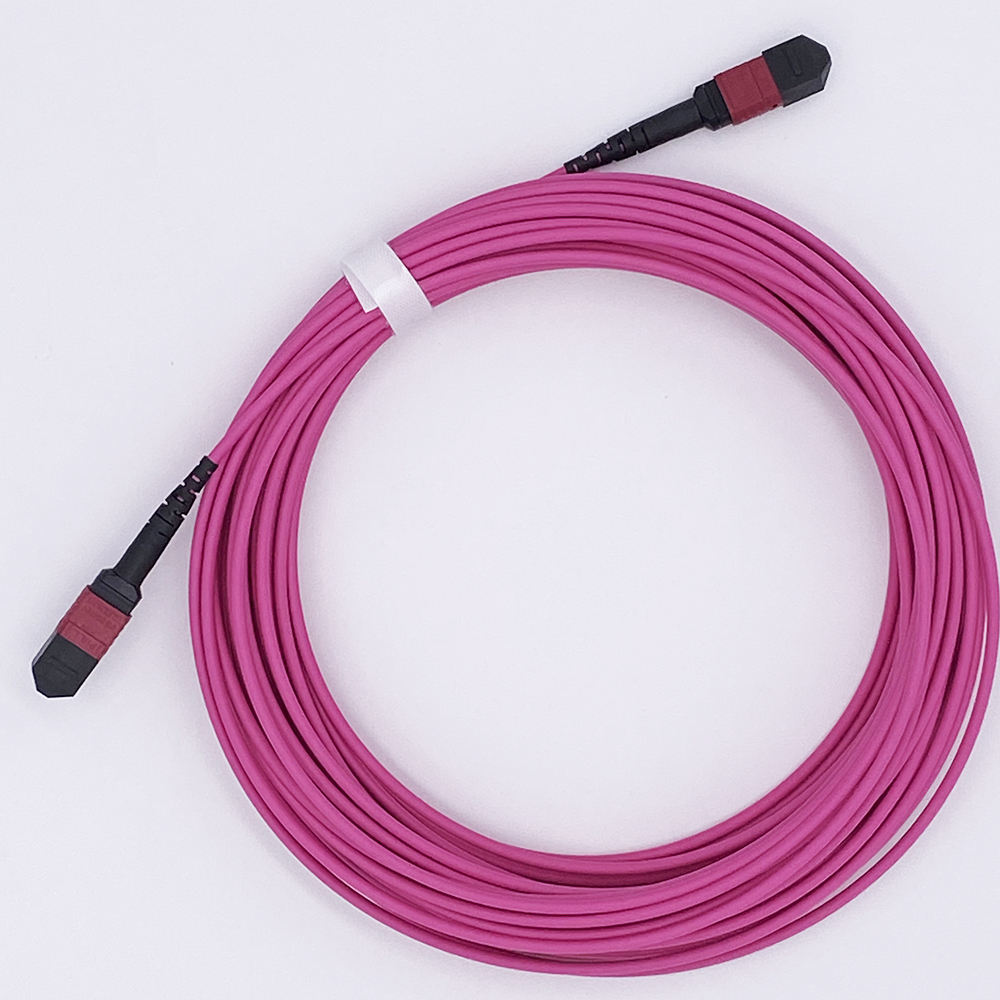

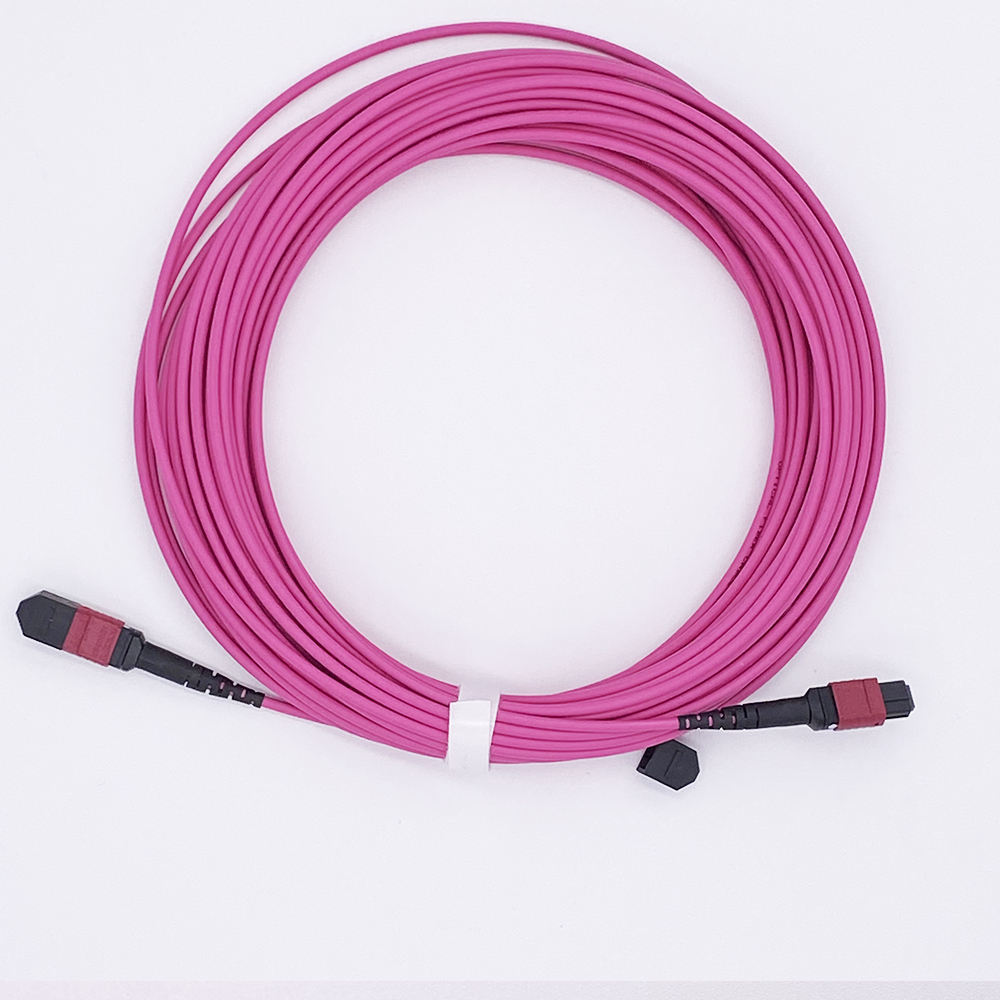

12Core Data Center Om4 Red Rose Trunk Cable Mtp/mpo Patch Cord
MPO MTP patch cord
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of Wolon’s MPO Connectors are from Taiwan,Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1. The Data Center application with high dense degree environment
2. The optical fiber to the building
3. The internal connector application in fiber equipment.
MTP fiber jumper is a transmission medium used between data center equipment, from MTP connectors, MTP connectors are designed by Conec Corporation of the United States with multiple innovative high-performance multi-core end push-in MPO connector, compared to ordinary MPO connectors, its optical and mechanical performance has been very goodly enhanced.
MPO MTP products’ Standard:
- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C
- Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- InfiniBand Compliant
- InfiniBand
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
MPO Connector Types
|
|
|
|

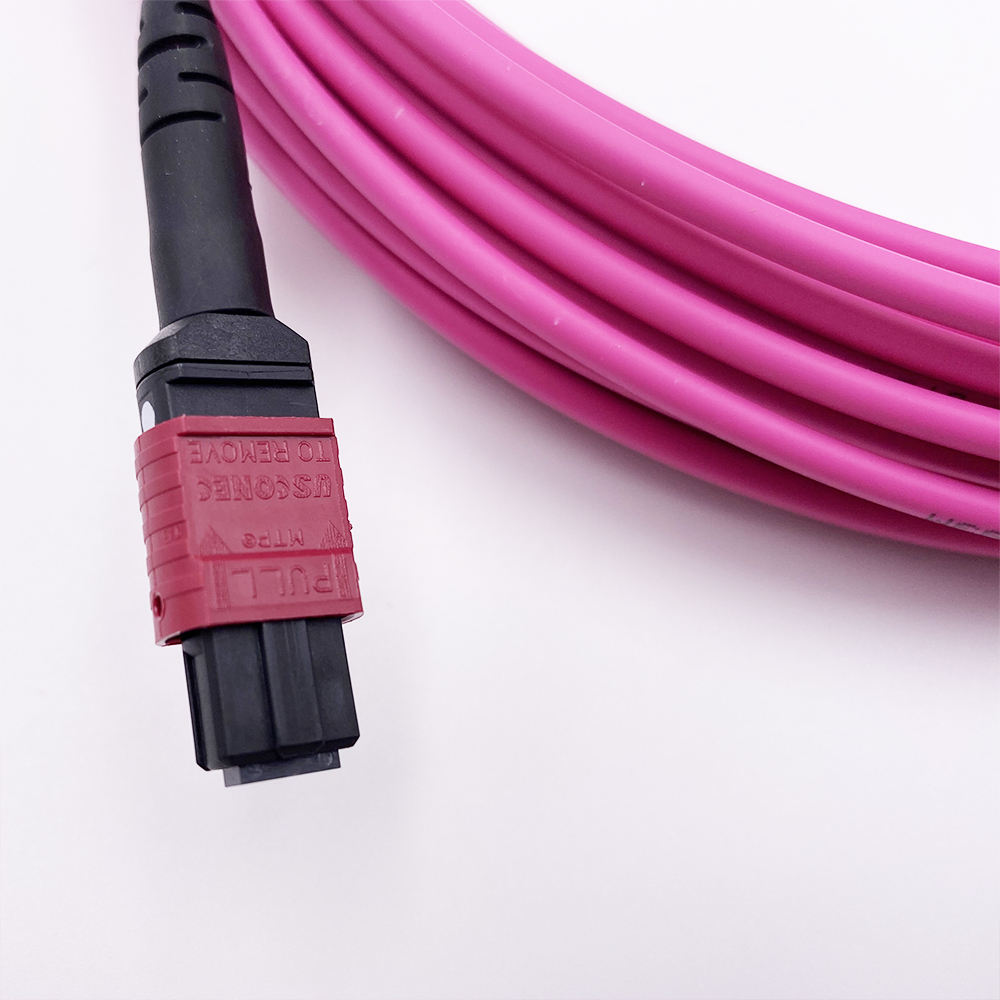

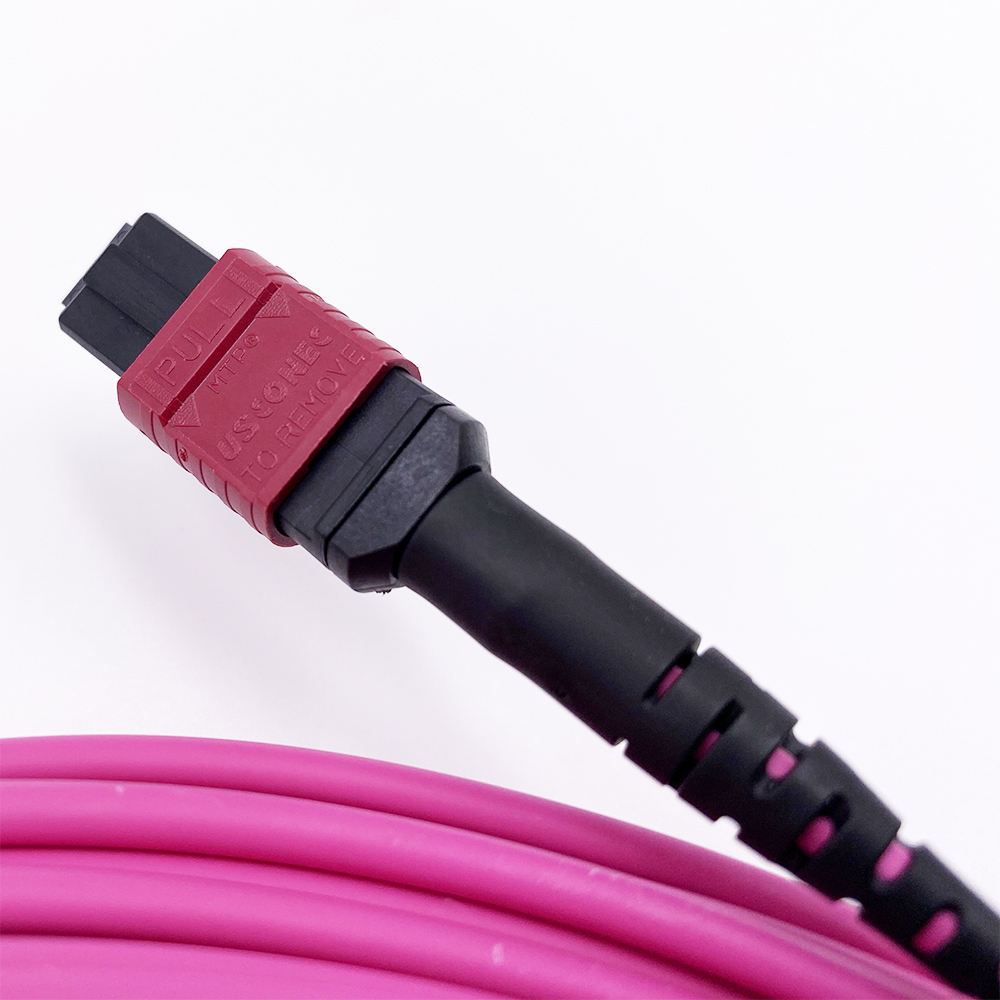

MPO MTP Male with Pins |

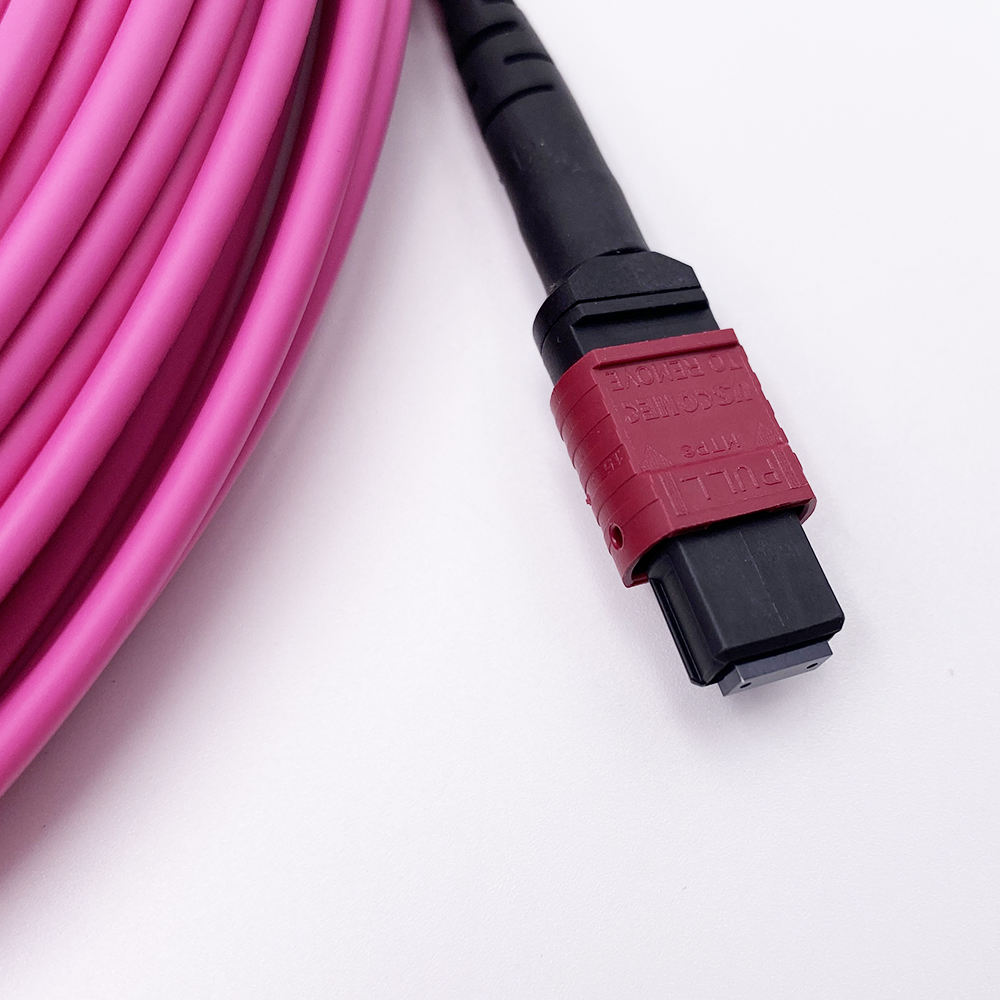

MPO MTP Female without Pins |
|
Two other clearly visible features are the noses and guide grooves (keys) on the top side. (Note: Female connector need to connect with male connector type.) |
Pre-terminated MPO MTP Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MPO -LGX Cassette, you can choose any of the polarities as you need.
MPO MTP patch cord’s Specification:
MPO MTP Interference index
|
Testing items |
Min |
Max |
|
|
MPO PC |
ROC_X(abs)(mm) |
500 |
|
|
ROC_Y(abs)(mm) |
50 |
||
|
Angle_X(deg) |
-0.2 |
0.2 |
|
|
Angle_Y(deg) |
-0.2 |
0.2 |
|
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
|
Max.DH.Ave(nm) |
-300 |
300 |
|
|
Max.DH.Adj(nm) |
-300 |
300 |
|
|
Max. Core Dip(nm) |
-300 |
300 |
|
|
Fiber height(nm) |
-300 |
300 |
|
|
ROC_X(abs)(mm) |
1000 |
3000 |
|
|
MPO APC |
ROC_X(abs)(mm) |
500 |
|
|
ROC_Y(abs)(mm) |
50 |
||
|
Angle_X(deg) |
-0.2 |
0.2 |
|
|
Angle_Y(deg) |
7.8 |
8.2 |
|
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
|
Max.DH.Ave(nm) |
-300 |
300 |
|
|
|
Max.DH.Adj(nm) |
-300 |
300 |
|
|
Fiber height(nm) |
|
|
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
Cable Structure:
AVAILABILITY:
- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
