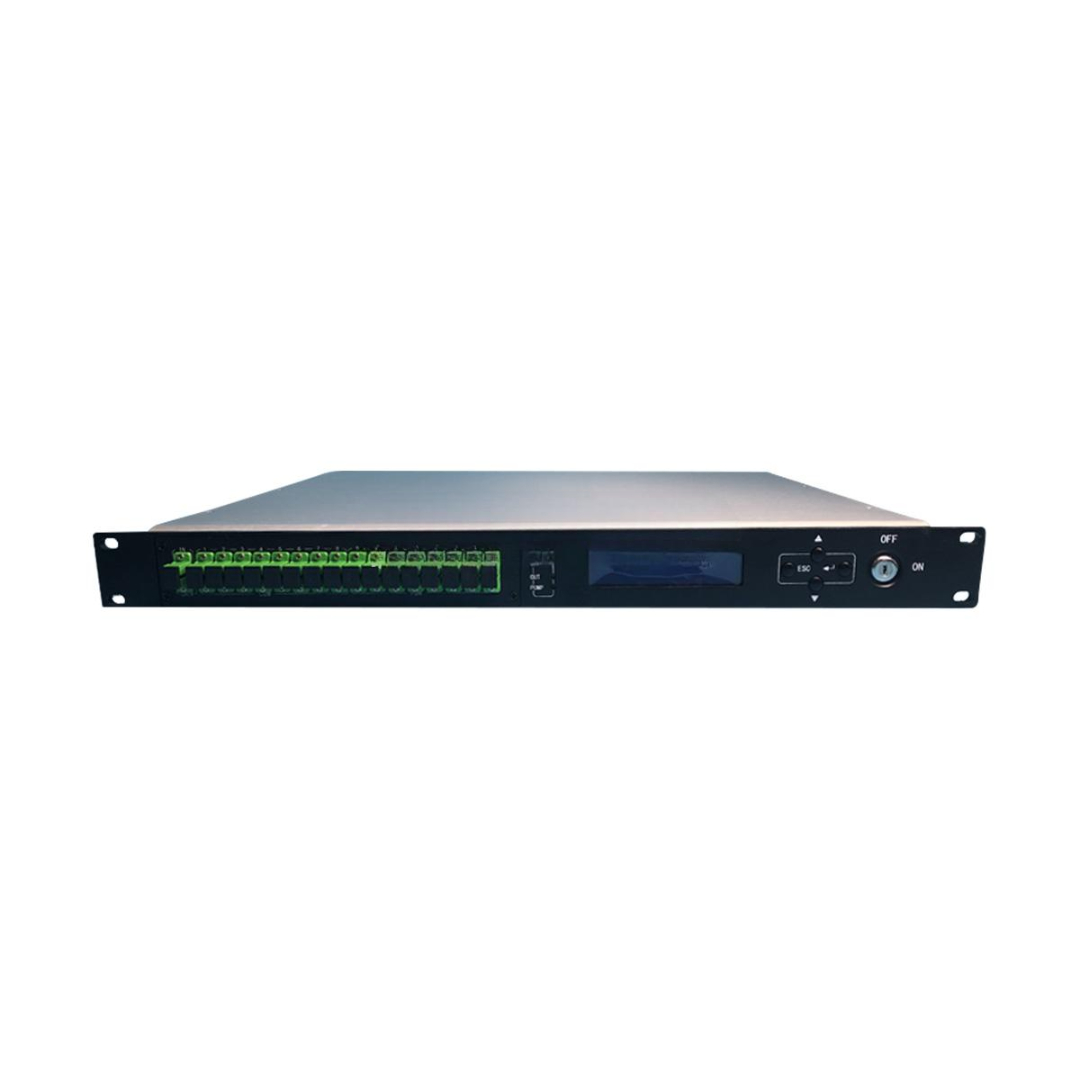

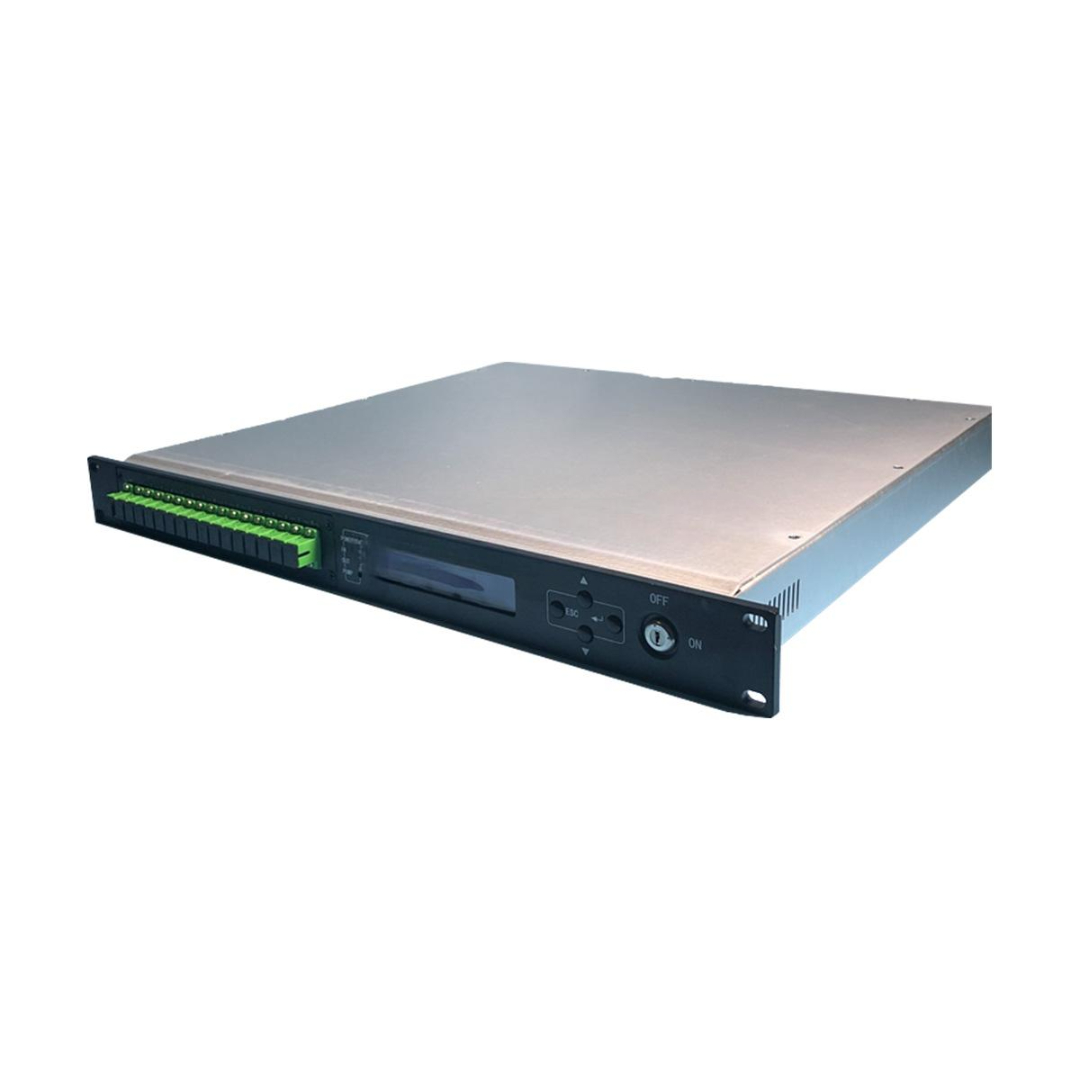

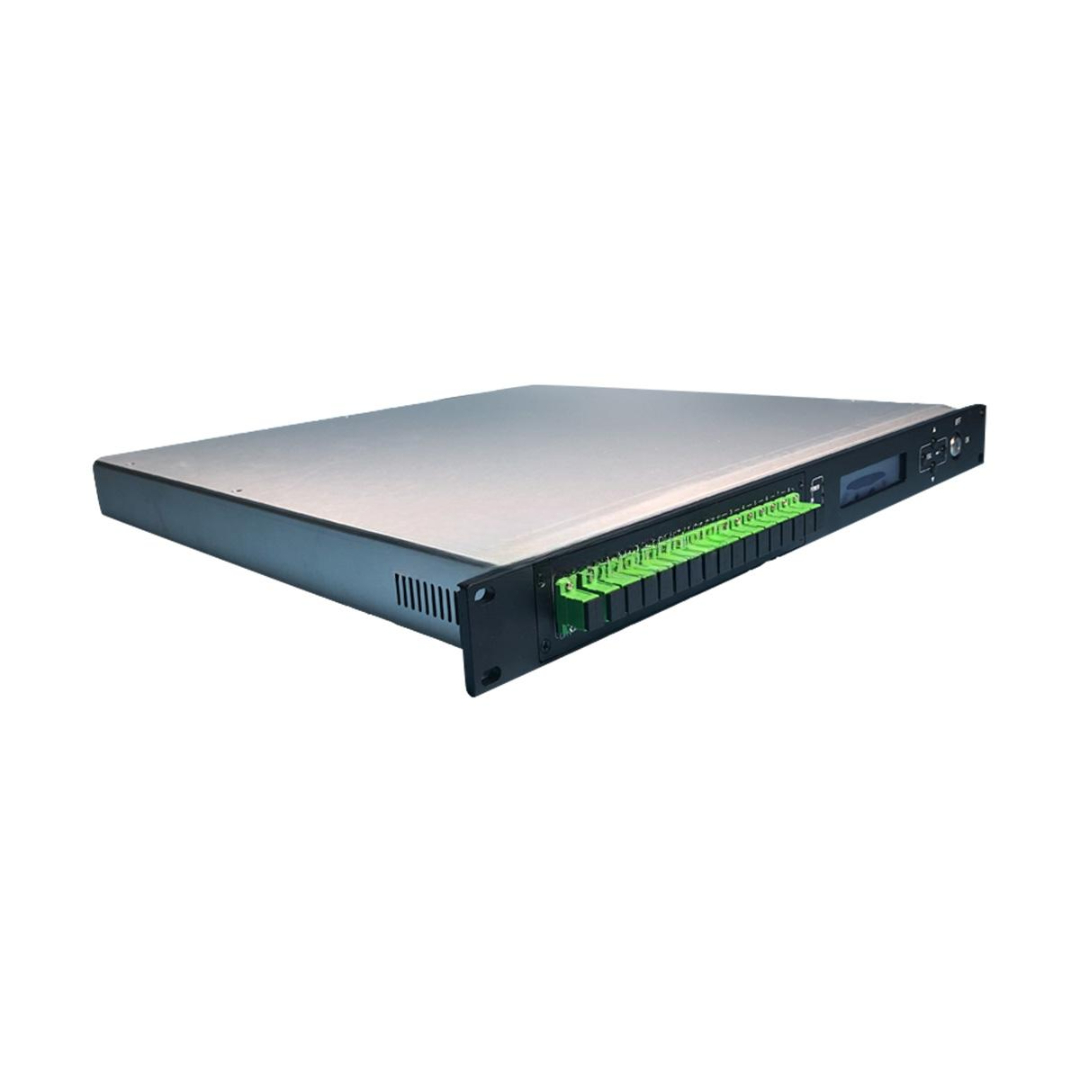

1550nm CATV EDFA Huawei High Quality Network Management Optical Amplifier
The 1550nm CATV EDFA (Erbium-Doped Fiber Amplifier) from Huawei is a high-performance optical amplification solution specifically designed for CATV transmission networks, FTTH, and hybrid fiber-coaxial (HFC) applications. Engineered with advanced gain flattening and low noise figure design, it delivers stable and high-output optical signals across long distances with multiple ports, ensuring optimal video signal transmission quality in 1550nm optical broadcast systems.
This amplifier also features intelligent network management via SNMP/RS232 web interface, allowing operators to monitor and control amplification parameters remotely, making it ideal for large-scale optical distribution and broadcasting infrastructures.
Key Features
- Model: Huawei 1550nm CATV EDFA
- Wavelength Range: 1545 – 1565 nm (C-Band)
- Output Power: Available from 13 dBm to 33 dBm
- Ports: 1-64 output ports (SC/APC or SC/UPC)
- Noise Figure: <5 dB (typical at nominal input)
- Network Management: Supports SNMP, RS232, and Web GUI
- Control System: Automatic Gain Control (AGC) / Automatic Power Control (APC)
- LCD Display: Front-panel status indicators and fault alerts
- Redundancy: Optional dual power supply (AC + DC or AC + AC)

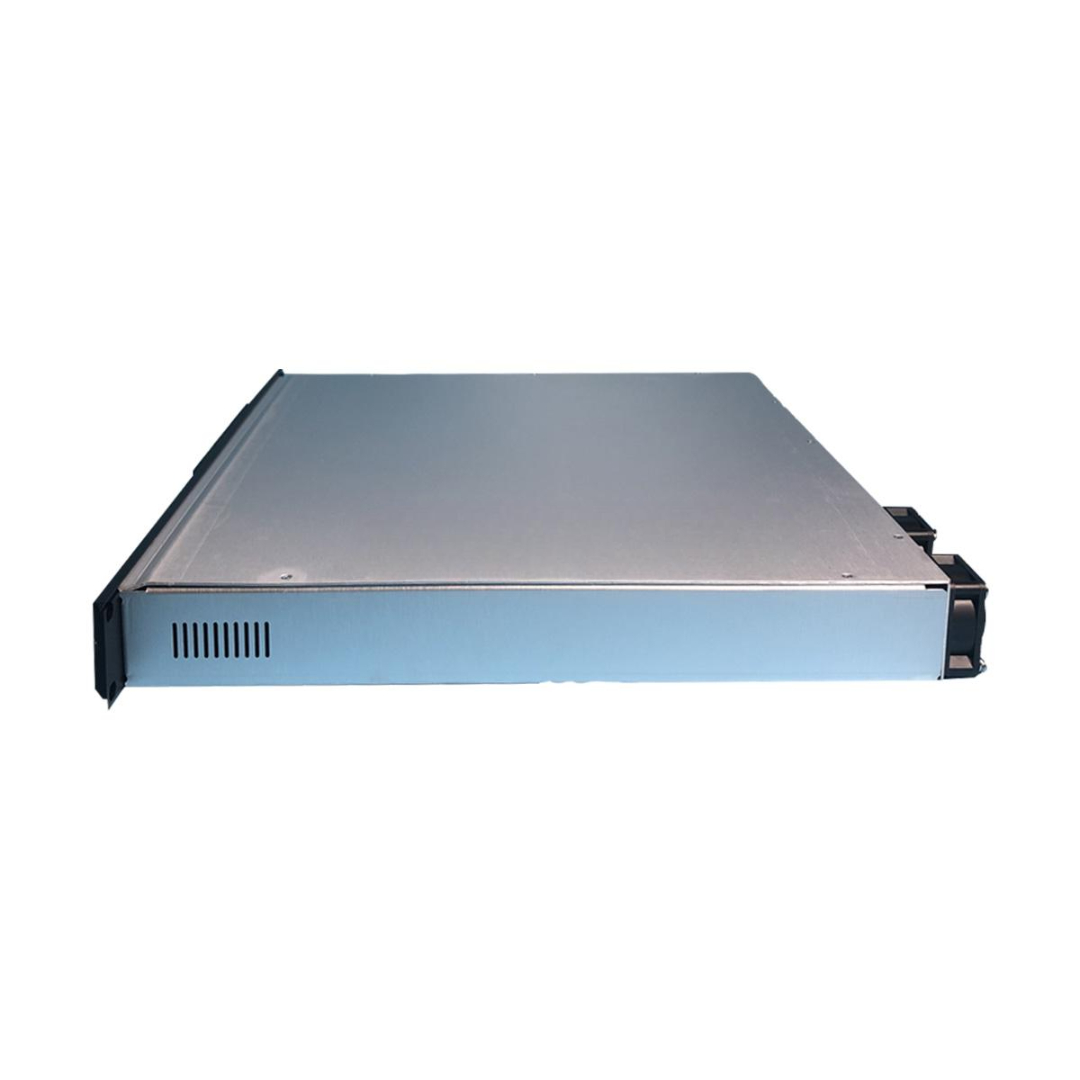

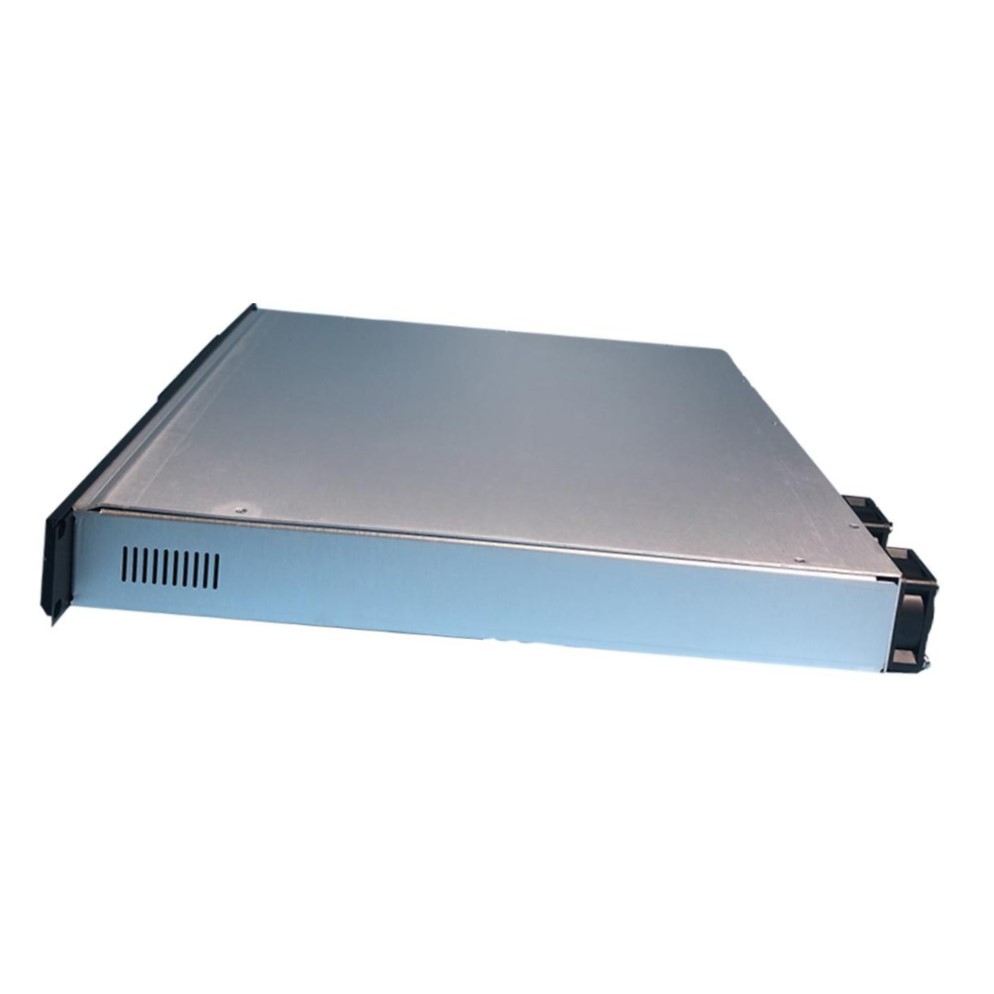

- Design: 1U/2U 19-inch standard rack-mount chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | Huawei CATV EDFA Optical Amplifier |
| Wavelength | 1550nm (C-Band, 1545 – 1565 nm) |
| Input Power Range | -10 dBm to +10 dBm |
| Output Power | 13 – 33 dBm (configurable) |
| Number of Outputs | 1–64 ports (optional, SC/APC or SC/UPC) |
| Noise Figure | <5 dB (typical) |
| Power Supply | 110V/220V AC and/or -48V DC (optional dual supply) |
| Management Interface | RS232, SNMP, Web GUI |
| Control Mode | APC / AGC selectable |
| Chassis Type | 1U or 2U 19-inch rack-mount |
| Display | LCD panel with alarms and status indicators |
| Cooling | Intelligent fan system with temperature control |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance | CE, RoHS, FCC |
1550nm CATV EDFA Applications
- CATV Transmission Systems – Amplify and distribute 1550nm analog/digital RF signals over fiber
- FTTH & FTTB Networks – Centralized broadcast amplification to end-users via optical splitters
- Long-Haul Optical Links – Boost signal power for extended transport without regeneration
- Hybrid Fiber-Coaxial Networks – High-output multi-port distribution in MSO (multiple-system operator) networks
- Video Surveillance – Ideal for centralized IP camera signal amplification in large campuses
- Digital TV Broadcast – Reliable transmission of HD/4K content over long-distance fiber
Customization & OEM Options
- Port Configuration – Choose from 1-port to 64-port output versions
- Connector Type – SC/APC, SC/UPC, or LC on request
- Chassis Design – Optional 1U or 2U casing with custom color or labeling
- Power Redundancy – Dual AC, dual DC, or hybrid power options available
- SNMP Integration – Tailored MIB files for integration with custom NMS
- Environmental Grades – Industrial, ruggedized, or extended-temp versions
- Private Labeling – OEM/ODM with customer branding & part numbers
1550nm CATV EDFA Wholesale & Global Procurement
- Bulk Stock Available – Ready for urgent telecom and CATV deployments
- Competitive Pricing – Direct factory supply for distributors and integrators
- Secure Packaging – Foam and anti-static packaging for international shipment
- Quick Lead Times – Fast dispatch and logistics support
- Technical Support – Remote setup, troubleshooting, and configuration guidance
- Warranty – 1–3 years warranty with optional extended service plans
Why Choose the 1550nm CATV EDFA
High-Quality Optical Amplification – Low noise, stable gain, and long-term reliability
Huawei OEM Standards – Proven durability in telecom-grade environments
Smart Network Management – Monitor and configure remotely via SNMP/Web
Flexible Deployment Options – Ideal for both centralized and distributed architectures
Future-Ready Design – Supports digital, analog, or mixed signal types
Contact Us Now for Wholesale Pricing & Custom Orders
Upgrade your optical distribution infrastructure with Huawei’s 1550nm CATV EDFA — a professional-grade amplifier solution trusted by ISPs, MSOs, and broadcasters worldwide. Reach out today for quotes, technical datasheets, and OEM opportunities.
