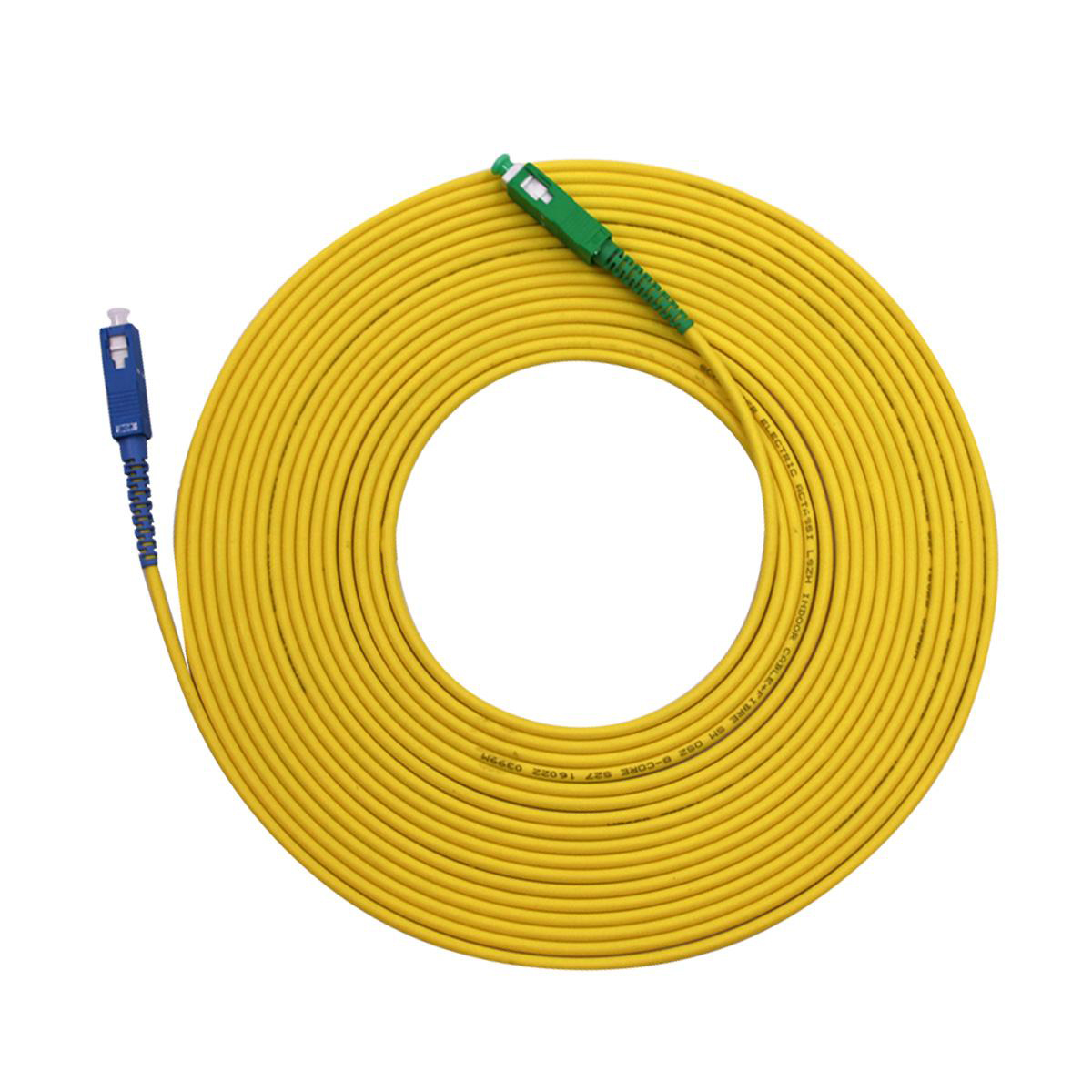

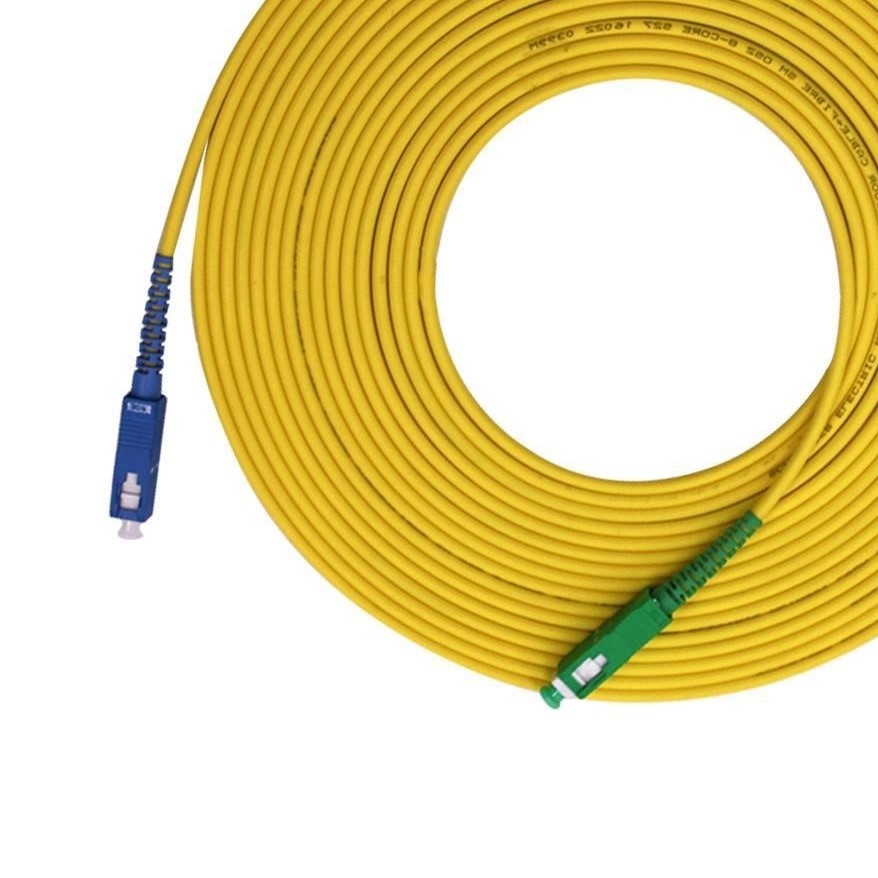

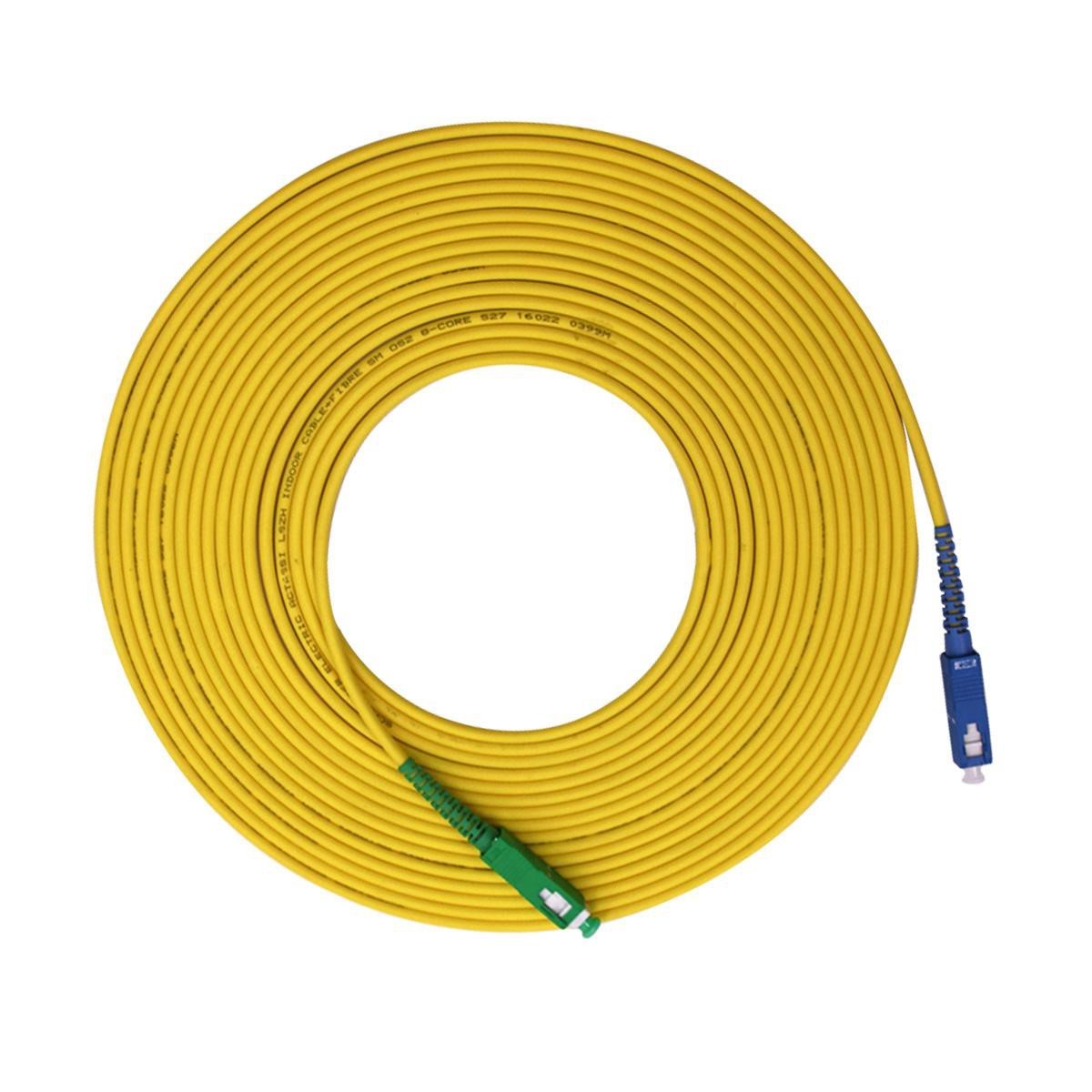

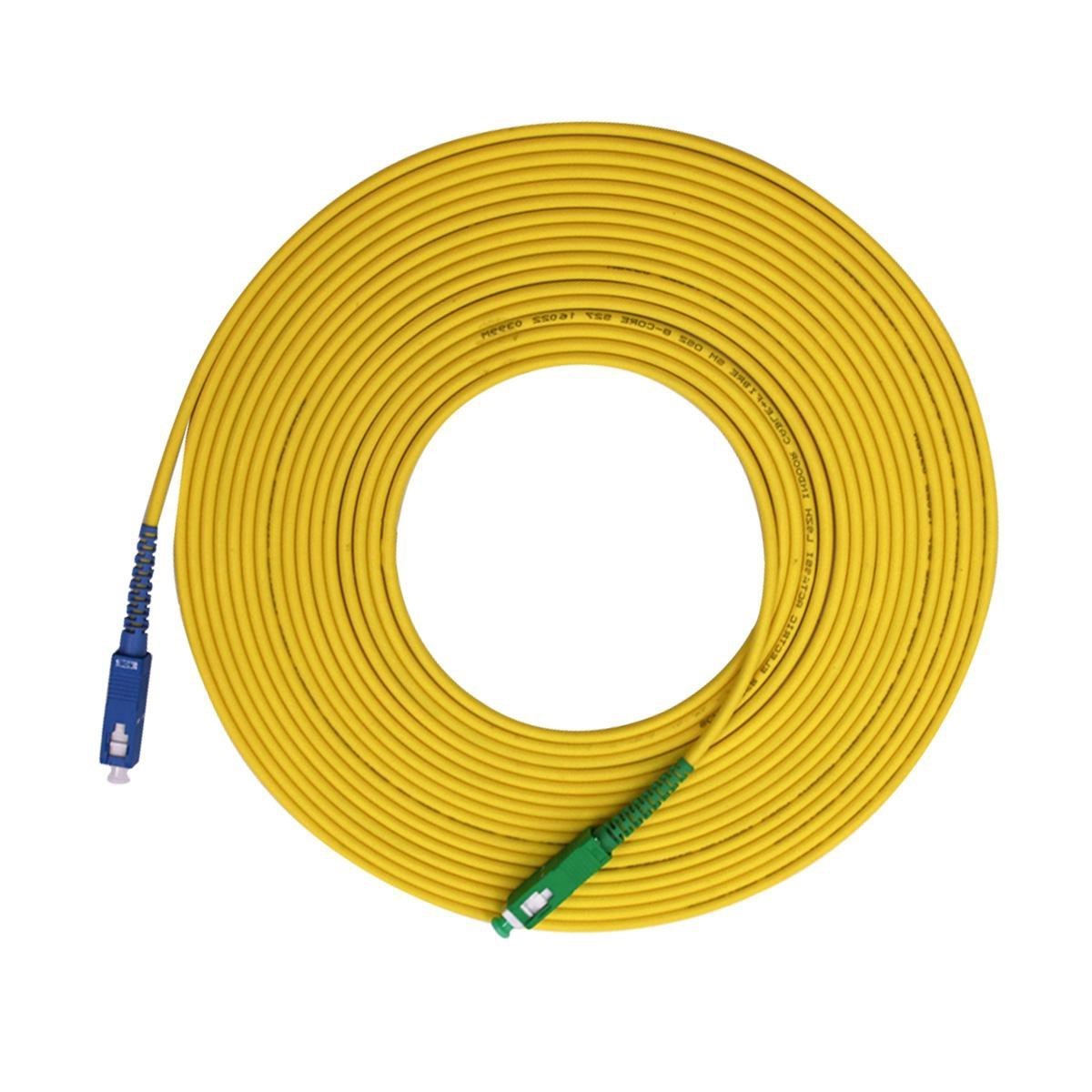

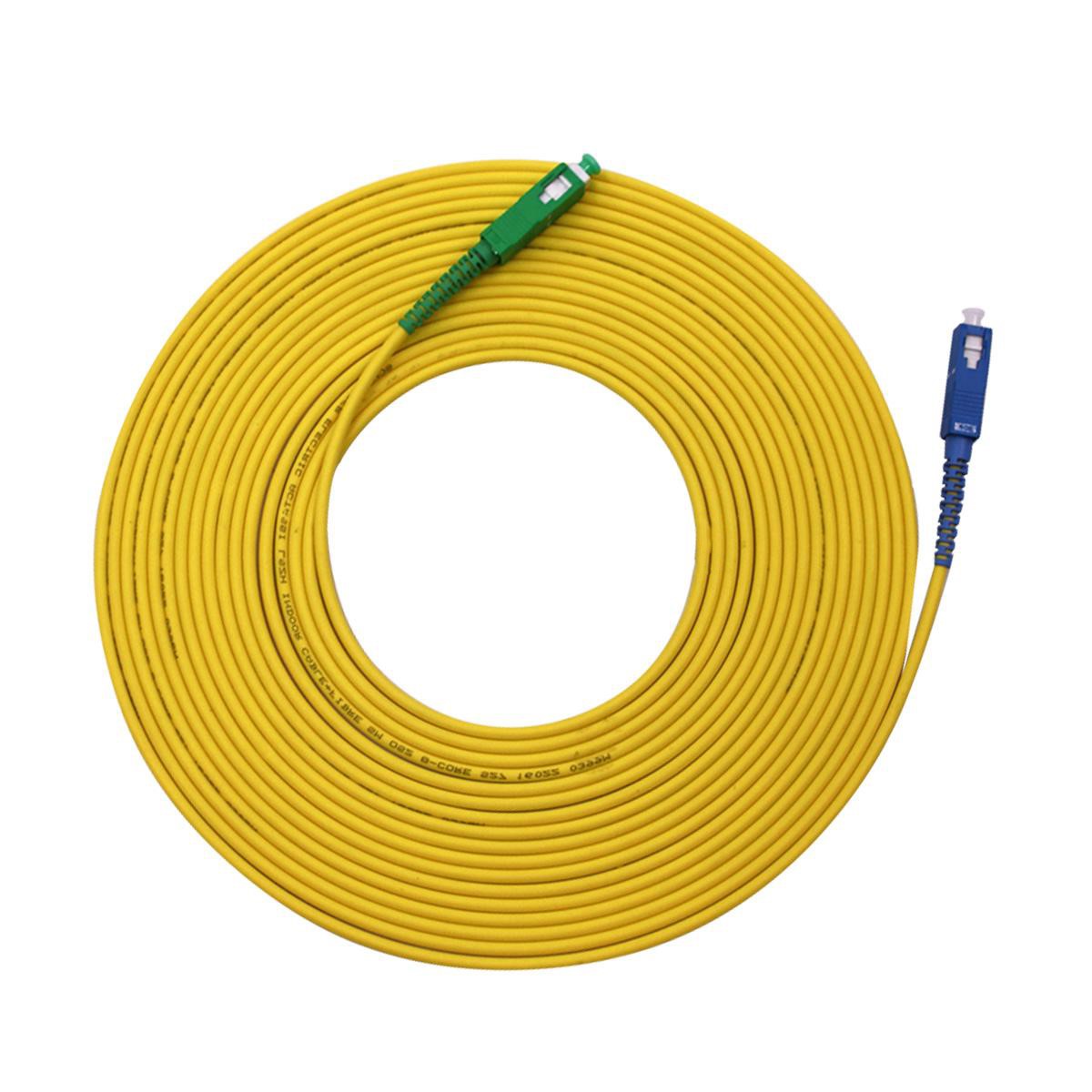

15M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord – Branded, 2.0mm LSZH Jacket
Product Overview
The 15M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord is a high-precision, factory-terminated optical jumper designed for seamless interconnection between flat-polish (UPC) and angled-polish (APC) interfaces. This patch cord features singlemode OS2 9/125μm fiber, built with a durable 2.0mm LSZH (Low Smoke Zero Halogen) outer jacket, making it a reliable choice for telecom, FTTH, OLT/ONT interconnects, CATV, and enterprise data center environments.
The hybrid SC/UPC to SC/APC configuration allows it to link devices with different polish types while maintaining excellent signal integrity, low insertion loss, and high return loss performance.
Key Features of 15M Fiber Patch Cord
-
✅ Length: 15 meters
-
✅ Connector A: SC/UPC (Blue, Flat Polish)
-
✅ Connector B: SC/APC (Green, Angled Polish)
-
✅ Fiber Type: Singlemode OS2 (9/125μm)
-
✅ Jacket Material: LSZH – Flame-retardant, halogen-free
-
✅ Cable Diameter: 2.0mm – Slim and flexible for indoor routing
-
✅ Brand Status: Branded, factory polished, and optically tested
-
✅ Application: Ideal for FTTH, telecom switches, ODF patching, OLT-to-ONT links
15M Fiber Patch Cord Technical Specifications
| Specification | Details |
|---|---|
| Connector Type | SC/UPC to SC/APC |
| Polish Type | UPC (flat) to APC (8° angled) |
| Fiber Type | Singlemode OS2 – 9/125μm |
| Insertion Loss | ≤ 0.3dB (typical) |
| Return Loss (UPC/APC) | ≥ 50dB / ≥ 60dB |
| Jacket Diameter | 2.0mm |
| Jacket Material | LSZH – Indoor safe, low smoke |
| Cable Color | Yellow (standard for SM) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Durability | ≥ 1000 mating cycles |
| Standards Compliance | CE, RoHS, Telcordia GR-326, IEC 61754-4 |
15M Fiber Patch Cord Applications
-
🌐 FTTH/FTTx Drop Cable Connections
-
📡 OLT to ONT Patch Cords (Hybrid Connector Type)
-
☁️ Data Center Cross-Connects
-
🧪 Test Equipment and Optical Monitoring Devices
-
🏢 Enterprise & Telecom Patch Panels
Customization Options
We offer tailored solutions for distributors, OEMs, and installation projects:
-
🔧 Connector Options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC, ST – hybrid or same-end
-
🔧 Length Customization: 0.5M to 100M+ available
-
🔧 Cable Types: Simplex, duplex, armored, bend-insensitive
-
🔧 Jacket Colors: Yellow (default), aqua, orange, or custom
-
🔧 Branding: Custom logo print, model code, and barcode labeling
-
🔧 Packaging Formats: Individual pouches, reels, or installation kits
🔧 Technical Specifications – SC/UPC to SC/APC Connector
| Connector Type | Return Loss | Insertion Loss | Repeatability | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 dB | ≤0.3 dB | ≤0.1 dB | >1000 Plug Cycles | -40 ~ +80 |
| UPC (SM) | ≥55 dB (typical) | ≤0.3 dB (typical) | ≤0.1 dB (typical) | >1000 Plug Cycles | -40 ~ +80 |
| APC (SM) | ≥60 dB (typical) | ≤0.3 dB (typical) | ≤0.1 dB (typical) | >1000 Plug Cycles | -40 ~ +80 |
✅ Values for UPC and APC are typical based on industry standards.
📦 Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | SC/UPC – SC/APC |
Wholesale & Bulk Order Support
Ideal for telecom operators, system integrators, and optical distributors:
-
📦 Factory Direct Pricing with Volume Discounts
-
📦 Low Minimum Order Quantity for Custom Builds
-
📦 Fast Turnaround & Global Delivery Logistics
-
📦 OEM Labeling, Branding, and Barcoding Options
-
📦 Certifications Supplied: CE, RoHS, Test Reports, Certificate of Origin
Why Choose Our 15M Fiber Patch Cord?
-
✔️ Hybrid Connector Support for Inter-Device Compatibility
-
✔️ High Return Loss & Low Insertion Loss Performance
-
✔️ Flexible 2mm Jacket Ideal for Rack and Cabinet Use
-
✔️ Tested to International Optical Standards
-
✔️ OEM-Ready with Scalable Supply Capabilities
Order Now
Enhance your fiber network’s flexibility and signal accuracy with the 15M SC/UPC to SC/APC Singlemode Patch Cord – your reliable solution for hybrid connectivity in modern fiber systems. Available now with custom branding, volume pricing, and global delivery.
