- Private Mold:Yes
- Products Status:Stock
- Ports:16+2+1
- Transmission Rate:10/100Mbps
- Function:POE, QoS, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:16G
- Model Number:TS6216P-2G1F
- Place of Origin:Guangdong, China
- PoE Standard:IEEE802.3af /IEEE802.3at
- Poe power:52VDC 2.5A
- Power input:100-240VAC 50/60HZ
- Power output:15.4W/30W IEEE802.3af/at
- Product Name:16 Port PoE Switch
- PoE Ports:1-16 Port Support PoE
- Applications:Support PoE IP Cameras
- Uplink Ports:2*Gigabit RJ45+1*1G SFP
- Certification:CE FCC
-
- Supply Ability
- 5000 Unit/Units per Month
-
- Packaging Details
ESD bag+kraft paper box
-
- Port
Guangzhou,Shenzhen,Shanghai,Ningbo
- Picture Example:
- Lead time:Quantity(pieces)1 – 1011 – 100101 – 500>500Lead time (days)51015To be negotiated

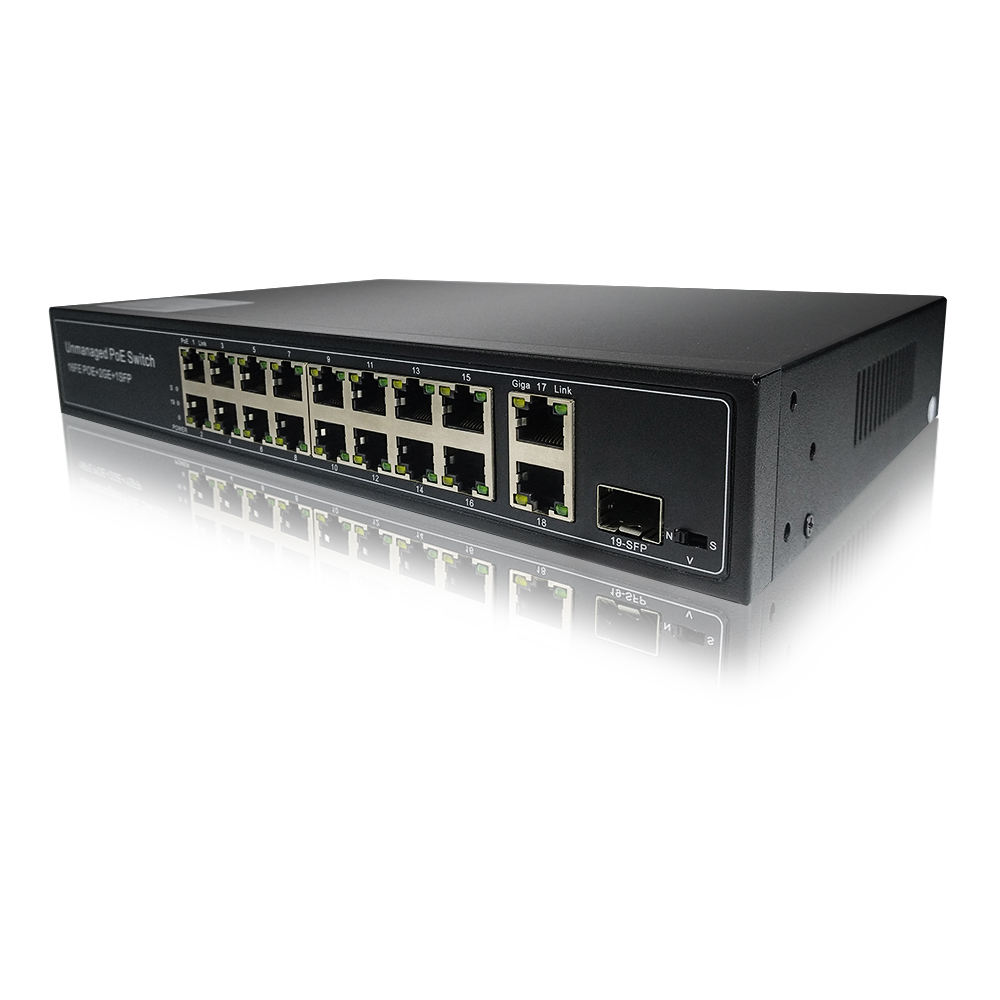

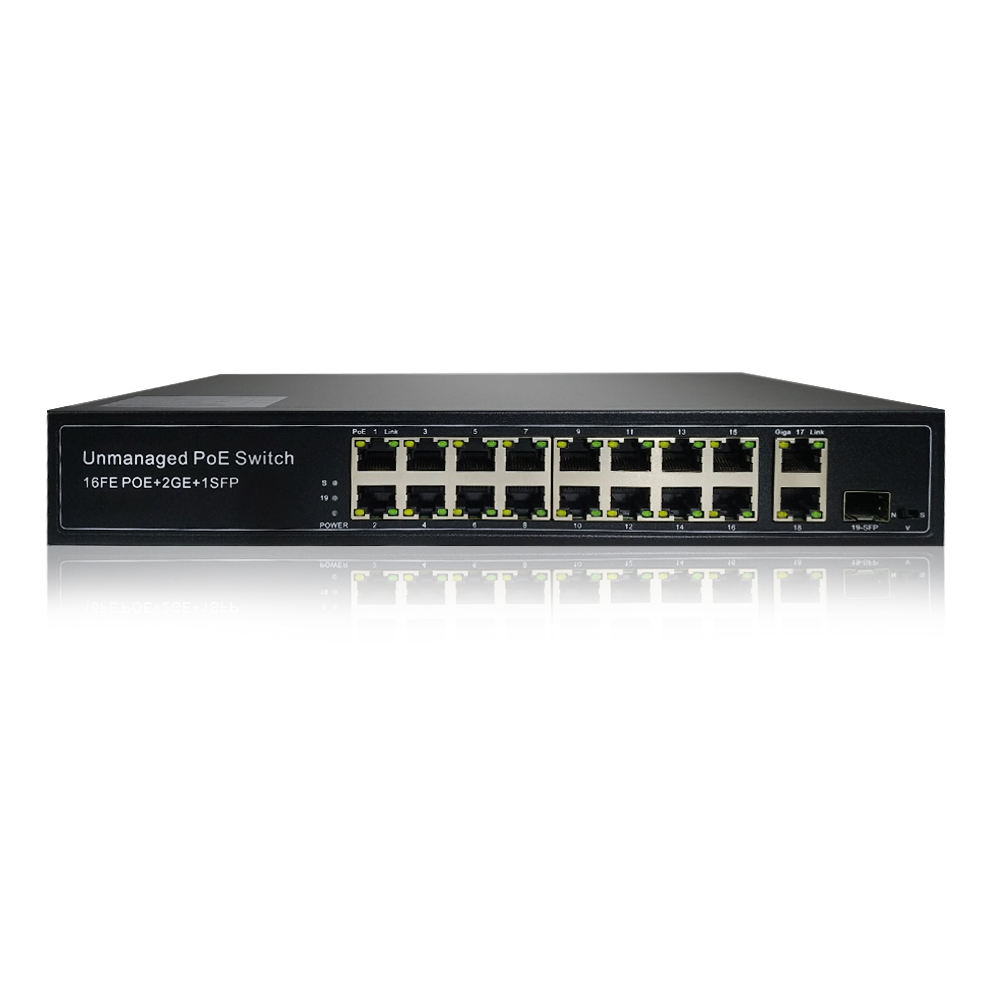

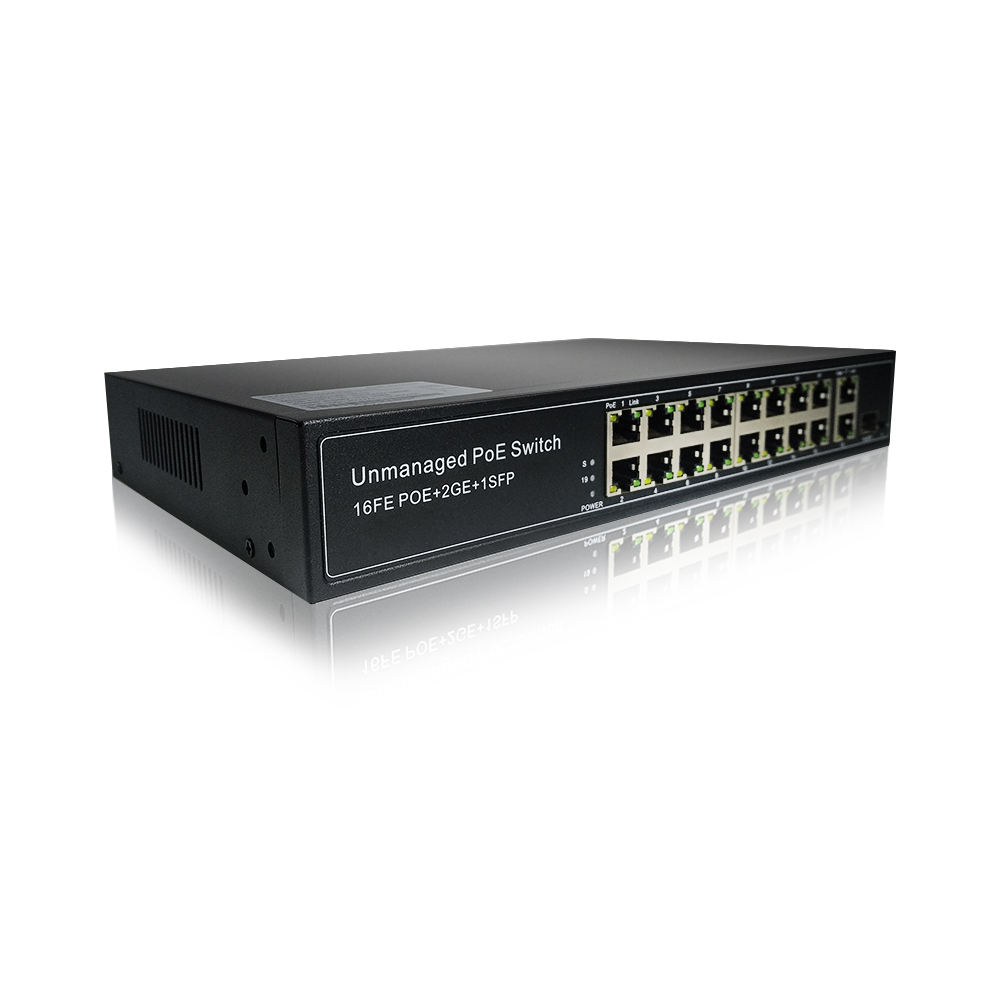

16 port 10/100Mbps 250m long range 1 x Gigabit SFP uplink unmanaged Network PoE Switch for IP Camera Wireless AP
Overview

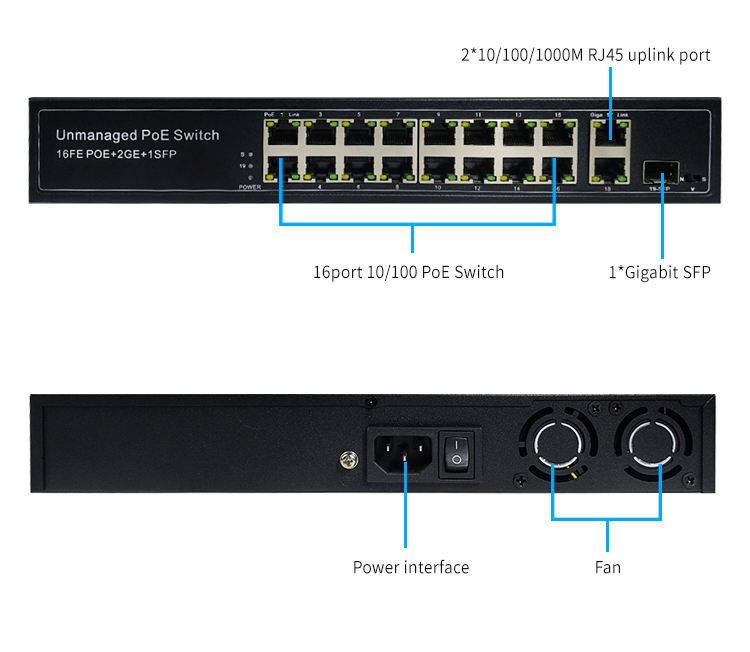

TS6216P-2G1F is one PoE switch with 16*100Mbps LAN PoE ports,2*Gigabit RJ45 and 1*1G Fiber SFP uplink ports.
It’s fully complying with the PoE standard IEEE802.3af/at and supplying long range transmission distance up to 250m.
Main Features
* 16*10/100mbps POE port;1*100/1000M RJ45 and 1*100/1000M SFP ports
* 250m Distance; Vlan Support
* REALTEK Chipset
* Support IEEE802.3AF/AT
* Whole Power:300W
* All port supported by MDI/MDIX auto flip and self-negotiation
* Supply 16 10/100Mpbs adaptive high-speed forwarding data packet non-lost port.
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
* Each port max. power supply reached 30W.
Application
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
* Access Point
* LED Lighting
Specifications
|
Technical items
|
Description
|
|
PoE Port
|
1 to 16 support IEEE802.3AF/AT Standard
|
|
Max. Power of Single Port
|
af-15.4W,at-30W
|
|
PoE Power Pin
|
Both 1/2+、3/6-
|
|
Whole Power
|
≤300W (AC 100~240V,50/60HZ)
|
|
PoE Protocol
|
IEEE 802.3af / IEEE 802.3at
|
|
PoE Type
|
End-span
|
|
Transmission Distance
|
≤250m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
10/100BASE-TX:5 class and above non shielded twisted pair
|
|
Switch Capability
|
16Gbps
|
|
Forwarding Mode
|
Store and forward
|
|
MAC Address
|
MAC address table 2K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpres-sure for Half-duplex mode
|
|
LED Indicator
|
LINK/ACT. 100Mbps; POE Status Indicator; Power indicator; Extender
|
|
Working Environment
|
Working temperature：0°– 55°C
Storage temperature: -40℃~70℃
Working Humidity: 10%~90% Non coagulation Storage Humidity: 5%~95% Non coagulation |
|
Weight
|
3.5kg
|
|
Dimension
|
295*195*45mm(L*W*H)
|
