- Model Number:GFBH
- Place of Origin:Guangdong, China
- Brand Name:ZTE
- Use:FTTH FTTB FTTX Network
- Warranty Time:1 year
- Supply Ability
- 10000 Piece/Pieces per Year
- Packaging Details
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated

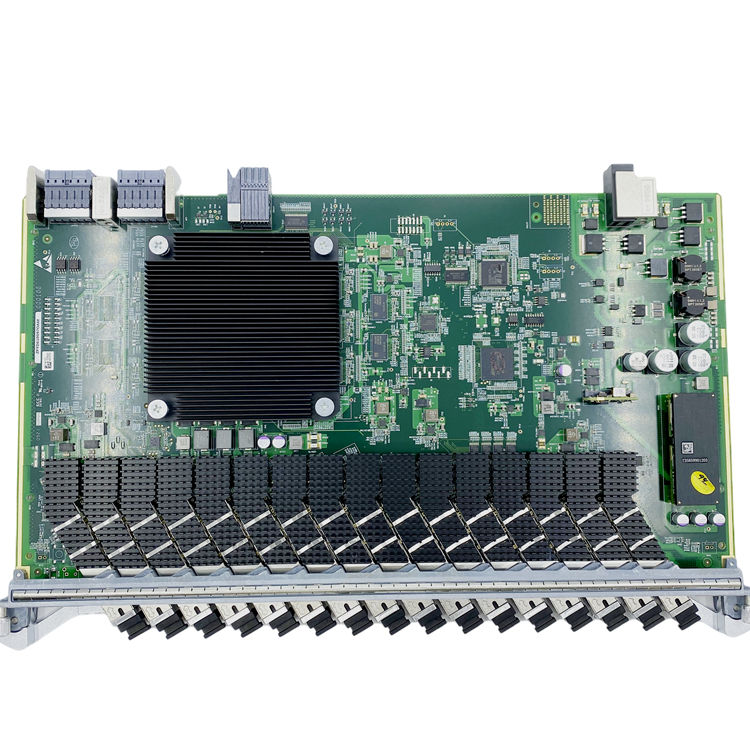

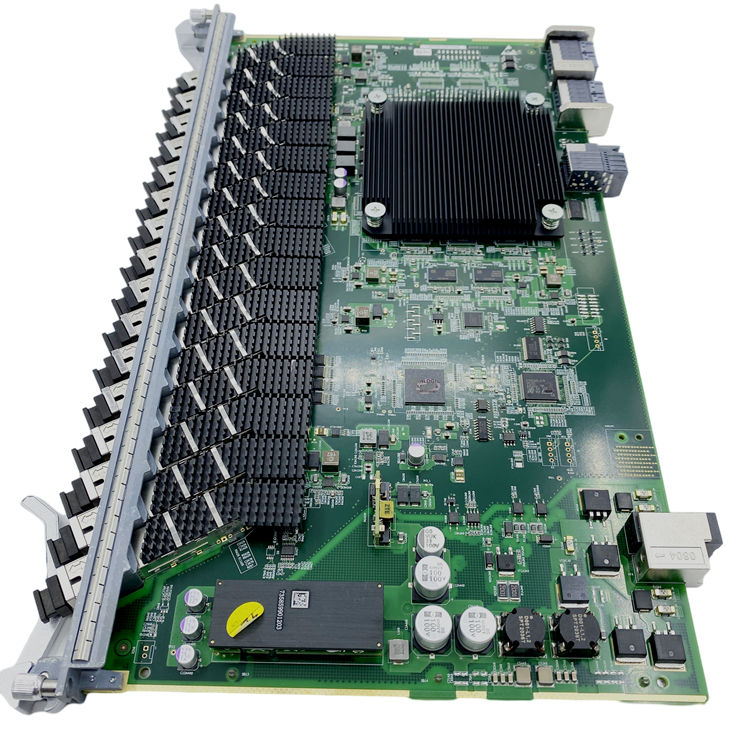

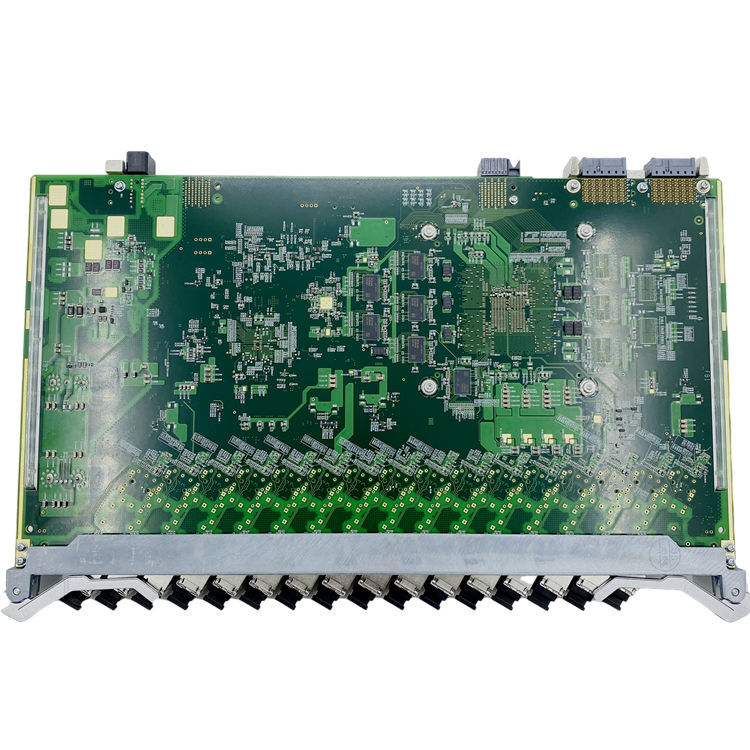

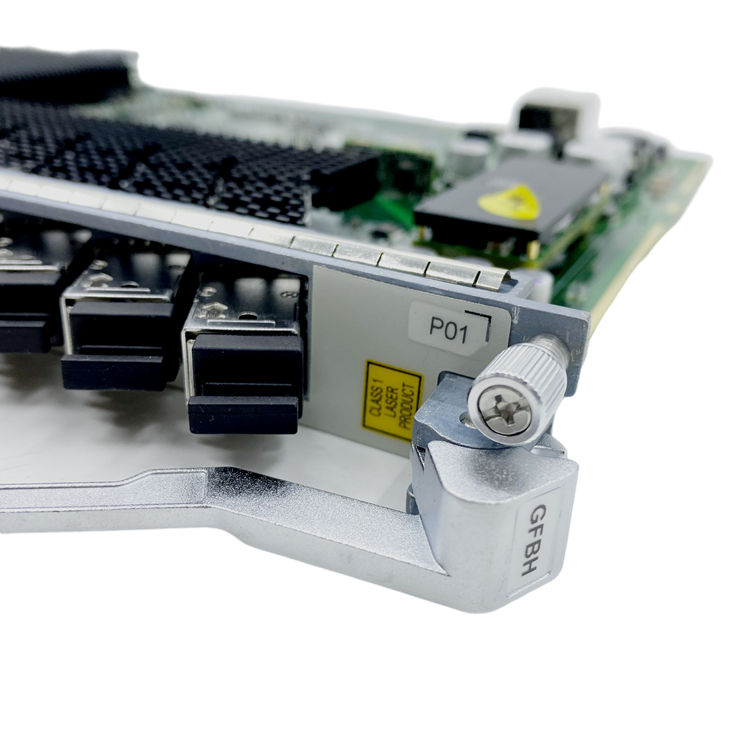

ZTE GFBH Service Board is 16 port GPON & XG PON Combo interface board suitable for C600
ZTE GFBH Service Board is 16-port XG-PON & GPON Combo service card. This board is applied to ZTE ZXA10 C600/C650/C680 GPON OLT. And could support 16 XG-PON & GPON SFP+ hybrid interfaces and Maximum optical split ratio of GPON: 1:128 & Maximum optical split ratio of XG-PON: 1:128
ZXA10 C600 is a large capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high band width, big video, FMC and network re architecture, as well as carrier-class QoS and security.
ZXA10 C680 is ultra-large capacity optical access equipment based on theTITAN platform.It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re architecture, as well as carrier-class QoS and security. ZXA10 C680 is 60S high optical access equipment, which has industry’s highest 36 line card slots and provide 576 GPON/10G PON ports.
|Interface||XG-PON & GPON Combo|
|Function||XG-PON & GPON service access|
|Specification||XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector|
|Management and control module||Configures, controls, and manages the card.|
|PONMAC module||Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.|
Implements data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
|Optical module||Provides a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.|
|Clock module||Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.|
|Dimensions (L x H x W)||393.1 mm × 23.9 mm × 214 mm|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
