- Product Name:1*8 sc upc plc splitter
- Application:Telecommunication
- Fiber Type:G657A
- Material:metal,PVC
- Certification:ISO9001
- Warranty:3 Years
- Wavelength:1260nm-1650nm
- No. of Fiber:1.
- Use:FTTX
-
- Packaging Details

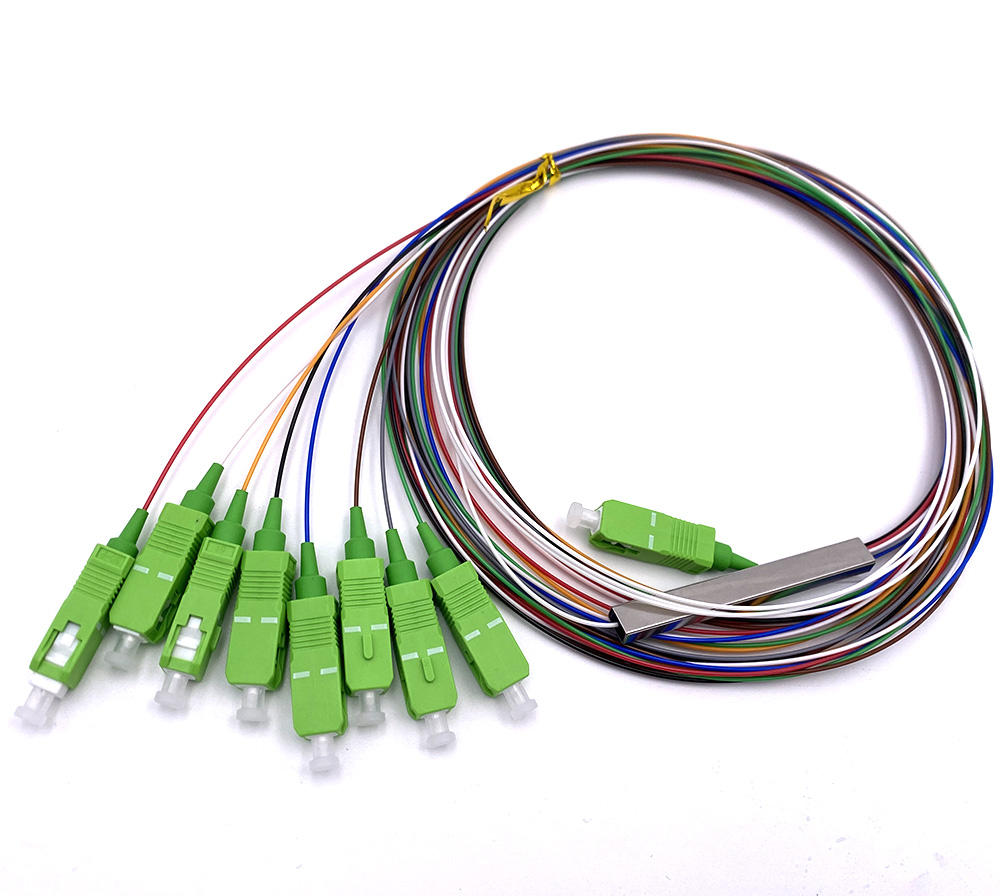

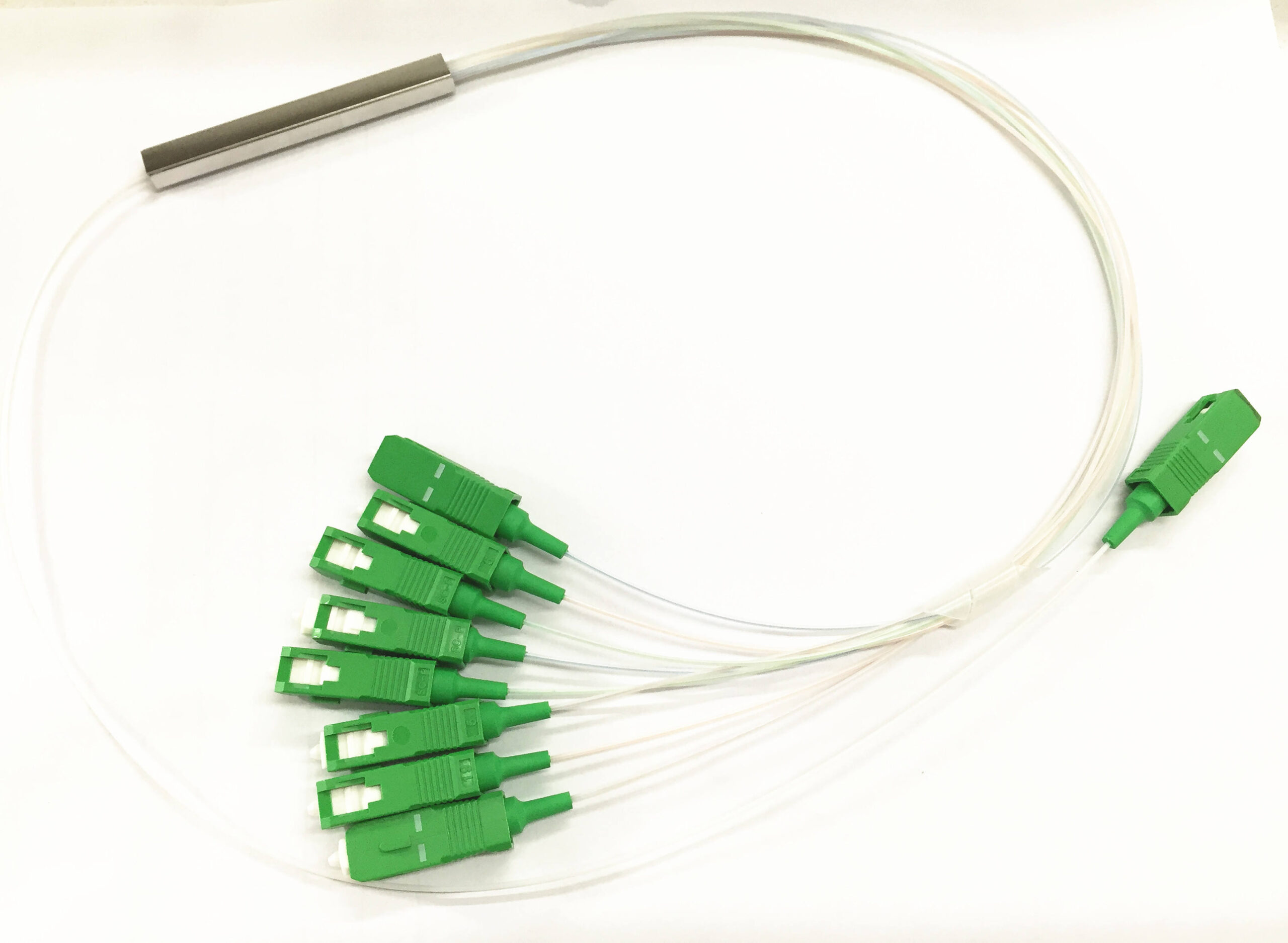

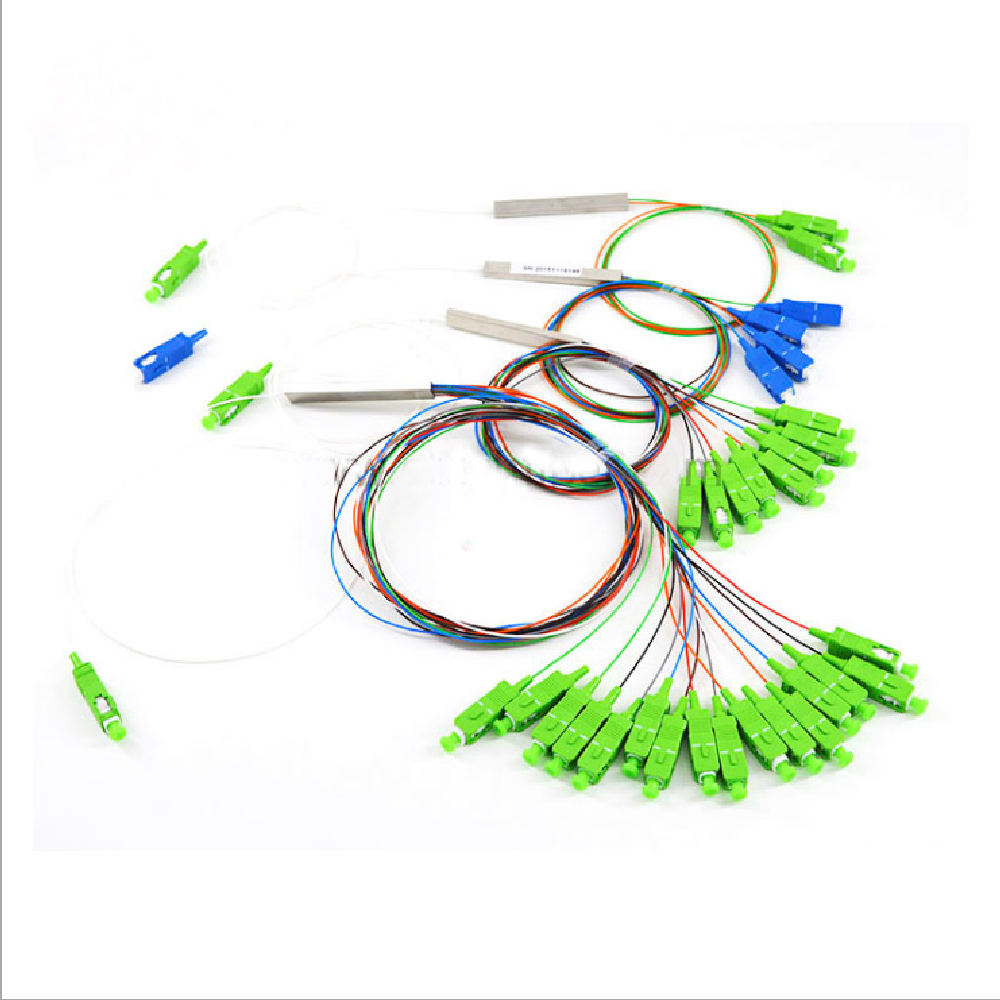

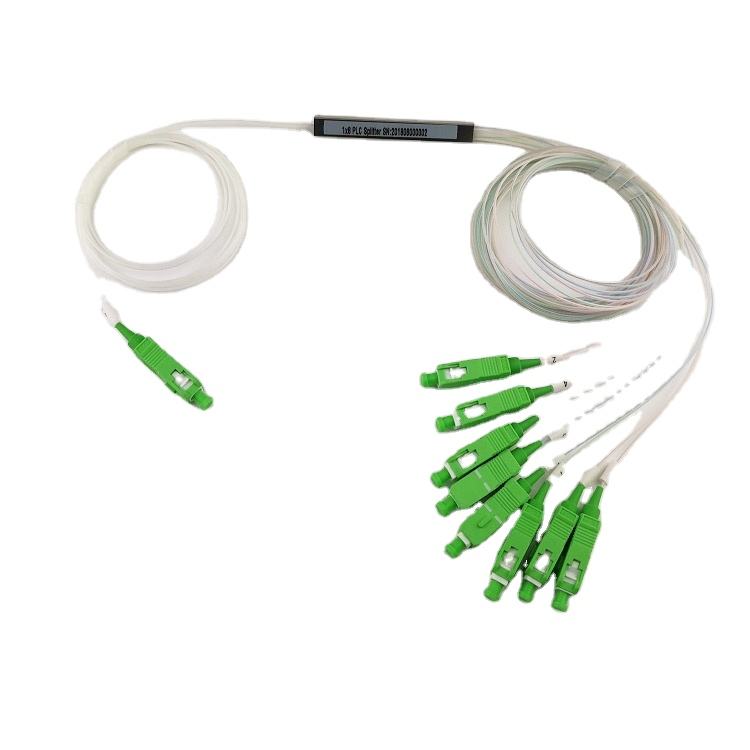

1*8 sc upc plc splitter fiber optic plc splitter mini splitter steel tube plc splitter 1×8
Plastic/ Carton/Customized - Picture Example:
- Lead time:Quantity(pieces)1 – 100000>100000Lead time (days)15To be negotiated

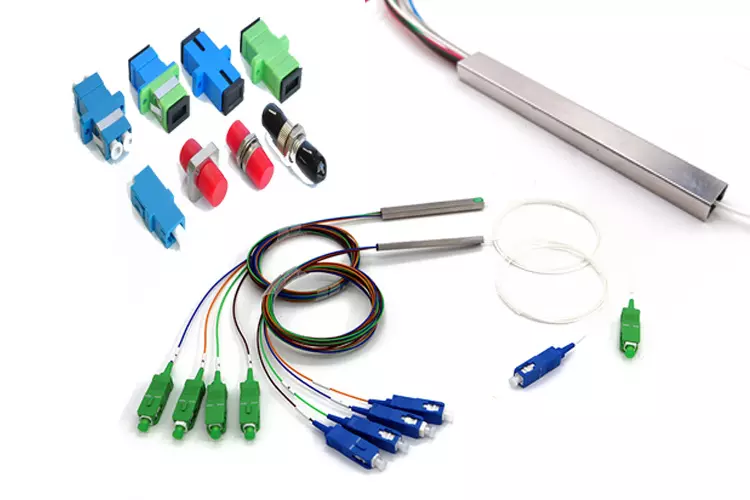

1*8 mini splitter steel tube plc fiber optic splitter with adapter sc upc sc apc
Product Features:
· Good uniformity and low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical
· Stability Telcordia GR-1221 and GR-1209
Application:
· Fiber to The Home (FTTH)
· Passive optical networks (PON)
· Local Area Networks (LAN)
· Cable Television (CATV)
Test Equipmen
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|
Operating wavelength |
1260 ~1650nm |
||||||
|
Insertion Loss (dB)(P/S Grade) |
3.6/4.0 |
7.2/7.4 |
10.2/10.5 |
13.5/13.7 |
16.2/16.7 |
20.5/21 |
23.8/24.5 |
|
uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.0 |
1.2 |
1.8 |
2.0 |
|
PDL (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.5 |
|
Return Loss (dB) |
≥55 |
||||||
|
Directivity (dB) |
≥55 |
||||||
|
TDL(dB) |
0.5 |
||||||
|
Operating/Storage Temperature (℃) |
-40~85 |
Specifications (2XN):
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
2×128 |
|
Operating wavelength |
1260 ~1650nm |
||||||
|
Insertion Loss (dB)(P/S Grade) |
3.8/4.2 |
7.5/7.8 |
10.7/11 |
14/14.2 |
17/17.5 |
21/21.5 |
25/25.5 |
|
uniformity (dB) |
0.6 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
2.5 |
|
PDL (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Return Loss (dB) |
≥55 |
||||||
|
Directivity (dB) |
≥55 |
||||||
|
TDL (dB) |
0.5 |
||||||
|
Operating/Storage Temperature (℃) |
-40~85 |
||||||
| Note: All the data above does not include connector |
