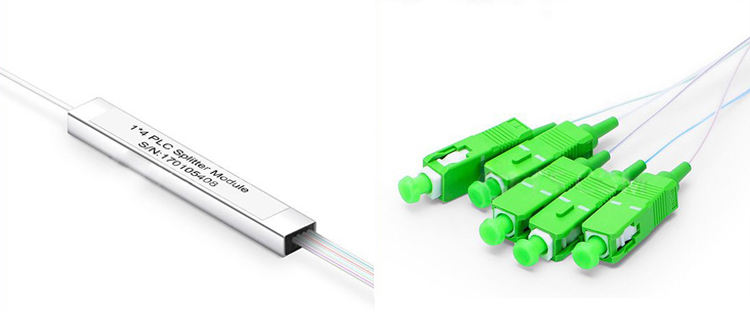

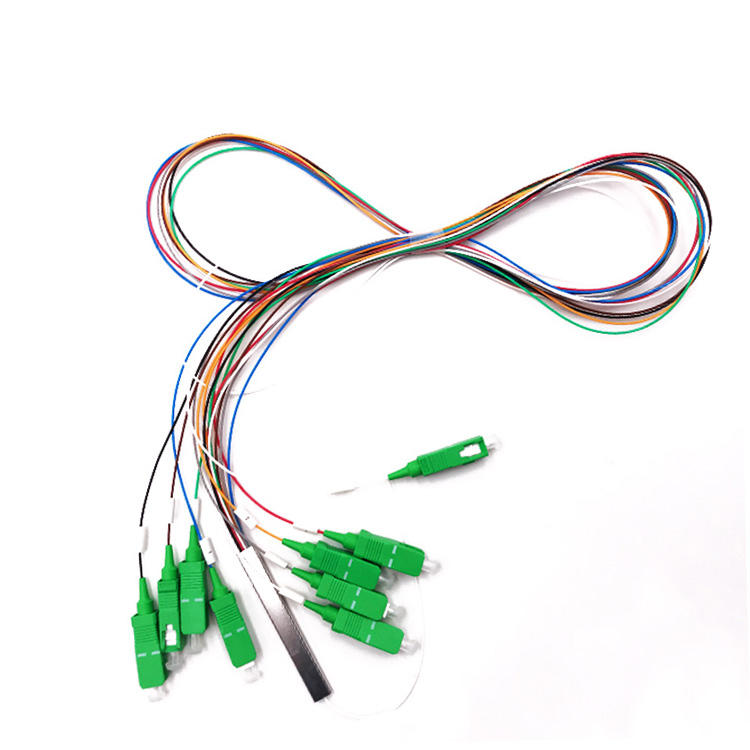

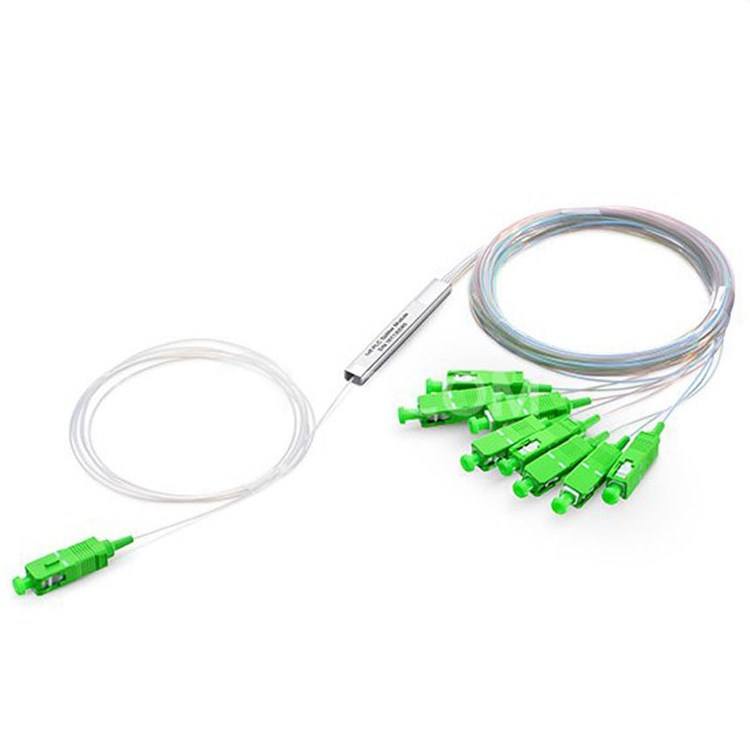

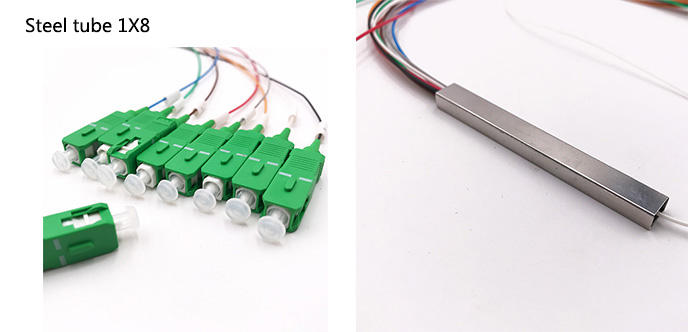

ftth multimode passive fiber optical 1 8 plc splitter 1×8 plc splitter price
Split Ratio:1X8

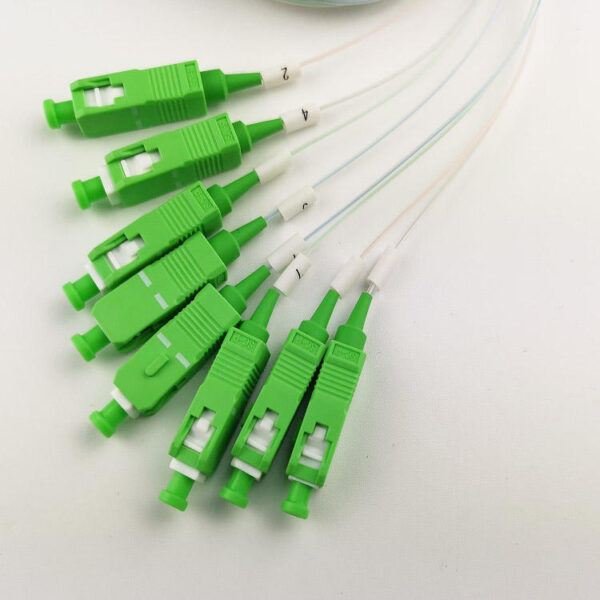

Connector: SC,FC,LC,ST
There are more choice of Split Ratio
| Technical Test Data | ||||||||||
| Split Ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤3.6 | ≤7.2 | ≤10.2 | ≤13.5 | ≤16.2 | ≤3.8 | ≤7.5 | ≤10.7 | ≤14 | ≤17 |
| Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 |
