- Product name:Mini Sc PLC Splitter 1×2
- Warranty:1 Years
- Wavelength:1310/1550nm
- Application:Telecommunication
- Fiber Type:G657A
- Material:PVC
- Length:1M, 2M, Customized
- Use:FTTH
- No. of Fiber:16
-
- Supply Ability
- 100000 Piece/Pieces per Month Mini Sc PLC Splitter 1×2
-
- Packaging Details
Box and Carton for 1m 0.9mm White Color Cable Mini Sc Apc Connector PLC Splitter 1×2 with G657A2 Fiber Number Marker Test Report Blister Box Pack.
Packaging can be customized according to your demands. -
- Port
Wuhan, Shanghai, Ningbo, shenzhen, tianjin, qingdao
- Picture Example:
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)10To be negotiated

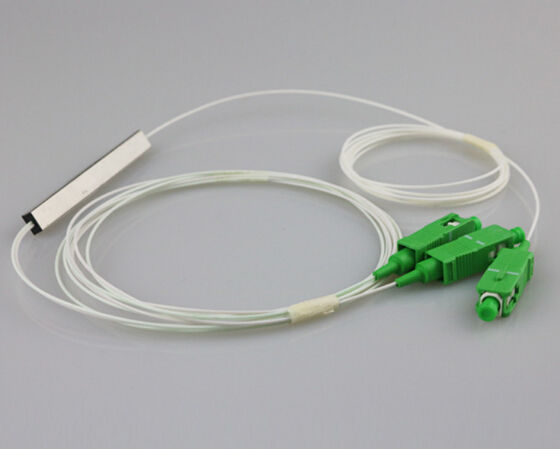

1m 0.9mm White Color Cable Mini Sc Apc Connector PLC Splitter 1×2 with G657A2 Fiber Number Marker Test Report Blister Box Pack
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Wolon provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
- Low Insertion loss and PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1650nm
- High Reliability and Stability
Technical Data:
Split Ratio:1XN
Connector: SC,FC,LC,ST
There are more choice of Split Ratio
| Technical Test Data | ||||||||||
| Split Ratio | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤3.6 | ≤7.2 | ≤10.2 | ≤13.5 | ≤16.2 | ≤3.8 | ≤7.5 | ≤10.7 | ≤14 | ≤17 |
| Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 |
