- Private Mold:NO
- Products Status:Stock
- Ports:≤ 8, 8
- Transmission Rate:10/100Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:2G
- Brand Name:Accept OEM
- Model Number:HT-POE8610
- Place of Origin:Guangdong, China
- Standards Protocols:IEEE 802.3u 100BASE-TX
- Speed:Fast Ethernet 100Mbpshalf-duplex
- Network Media:10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)
- Bandwidth:2G
- MAC:1K
- Power input:AC 100-240V 50/60Hz MAX 96W
- POE:IEEE802.3af/at, per port up to 30W,
- Operating Temperature::0℃~40℃ (32℉~104℉)
- Warranty::12 months
- Selling Units:Single item
- Single package size: 23.8X11.3X7 cm
- Single gross weight:1.200 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 12 – 500501 – 1000>1000Lead time (days)32535To be negotiated
Products Description
1. 8 10/100 Auto-Negotiation RJ45 ports with 8 PoE ports (port-1~port-8)
2. 2 100M uplink port
3. 250M cable power support 150W MAX power output
4. Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode LED indicators for monitoring
power, link, activity and speed
5 . Desktop mode with Metal Case
6. Each POE port Up to 30W of power on
7. Compatible With All IEEE 802.3at or Legacy
8 . Safe: Low Power Devices Receive Only the Power They Need
9 . Automatic Detection and Protection of Non–standard Ethernet
10. Terminals Supports 10/100 Base-T applications
11 . Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
12. complies to IEEE 802.3af/at PoE standard and is backward
2. 2 100M uplink port
3. 250M cable power support 150W MAX power output
4. Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode LED indicators for monitoring
power, link, activity and speed
5 . Desktop mode with Metal Case
6. Each POE port Up to 30W of power on
7. Compatible With All IEEE 802.3at or Legacy
8 . Safe: Low Power Devices Receive Only the Power They Need
9 . Automatic Detection and Protection of Non–standard Ethernet
10. Terminals Supports 10/100 Base-T applications
11 . Plug-and-Play no configuration required Internal power supply Easy installation and maintenance
12. complies to IEEE 802.3af/at PoE standard and is backward
|
Model
|
HT-POE8610
|
|
100M POE Rj45
|
8
|
|
100M UPLINK
|
2
|
|
Exchange Mechanism
|
Store-and-forward
|
|
Bandwidth
|
2G
|
|
MAC
|
1K
|
|
Environmental |
Working Temperature: -10℃~55℃Storage temperature: -40℃~70℃
|
|
Working Humidity :10%~90% RH non-condensingStorage Humidity:5%~90% RH non-condensing
|
|
|
Power input
|
AC 100-240V 50/60Hz MAX 150W
|

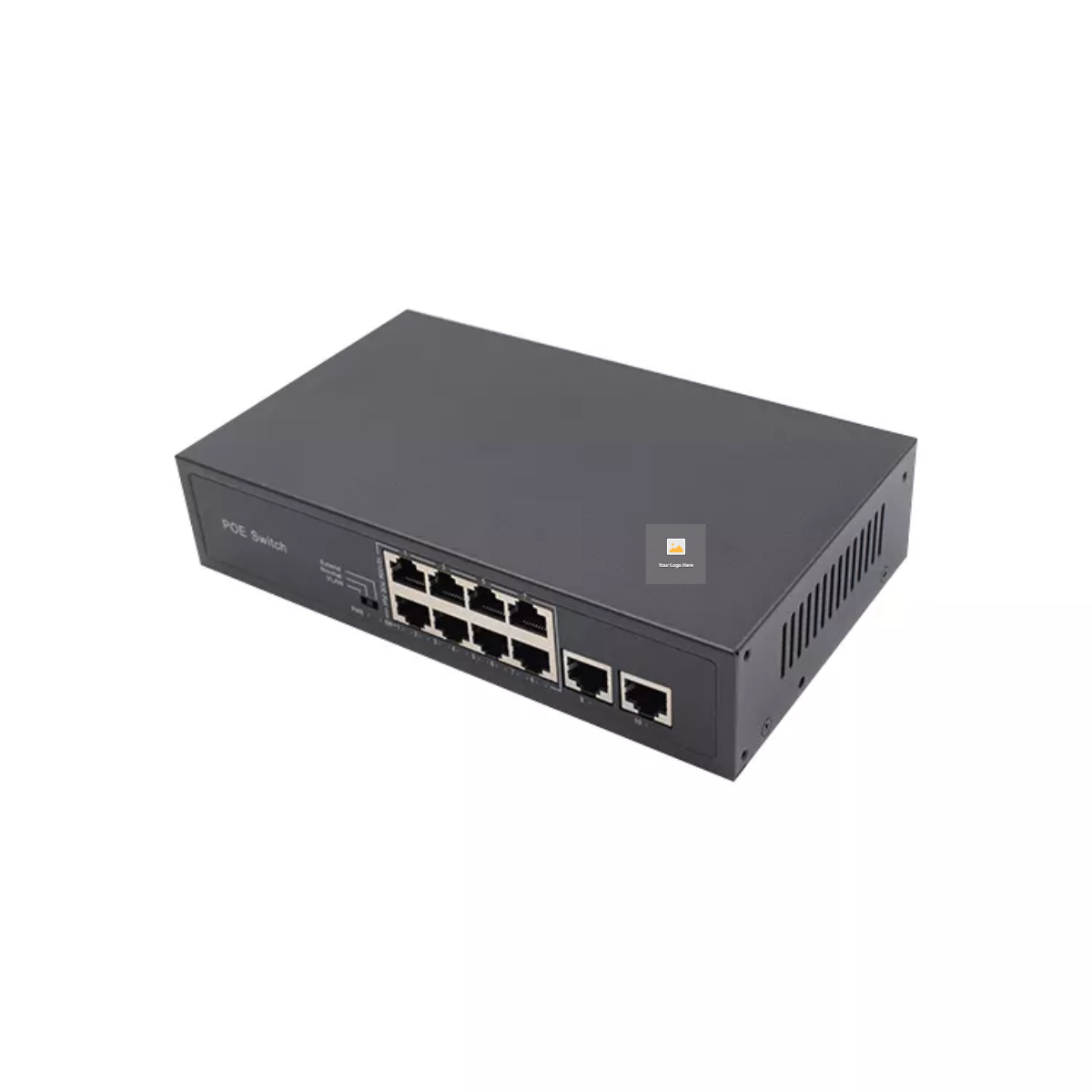

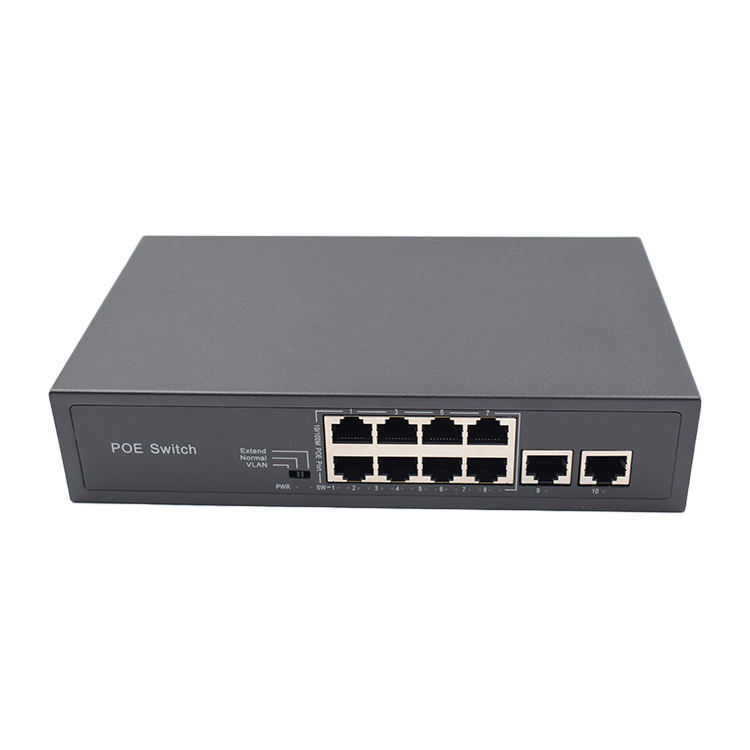

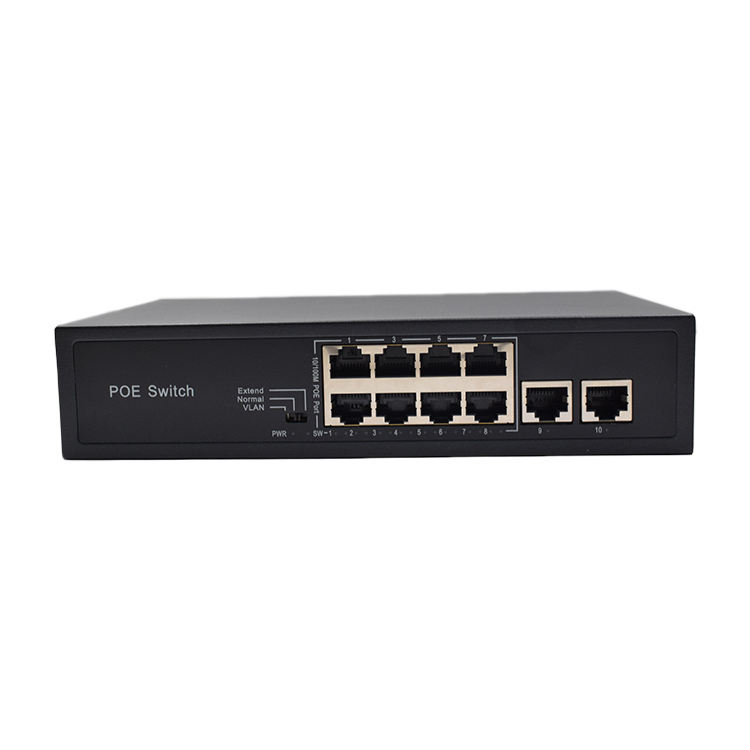

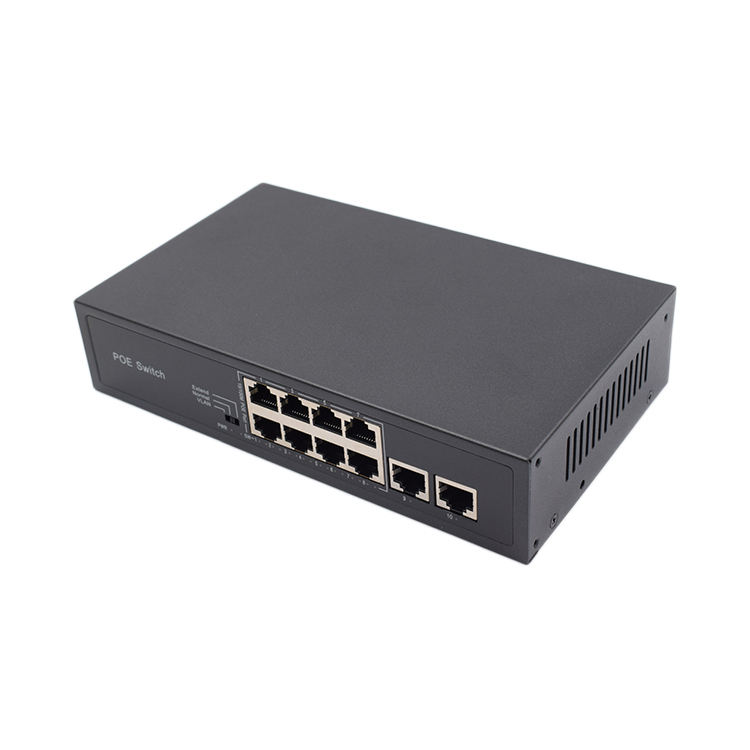

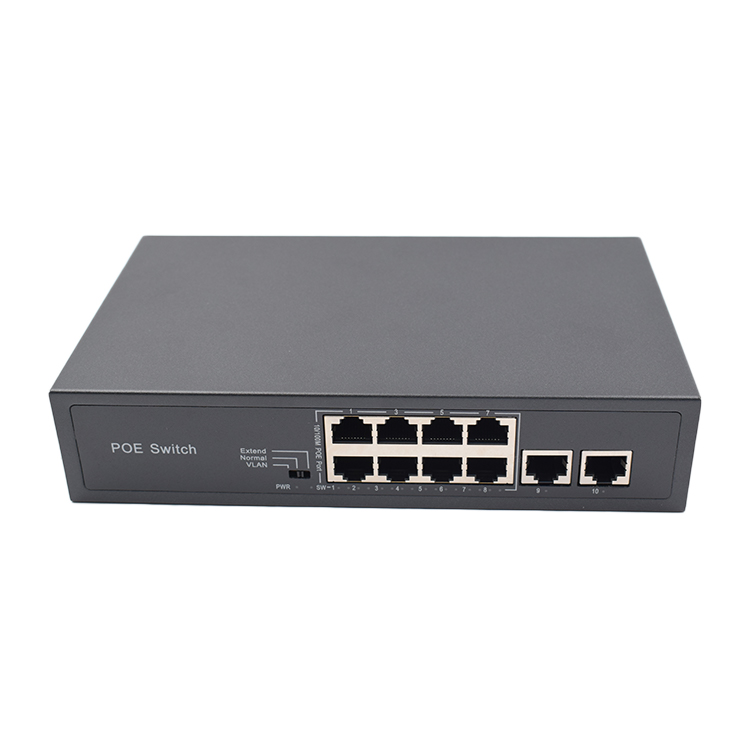

Product Photos
Details Images

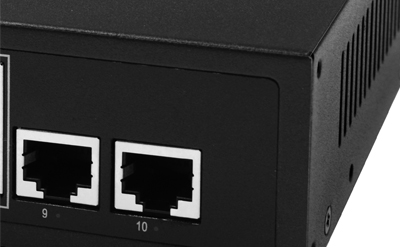

2 100M uplink port

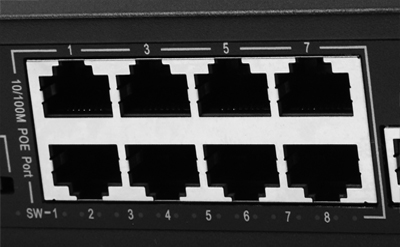

10/100 Auto-Negotiation RJ45 ports with 8 PoE ports (port-1~port-8)

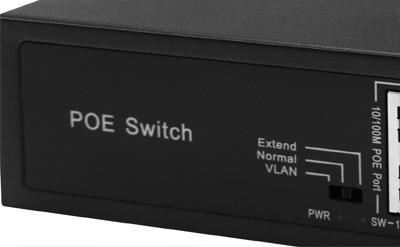

Three modes are supported
1.VALN
2.DEFAUIT
3.EXTEND
1.VALN
2.DEFAUIT
3.EXTEND
