24-FC Fiber ODF Rack Mount Distribution Box – Branded | Compact Termination Enclosure
Product Overview

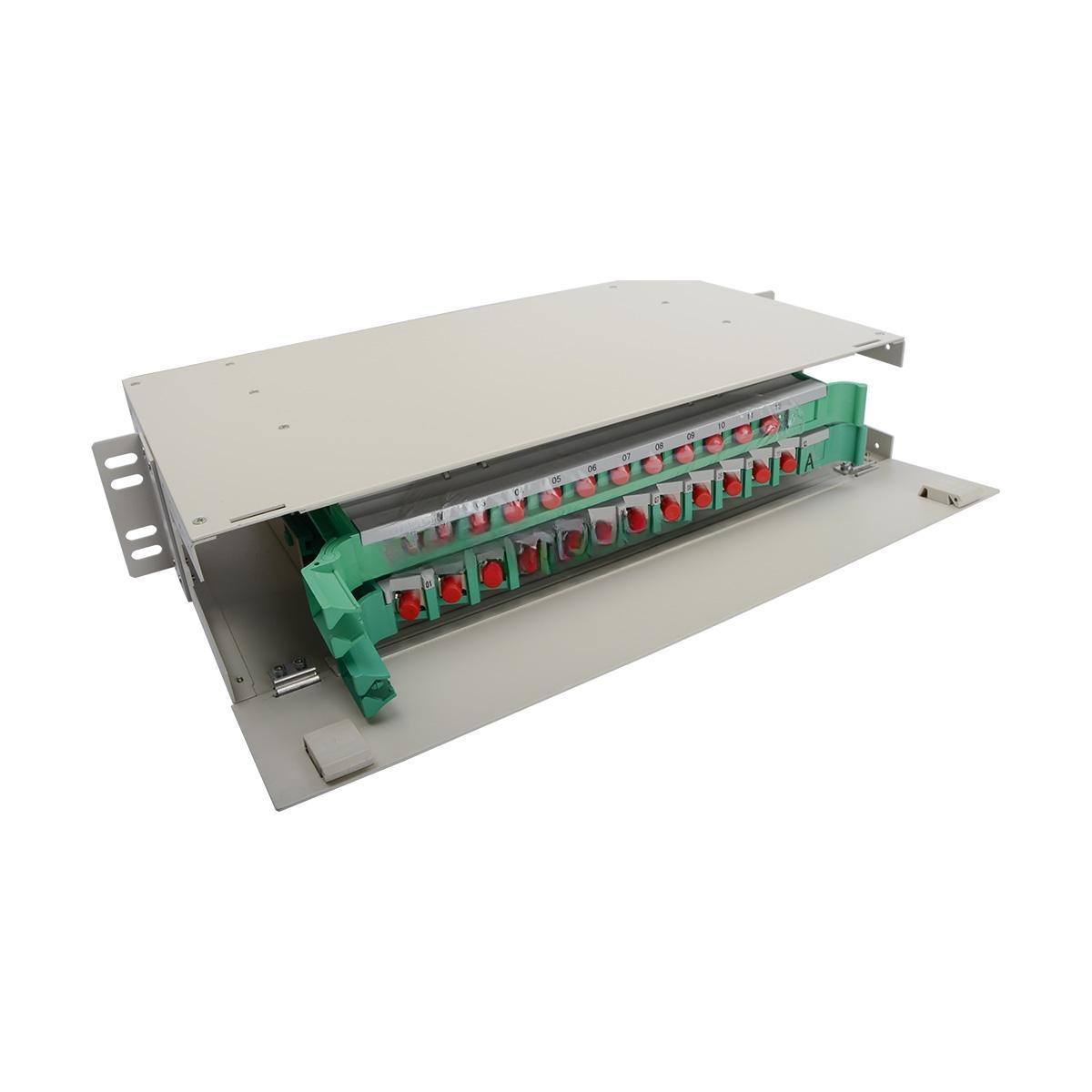

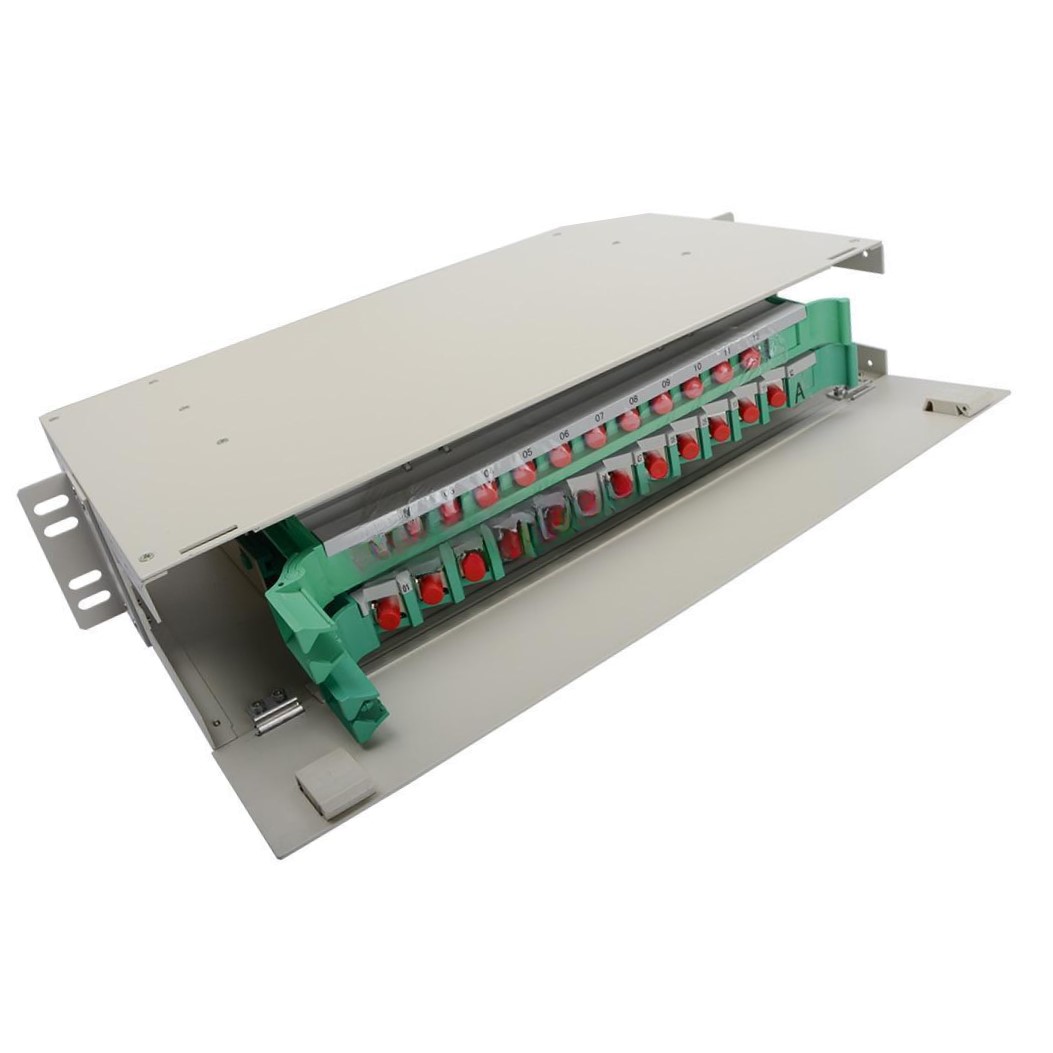

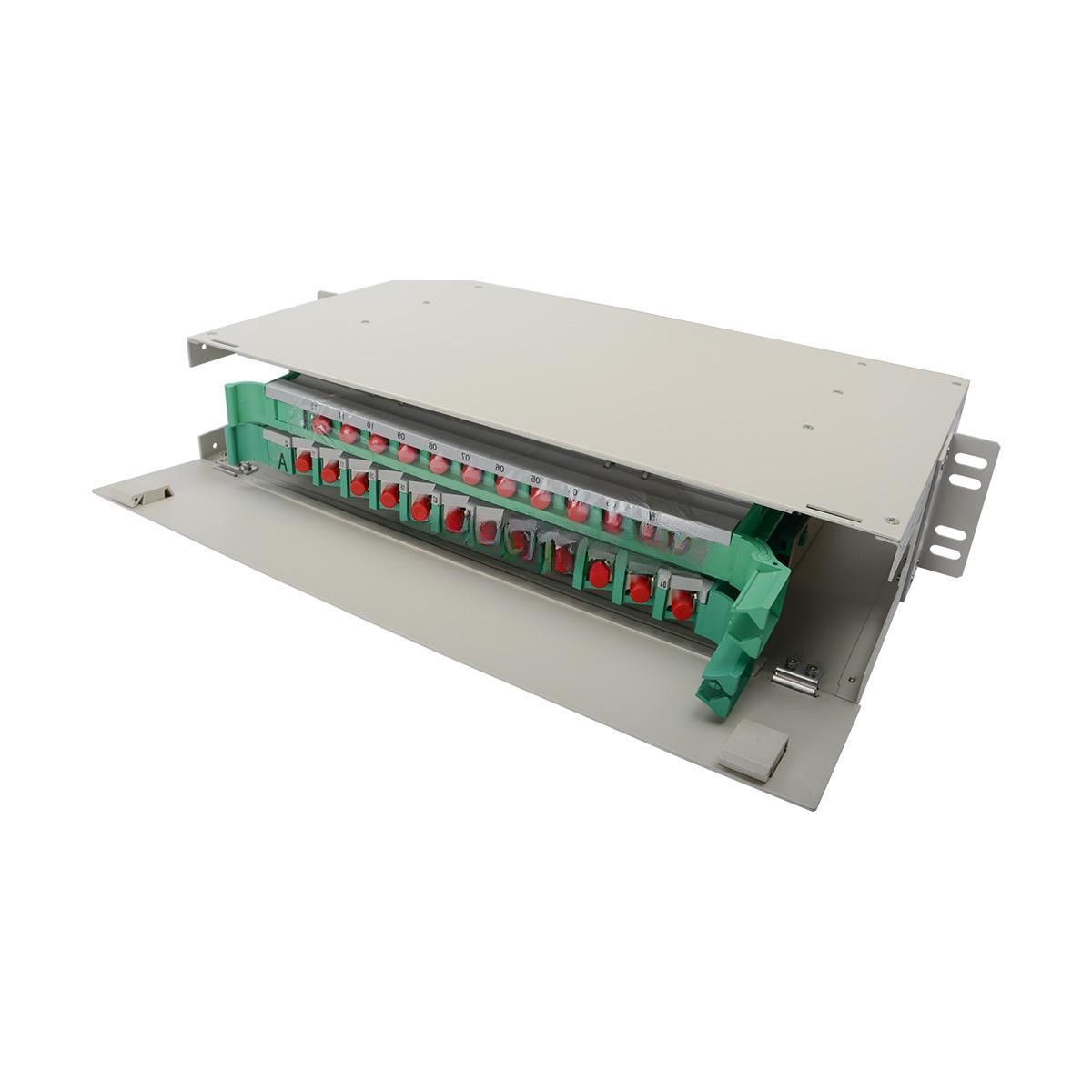

The 24-FC Fiber ODF Rack Mount Distribution Box is a compact, rack-mountable optical distribution frame designed for up to 24 fiber terminations using FC simplex adapters. Engineered with durable cold-rolled steel and a smooth powder-coated finish, this branded unit offers structured cable management, superior protection, and flexible fiber routing for FTTx, telecom closets, enterprise LANs, and data centers.
Ideal for small to mid-size fiber networks, this ODF supports organized termination, splicing, and interconnection—all within a standard 19-inch rack.
Key Features of 24-FC Fiber ODF Rack
-
✅ Capacity: 24 fibers (FC/UPC or FC/APC simplex adapters)
-
✅ Mounting: 19-inch rack compatible – 1U height design
-
✅ Material: Cold-rolled steel with corrosion-resistant powder coating
-
✅ Front Panel: 24-port FC simplex adapter mounting holes
-
✅ Cable Entry: Rear or side entry with protective grommets
-
✅ Branding: Available with custom logo and labeling
-
✅ Condition: 100% Brand New – Sealed and unused
-
✅ Compliance: CE, RoHS, ISO9001 certified
24-FC Fiber ODF Rack Technical Specifications
| Specification | Details |
|---|---|
| Fiber Capacity | 24 cores |
| Adapter Type | FC/UPC or FC/APC |
| Enclosure Type | 19” Rack Mount (1U) |
| Dimensions (Standard) | 430mm × 250mm × 44mm |
| Material | Cold-rolled steel |
| Surface Finish | Electrostatic powder coating (gray or black) |
| Cable Entry | Rear/side with cable clamps or glands |
| Splice Tray Compatibility | Optional – 1 tray (12/24 fibers) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Protection Rating | IP20 (indoor rack use) |
24-FC Fiber ODF Rack Applications
-
📡 FTTH & FTTx Termination Points
-
🏢 Enterprise Network Infrastructure
-
☁️ Data Centers & IT Facilities
-
🌐 Telecom Central Offices / Equipment Rooms
-
🧪 Lab & Testing Environments for Fiber Connections
Customization Options
We support full OEM/ODM customization for integrators, ISPs, and global clients:
-
🔧 Adapter Configuration: FC/UPC, FC/APC, or mixed types
-
🔧 Front Panel Design: Lockable, sliding tray, or fixed panel
-
🔧 Logo Placement: Laser engraving or custom printing
-
🔧 Color Customization: Standard gray, black, or custom RAL colors
-
🔧 Pigtail Options: Pre-installed pigtails available (SM/MM)
-
🔧 Packaging: Bulk box, export-safe, or branded kits
Let us tailor this unit to your network specs or brand identity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 24-FC Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 89 mm |
| Weight | 5.8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Included | 1 unit 24 Fiber Distribution Box 2 units 12-Fiber Integration Tray Fully equipped FC adapters |
| Port Capacity | 24 Ports |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | FC |
| Port Count | 24 |
Wholesale & Bulk Supply Benefits
Perfect for telecom rollouts, fiber contractors, and international resellers:
-
📦 Factory Pricing with Tiered Discounts
-
📦 Fast Lead Times and Global Shipping Support
-
📦 Private Labeling & Custom Barcode Packaging
-
📦 MOQ Flexibility for Stock or Custom Orders
-
📦 Documentation: RoHS, CE, COO, Test Reports Included
Why Choose Our 24-FC Fiber ODF Rack?
-
✔️ Compact & Reliable Design for Mid-Capacity Networks
-
✔️ Compatible with Standard FC Patch Cords & Pigtails
-
✔️ Structured, Safe & Easy Fiber Routing
-
✔️ Durable Build with Professional Aesthetic
-
✔️ Branded and OEM-Ready for Global Markets
Order Now
Streamline your fiber installation with the 24-FC Fiber ODF Rack Mount Distribution Box – the perfect choice for organized, scalable, and branded fiber terminations. Available with OEM customization, accessories, and wholesale pricing.
