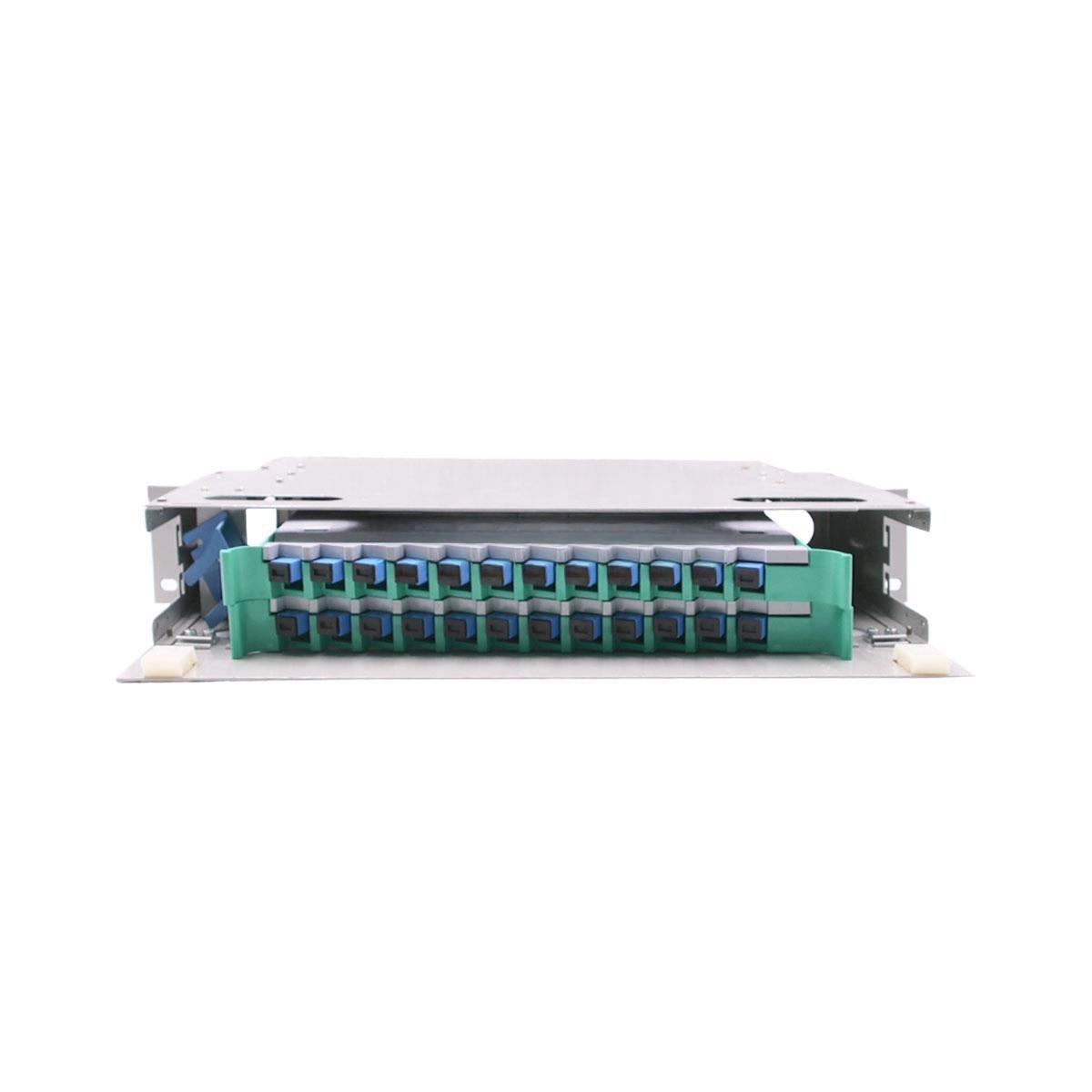

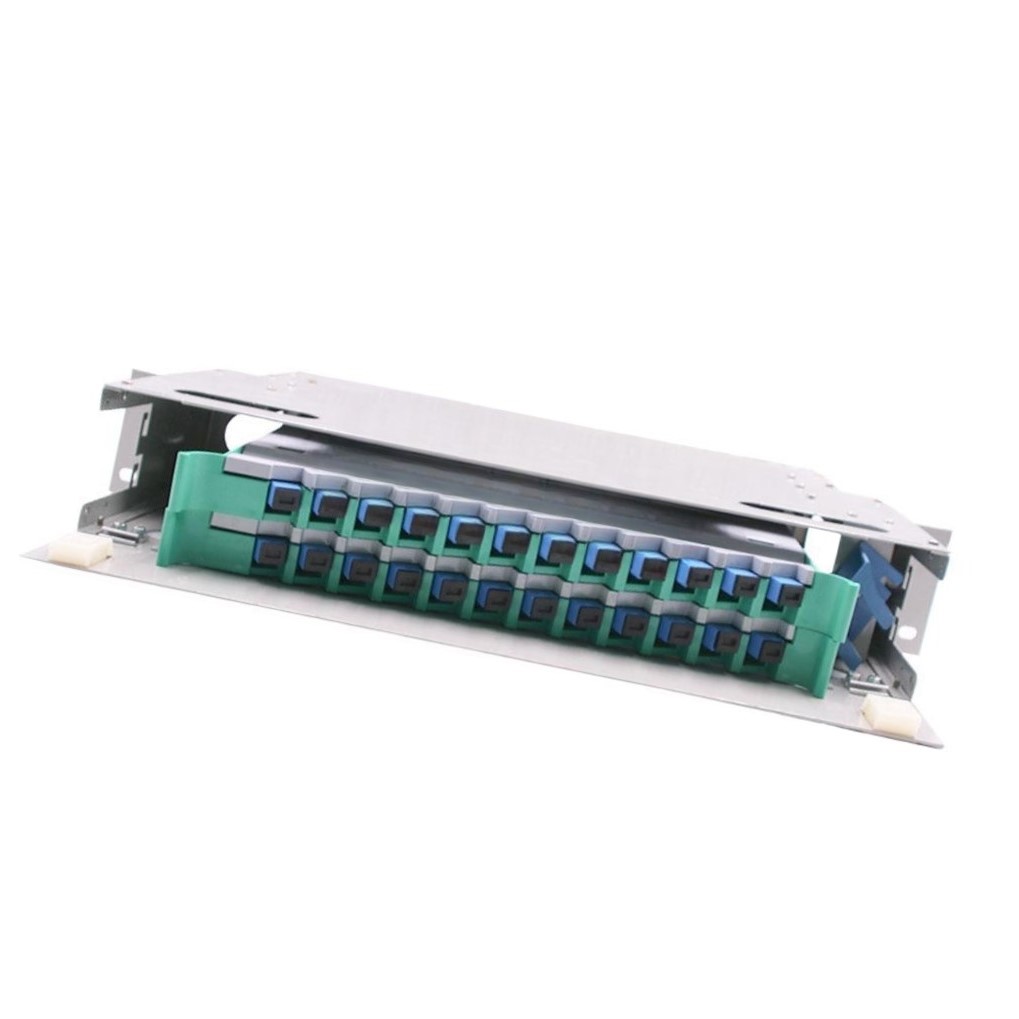

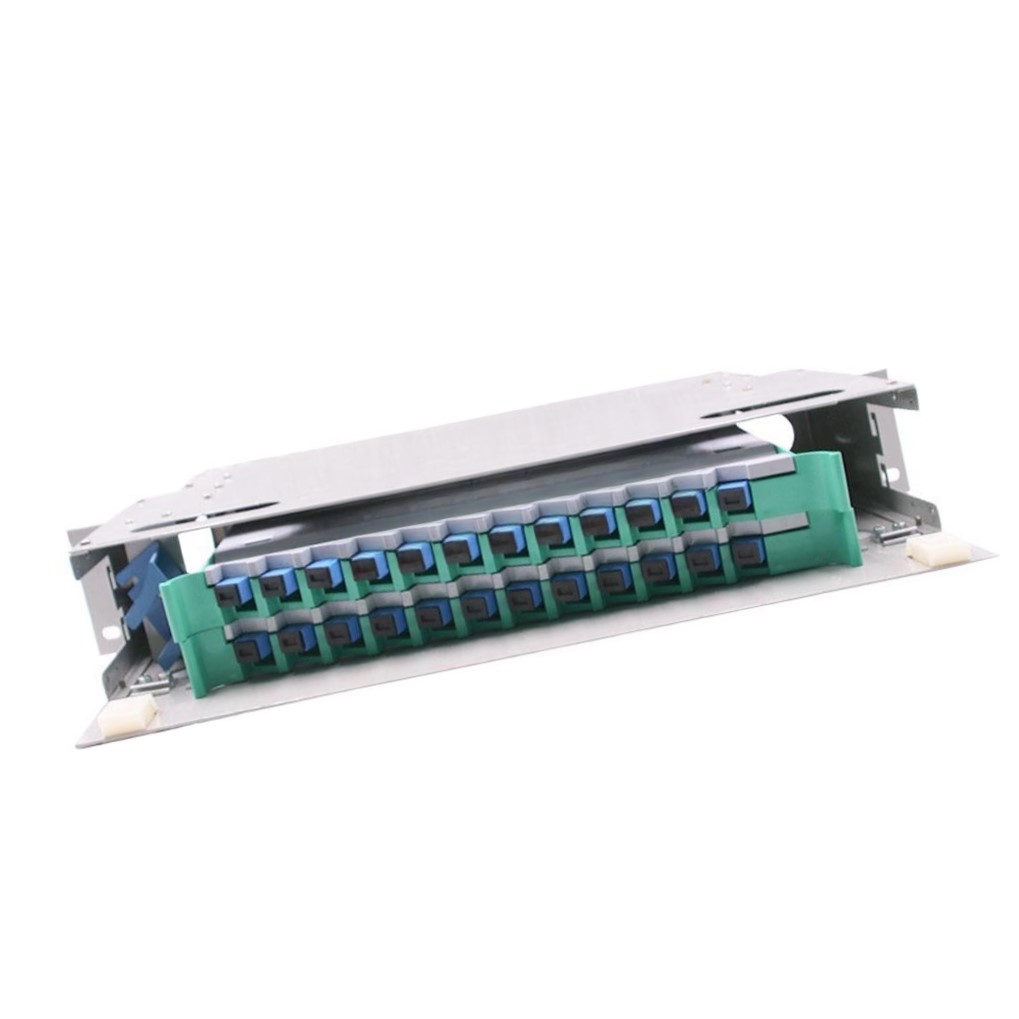

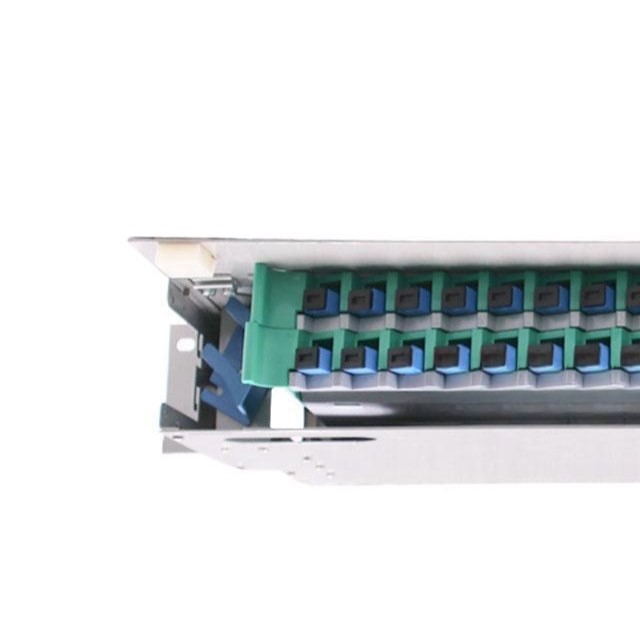

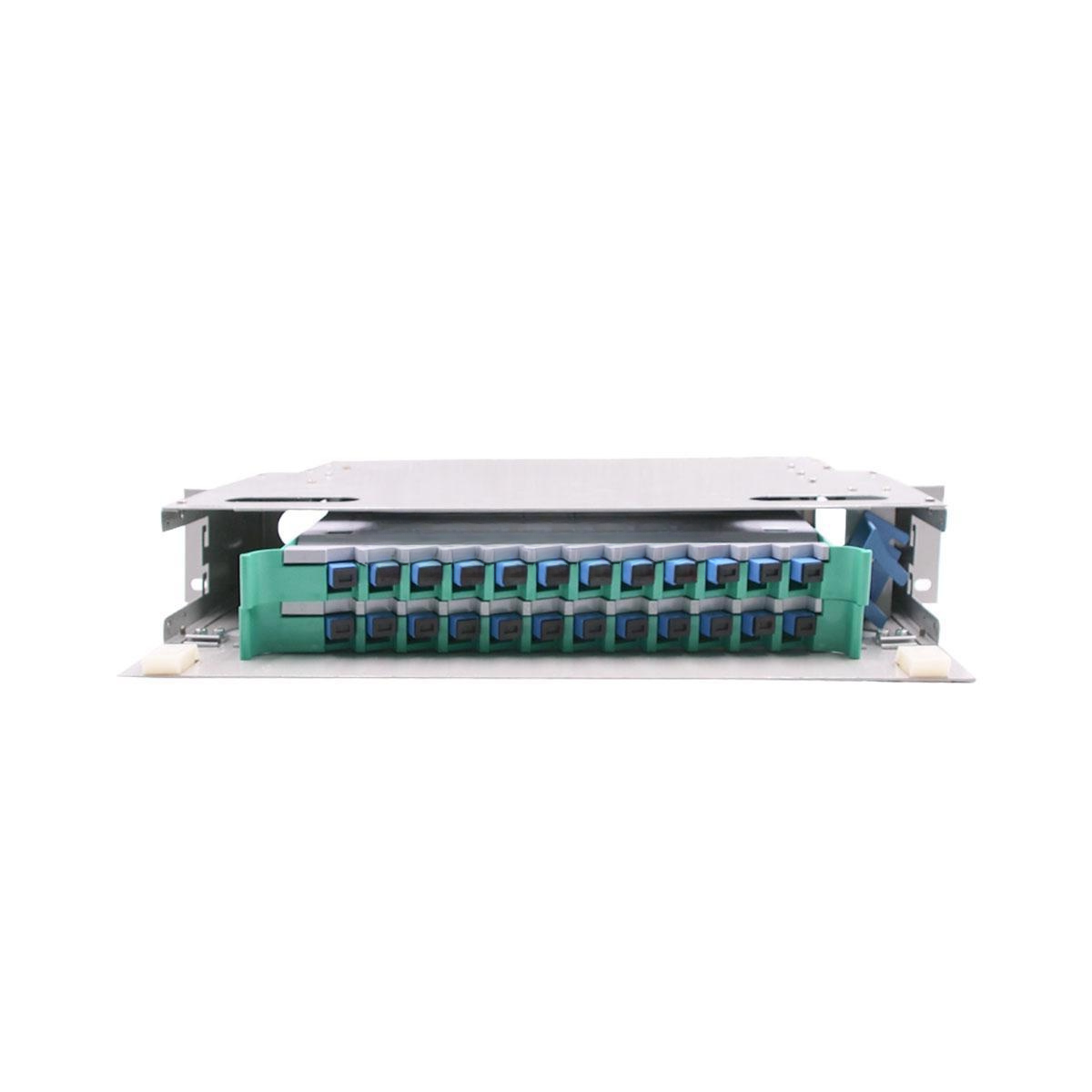

24-SC Fiber ODF Rack Mount Distribution Box – Branded | Compact & Efficient Fiber Termination Unit
Product Overview
The 24-SC Fiber ODF Rack Mount Distribution Box is a space-saving, rack-mountable optical distribution frame designed to accommodate up to 24 SC simplex fiber connections. With a robust steel construction and powder-coated finish, this branded ODF unit ensures organized, secure, and accessible fiber terminations in telecom, FTTH, enterprise LAN, and data center environments.
Its compact 1U design makes it ideal for installations where space, performance, and cleanliness of cable routing are critical.
Key Features of 24-SC Fiber ODF Rack
-
✅ Capacity: 24 cores (SC/UPC or SC/APC simplex adapters)
-
✅ Mounting Type: Standard 19-inch rack mount – 1U height
-
✅ Material: Cold-rolled steel with anti-corrosion powder coating
-
✅ Front Panel: 24-port SC simplex cutouts
-
✅ Cable Entry: Rear and side entry points with rubber grommets or glands
-
✅ Color: Light gray (RAL 7035) or black – custom branding available
-
✅ Condition: 100% Brand New – Branded and sealed
-
✅ Compliance: RoHS, CE, ISO9001 Certified
24-SC Fiber ODF Rack Technical Specifications
| Specification | Details |
|---|---|
| Fiber Capacity | 24 fibers (SC simplex ports) |
| Adapter Compatibility | SC/UPC or SC/APC |
| Enclosure Type | 19” Rack Mount (1U height) |
| Dimensions (Approximate) | 430mm × 250mm × 44mm |
| Cable Entry Ports | Rear and/or side with clamps/grommets |
| Splice Tray Capacity | Optional – 1 tray (12 or 24 fibers) |
| Jacket Material | Powder-coated steel |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Protection Rating | IP20 (indoor use) |
24-SC Fiber ODF Rack Applications
-
📡 Telecom Central Offices / MDF-Closets
-
🌐 FTTH & FTTx Subscriber Fiber Termination
-
🏢 Enterprise Network Infrastructure
-
☁️ Data Center Patch Panel Integration
-
🧪 Fiber Testing & Monitoring Points
Customization Options
We offer full OEM/ODM solutions tailored to your technical or branding needs:
-
🔧 Adapter Types: SC/APC (green), SC/UPC (blue), or hybrid
-
🔧 Logo & Branding: Screen printing, engraving, or custom labeling
-
🔧 Color Options: Black, gray, white, or custom RAL shades
-
🔧 Tray Style: Sliding tray or fixed panel
-
🔧 Preloaded Kits: Adapters, pigtails, and splice trays
-
🔧 Packaging: Bulk box, retail-ready, or export-safe foam packaging
Let us configure and brand the unit to your exact deployment specs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 24-FC Fiber ODF |
| Dimension (L × W × H) | 483 × 255 × 89 mm |
| Weight | 5.8 kg |
| Air Pressure | 70 KPa ~ 106 KPa |
| Relative Humidity | ≤ 95% (at +40°C) |
| Operating Temperature | -40°C ~ +60°C |
| Included | 1 unit 24 Fiber Distribution Box 2 units of 12-Fiber Integration Tray Fully equipped SC/UPC adapters |
| Port Capacity | 24 Ports |
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector Type | SC/UPC |
| Port Count | 24 |
Wholesale & Bulk Supply Support
Optimized for distributors, ISPs, telecom operators, and system integrators:
-
📦 Competitive Factory Pricing with Tiered Discounts
-
📦 MOQ Flexibility for Custom or Stock Orders
-
📦 Fast Lead Times & Export Logistics Management
-
📦 Private Labeling & Custom Barcode Stickers Available
-
📦 Documentation Support: CE, RoHS, Test Reports, COO
Why Choose Our 24-SC Fiber ODF Rack?
-
✔️ Compact & Scalable for Small-to-Medium Networks
-
✔️ Rugged Design with Clean, Organized Cable Routing
-
✔️ Compatible with SC-based FTTH & Data Infrastructure
-
✔️ Easy to Install, Maintain, and Upgrade
-
✔️ OEM-Ready with International Standards Compliance
Order Now
Get secure, structured, and branded fiber termination with the 24-SC Fiber ODF Rack Mount Distribution Box — designed for efficiency, compatibility, and scalability. Available now with custom builds, preloaded options, and wholesale pricing.
