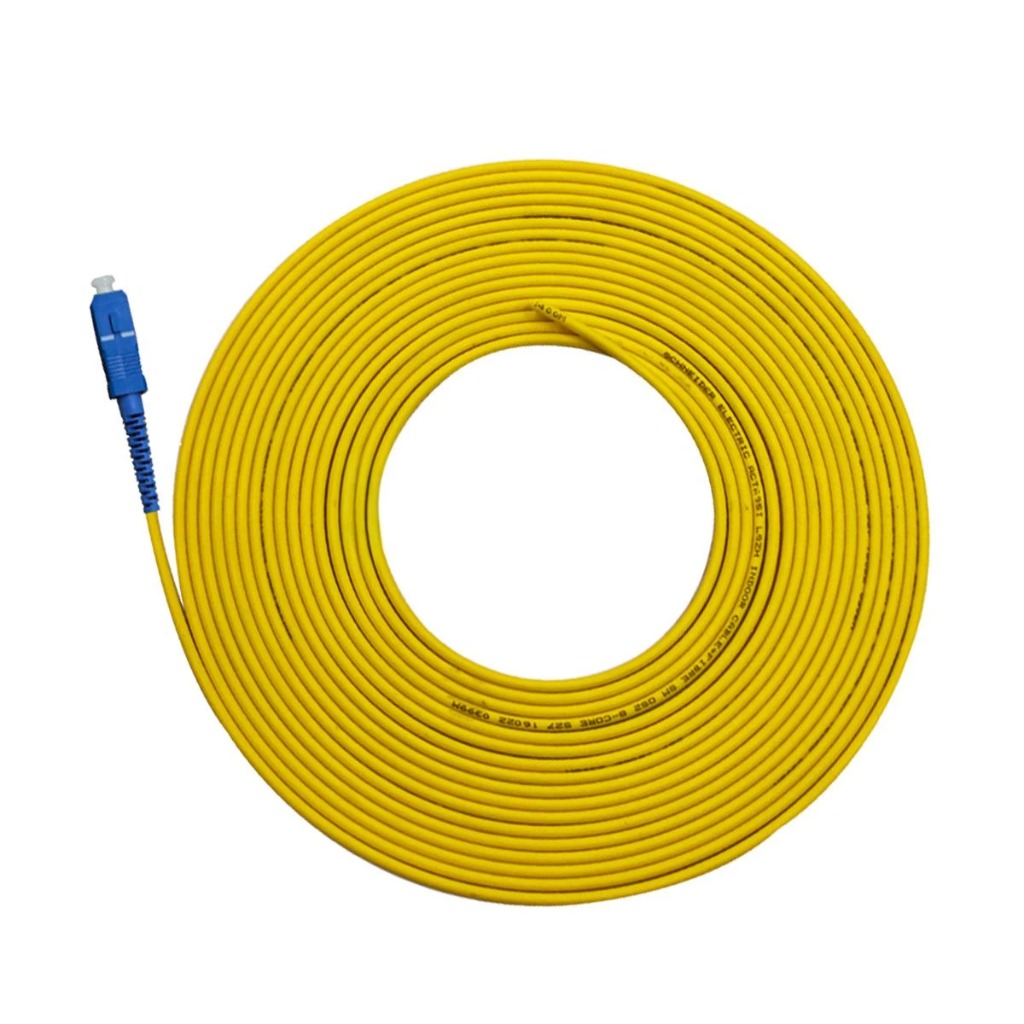

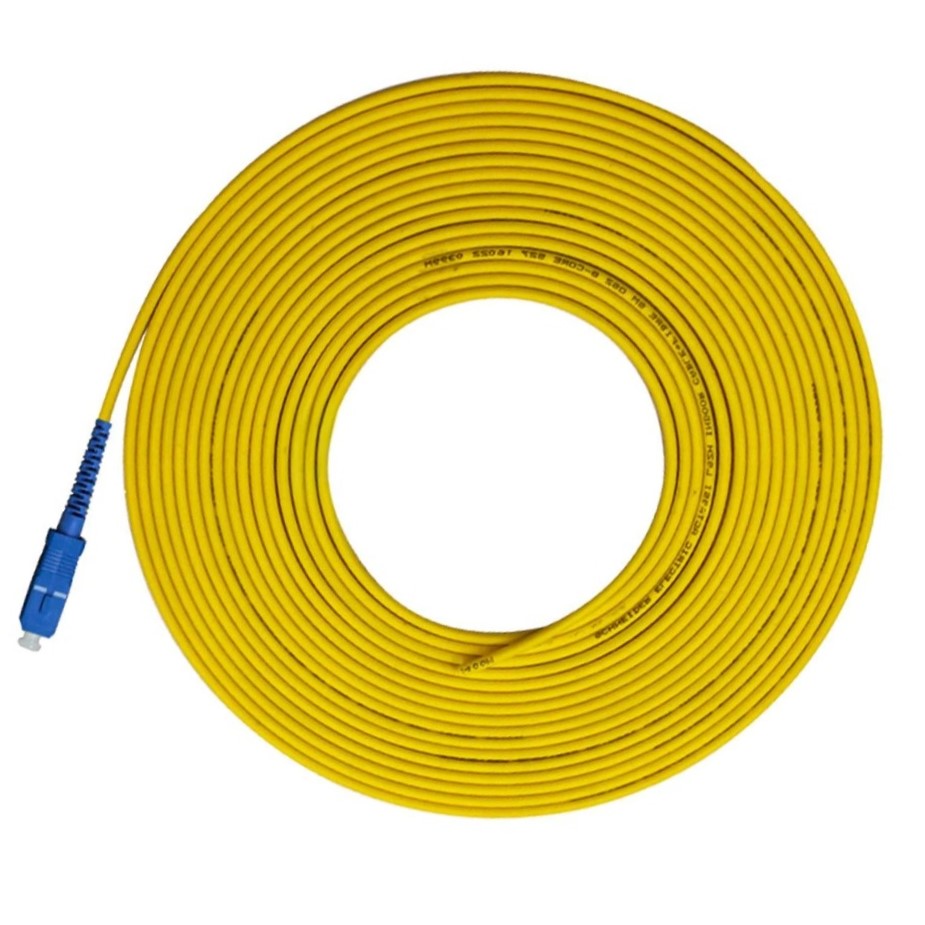

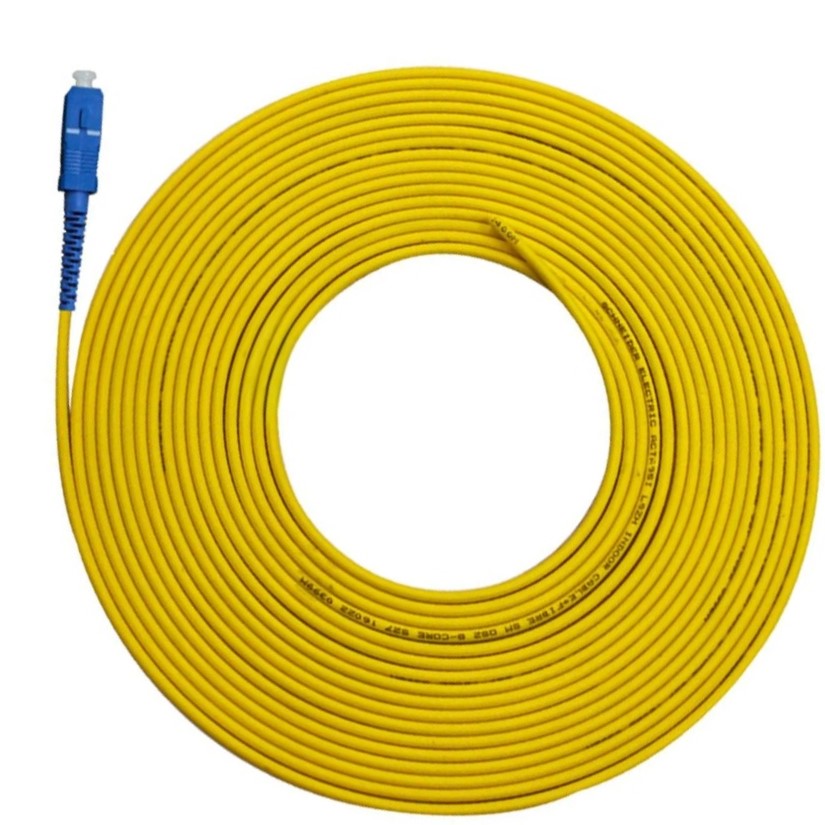

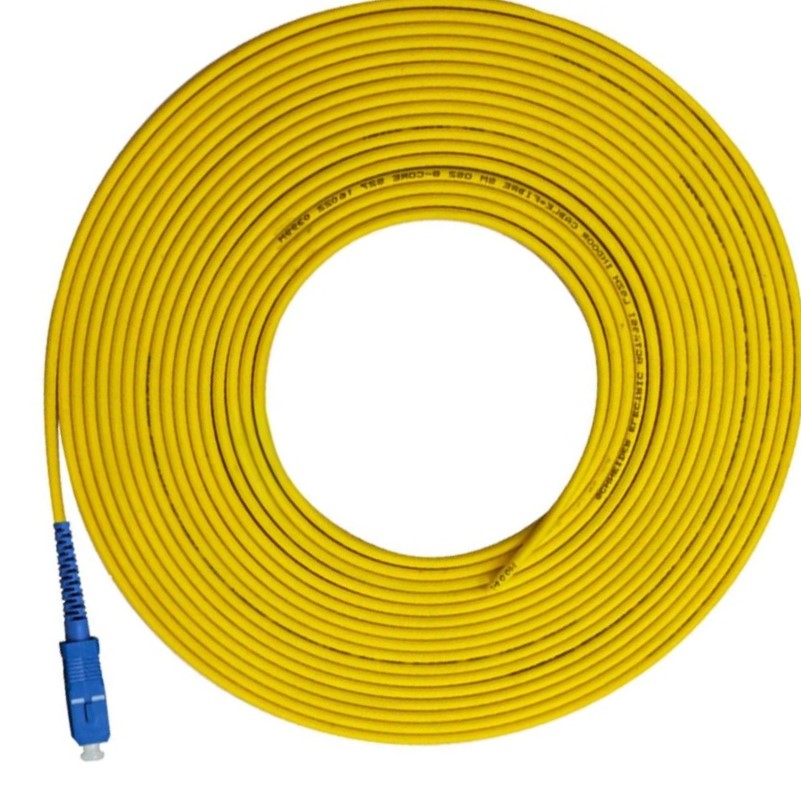

30M 2mm SC/UPC Original New Single Mode Fiber Pigtail
The 30M 2mm SC/UPC Single Mode Fiber Pigtail is a factory-terminated, precision-polished optical fiber tail designed for long-distance fiber splicing and patching in FTTx, telecom backbone, and enterprise network environments.
Equipped with a standard SC/UPC connector, this single mode pigtail ensures low insertion loss, high return loss, and excellent optical performance for stable signal transmission over extended distances. The robust 2mm tight-buffered jacket provides superior protection and flexibility during installation, routing, and fusion splicing.
Each pigtail is made from genuine G.657.A1 or G.652.D fiber, meeting strict industry standards for long-haul single mode applications.
Key Features
-
Length: 30 meters (custom lengths available)
-
Fiber Type: Single Mode (SM), typically G.652.D or G.657.A1
-
Connector: SC/UPC with high-grade ferrule, pre-polished for minimal loss
-
Cable Diameter: 2mm tight-buffered, flexible for indoor or outdoor use
-
Insertion Loss: Typically ≤0.3dB
-
Return Loss: ≥50dB (UPC)
-
Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC optional
-
Color: Standard yellow jacket for single mode; other colors customizable
-
Compliance: IEC, Telcordia GR-326, RoHS standards
Tech Specs
| Connector | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability (Plugs) | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 | –40 ~ +80 |
| UPC (SM) | ≥55 | ≤0.3 | ≤0.1 | >1000 | –40 ~ +80 |
| APC (SM) | ≥60 | ≤0.3 | ≤0.1 | >1000 | –40 ~ +80 |
30M 2mm SC/UPC Applications
The 30M 2mm SC/UPC Single Mode Fiber Pigtail is widely used for:
• Long-distance fiber splicing and terminations in telecom backbone networks
• FTTx (FTTH, FTTB, FTTC) installations requiring extended reach
• Fiber patch panels and ODFs in central offices or data centers
• Enterprise campus or building-to-building connections
• CATV and Passive Optical Network (PON) systems
Customization & OEM Services
Need a tailored solution? We provide full customization and OEM services for the 30M SC/UPC pigtail, including:
• Custom lengths: Any length available, from 0.5M to 100M+
• Connector types: SC/UPC, LC/UPC, ST, FC, E2000, APC/UPC options
• Fiber types: SM (G.652.D, G.657.A1/A2) or MM (OM2/OM3/OM4)
• Jacket material & color: LSZH, PVC, Armored, or outdoor-rated with custom colors
• Private labeling: Custom logo, barcodes, and packaging for resellers
• Pre-test reports: Insertion & return loss test reports provided on request
30M 2mm SC/UPC Wholesale & Bulk Orders
We support wholesale supply for contractors, ISPs, and integrators:
• Factory-direct pricing with tiered volume discounts
• Large stock availability and reliable production lead times
• Secure export packaging to protect fiber ends during shipping
• Global shipping with fast delivery options
• Dedicated account managers for smooth project coordination
• Technical support & warranty for full peace of mind
Why Choose Us
100% Original, Fully Tested Pigtails — Meets or exceeds industry standards
Flexible Customization — Length, connector, fiber type, and packaging tailored to you
Competitive Wholesale Pricing — Perfect for FTTx rollouts, data centers, and network expansions
Secure Global Logistics — Safe delivery to your site, anywhere in the world
Professional Technical Support — Expert guidance from planning to installation
Contact Us for a Quote
Upgrade your fiber splicing and long-haul connections with the 30M 2mm SC/UPC Original New Single Mode Fiber Pigtail — the trusted solution for high-performance optical links.
