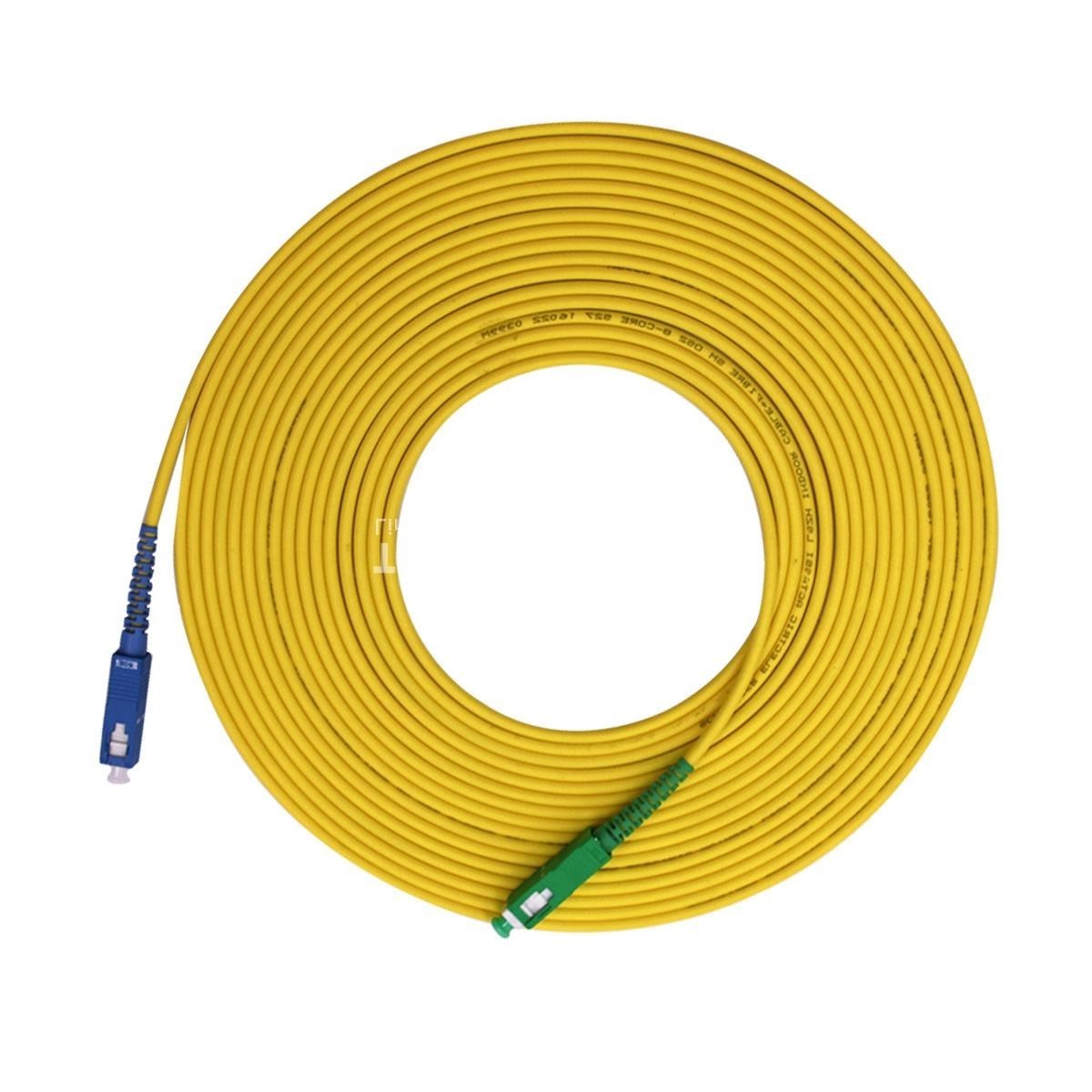

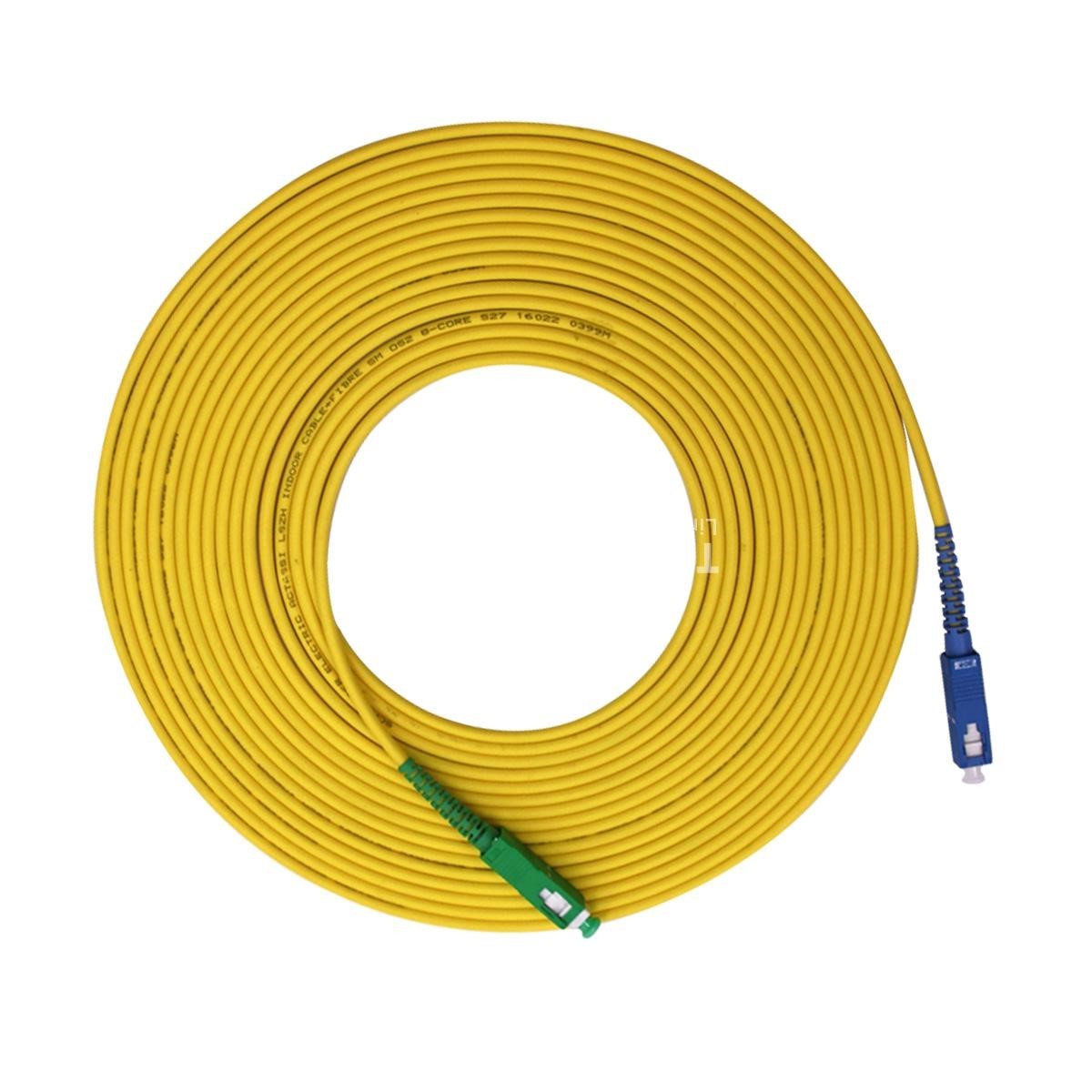

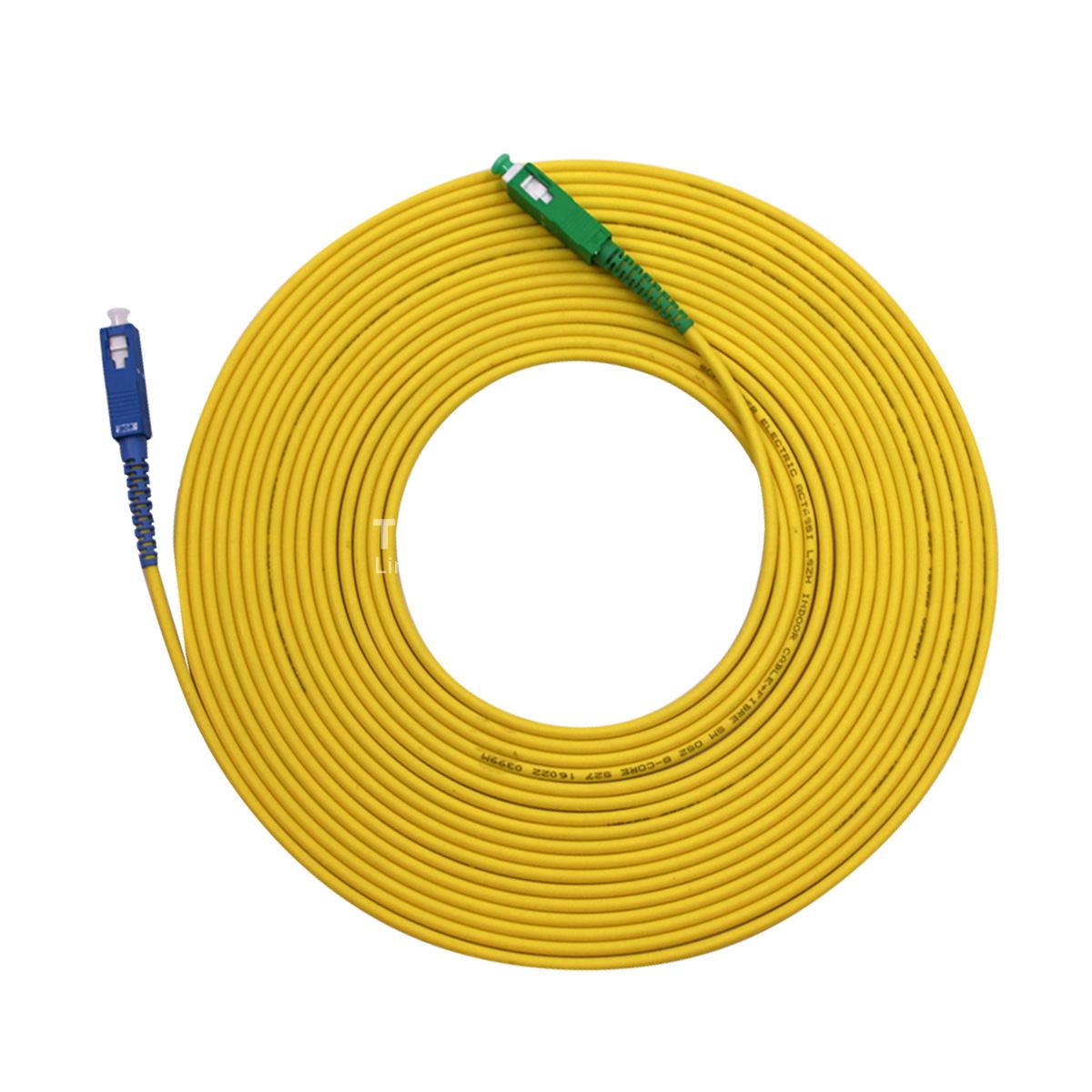

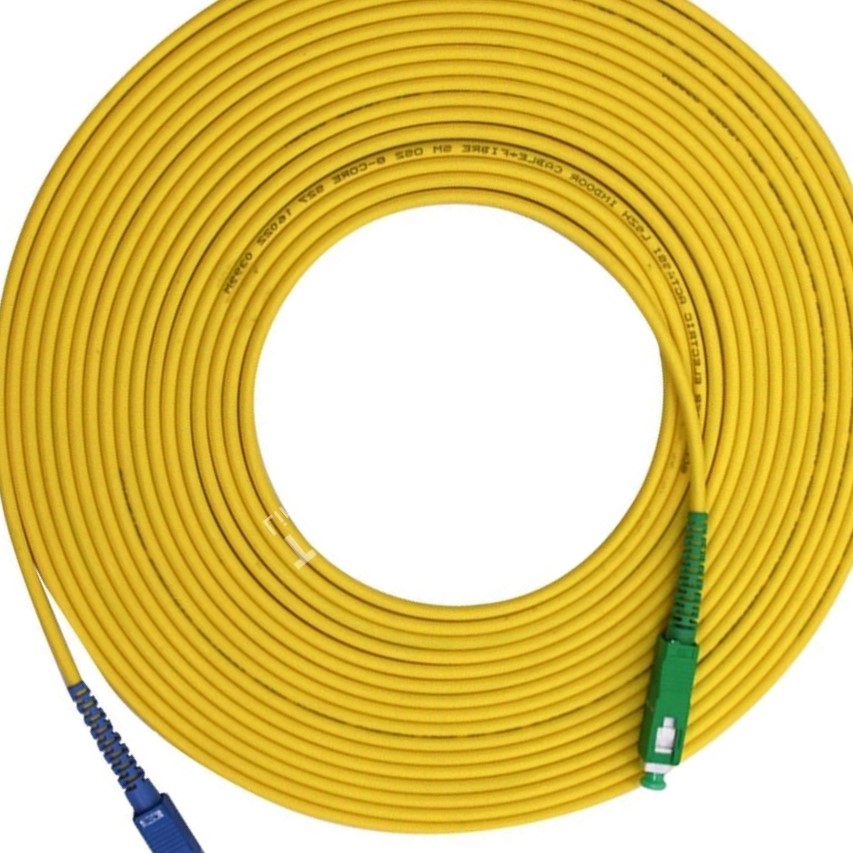

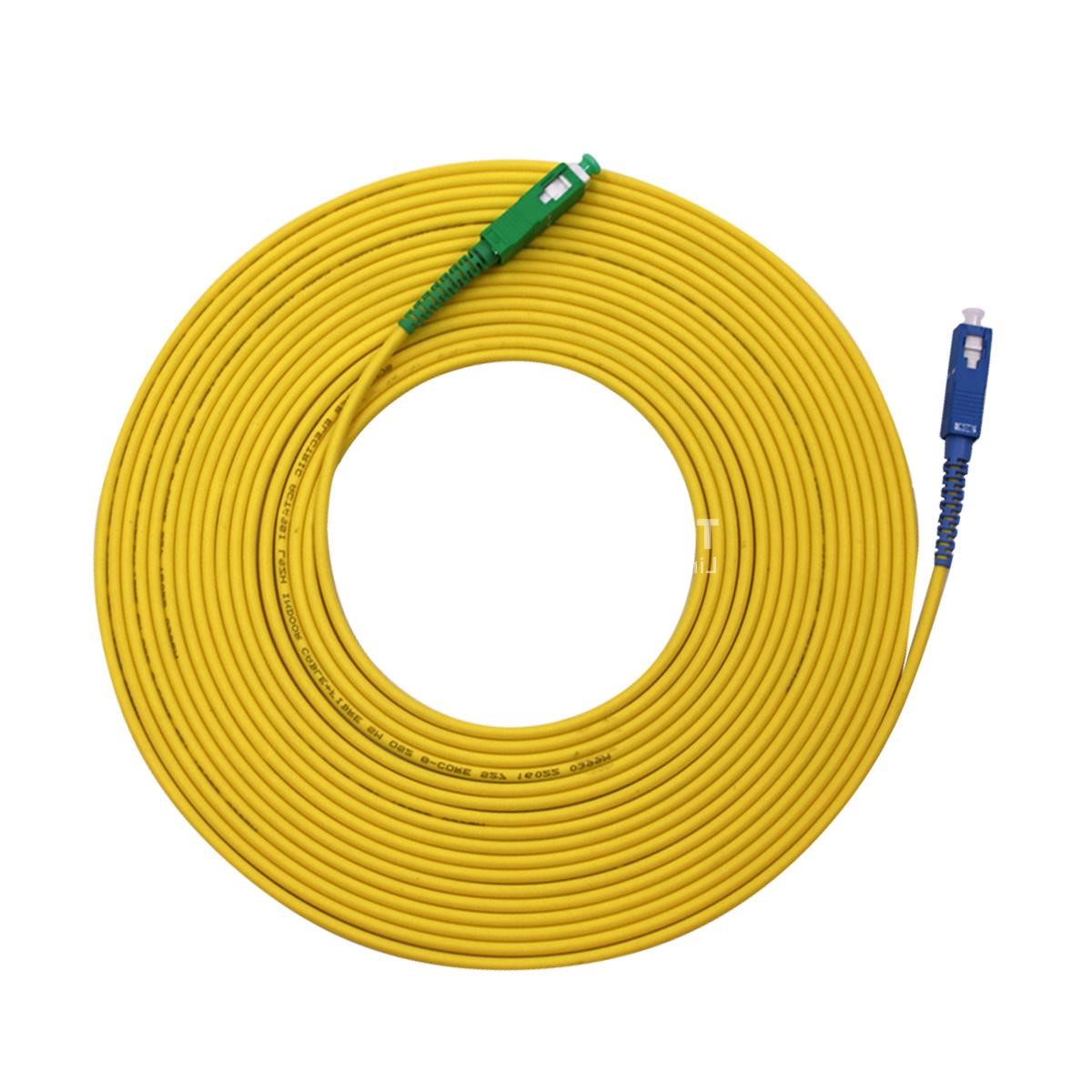

30M Fiber Patch Cord Branded 2mm SC/UPC Single Mode Cord | Branded 2mm Jumper Cable for Long-Distance Connections
Product Overview
The 30M Fiber Patch Cord with SC/UPC or SC/APC connectors is a high-performance, long-reach optical jumper designed for signal transmission in singlemode fiber networks. Built with a 2.0mm LSZH (Low Smoke Zero Halogen) jacket, this branded patch cord ensures flexibility, safety, and low optical loss for indoor routing in FTTH, telecom backbones, ODFs, and data centers.
Featuring high-precision zirconia ceramic ferrules, it offers stable return loss, minimal insertion loss, and superior compatibility with SC interface equipment.
Key Features of 30M Fiber Patch Cord
-
✅ Length: 30 meters
-
✅ Connector Options: SC/UPC to SC/UPC or SC/APC to SC/APC
-
✅ Fiber Type: Singlemode OS2 (9/125μm core)
-
✅ Cable Diameter: 2.0mm – Flexible for tight spaces
-
✅ Structure: Simplex – One fiber strand
-
✅ Jacket Material: LSZH – Fire-retardant, halogen-free
-
✅ Color Coding: Yellow for singlemode (standard); green connectors for APC
-
✅ Brand Status: 100% Brand New – Custom-labeled or OEM-printed available
30M Fiber Patch Cord Technical Specifications
| Specification | Details |
|---|---|
| Fiber Mode | Singlemode (OS2, 9/125μm) |
| Connector Type | SC/UPC or SC/APC |
| Polish Type | UPC (Ultra Physical Contact) or APC (Angled) |
| Insertion Loss | ≤ 0.3dB (typical) |
| Return Loss (UPC) | ≥ 50dB |
| Return Loss (APC) | ≥ 60dB |
| Jacket Diameter | 2.0mm |
| Cable Jacket Material | LSZH |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mating Durability | ≥ 1000 cycles |
| Certification | RoHS, CE, ISO/IEC 11801, Telcordia GR-326 |
30M Fiber Patch Cord Applications
-
📡 FTTH / FTTx Indoor Installations
-
☁️ Data Center Interconnects
-
🏢 Enterprise Network Patch Panels
-
🔍 Optical Device Connection & Testing
-
🌐 Telecom Rack-to-ODF / Equipment Links
Customization Options
We offer full OEM/ODM customization for telcos, ISPs, and enterprise clients:
-
🔧 Connector Configuration: SC/SC, SC/LC, SC/ST, hybrid ends available
-
🔧 Polish Options: UPC (blue) or APC (green) connectors
-
🔧 Length Variants: 1M to 100M or custom specified
-
🔧 Jacket Colors: Yellow (default), aqua, orange, custom RAL
-
🔧 Logo/Print: Custom brand names or serials on jacket and connectors
-
🔧 Packaging: Individual labeled bags, reels, or bulk export kits
Need armored cable, duplex format, or outdoor-rated jackets? Just ask!
Technical Specifications – SC/UPC-SC/APC Connector Types
| Connector Type | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 Plug Cycles | -40 ~ +80 |
| UPC (SM) | ≥55 (typical) | ≤0.3 (typical) | ≤0.1 (typical) | >1000 Plug Cycles | -40 ~ +80 |
| APC (SM) | ≥60 (typical) | ≤0.3 (typical) | ≤0.1 (typical) | >1000 Plug Cycles | -40 ~ +80 |
🛈 Typical values for UPC and APC added where missing, based on industry standards.
Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm (placeholder) |
| Connector | SC/UPC – SC/APC |
Wholesale & Bulk Supply Services
Trusted by global fiber solution providers, telecom distributors, and system integrators:
-
📦 Factory Pricing with Tiered Discounts
-
📦 Flexible MOQ for Custom Projects
-
📦 Rapid Lead Time & Global Export Logistics
-
📦 OEM Labeling, Barcode Printing, and Branding
-
📦 Complete Docs: CE, RoHS, Test Report, COO available
Why Choose Our 30M Fiber Patch Cord?
-
✔️ Extended 30M Reach with Ultra-Low Loss
-
✔️ Precision-Polished for Signal Integrity
-
✔️ Safe and Flexible 2.0mm LSZH Jacket
-
✔️ Reliable Connectivity with All SC Equipment
-
✔️ Customizable and OEM-Ready
Order Now
Enhance long-distance fiber connectivity with the 30M SC/UPC or SC/APC Singlemode Fiber Patch Cord – your go-to solution for stable, scalable, and branded optical networking. Available now with custom packaging, private labeling, and wholesale support.
