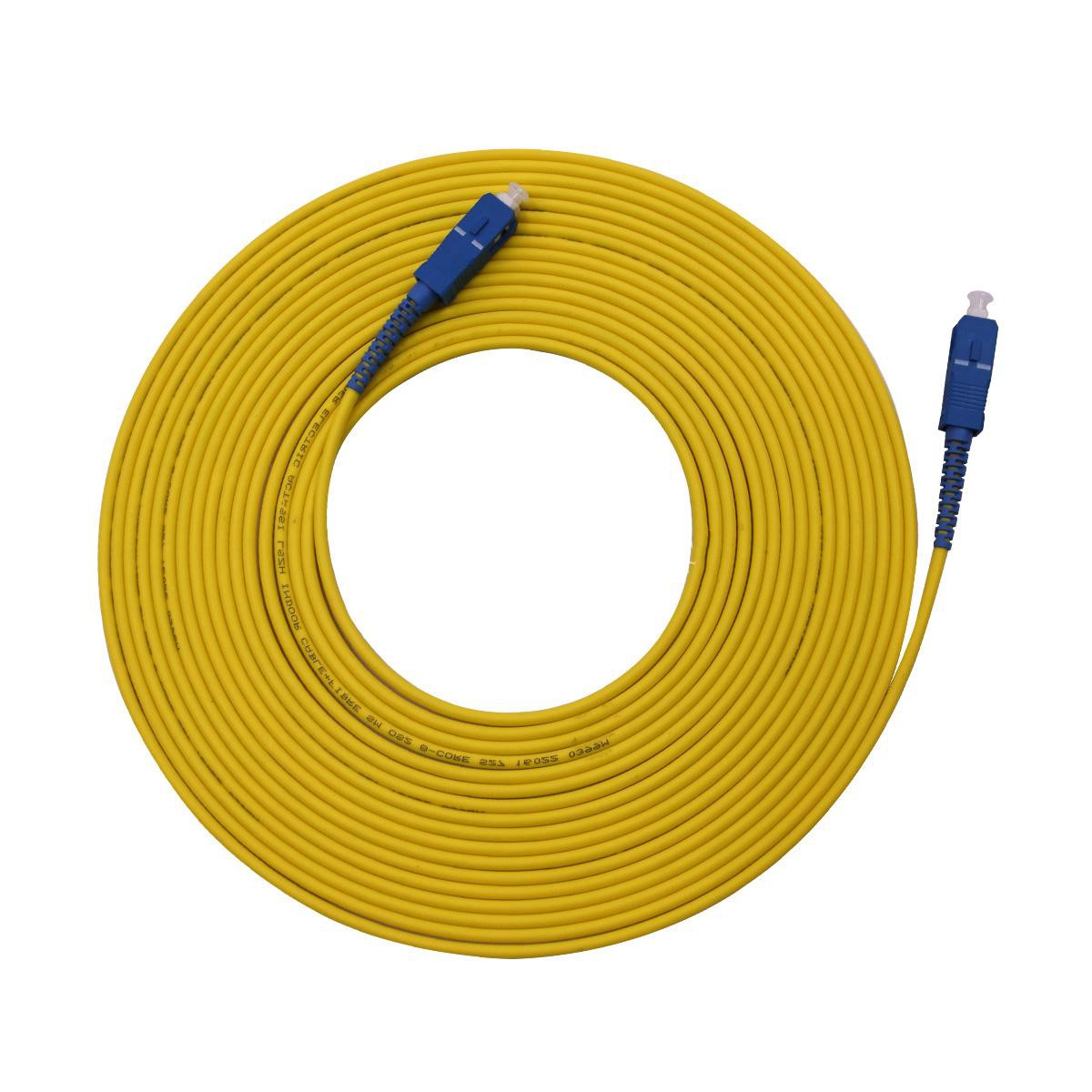

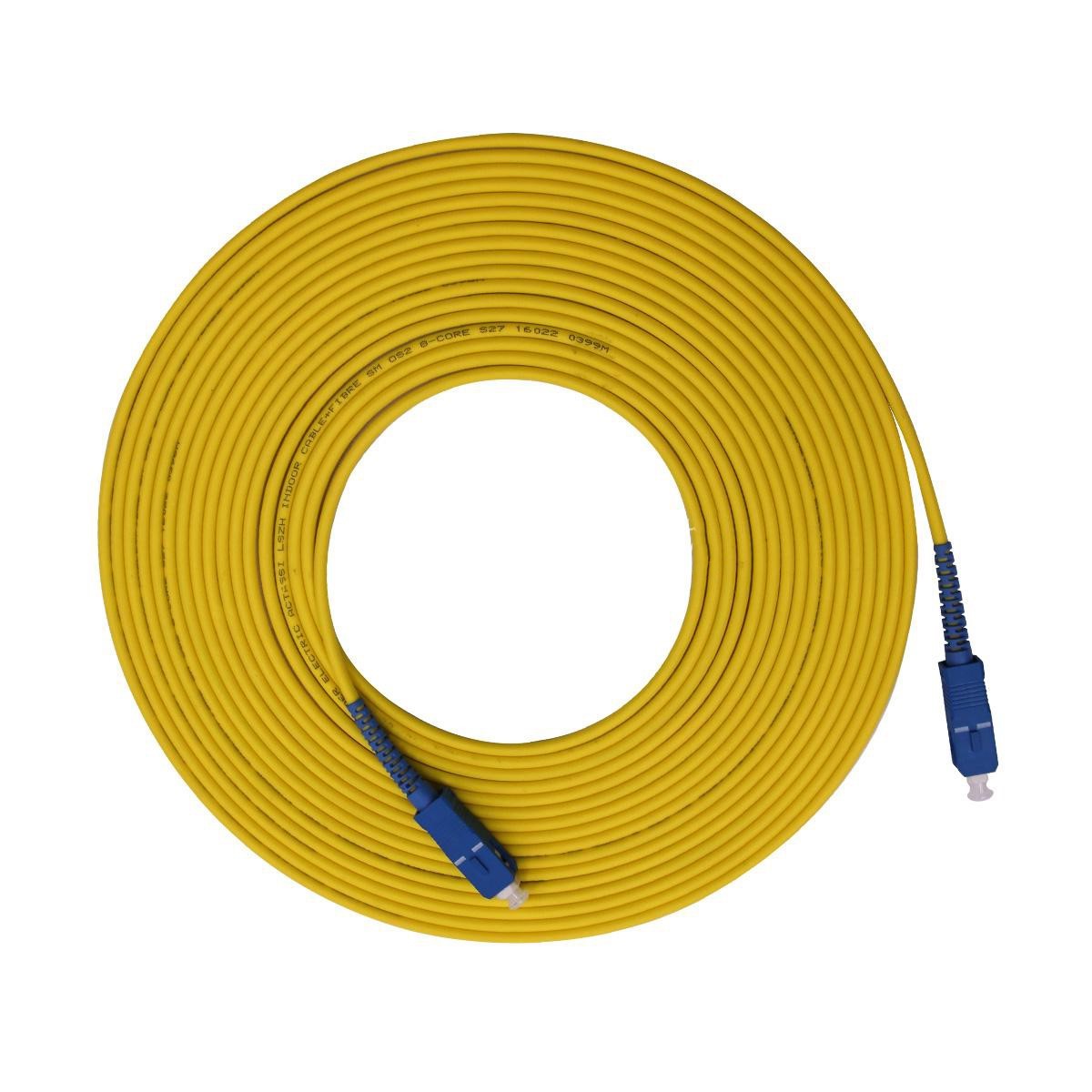

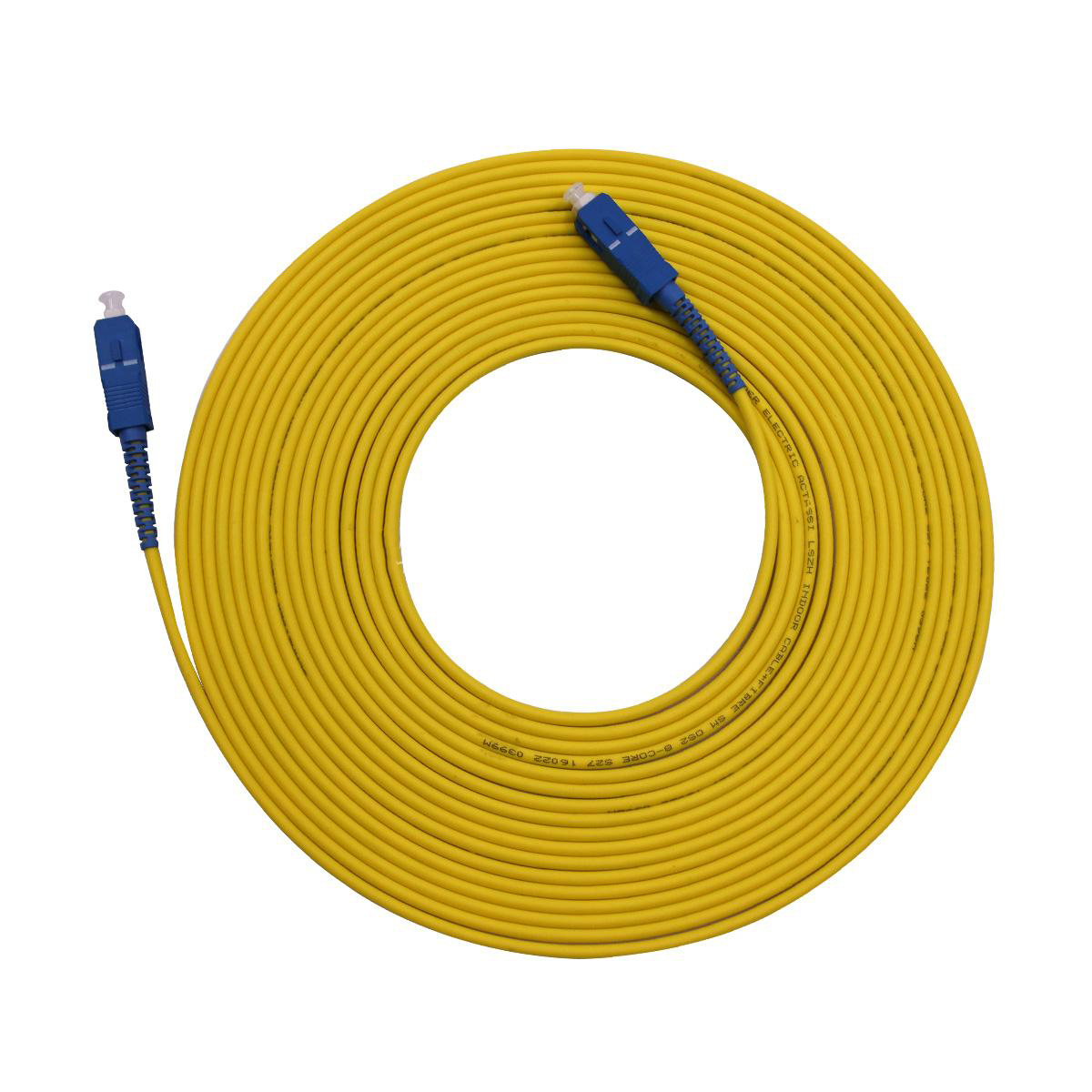

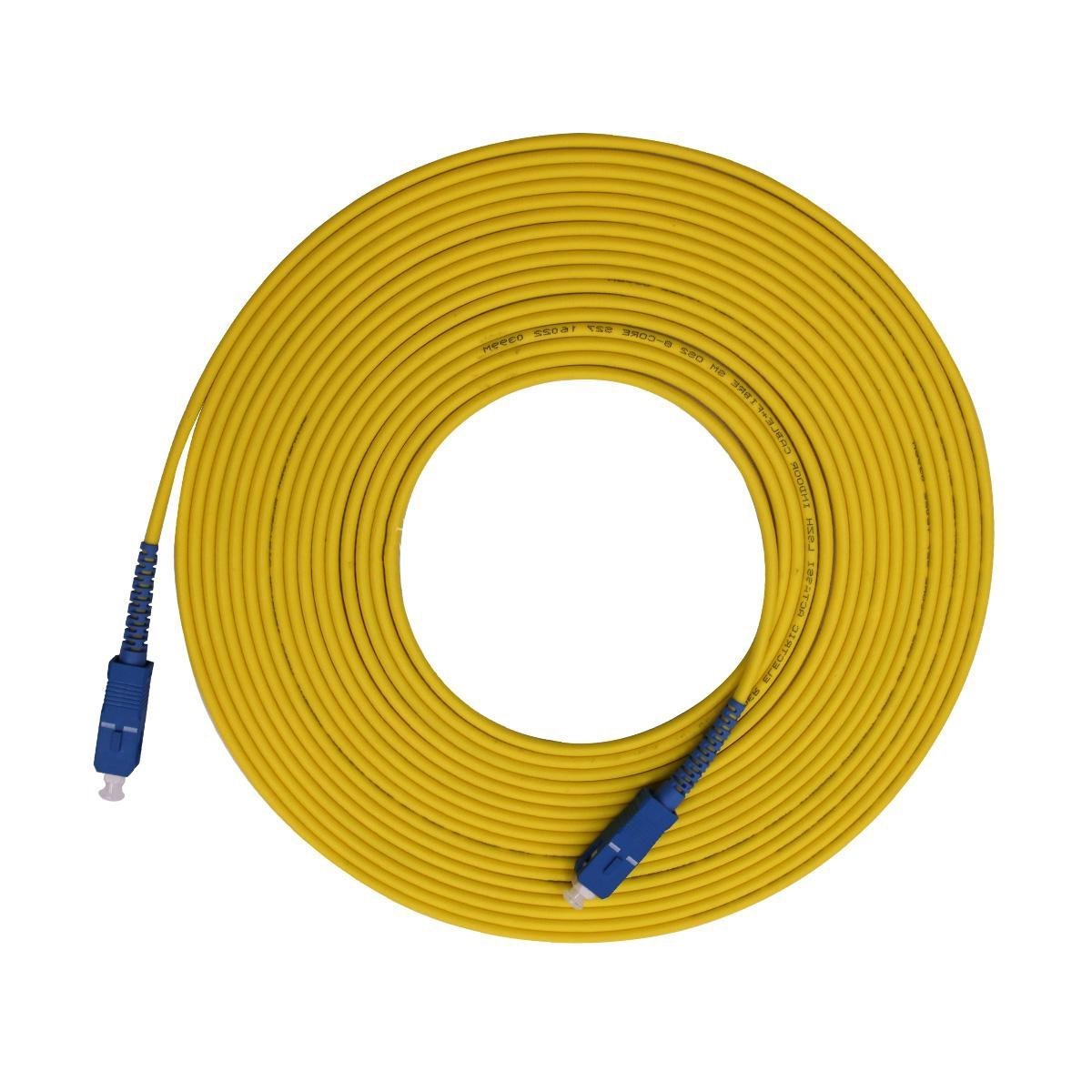

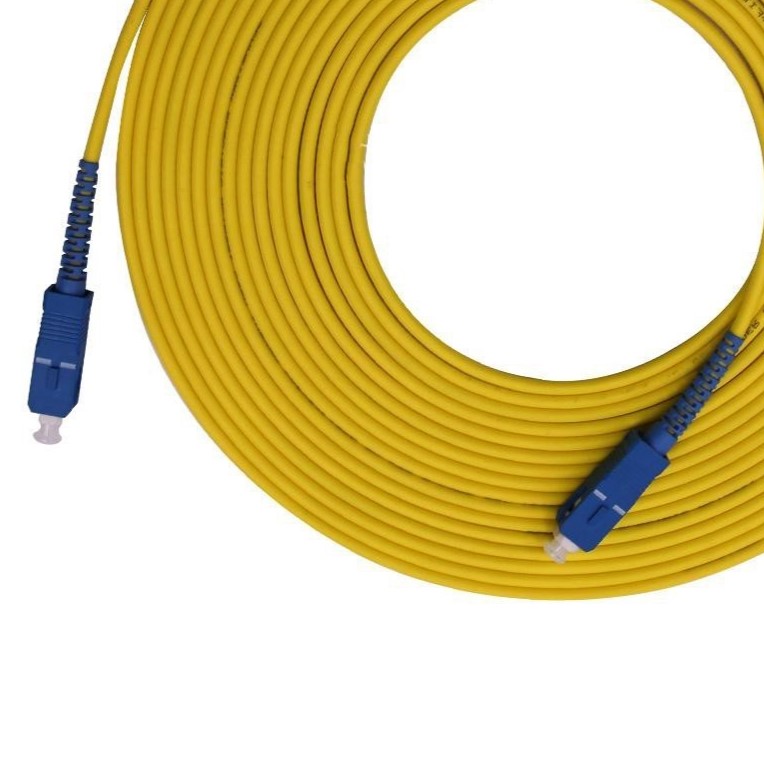

30M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord – Branded, 2.0mm LSZH Jacket for Long-Distance Optical Connectivity
Product Overview
The 30M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord is a high-precision hybrid optical jumper cable, engineered for long-distance optical transmission in advanced fiber optic networks. With SC/UPC (blue) and SC/APC (green) connectors on either end, this patch cord ensures compatibility between flat and angled polish ports, making it ideal for FTTH, data centers, CATV, OLT/ONT, and cross-connect systems.
Manufactured with OS2 singlemode 9/125μm fiber and enclosed in a durable, flame-retardant 2.0mm LSZH jacket, this cable delivers minimal insertion loss, excellent return loss, and superior bend performance, even across extended distances.
Key Features of 30M Fiber Patch Cord
-
✅ Length: 30 meters
-
✅ Connector A: SC/UPC (Blue – Flat Polish)
-
✅ Connector B: SC/APC (Green – 8° Angled Polish)
-
✅ Fiber Type: Singlemode OS2 (9/125μm core)
-
✅ Jacket Material: LSZH – Low Smoke Zero Halogen, flame-retardant
-
✅ Cable Diameter: 2.0mm – Lightweight & flexible
-
✅ Condition: 100% Brand New – Factory polished and optically tested
30M Fiber Patch Cord Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Type | OS2 Singlemode (9/125μm) |
| Connector Type | SC/UPC to SC/APC |
| Polish Type | UPC to APC (Hybrid Interface) |
| Insertion Loss | ≤ 0.3dB (Typical) |
| Return Loss (UPC / APC) | ≥ 50dB / ≥ 60dB |
| Cable Diameter | 2.0mm |
| Jacket Type | LSZH – Indoor safe, halogen-free |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Durability | ≥ 1000 mating cycles |
| Certification | CE, RoHS, Telcordia GR-326, IEC 61754-4 |
30M Fiber Patch Cord Applications
-
🌐 FTTH / FTTx Access Connections
-
📡 OLT to ONT Hybrid Port Connectivity
-
🏢 Data Center Inter-Rack Linking
-
🧪 Optical Testing, Monitoring & Network Validation
-
☁️ Telecom & CATV Patch Panel Integration
Customization Options
Tailored to your technical and branding needs:
-
🔧 Lengths Available: 0.5M to 100M+
-
🔧 Connector Types: SC/SC, SC/LC, SC/ST, LC/APC, FC/APC, etc.
-
🔧 Cable Types: Simplex, Duplex, Armored, Bend-Insensitive
-
🔧 Jacket Colors: Yellow (default), Orange, Aqua, Custom on request
-
🔧 Branding: Custom logo, part number, or serial print on jacket/boot
-
🔧 Packaging Options: Zip bags, spool reels, or retail-ready kits
Need hybrid patch cord kits or multi-length cable bundles? Just ask!
🔧 Technical Specifications – Connector Performance
| Connector Type | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 Plug cycles | -40 ~ +80 |
| UPC (SM) | – | – | – | – | – |
| APC (SM) | – | – | – | – | – |
(Only PC values are provided; UPC and APC rows can be updated once values are available.)
📦 Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Connector | SC/UPC – SC/APC |
Wholesale & Bulk Supply Support
Designed for telecom operators, ISPs, data centers, system integrators, and OEM suppliers:
-
📦 Factory Direct Pricing with Tiered Discounts
-
📦 Custom OEM Branding & Labeling
-
📦 Low MOQ for Tailored Builds
-
📦 Global Logistics with Fast Turnaround
-
📦 Documentation: CE, RoHS, Test Reports, Certificate of Origin (COO)
Why Choose Our 30M Fiber Patch Cord?
-
✔️ Reliable Hybrid Polished Connection (UPC ↔ APC)
-
✔️ Long-Distance Performance with Low Loss
-
✔️ High Compatibility with SC-Based Network Gear
-
✔️ Safe for Indoor Use with LSZH Sheathing
-
✔️ Ideal for Custom Projects and Volume Deployments
Order Now
Optimize your fiber network with the 30M SC/UPC to SC/APC Singlemode Fiber Patch Cord – engineered for hybrid compatibility, long-range reliability, and clean signal performance. Now available with bulk pricing, custom labeling, and fast worldwide delivery.
