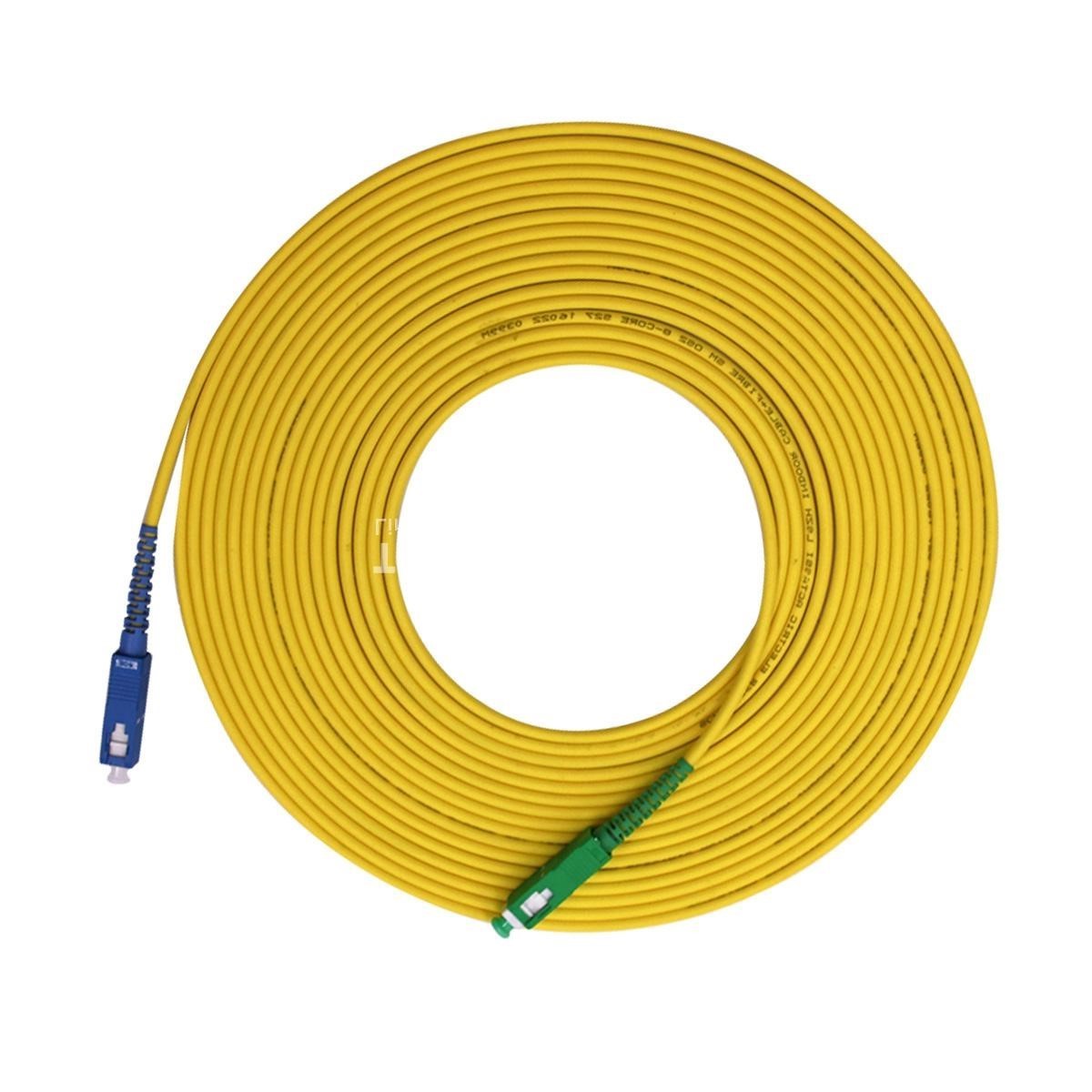

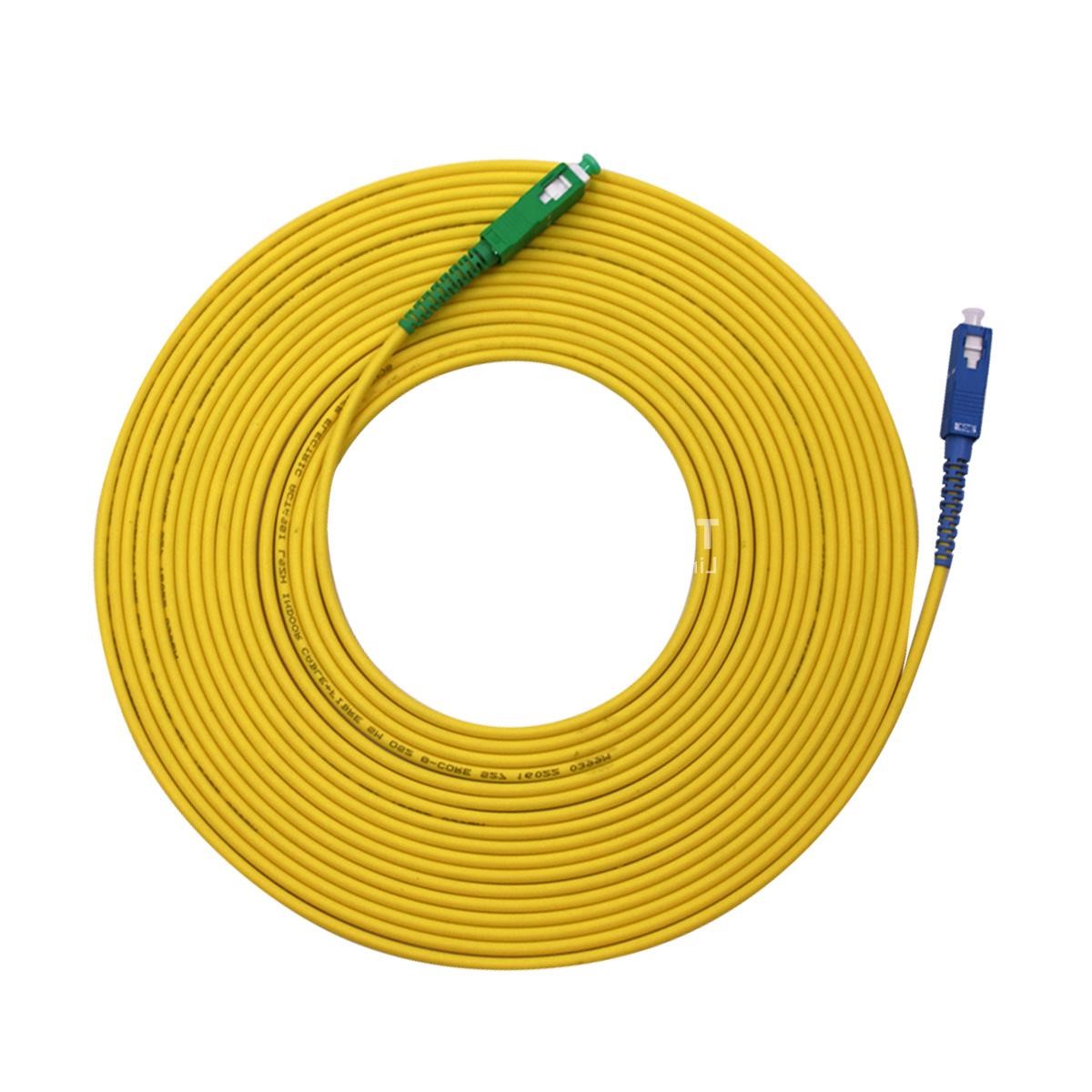

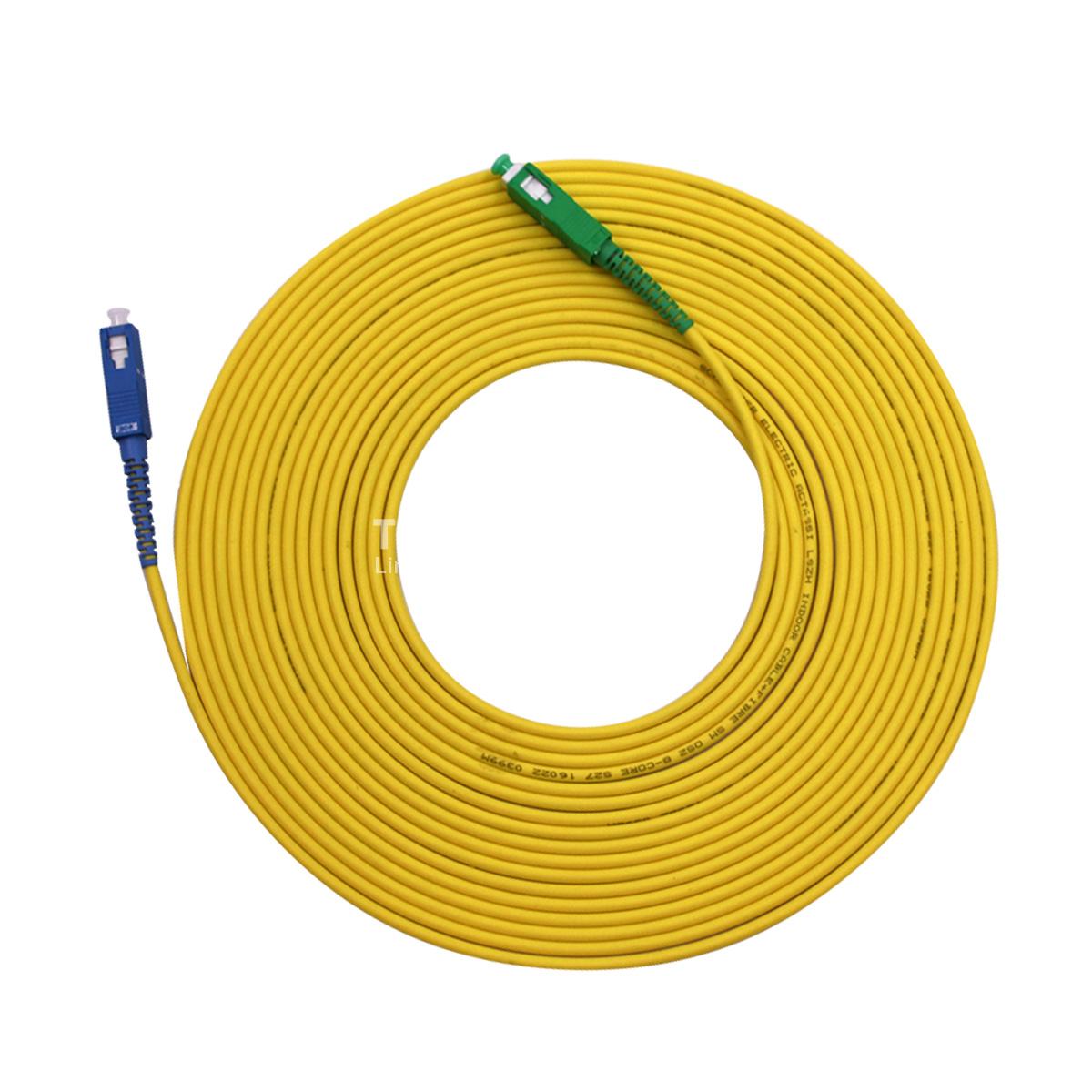

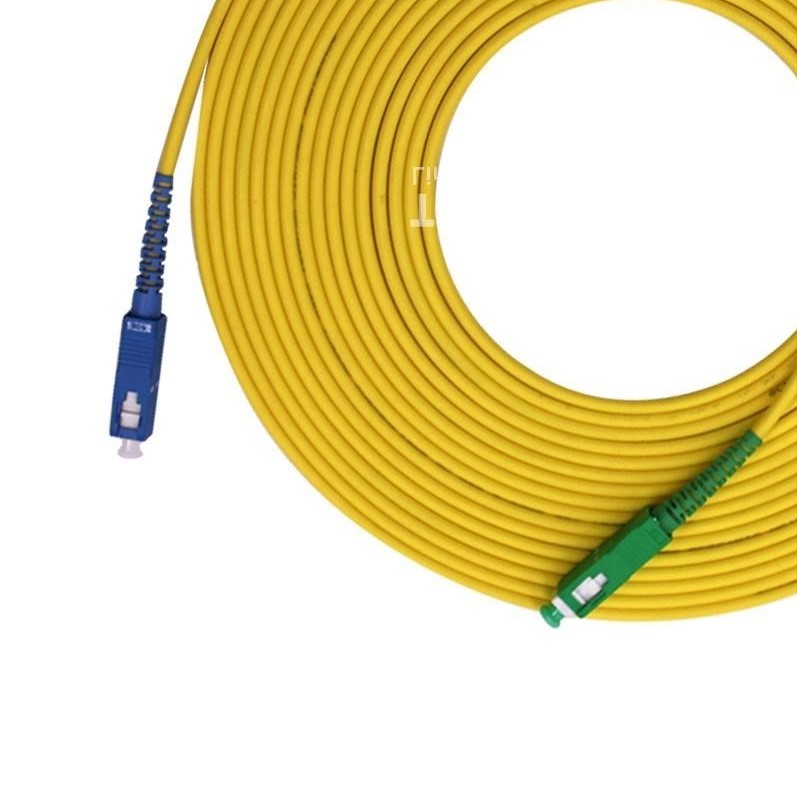

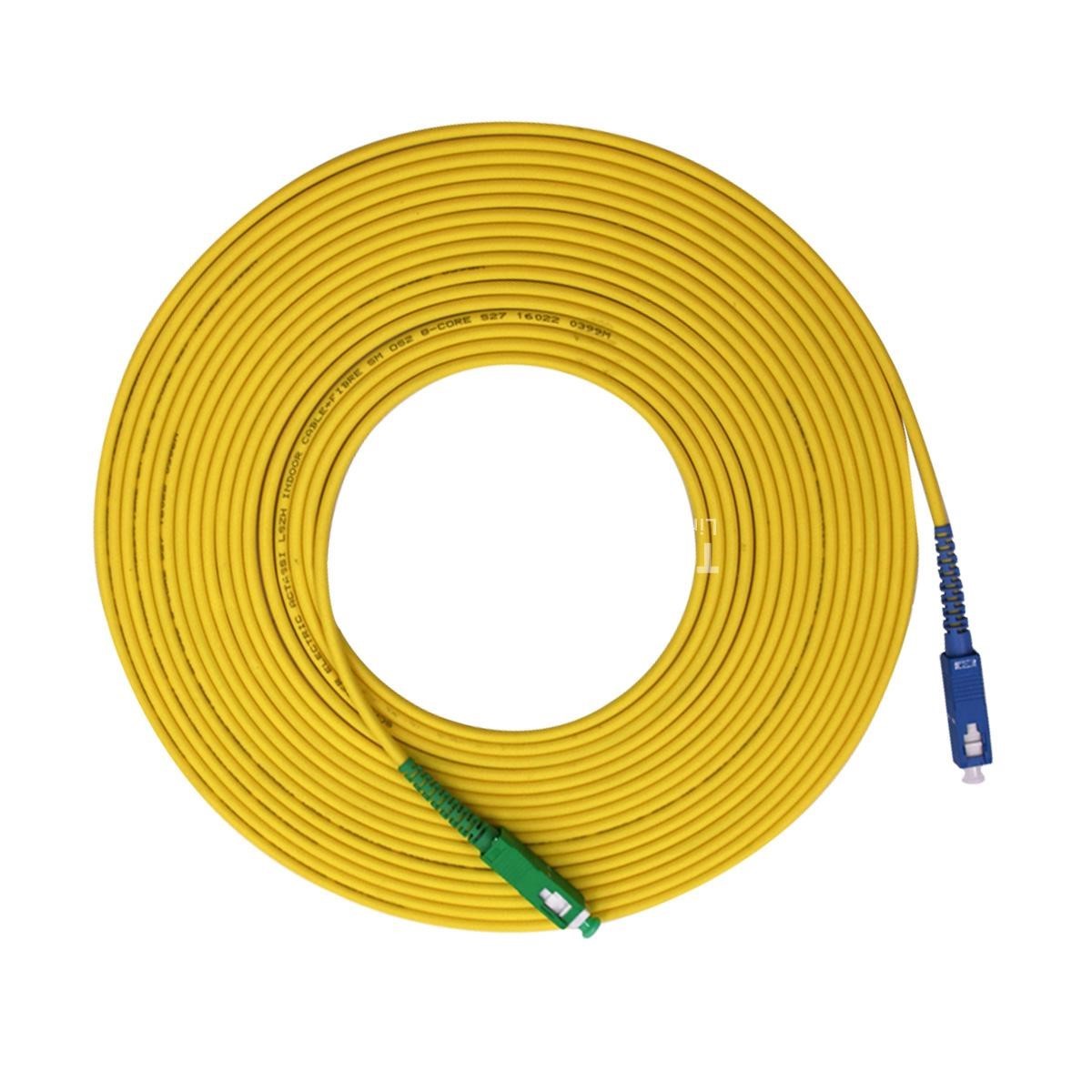

3M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord – Branded, 2.0mm LSZH Jacket | High-Precision Hybrid Jumper Cable
Product Overview
The 3M Fiber Patch Cord Branded 2mm SC/UPC/APC Single Mode Cord is a hybrid connector jumper cable designed for reliable and efficient short-distance optical transmission in high-performance fiber networks. This patch cord bridges the gap between flat-polish SC/UPC and angled-polish SC/APC ports, making it a go-to choice for FTTH, GPON, CATV, telecom switches, and OLT/ONT systems.
Built with OS2 9/125μm singlemode fiber and encased in a durable 2.0mm LSZH jacket, it provides excellent optical return loss, low insertion loss, and outstanding mechanical strength for stable, loss-sensitive applications.
Key Features
-
✅ Length: 3 meters
-
✅ Connector A: SC/UPC (Blue – Flat Polish)
-
✅ Connector B: SC/APC (Green – Angled Polish)
-
✅ Fiber Type: Singlemode OS2 (9/125μm)
-
✅ Cable Diameter: 2.0mm – Flexible and compact
-
✅ Jacket Type: LSZH – Low Smoke Zero Halogen, flame-retardant
-
✅ Brand Status: Branded and 100% factory-tested for insertion & return loss
-
✅ Configuration: Hybrid jumper for interconnecting UPC and APC ports
Technical Specifications of 3M Fiber Patch Cord
| Parameter | Details |
|---|---|
| Fiber Mode | Singlemode OS2 (9/125μm) |
| Connector Type | SC/UPC to SC/APC |
| Polish Type | UPC to APC (Hybrid – Flat to Angled) |
| Insertion Loss | ≤ 0.3dB (Typical) |
| Return Loss (UPC / APC) | ≥ 50dB / ≥ 60dB |
| Jacket Material | LSZH – Flame-retardant and halogen-free |
| Cable Diameter | 2.0mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mating Durability | ≥ 1000 cycles |
| Compliance Standards | CE, RoHS, Telcordia GR-326, IEC 61754-4 |
3M Fiber Patch Cord Applications
-
🌐 FTTH / FTTx Patch Connections
-
📡 OLT to ONT Links in GPON/EPON Systems
-
🧪 Optical Test Equipment Interfaces
-
☁️ Telecom, CATV, and Data Center Rack Cabling
-
🏢 SC Port Interconnects with Mixed Polish Types
3M Fiber Patch Cord Customization Options
Tailored for OEMs, ISPs, and telecom project needs:
-
🔧 Connector Configurations: SC/UPC, SC/APC, LC, FC, hybrid types
-
🔧 Lengths Available: 0.5M to 100M+
-
🔧 Cable Options: Simplex, duplex, armored, bend-insensitive
-
🔧 Jacket Colors: Yellow (default), aqua, orange, or custom color code
-
🔧 Logo & Labeling: Custom brand printing, serial codes, and barcodes
-
🔧 Packaging Formats: Zip bags, private-label kits, or bulk reel packaging
🔧 Technical Specifications – Connector Performance
| Connector Type | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 Plug cycles | -40 ~ +80 |
| UPC (SM) | – | – | – | – | – |
| APC (SM) | – | – | – | – | – |
Note: Only values for PC(SM) are provided. Data for UPC and APC types is currently not specified.
📦 Additional Information
| Attribute | Value |
|---|---|
| Weight | 0.0 kg (placeholder) |
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Connector Type | SC/APC – SC/APC |
Wholesale & Bulk Supply Solutions
Ideal for distributors, system integrators, telecom contractors, and fiber solution providers:
-
📦 Volume Pricing & Tiered Discounts
-
📦 OEM Branding Support with Low MOQ
-
📦 Fast Lead Times & International Logistics
-
📦 Documentation: CE, RoHS, Test Reports, Certificate of Origin
-
📦 Ready for Amazon, Alibaba, or B2B Platforms
Why Choose Our 3M Fiber Patch Cord?
-
✔️ Reliable Hybrid Polishing for Port Compatibility
-
✔️ Short-Length for Clean Cabinet Management
-
✔️ Low Insertion & High Return Loss for Signal Integrity
-
✔️ Fully Tested, Branded, and OEM-Ready
-
✔️ Safe for Indoor Use with LSZH Sheathing
Order Now
Streamline your fiber patching needs with the 3M SC/UPC to SC/APC Singlemode Fiber Patch Cord – a professional-grade hybrid jumper built for precision, flexibility, and network compatibility. Available now with customization options, wholesale rates, and fast delivery worldwide.
