3M Fiber Patch Cord – New 2mm SC/UPC to SC/UPC Single Mode Cable | High-Precision Jumper for Telecom & FTTH Connections
Product Overview

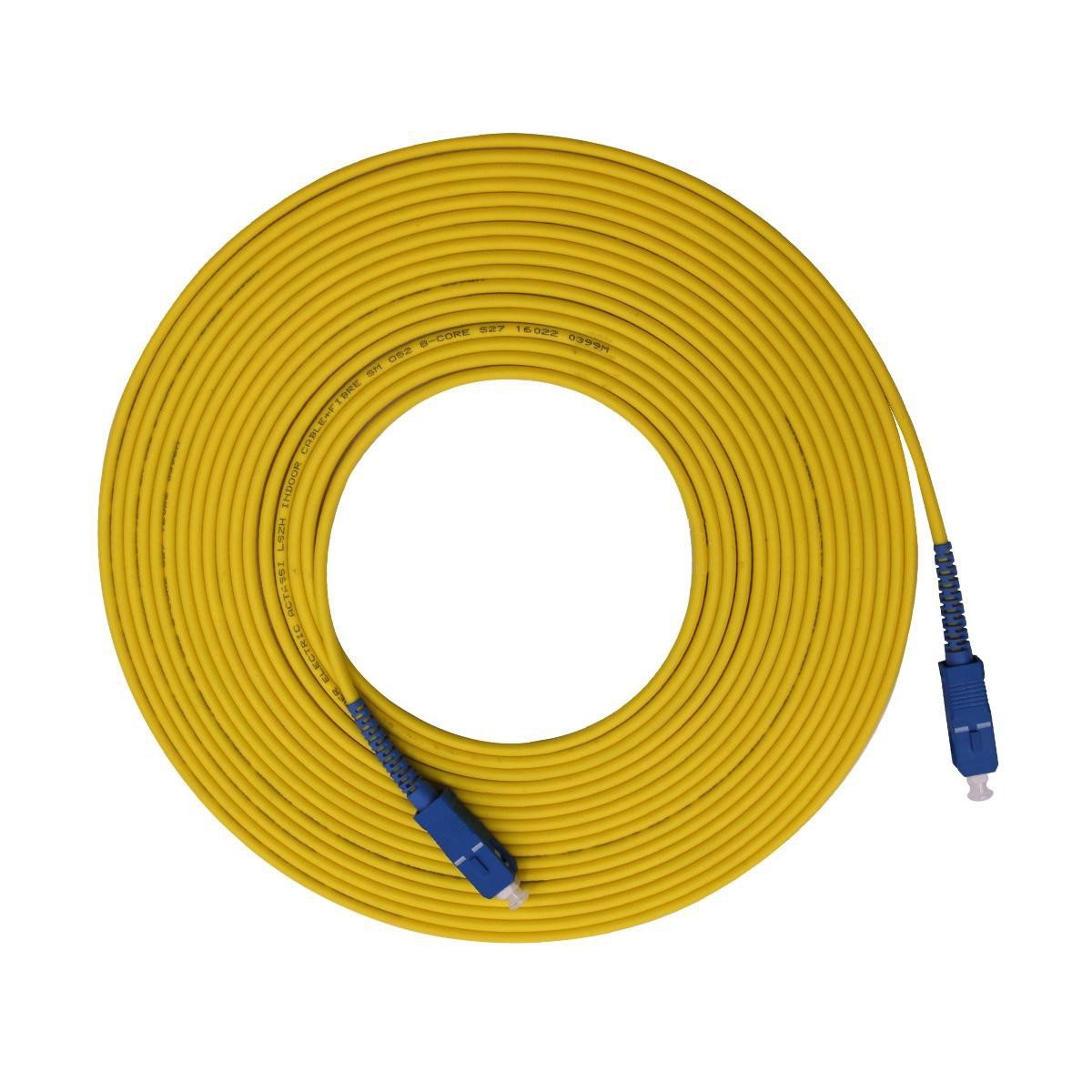

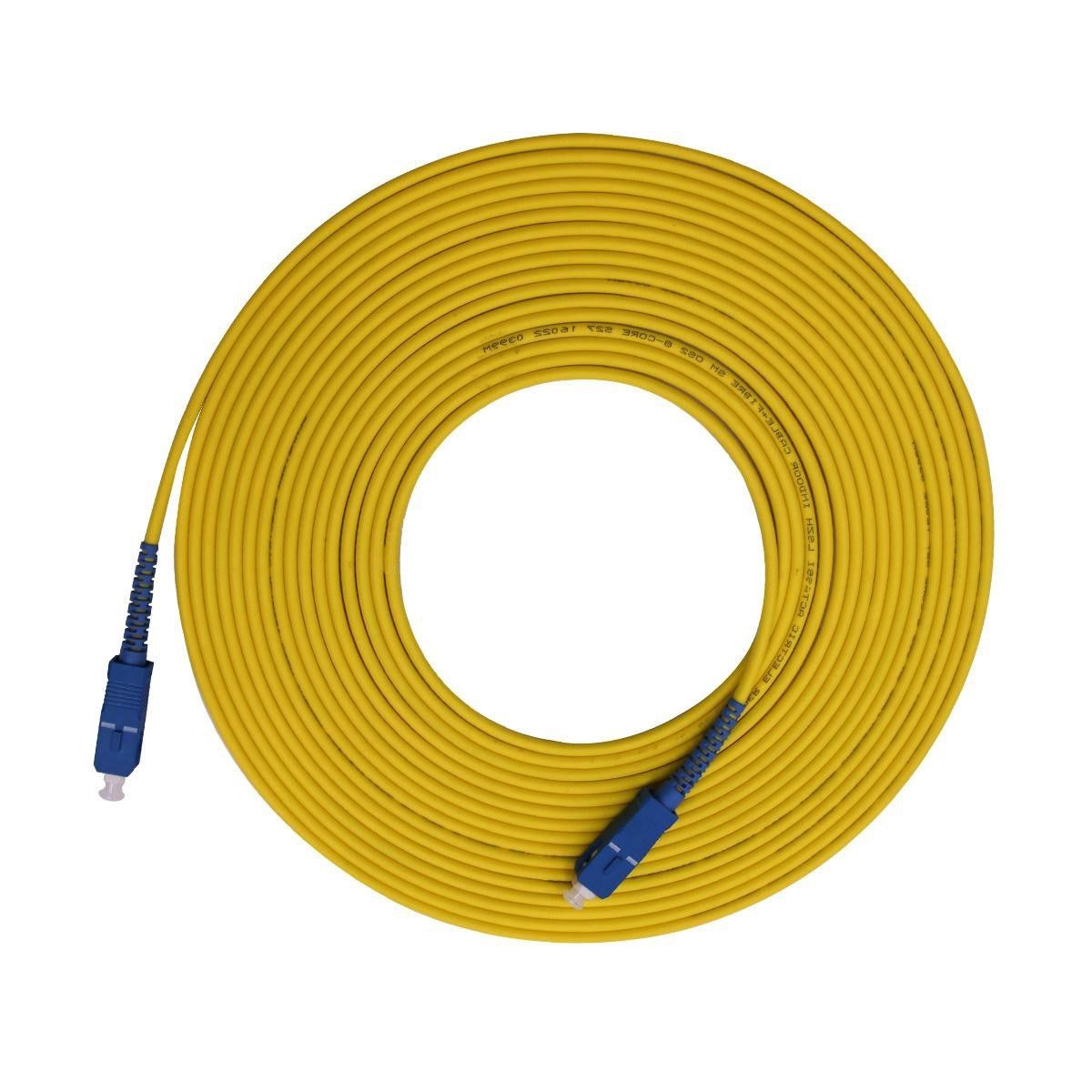

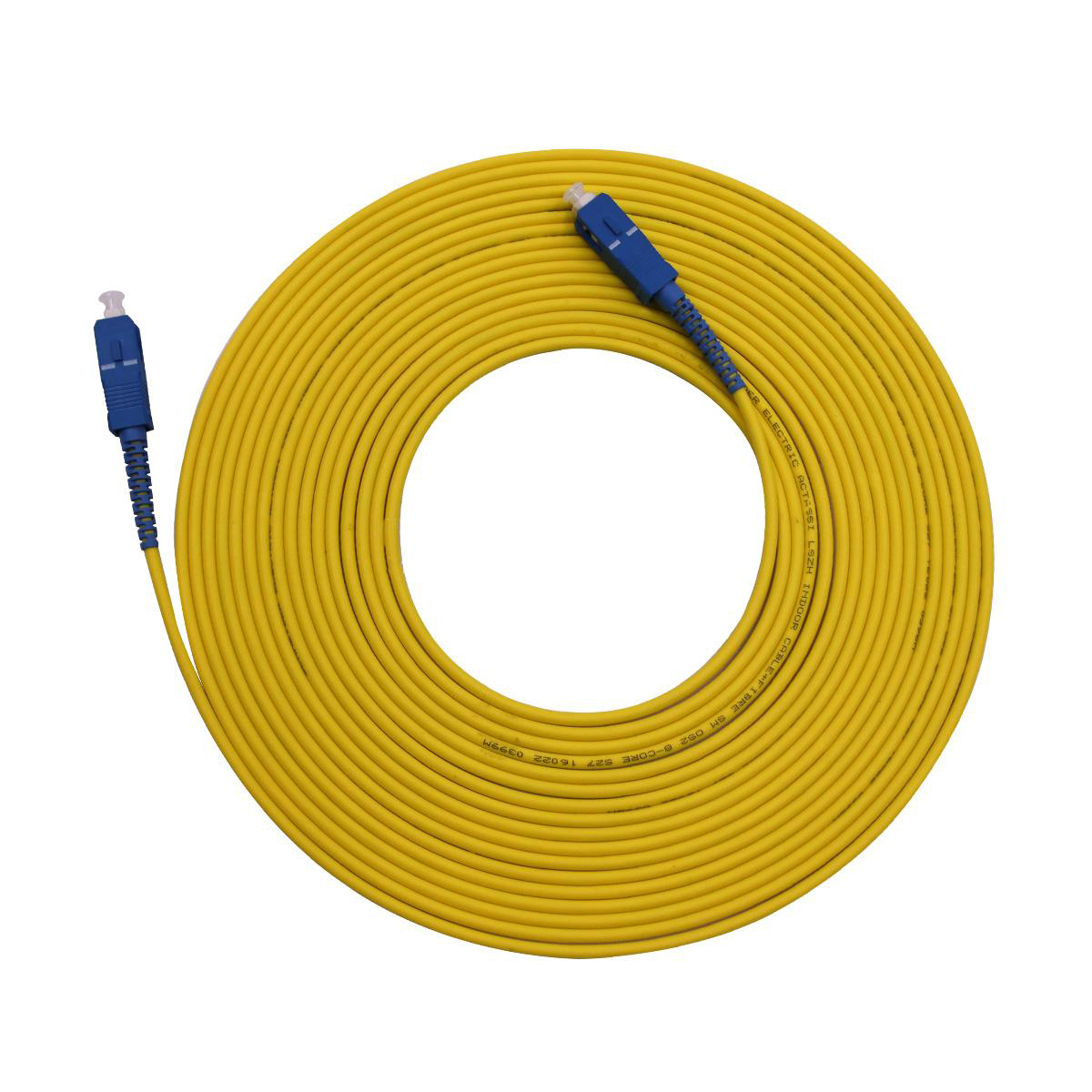

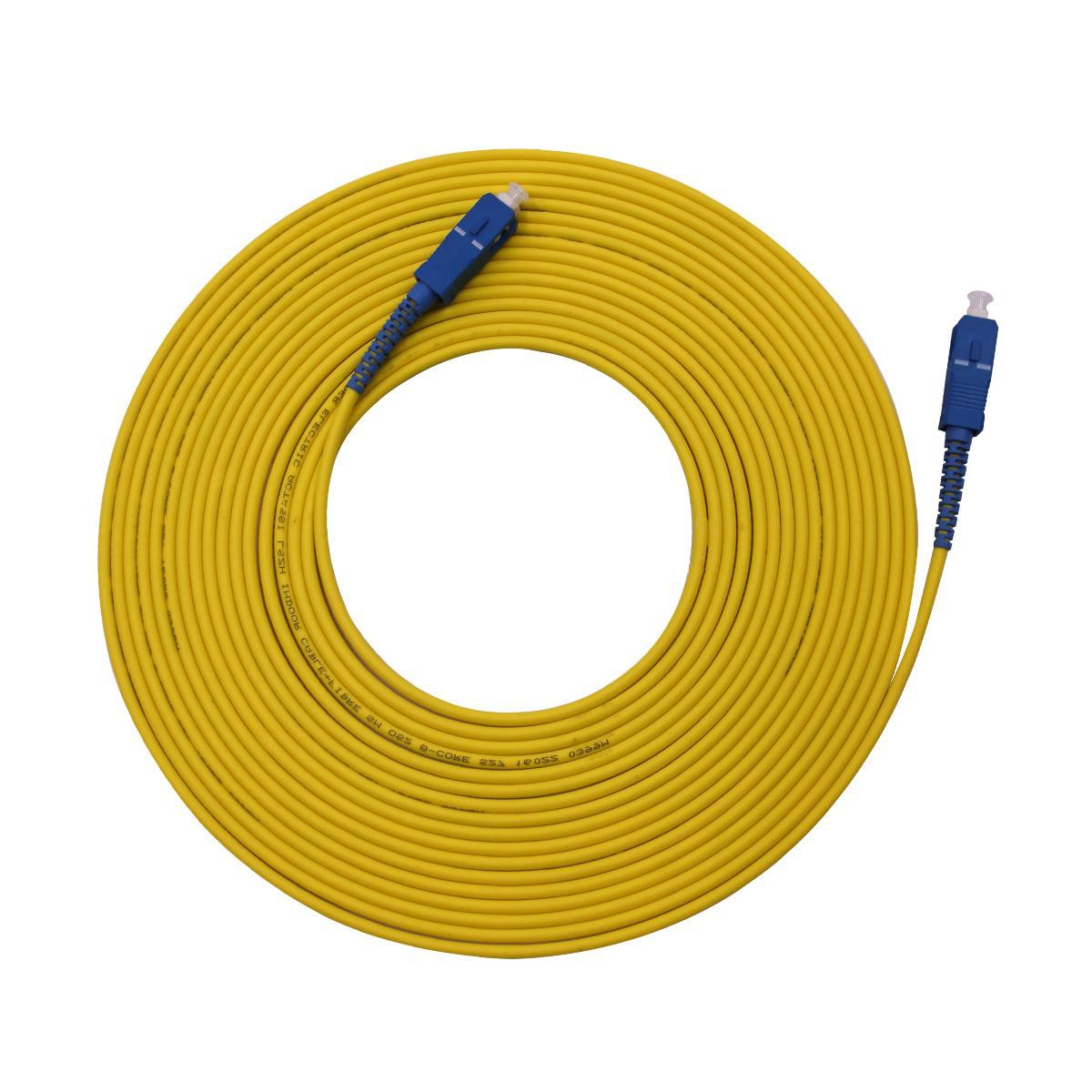

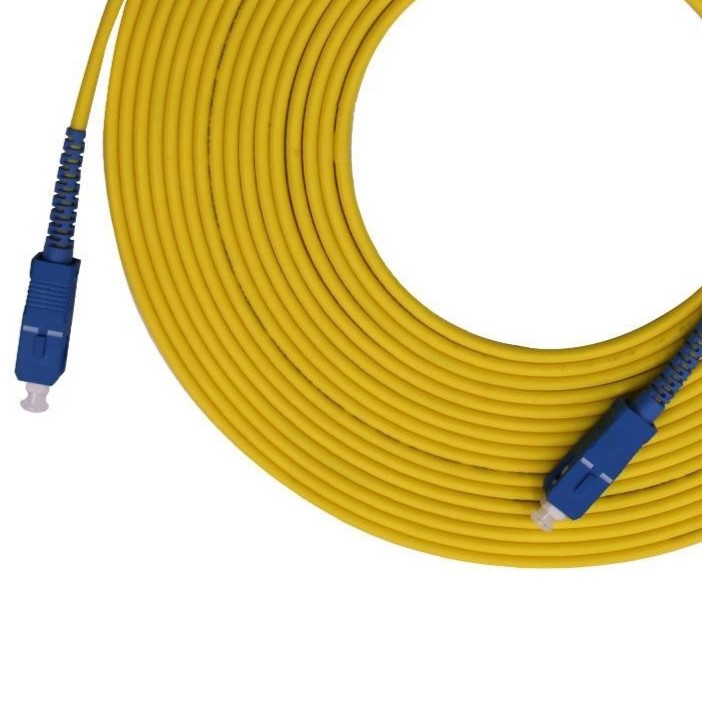

The 3M Fiber Patch Cord New 2mm SC/UPC – SC/UPC Single Mode Cord is a high-performance optical jumper cable engineered for short-distance point-to-point fiber connectivity. This simplex cord features SC/UPC connectors on both ends, low insertion loss, and a flexible 2mm LSZH jacket, making it suitable for FTTH, ODFs, ONUs, switches, and telecom networks.
Manufactured using G.657.A1 bend-insensitive OS2 fiber, the cable ensures stable performance in dense wiring environments where tight bends and compact routing are essential.
Key Features of 3M Fiber Patch Cord
-
✅ Connector Type: SC/UPC to SC/UPC
-
✅ Cable Length: 3 meters
-
✅ Fiber Type: Single Mode OS2 (G.657.A1)
-
✅ Cable Diameter: 2.0mm Simplex (Tight-Buffered)
-
✅ Jacket Type: LSZH – Low Smoke Zero Halogen
-
✅ Insertion Loss: ≤ 0.3 dB (Typical ≤ 0.2 dB)
-
✅ Return Loss: ≥ 50 dB
-
✅ Operating Wavelengths: 1310nm & 1550nm
-
✅ Durability: ≥ 500 Mating Cycles
3M Fiber Patch Cord Applications
-
🌐 FTTH & FTTB Deployments
-
🏢 Optical Distribution Frames (ODFs)
-
📡 Connecting ONUs, Switches, and Routers
-
🖧 Data Centers & Telecom Cabinets
-
🔍 Testing and Lab-Scale Fiber Installations
🔧 Tech Specs – PC/UPC/APC Singlemode Fiber Connectors
| Connector Type | Return Loss (dB) | Insertion Loss (dB) | Repeatability (dB) | Reliability (Plug Cycles) | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥50 | ≤0.3 | ≤0.1 | >1000 | -40 ~ +80 |
| UPC (SM) | ≥55 | ≤0.3 | ≤0.1 | >1000 | -40 ~ +80 |
| APC (SM) | ≥60 | ≤0.3 | ≤0.1 | >1000 | -40 ~ +80 |
3M Fiber Patch Cord Advantages
-
✔️ Low Loss and High Stability for Reliable Signal Transmission
-
✔️ Factory-Terminated SC/UPC Connectors for Precision Mating
-
✔️ Flexible 2mm Jacket for Easy Installation & Cable Management
-
✔️ LSZH Sheath for Enhanced Safety in Indoor Environments
-
✔️ Fully Compatible with All SC/UPC Interfaces
Specifications Summary
| Attribute | Details |
|---|---|
| Length | 3 Meters |
| Connectors | SC/UPC – SC/UPC |
| Fiber Type | Single Mode OS2 (9/125µm) |
| Cable Diameter | 2.0mm |
| Jacket Material | LSZH |
| Min. Bend Radius | ≥ 10mm (Installation) |
| Operating Temp. | -20°C to +70°C |
| Standards | IEC, TIA/EIA, ISO/IEC, RoHS, CE Certified |
Customization & Bulk Support
-
📏 Lengths Available: 0.5M to 100M (Custom on Request)
-
🔧 Other Connector Options: SC/APC, LC/UPC, LC/APC, FC/ST
-
📦 Bulk Supply for Telecom Projects & ISP Rollouts
-
🏷️ Private Label & OEM Packaging Options
-
📄 Test Reports & Compliance Certificates Included
Why Choose This 3M Fiber Patch Cord?
-
🔌 Ideal for Short-Run Fiber Jumping & Cabinet Interconnections
-
🔌 Reliable SC Termination for High-Density Optical Networks
-
🔌 Backed by Factory Testing and Industry Certifications
-
🔌 Perfect for use in data centers, GPON setups, and smart network nodes
