- Private Mold:NO
- Products Status:Stock
- Ports:6
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:2G
- Brand Name:HTF ELECTRONIC
- Model Number:HT-POE8606G
- Place of Origin:Guangdong, China
- Product Name:4 Ports Gigabit PoE Switch with fiber port
- Bandwidth:10Gbps (non-blocking)
- Address Database Size:2K
- MTBF:190,000 hours (about 21 years)
- Forwarding Mode:Store-And-Forward
- Power Supply:Power input: DC52V
- PoE Ports:1-4support POE
- PoE Port Power:15.4W for each POE port/30W for IEEE 802.3at
- PoE Standard:IEEE 802.3af/IEEE 802.3at
- PoE Feature:All ports support MDI/MDIX
- Selling Units:Single item
- Single package size: 14.1X8.6X3.2 cm
- Single gross weight:1.200 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 23 – 500501 – 1000>1000Lead time (days)71520To be negotiated
Product Description
1. Provide 4 port poe ethernet ports
2. Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power
high-power infrared cameras.
3. Comply with IEEE802.3, IEEE802.3u, IEEE 802.3af/at standards.
4. Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX
5. Support port-base V-lan, prevent from broadcast storm so that make data conversion more efficient and safe.
6. Various LED display functions can real-timely display the device’s current working conditions, and help prompt facility and
remove trouble easily.
7. Excellent lightning protection, lightning capacity up to 2KV
8. Easy to install and operate on walls or on the desktops
2. Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power
high-power infrared cameras.
3. Comply with IEEE802.3, IEEE802.3u, IEEE 802.3af/at standards.
4. Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX
5. Support port-base V-lan, prevent from broadcast storm so that make data conversion more efficient and safe.
6. Various LED display functions can real-timely display the device’s current working conditions, and help prompt facility and
remove trouble easily.
7. Excellent lightning protection, lightning capacity up to 2KV
8. Easy to install and operate on walls or on the desktops
|
Product Name
|
4 Ports Gigabit PoE Switch with fiber port
|
|
Interface
|
4 x10/100/1000M copper cable RJ45 ports support PoE
+ 1 Uplink 1000M ethernet port+1x 10/100/1000M SC port |
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5 later UTP(≤100 meter) |
|
Bandwidth
|
10Gbps (non-blocking)
|
|
Address Database Size
|
2K
|
|
MTBF
|
190,000 hours (about 21 years)
|
|
Forwarding Mode
|
Store-And-Forward
|
|
Network Protocols
|
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX;
IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
|
LED Display System
|
power supply; Every Port: connecting, PoE working status
|
|
Power Supply
|
Power input: DC52V
|
|
PoE Ports
|
1-4support POE
|
|
PoE Port Power
|
15.4W for each POE port/30W for IEEE 802.3at
|
|
PoE Standard
|
IEEE 802.3af/IEEE 802.3at
|
|
PoE Feature
|
All ports support MDI/MDIX
|
|
Working Environment
|
Operating Temperature: -20 ° ~ 50 ° C;
Storage Temperature: -40 ° ~ 80 ° C; Operating Humidity: 10% ~ 95%,non-condensing |
|
Certification
|
CE Mark ,commercial; CE/LVD EN60950, RoHS
|
|
Radiation
|
CE mark, commercial; FCC Part 15 Class B;
VCCI Class B; EN 55022 (CISPR 22), Class B |
|
Transmission Distance
|
Data transmission distance: 100m
|
|
Warranty
|
1 year warranty ( 1 yeas warranty for power adapter )
|

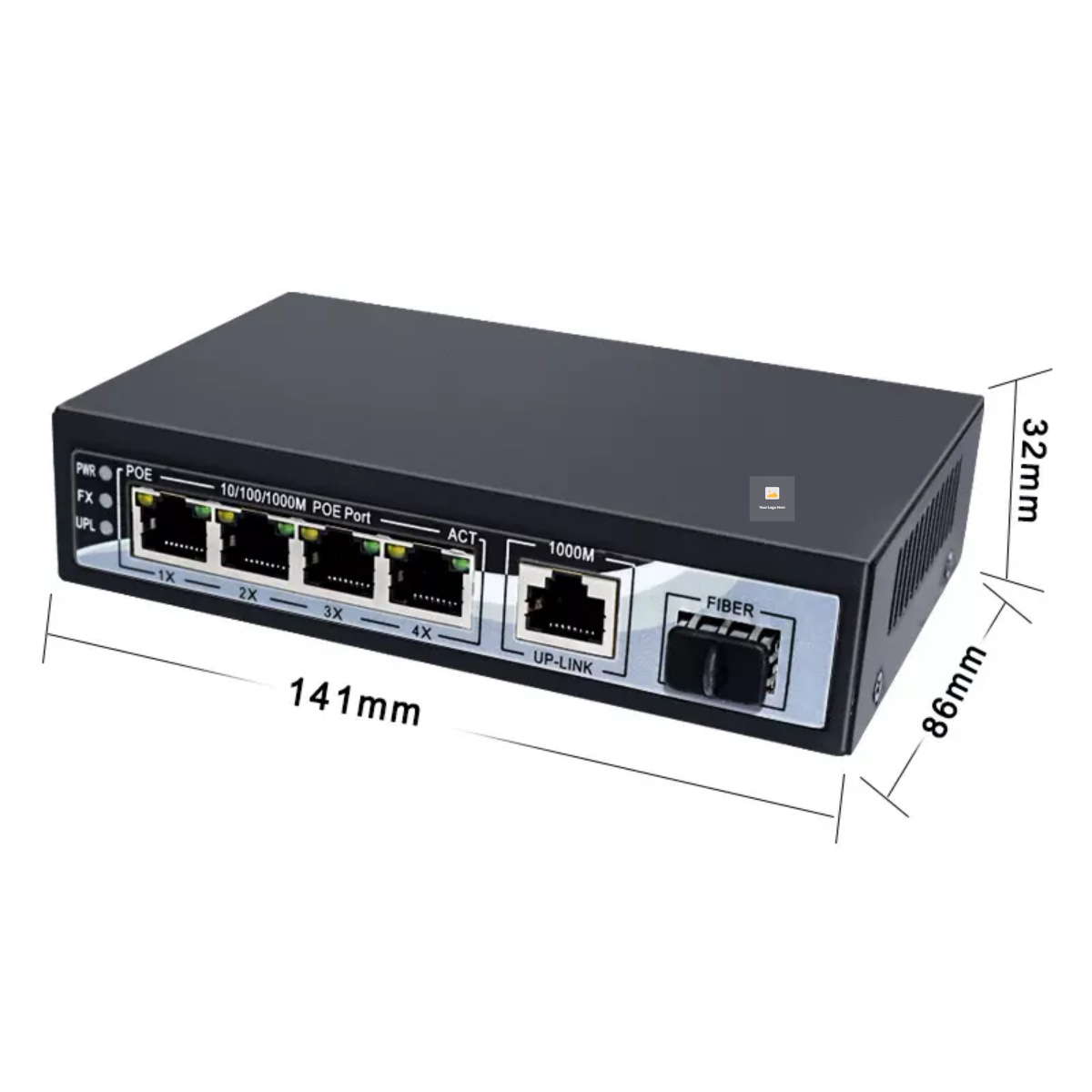

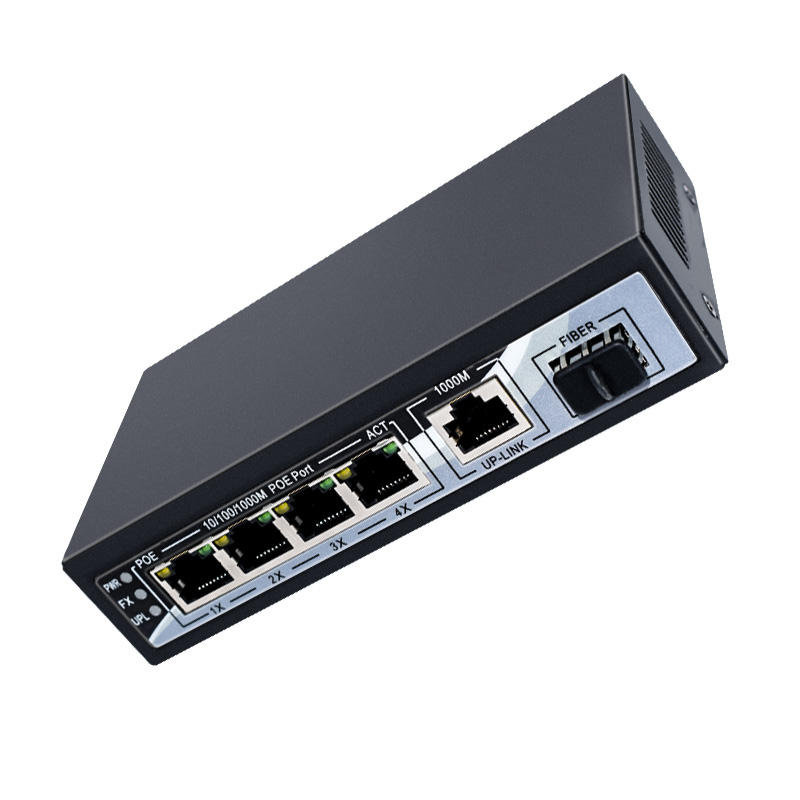

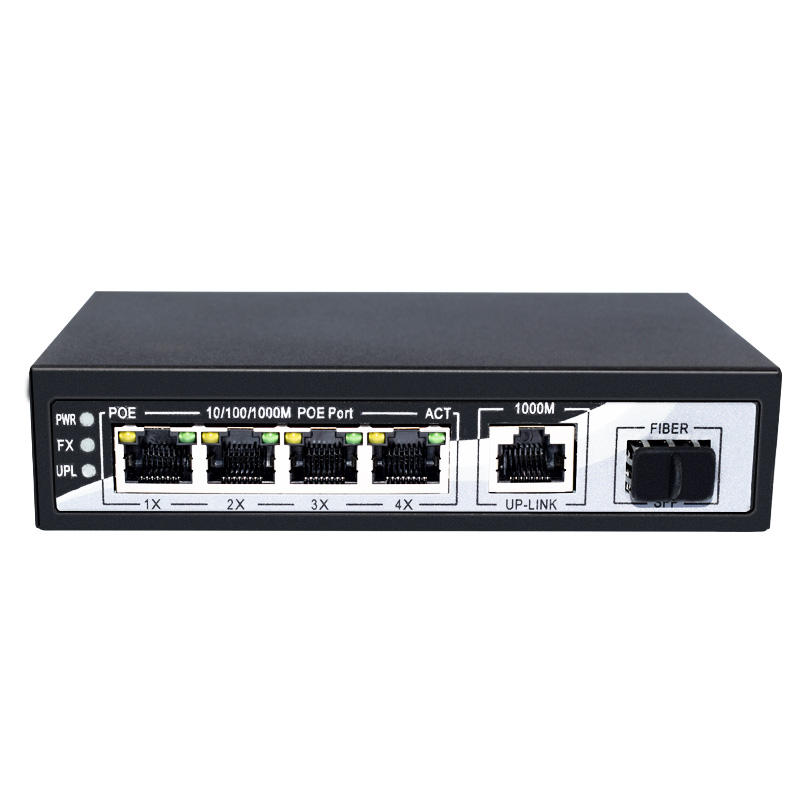

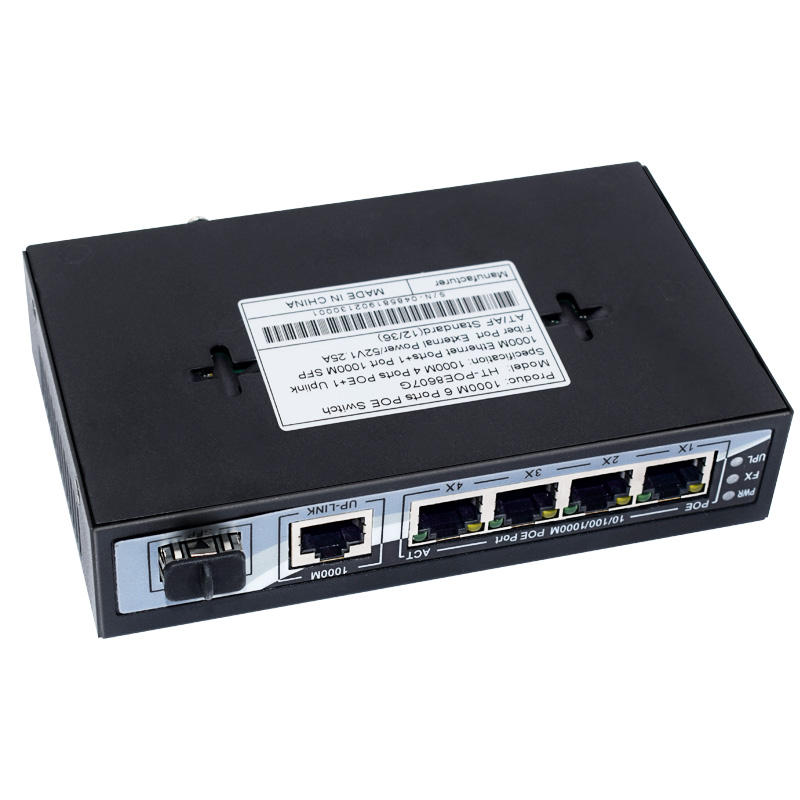

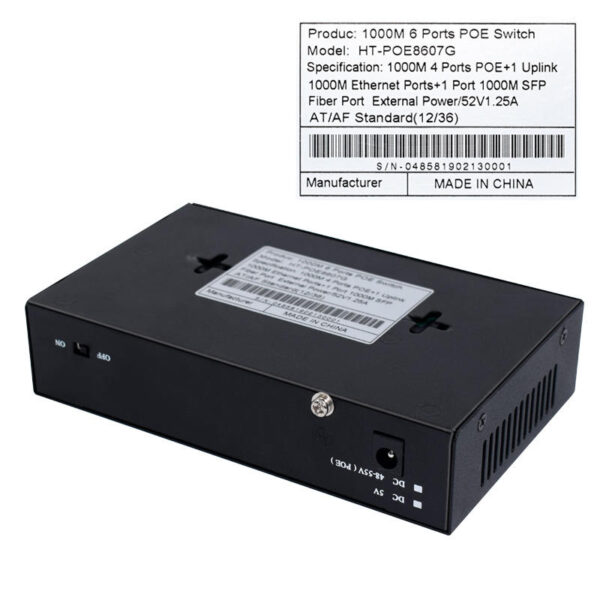

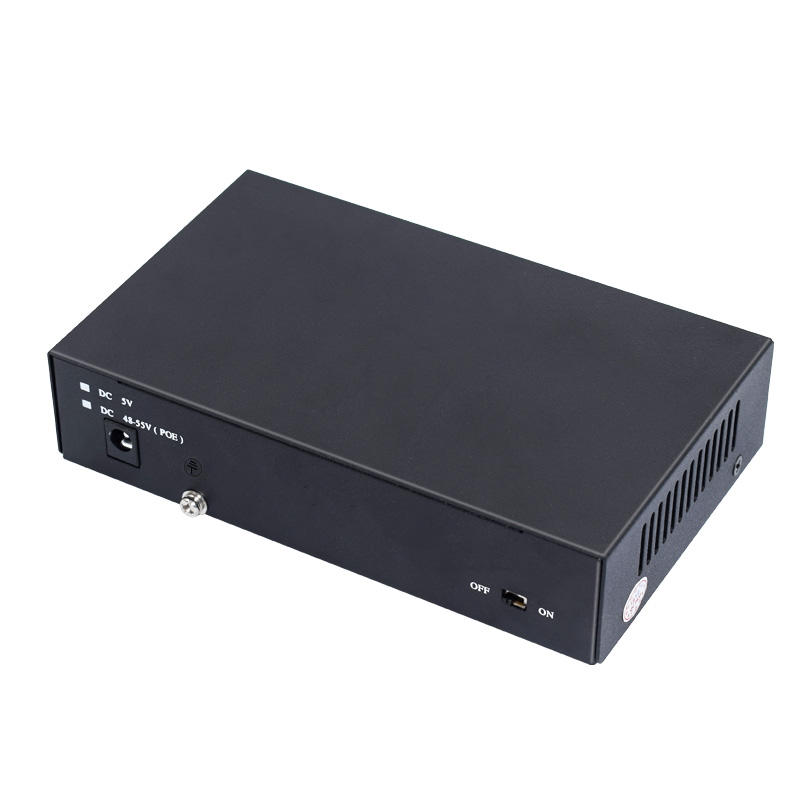

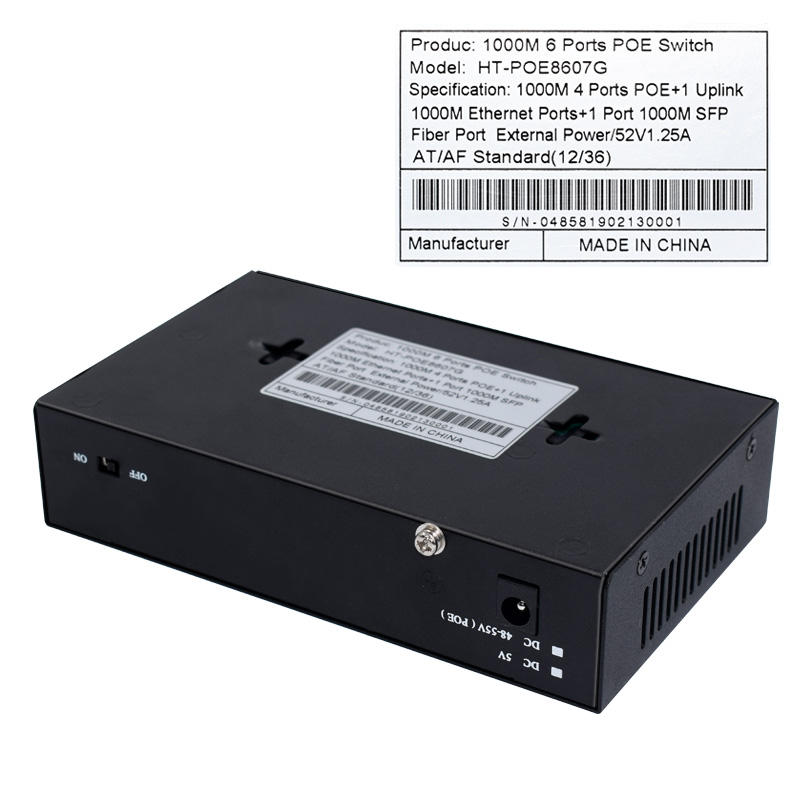

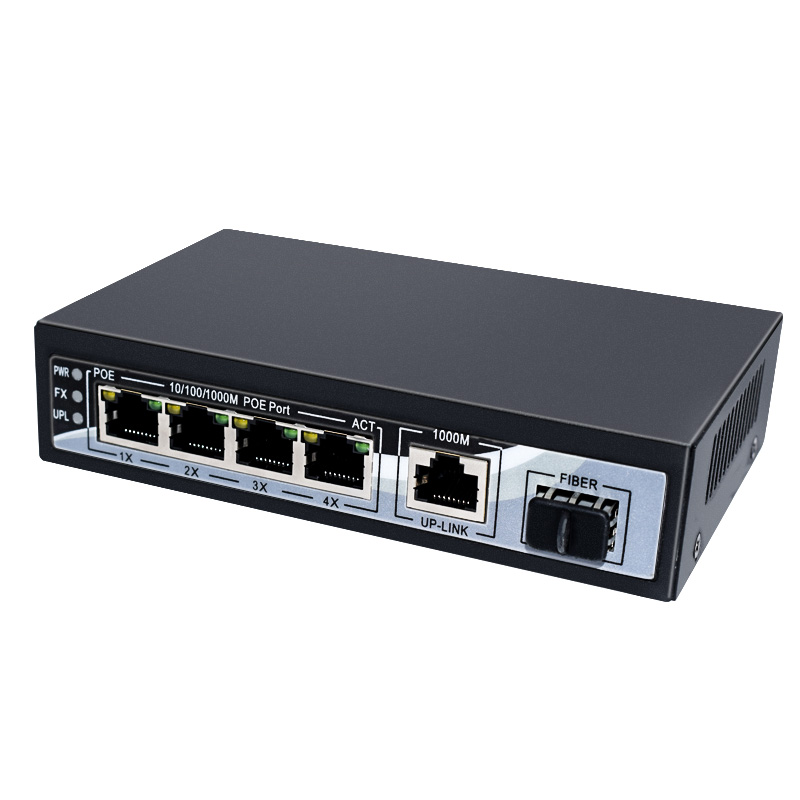

Product Photos

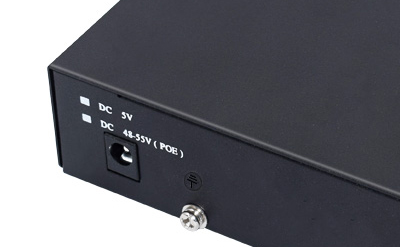

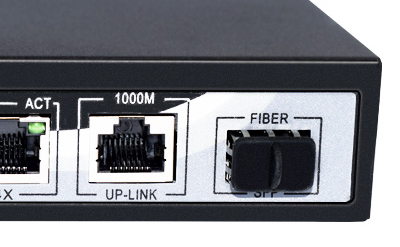

Details Images
