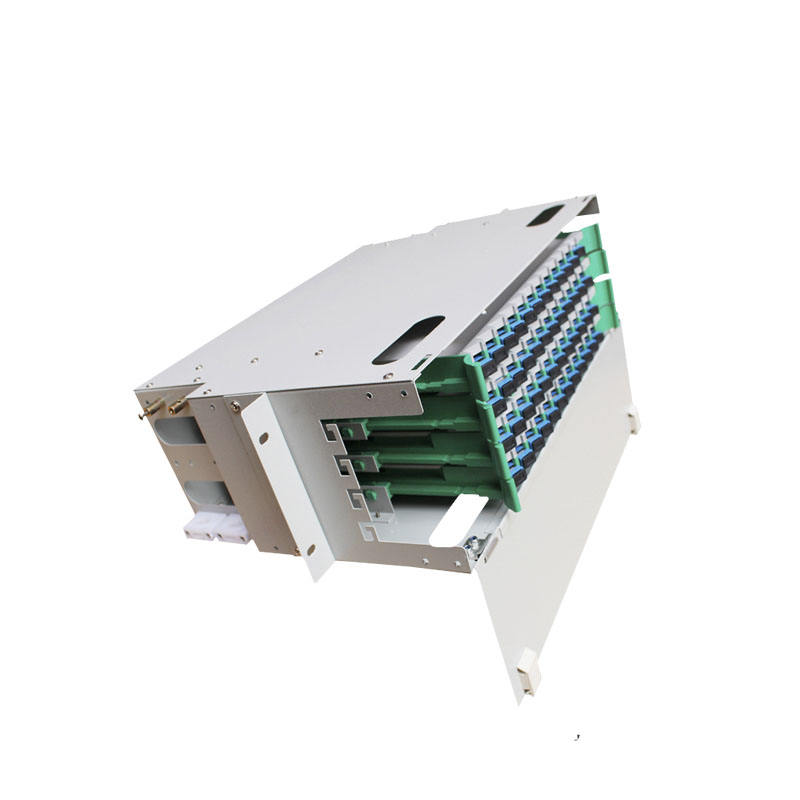

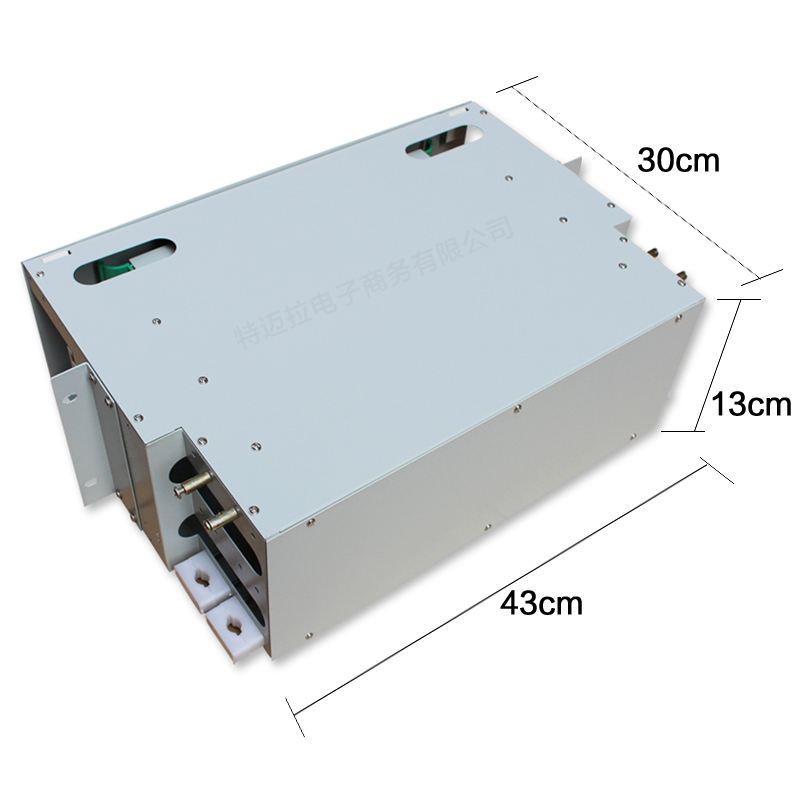

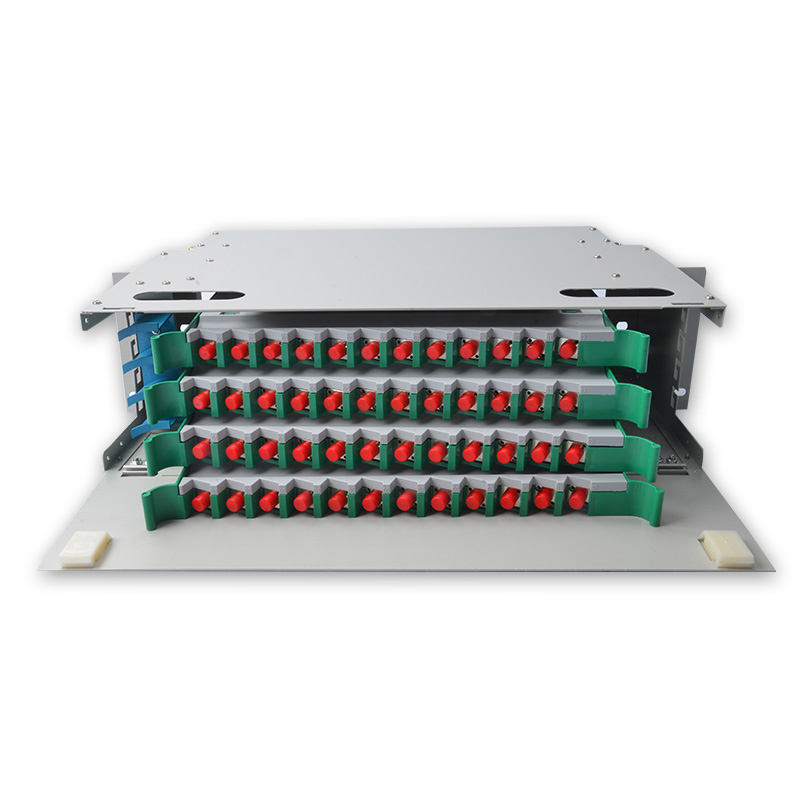

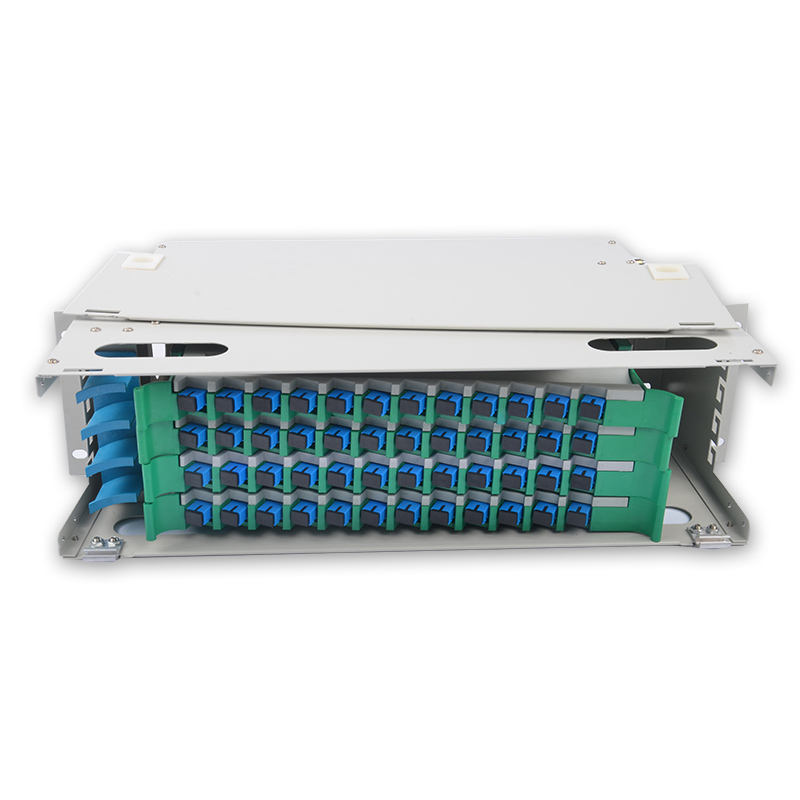

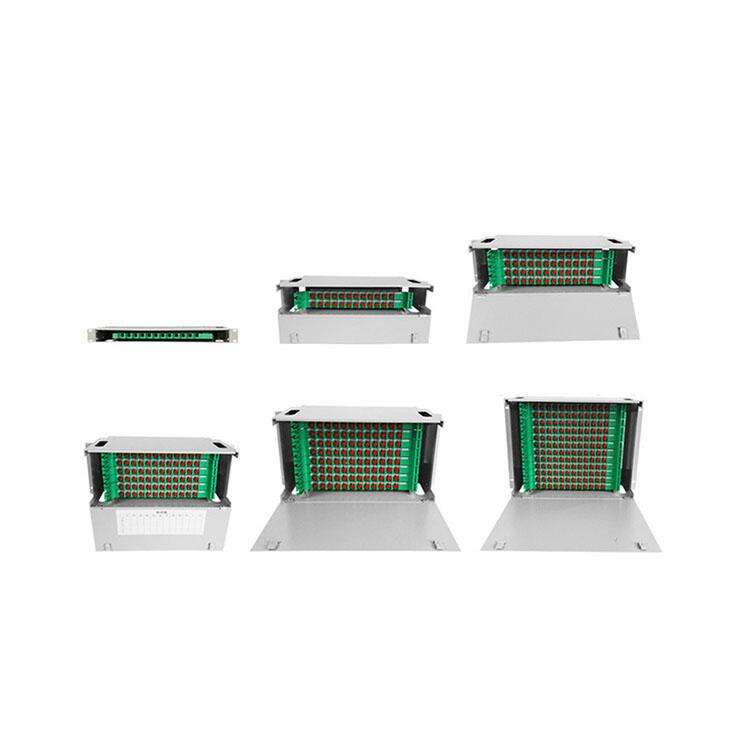

448 PORT SC LC ST FC 19″ fiber optic patch panel FTTH optical distribution frame ODF box 8 PORT SC LC ST FC 19″ fiber optic patch panel FTTH optical diibution frmeD box
Product Description
|
Operating temperature |
-5°C +40°C |
|
Relative humidity |
≤90% (when the temperature is below 30°C) |
|
Atmosphere pressure |
70Kpa – 106Kpa |
|
Storage temperature |
-40°C – +70°C |
|
Insertion loss |
≤0.20dB |
|
Return loss |
PC≥45dB ,UPC≥50dB,APC≥60dB |
|
Durability |
>1000times |
|
Insulating resistance |
≥1000 MΩ 500V |
|
Voltage-resistance strength |
Under the effect of 3000V, 1min, non-puncture, and no arc-over |
|
Wavelength |
850nm, 1310nm, 1550nm |
