SKU 1600154307565 Category
  • Private Mold:Yes
  • Products Status:Stock
  • Ports:≤ 8
  • Transmission Rate:10/100Mbps
  • Function:POE, VLAN Support
  • Communication Mode:Full-Duplex
  • Switch Capacity:2.6gbs
  • Model Number:POE-8F2G
  • Place of Origin:Guangdong, China
  • Product Name:48V 8 port POE Switch 10/100M+2GE Uplink Port POE switch
  • PoE Ports:1-8 Port Support PoE
  • Interface:IEEE 802.3af PoE “Data + DC”
  • PoE Standard:IEEE802.3af/at
  • Power Supply:External Adpater (Input:AC100-240V 50/60Hz
  • Uplink Ports:2*10/100/1000Mbps RJ45
  • Power:120W
  • PoE Port Power:15.4W(IEEE802.3af)
  • LED Indicator:PoE Working Status
  • Support:OEM ODM
  • Selling Units:Single item
  • Single package size: 25X15X8 cm
  • Single gross weight:0.850 kg
  • Package Type:CartonWanglink 48V 8 port POE Switch 10/100M+2GE Uplink Port for for Hikvision Camera
  • Picture Example:
  • Lead time:Quantity(pieces)1 – 100101 – 500501 – 1000>1000Lead time (days)51015To be negotiated
Product Description

WOR-POE-8F2G is 8 port 100Mbps with 2 port 1000M Uplink POE switch, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore do not worry it will destroy the private standard PoE or Non-PoE equipment. WOR-POE8F2G is the best choice for minitype commercial network because it economically use PoE deployment wireless AP and IP camera .It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.FeaturesSupport power over ethernet cable device for example wireless AP and IP cameraSupport IEEE802.3af standardData and power transmission distance 100m, it can be flexible installation for wireless AP and surveillance projectSupport upward port auto MDI/MDIXAdopted storage forward switch systemIntelligentize power and minimum consumption,guarantee PD requirement.With power supply circuit protection function and protection back-end device safetyAutomatically provide the adaptive deviceAdopted single fan radiating increase the device performancePSE modular designSupport loop circuit detectionSupport saving power function when port unconnection

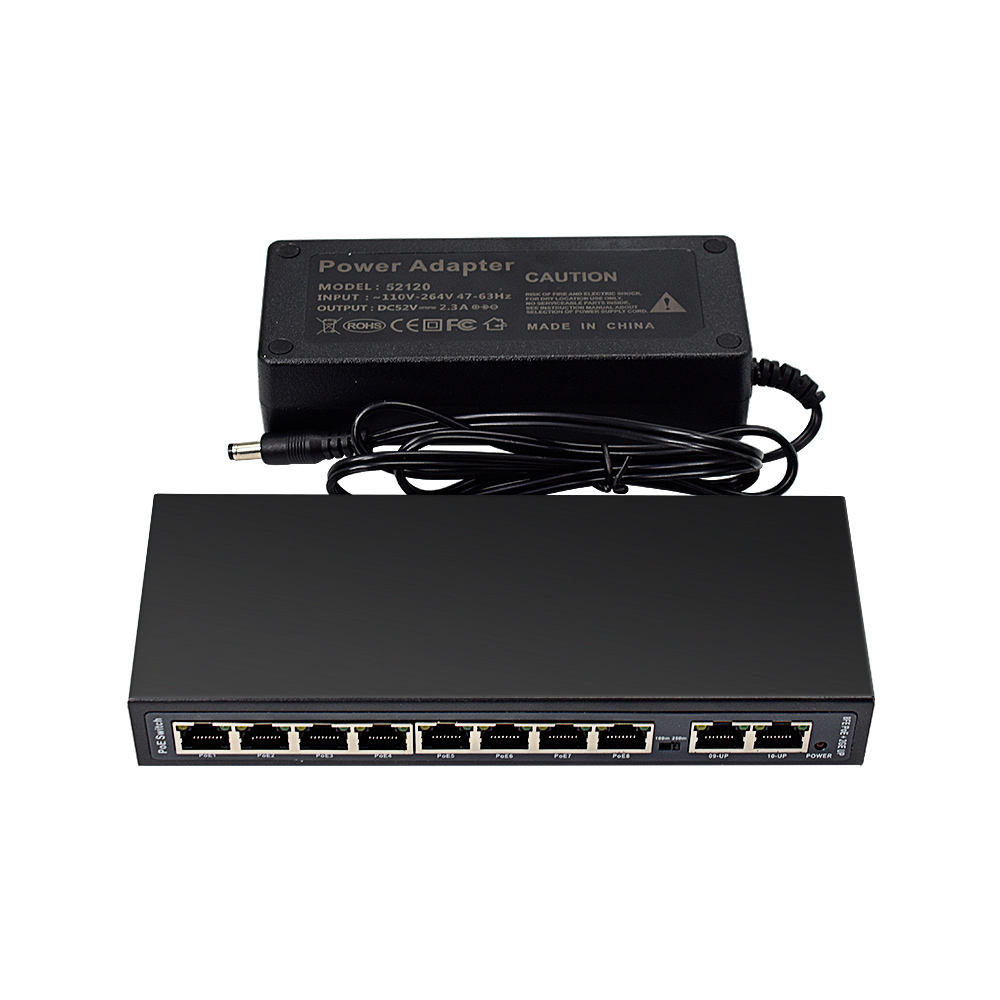

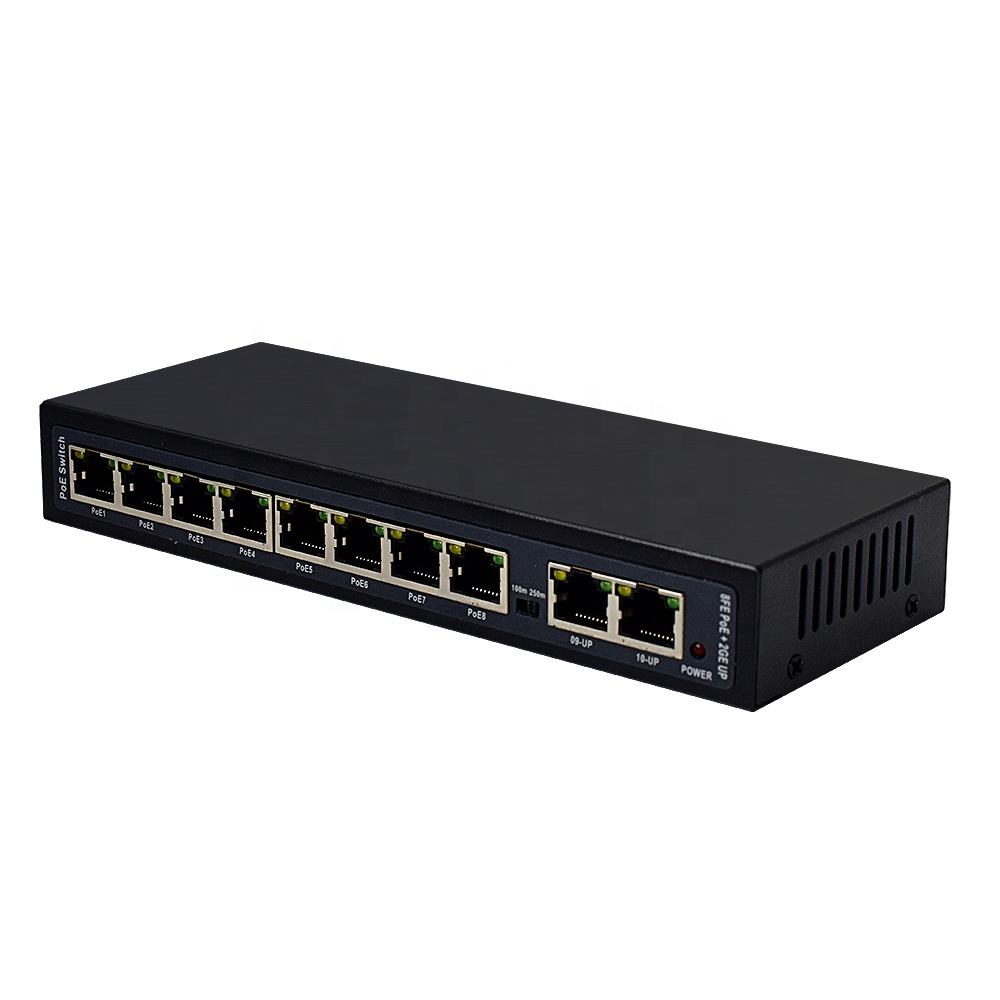

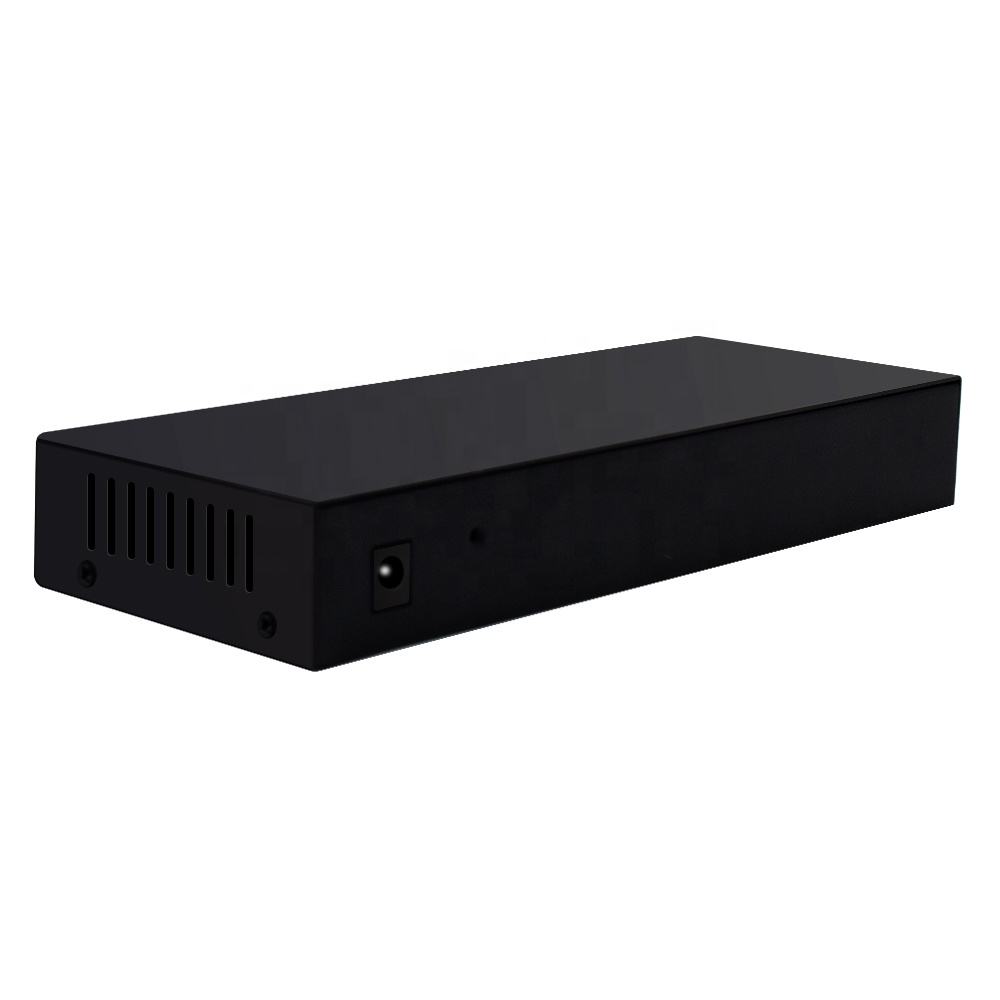

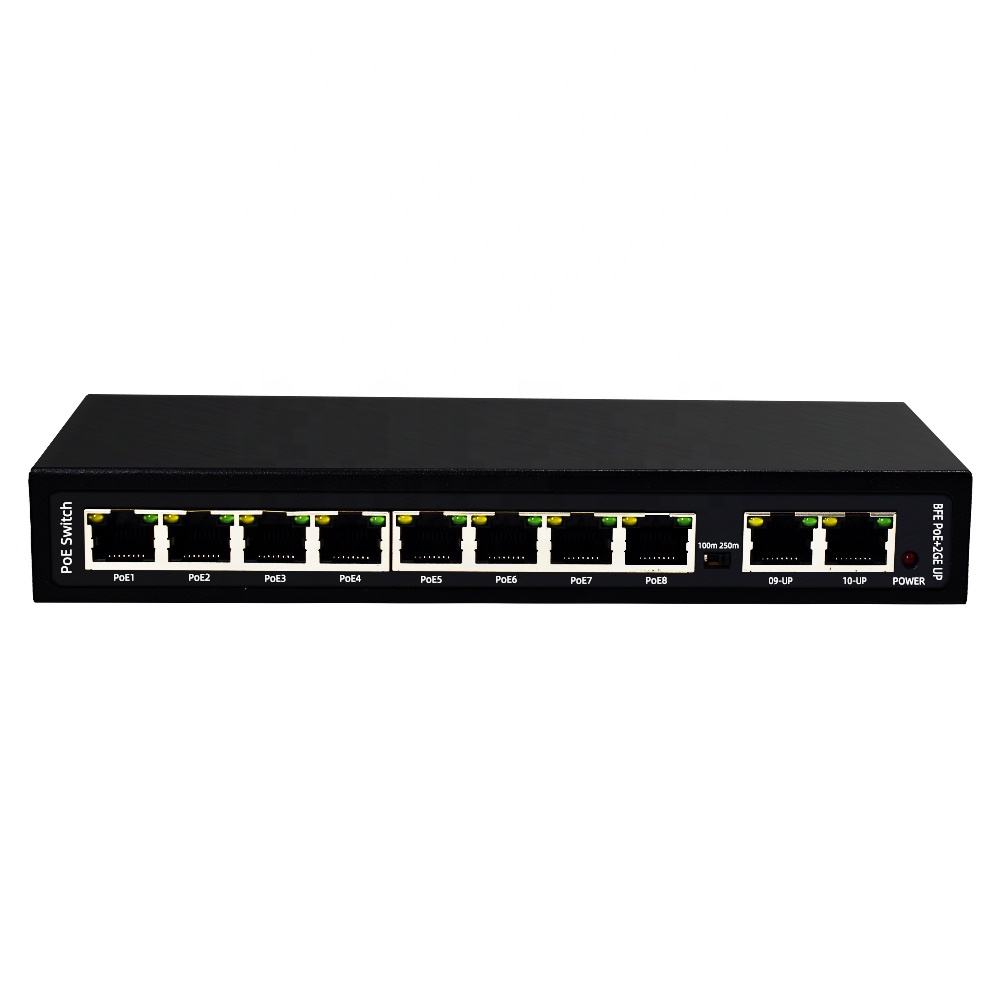

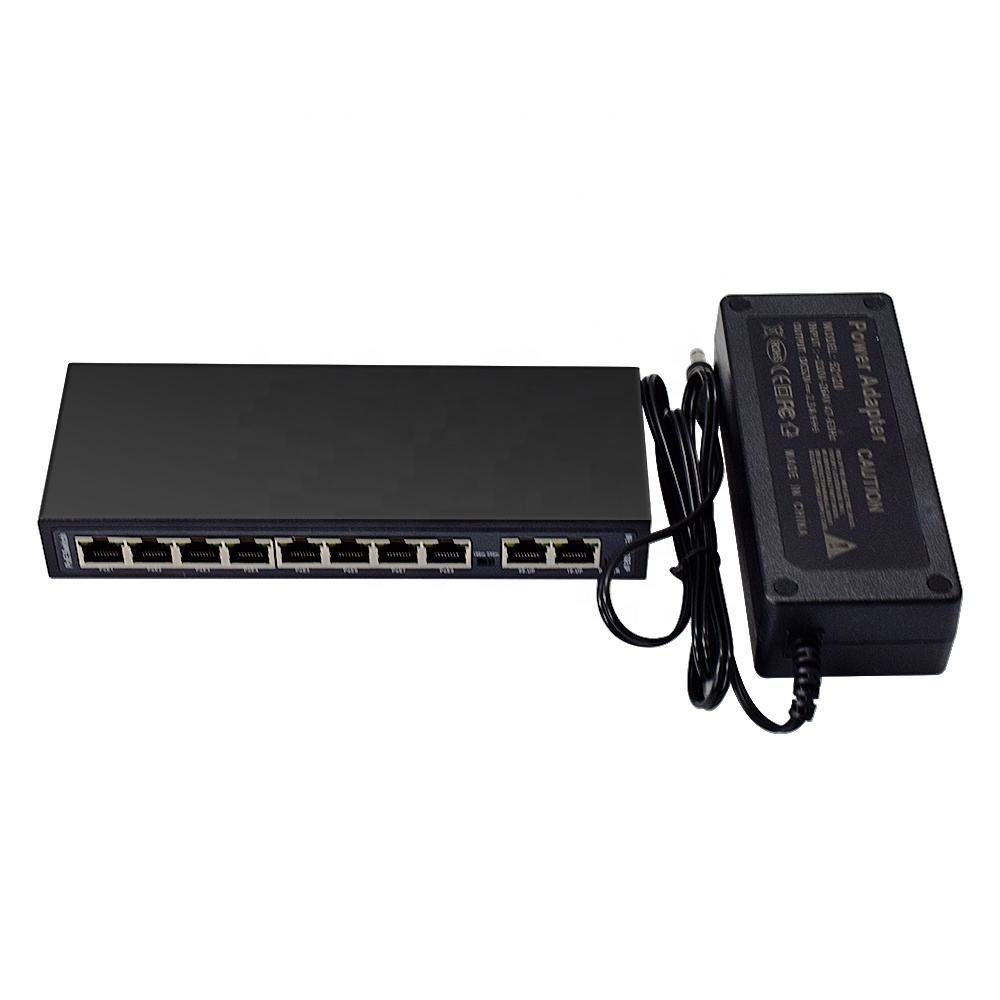

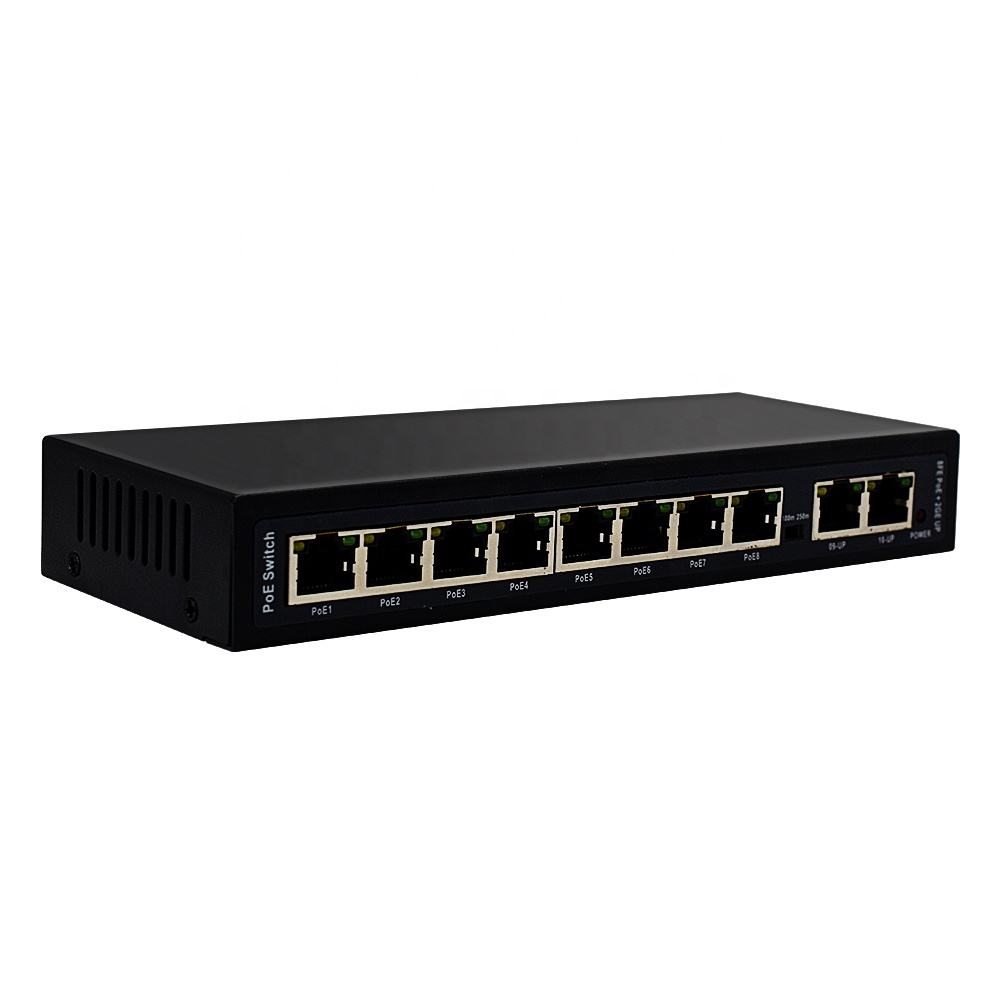

Products Show
Network Port
8 10/100Mbps PoE RJ45 port(port 1~port 8)
2 10/100Mbps Non-POE RJ45 port(port 9~port 10)

Transmission Rate

100Mbps full Duplex,10 or 100Mbps Half Duplex
Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45


Bandwidth:1.8Gbps (non-blocking)
Network delay(100 to 100M bps):maximum 20 μs(using 64 byte packet)
MAC address capacity:1K
Frames filter and transmission rate
10M port maximum 14,800pps
100M port maximum 148,800pps
Network protocol and standard
IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet
PoE pin
LEDs indicator
Power , LINK/ACT , PoE


Total power 120W ( port1~port8), single port max 15.4W
Input power:120W;52V  2.3A DC output power(Each country use customized power plug)
Size(LxWxH):195mm x 75mm x 30mm


Operating Temperature:0°~40°C(32°~113°F
Storage Temperature:-20℃~90℃(-4°~194°F)
Working Humidity:10%~90% (Non-condensing)
Storage Temperature:5%~90% (Non-condensing)
