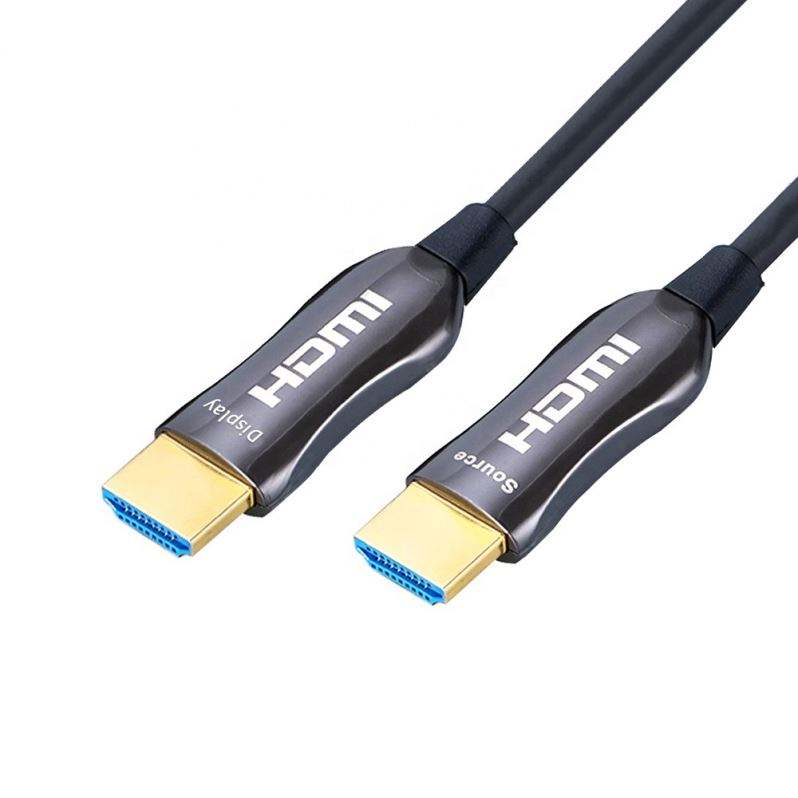

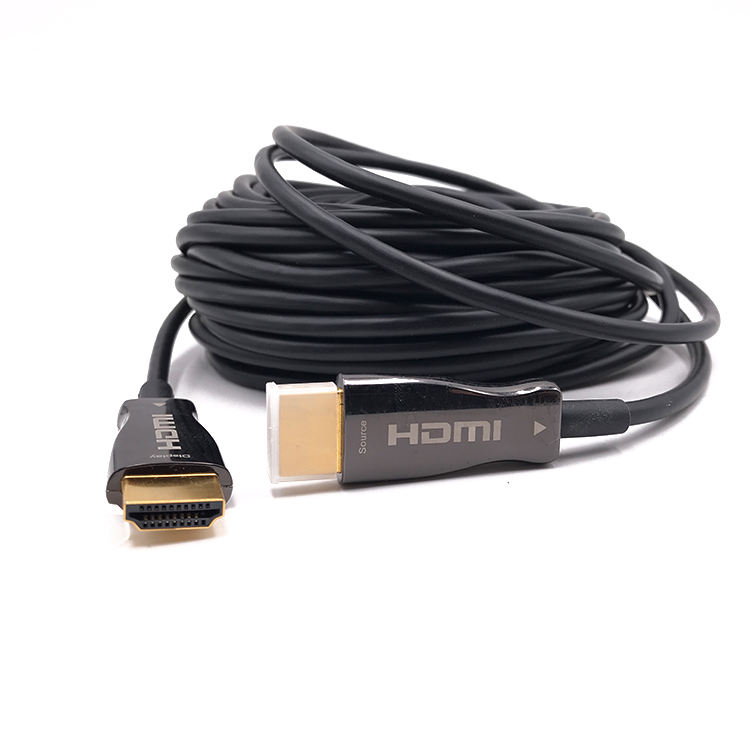

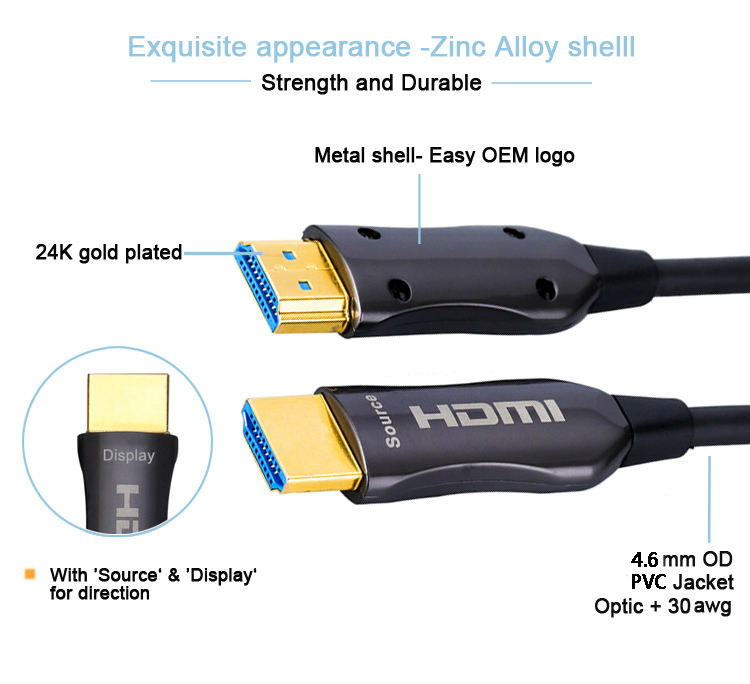

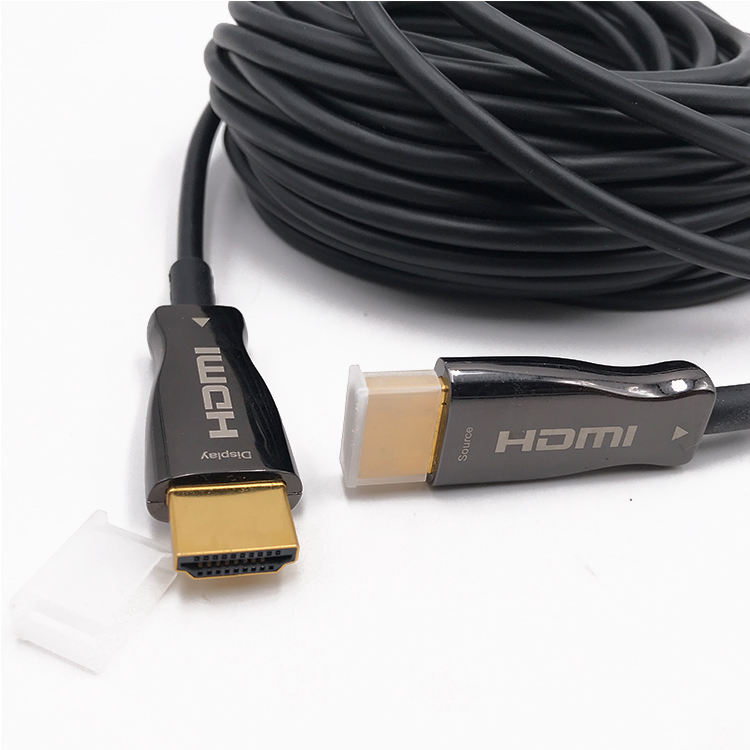

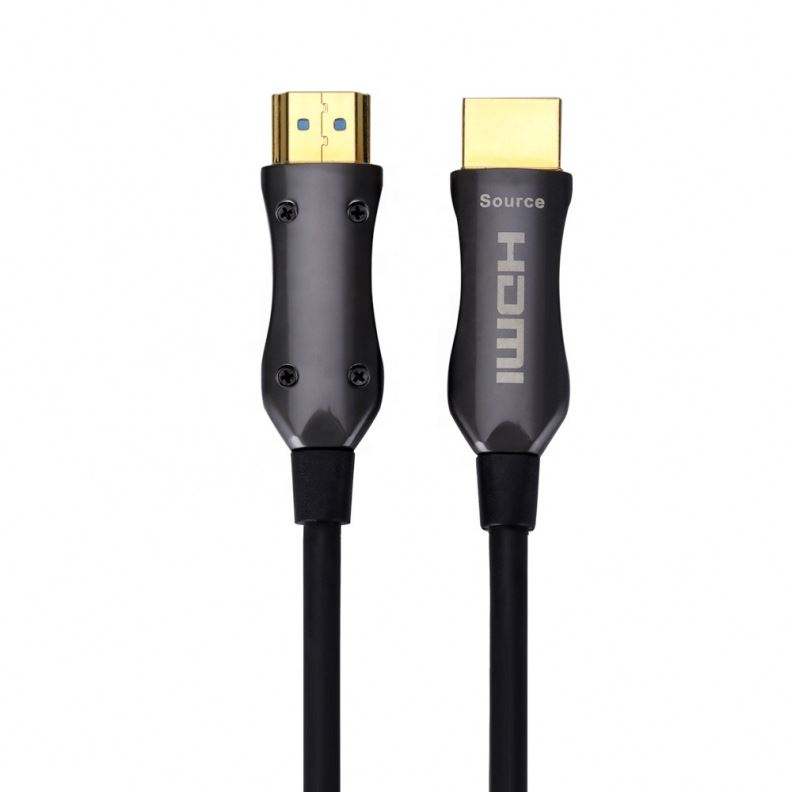

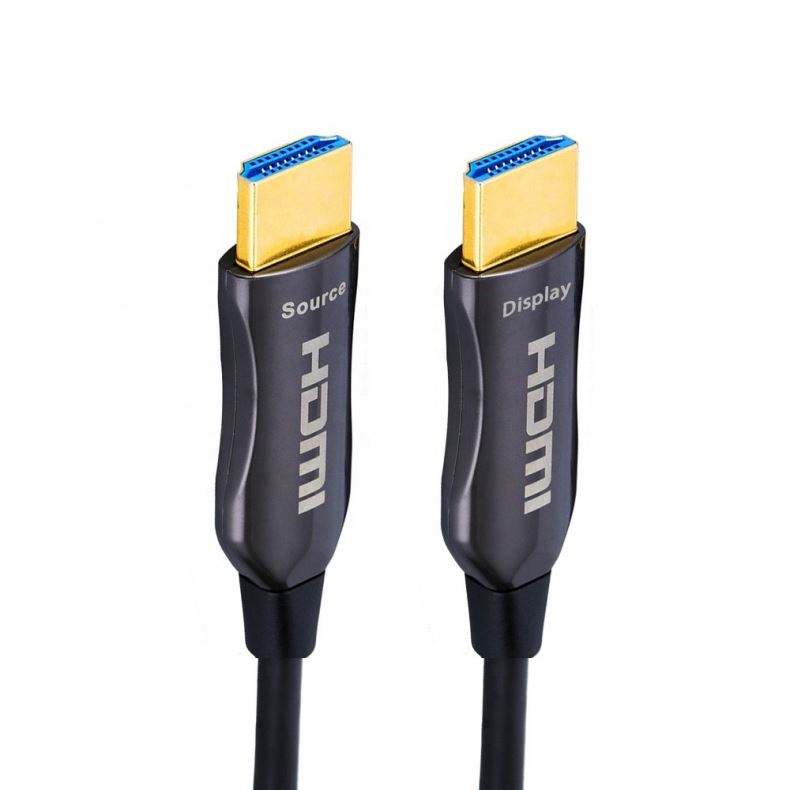

4k 8k 2.0 2.1 fiber male to male high speed certified hdmi aoc 100m active optical cable
Product Details
HDMI 2.0 active optic cable is a fiber optic cable is based on the unique core 45°FA patented technology. It USES optical fiber as the HD signal transmission medium, supports HDMI 2.0 protocol, supports length customization and shell customization, and is a mature and competitive HD interconnection scheme in the market.
Features:
- Supports computer resolutions to 4K@60Hz@4:4:4
- Plug and Play
- Compatible with HDMI 2.0 standard.
- Support HDCP2.2@ARC
- Self-detecting function for EDID information
- No loss of signal
- Hybrid optical cable with fiber and copper wire
- PIN gold plated,shell gold plated
- Environmental Specifications:For Indoor use only;
- Operating temperature:-40℃ to 70℃
- Minimum bending radius 20mm
- Max.tension force:100N
- Powered via HDMI devices
- 4core OM3 Multimode Fiber(high speed data)and 7core copper cable
- Round cable Black PVC jacket
- RoHS 2.0 & REACH compliant
- Packing:package 1pc reel
Specification:
|
Product name |
Active Optical HDMI fiber cable |
|
Plug |
19-pin male to male TPE(Or PVC optional) |
|
Outer Jacket |
TPE(Or PVC optional) |
|
Conductor |
Optic +oxygn-free copper |
|
Connector |
24K Gold plated |
|
Resolution
|
2.0 version:18Gbps 4K@60Hz 4:4:4 2.1 version:48Gbps 8K@60Hz 4:4:4 |
|
Awg |
Optical 30awg |
|
OD |
4.6mm |
|
Length |
1m,5m,10m,20m,30m,50m,60m,80m,100m,150m,… 300m (Customer required) |
|
Packing |
Poly bag/Wheel roll+sticker+portable box |
|
Certification |
CE, FCC, RoHS, HDMI adopter |
Structure:
