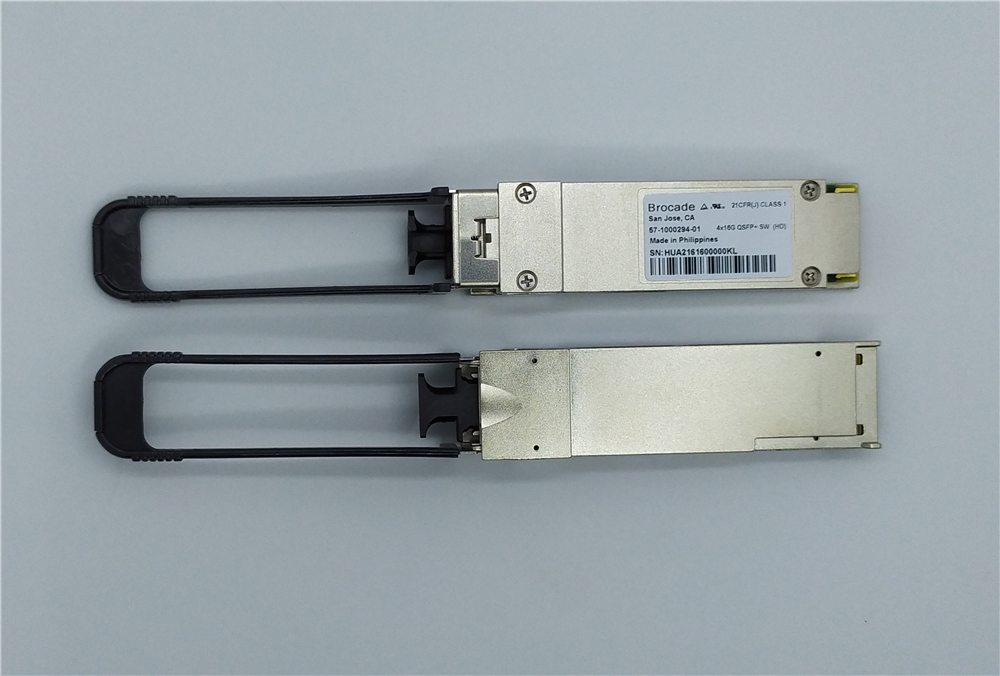

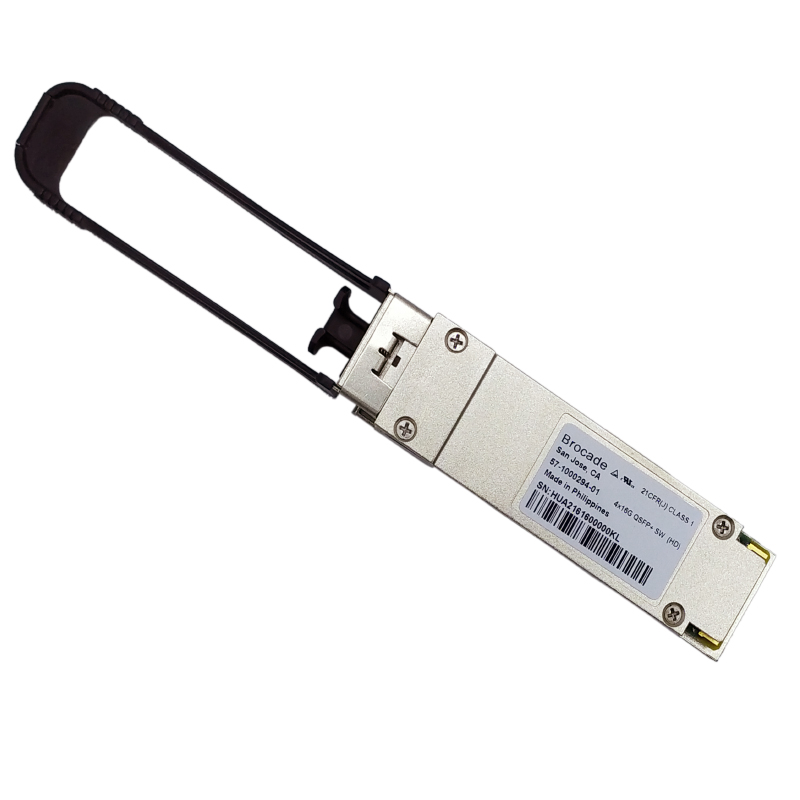

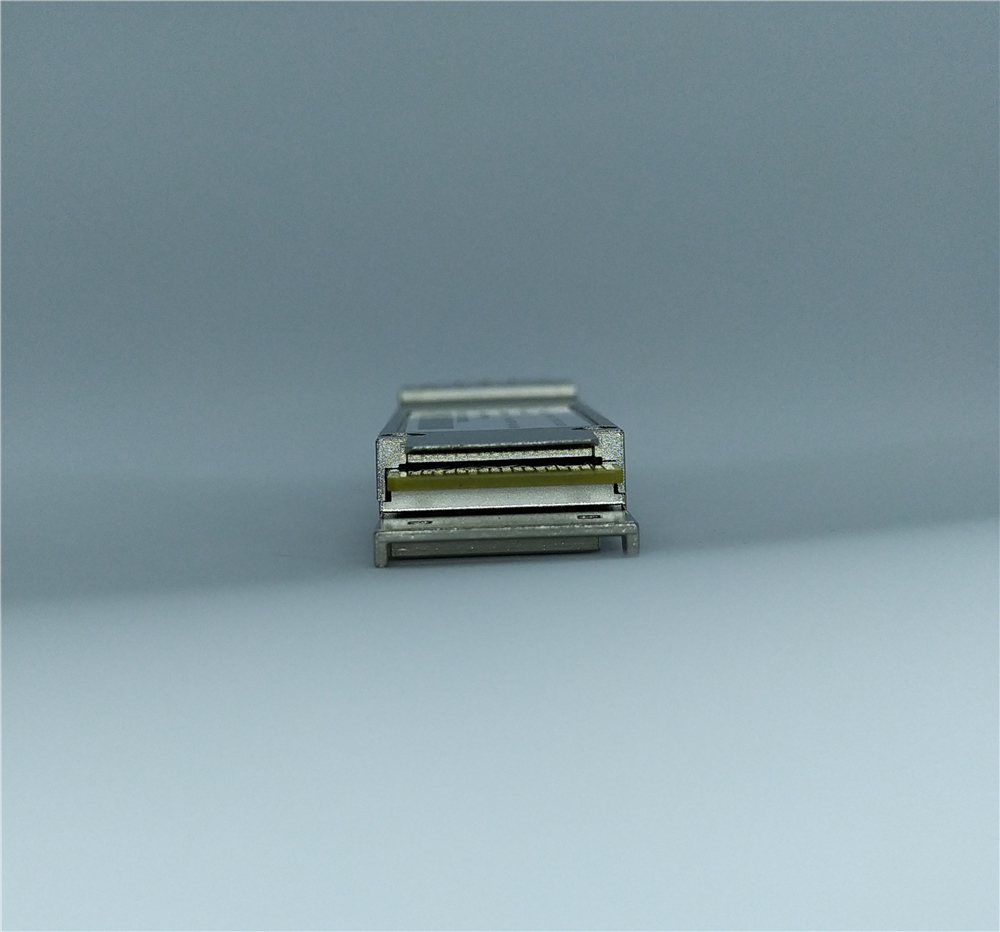

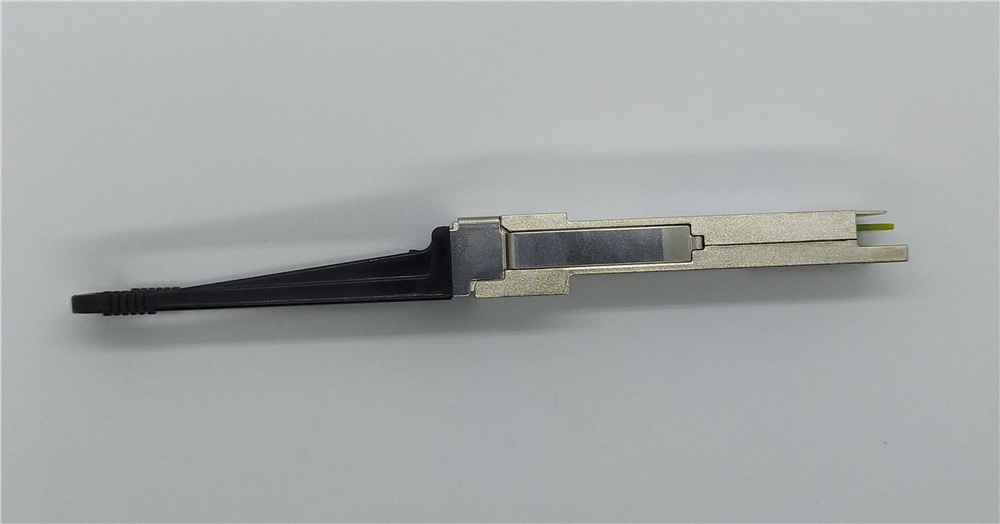

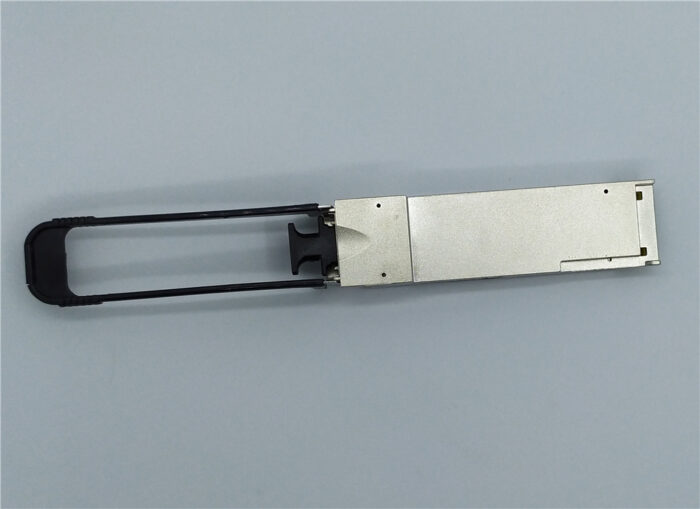

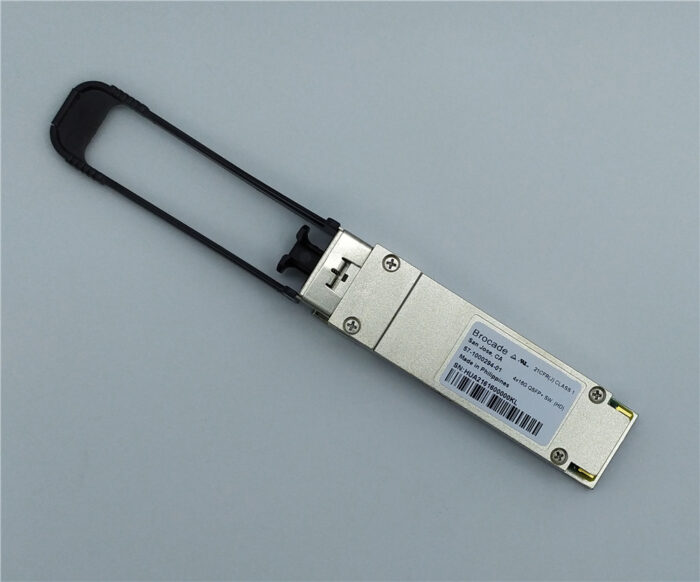

Overview: Brocade 57-1000294-01 and 57-1000294-02
The Brocade 57-1000294-01 and 57-1000294-02 are advanced optical transceivers designed for high-speed, high-performance data transmission in Brocade networking environments. These modules are optimized for storage area networks (SANs), data centers, and enterprise applications, ensuring reliable and efficient connectivity.
57-1000294-01 Key Features:
- High-Speed Data Rates: Supports 32Gbps Fibre Channel (FC), making it suitable for demanding data-intensive environments.
- Compact Design: Standard SFP28 form factor enables high port density and scalability.
- Optimized for Brocade: Ensures seamless integration and compatibility with Brocade switches and routers.
- Enhanced Transmission Distances: Available in options for short-range and long-range communication, catering to diverse networking needs.
- Energy Efficient: Low power consumption for cost-effective operation in dense deployments.
- Plug-and-Play: Simplifies deployment with easy installation and minimal configuration.
Specifications:
| Attribute | 57-1000294-01 | 57-1000294-02 |
|---|---|---|
| Form Factor | SFP28 | SFP28 |
| Data Rate | 32Gbps (Fibre Channel) | 32Gbps (Fibre Channel) |
| Wavelength | 850nm | 1310nm |
| Transmission Distance | Up to 100m on OM3 fiber | Up to 10km on single-mode fiber |
| Connector Type | LC Duplex | LC Duplex |
| Power Consumption | <1.5W | <1.5W |
| Compliance | FC-PI-6, SFP28 MSA | FC-PI-6, SFP28 MSA |
| Operating Temperature | 0°C to 70°C | 0°C to 70°C |
Applications:
- Storage Area Networks (SANs): Ideal for high-speed Fibre Channel SAN deployments.
- Data Centers: Supports fast, reliable connections between servers, storage, and networking devices.
- Enterprise Networks: Enhances backbone and access layers with high-speed, low-latency links.
- Disaster Recovery: Ensures high-performance data replication over short and long distances.
Benefits:
- Flexible Deployment: Offers both short-range (57-1000294-01) and long-range (57-1000294-02) connectivity options.
- High Performance: Delivers reliable 32Gbps throughput for demanding applications.
- Energy Efficiency: Reduces power consumption while maintaining robust performance.
- Ease of Integration: Compatible with Brocade networking equipment and industry-standard systems.
Conclusion:
The Brocade 57-1000294-01 and 57-1000294-02 transceivers provide high-speed, reliable connectivity for next-generation networks. With options for both short-range and long-range transmission, they deliver exceptional performance and energy efficiency, making them an excellent choice for modern data centers, enterprises, and SAN environments.
