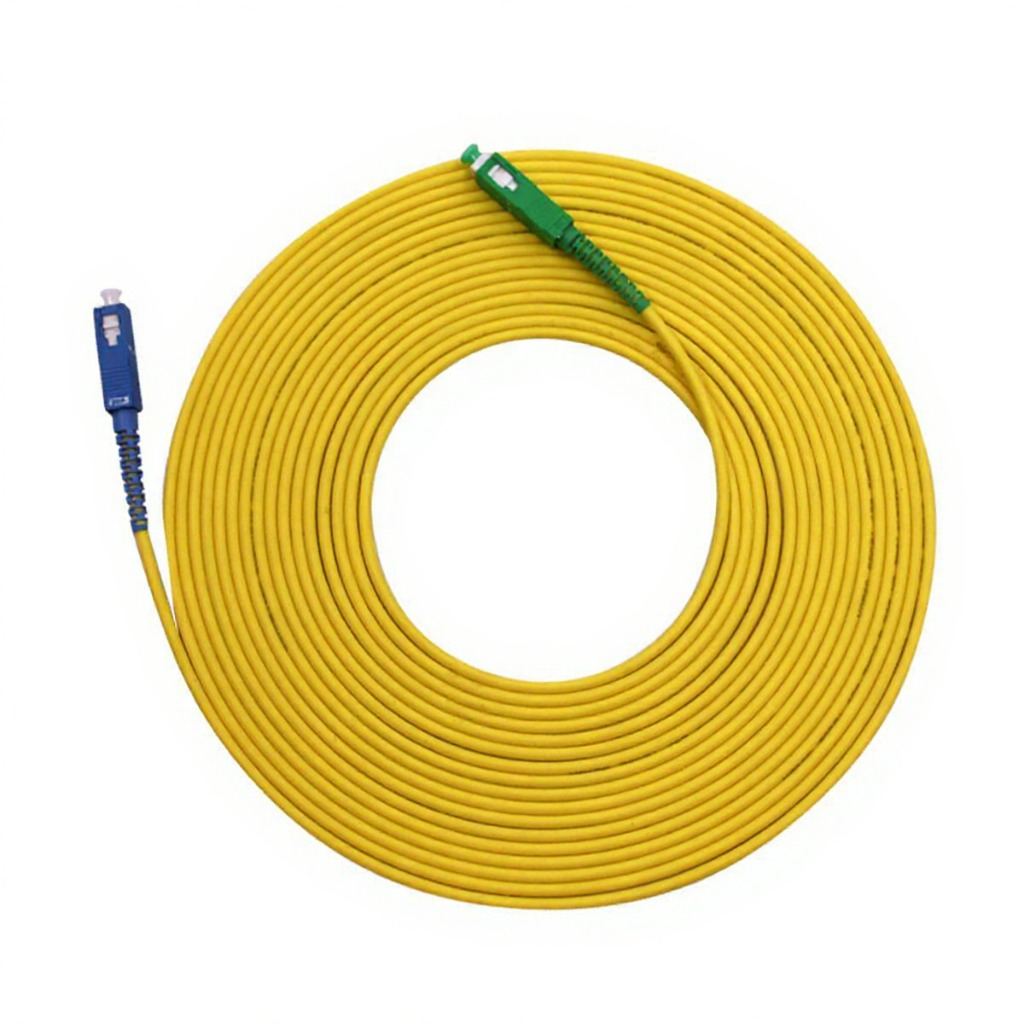

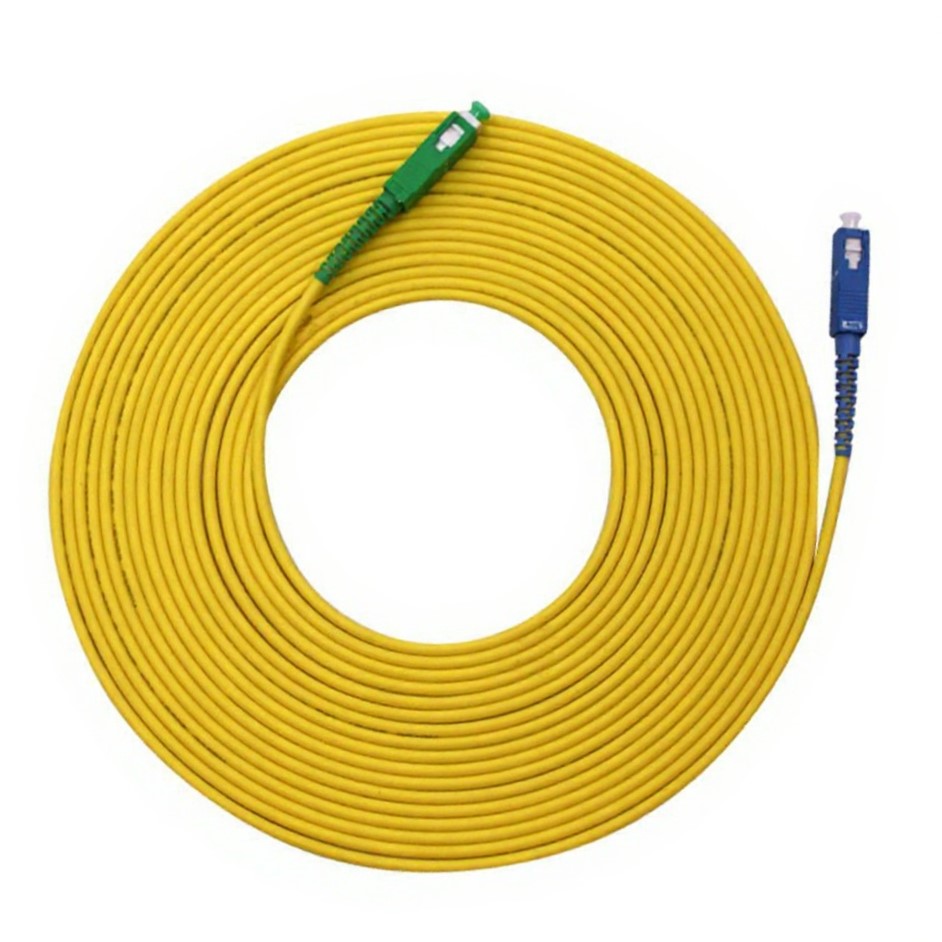

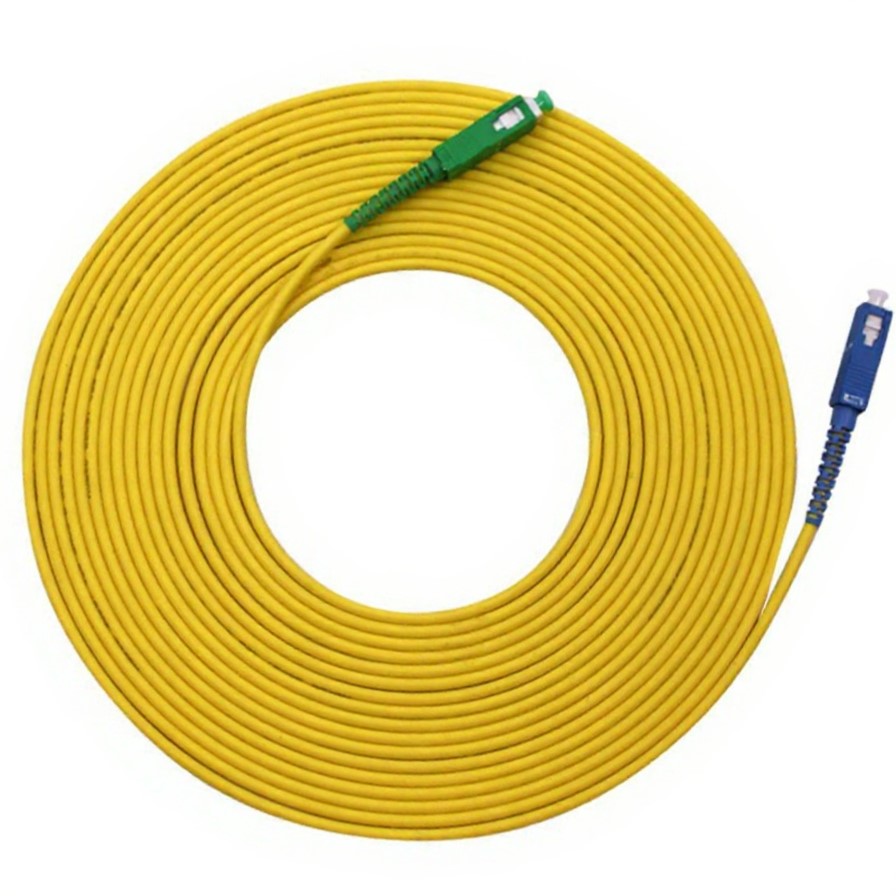

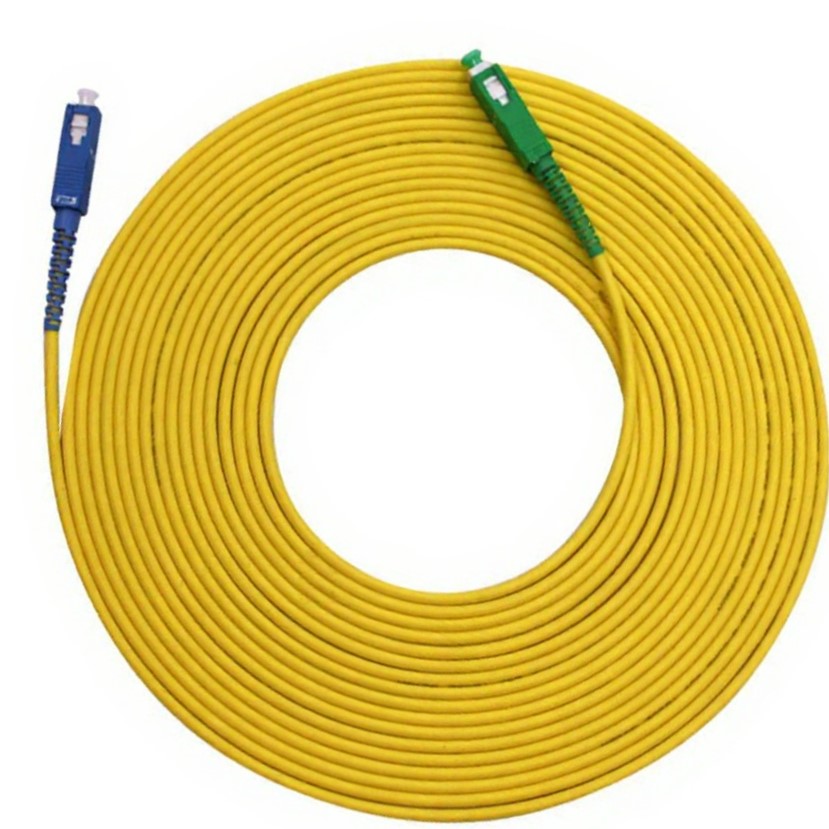

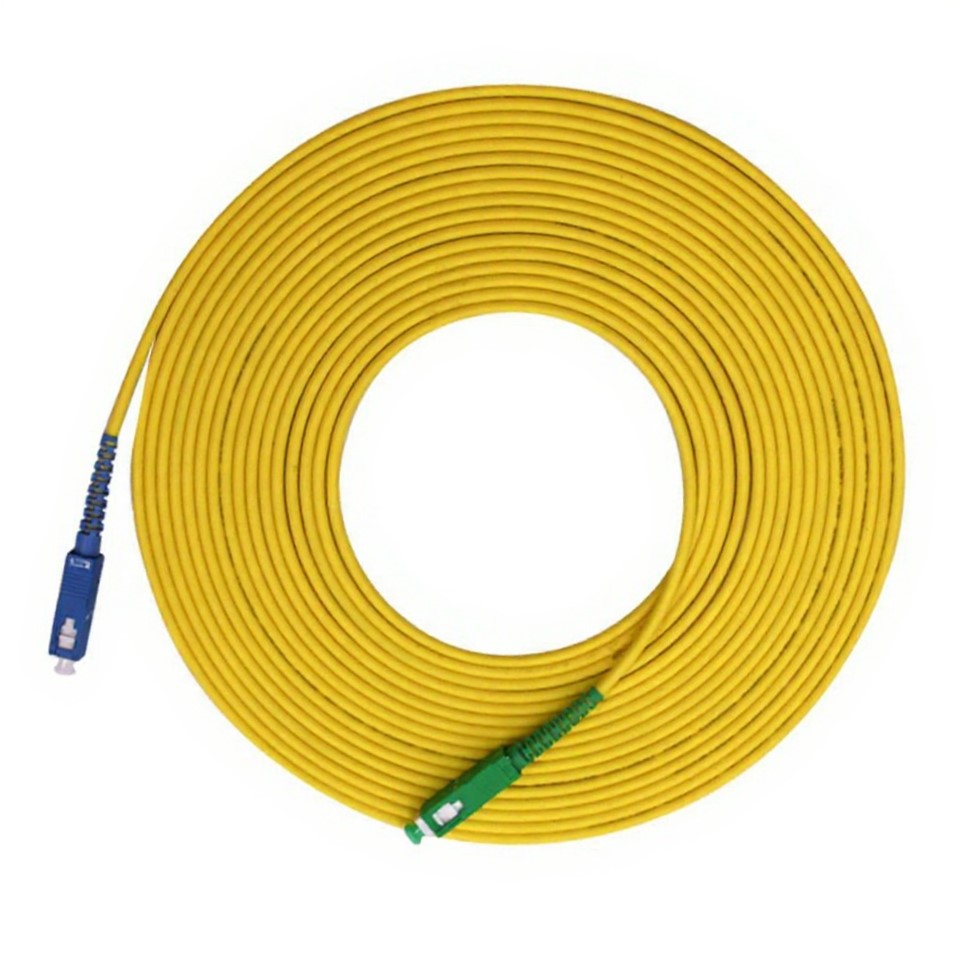

5M 2mm SC/UPC to SC/APC Brand New Single Mode Fiber Patch Cord
The 5M 2mm SC/UPC is a brand new, precision-engineered fiber optic cable designed for reliable, low-loss signal transmission in modern optical networks. Featuring high-quality SC/UPC and SC/APC connectors, this patch cord combines the advantages of ultra-low insertion loss and excellent return loss, providing stable and secure connectivity for critical applications.
With a 5-meter length and 2mm simplex cable construction, this patch cord is ideal for connecting active network devices, patch panels, and optical distribution frames (ODFs) in data centers, FTTx, telecom rooms, and enterprise networks. The tight-buffered fiber and robust outer jacket deliver excellent durability, flexibility, and protection against bending and physical stress.
Key Features
-
Length: 5 meters
-
Connector Type: SC/UPC to SC/APC
-
Fiber Mode: Single Mode (OS2)
-
Cable Diameter: 2mm simplex
-
Polish Type: UPC to APC for low insertion and high return loss
-
Insertion Loss: Typically ≤0.3dB
-
Return Loss: ≥50dB (UPC) / ≥60dB (APC)
-
Jacket Material: LSZH, PVC, or OFNR (optional)
-
Durability: 100% factory tested for insertion and return loss
-
Compliance: Meets or exceeds IEC, TIA/EIA, and RoHS standards
Tech Specs
| Connector | Return Loss (dB) | Insertion Loss | Repeatability | Reliability | Operating Temperature (°C) |
|---|---|---|---|---|---|
| PC (SM) | ≥ 50 | ≤ 0.3 dB | ≤ 0.1 dB | > 1000 Plugs | –40 ~ +80 |
| UPC (SM) | ≥ 55 | ≤ 0.3 dB | ≤ 0.1 dB | > 1000 Plugs | –40 ~ +80 |
| APC (SM) | ≥ 60 | ≤ 0.3 dB | ≤ 0.1 dB | > 1000 Plugs | –40 ~ +80 |
5M 2mm SC/UPC Applications
The 5M SC/UPC to SC/APC Single Mode Fiber Patch Cord is ideal for:
• FTTx deployments including FTTH, FTTB, and FTTC connections
• Data center interconnects between switches, transceivers, and ODFs
• Telecom backbone and last mile connections
• Enterprise campus and LAN networks
• CATV systems, test equipment, and lab environments
Customization Options
We offer flexible customization and OEM services for your specific requirements:
• Available lengths from 0.5M up to 200M+
• Custom connector types (SC, LC, FC, ST, E2000, MU, etc.)
• Polish types: UPC or APC to match your network design
• Optional armored jackets, LSZH/PVC for different environments
• Color-coded jackets and custom labeling for easy management
• Private labeling and branding for OEM/wholesale resellers
5M 2mm SC/UPC Wholesale & Bulk Orders
Source your 5M SC/UPC to SC/APC Fiber Patch Cord directly from us for wholesale supply and bulk procurement:
• Factory-direct pricing with competitive volume discounts
• Stable stock availability for large rollouts and tight deadlines
• Secure export-compliant packaging to prevent transit damage
• Global shipping with reliable logistics partners
• Dedicated account managers for large-scale orders
• Full technical support and warranty for worry-free deployment
5M 2mm SC/UPC Why Choose Us
100% Brand New, Fully Tested Fiber Patch Cords
Flexible Customization for lengths, connectors, and jacket materials
Competitive Wholesale Pricing for ISPs, integrators, and contractors
Fast, Safe Global Delivery with professional packaging
Expert Technical Support from planning through after-sales service
Contact Us for a Quote
Improve your fiber optic network’s performance with the 5M 2mm SC/UPC to SC/APC Brand New Single Mode Fiber Patch Cord — a dependable, high-quality solution for stable, low-loss optical connectivity.
