- Model Number:HD4102F
- Type:OTDR
- Place of Origin:Zhejiang, China
- Use:engineering
- Warranty Time:1 year
- Network:None
- Product name:HD4102F Handheld OTDR
- model:HD4102F
- screen:7-inch anti-reflection LCD
- Connector:FC/UPC
- Weight:150g
- Dimension:235*95*30mm
- language:multi-language
- Internal memory:4GB (about 40,000 groups of curves)
- Certification:CCC
- Dynamic Range:Optional
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Shanghai/Ningbo
- Lead time:Quantity(pieces)1 – 2>2Lead time (days)7To be negotiated
Product Description
HD4102F series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; HD4102Fis specially designed for that kind of application. It’s economical, having outstanding performance. HD4102F is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes HD4102F more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, OTDR4102F can be your best assistant.
Application
1.FTTXtest with PON networks
2.CATV network testing
3.Access network testing
4. LAN network testing
5.Metro network testing
Product Paramenters
|
Model
|
HD4102F
|
|
|
Dimension
|
253x168x73.6mm，15kg(batteryincluded)
|
|
|
Display
|
7 inch TFT-LD with LED backlight(touch screen function is optional)
|
|
|
Interface
|
1xRJ45port3xUSB port(USB2.0TypeAUSB2TypeBUSB*1)
|
|
|
Power Supply
|
10V(dc)100V(ac)to240V(ac)，50~60Hz
|
|
|
Battery
|
7.4V(dc)/4.4Ah lithium battery(with air traffic certification)；Operating time:12hours①TelcordiaGR-196-CORE；
Chargingtime:<4hours(power off) |
|
|
Power Saving
|
Backlight off:Disable/1to99 minutes Auto shutdown:Disable/1to99minutes
|
|
|
Data Storage
|
Internal memory: 4GB (about 40,000 groups of curves)
|
|
|
Language
|
User selectable(EnglishSimplified Chinesetraditional ChineseFrenchKorean,Russian,Spanish and Portuguese-contact us for
availability of others) |
|
|
Environmental Conditions
|
Operating temperature and humidity:-10℃~+50℃，≤95%(non-condensation)；Storage temperature and
humidity:-20℃~+75℃，≤95%(non-condensation)； Proof:IP65(IEC60529) |
|
|
Accessories
|

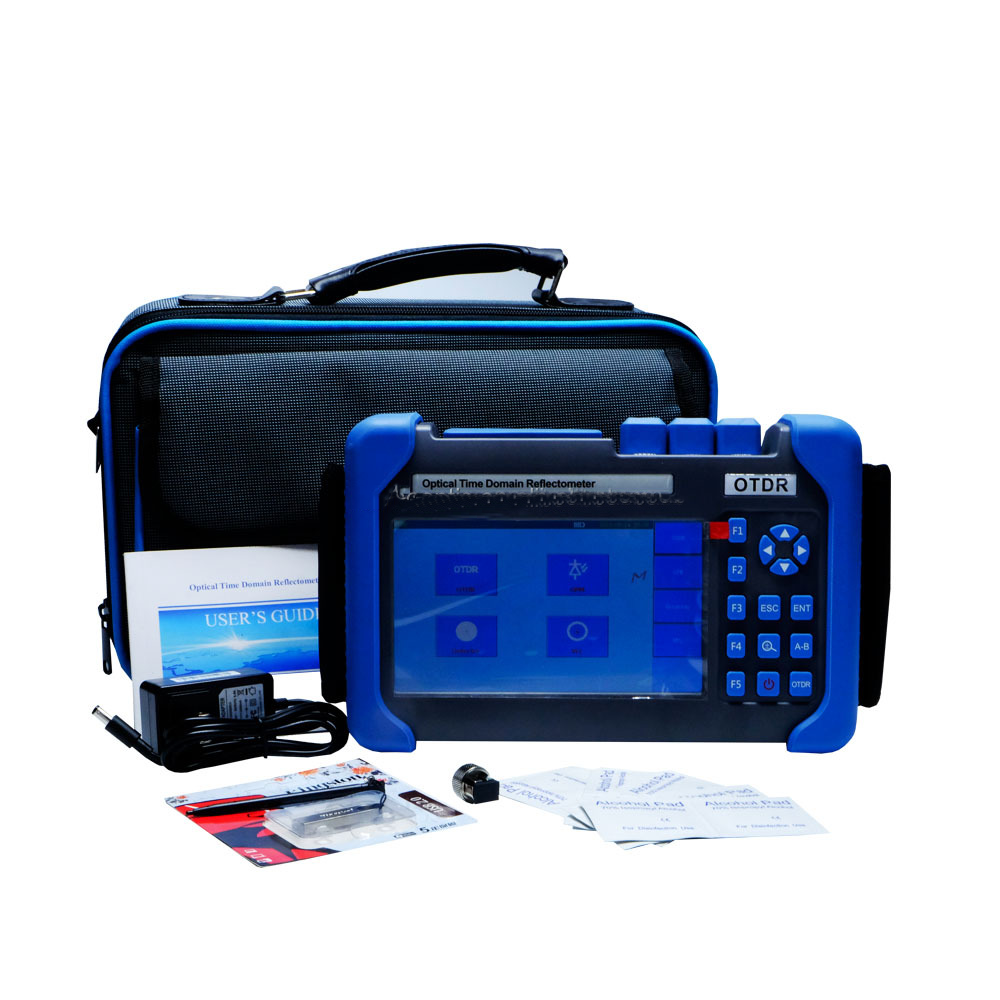

Standard:Main unit，power adapter，Lithium battery，FC adapter，USB cord，User guide，CD disk，carrying case；Optional:SC/ST/LC
adapter，Bare fiber adapter |

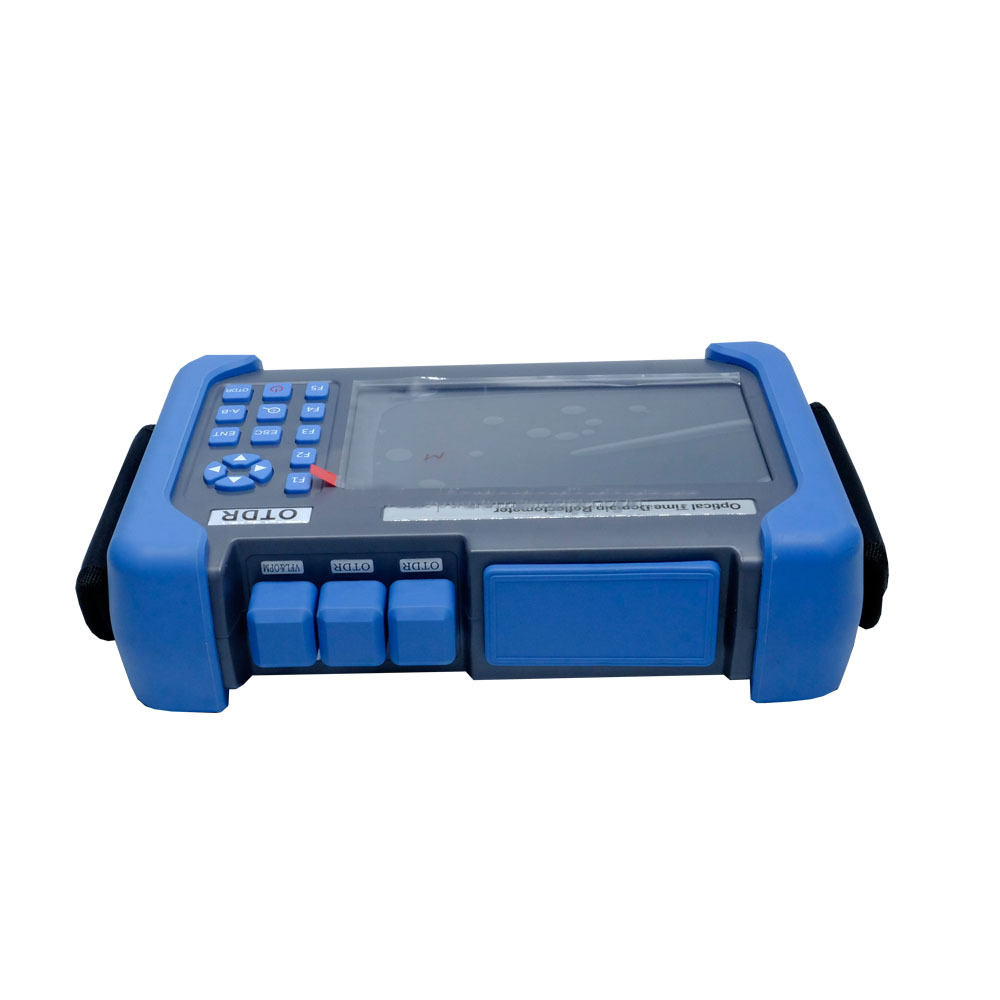

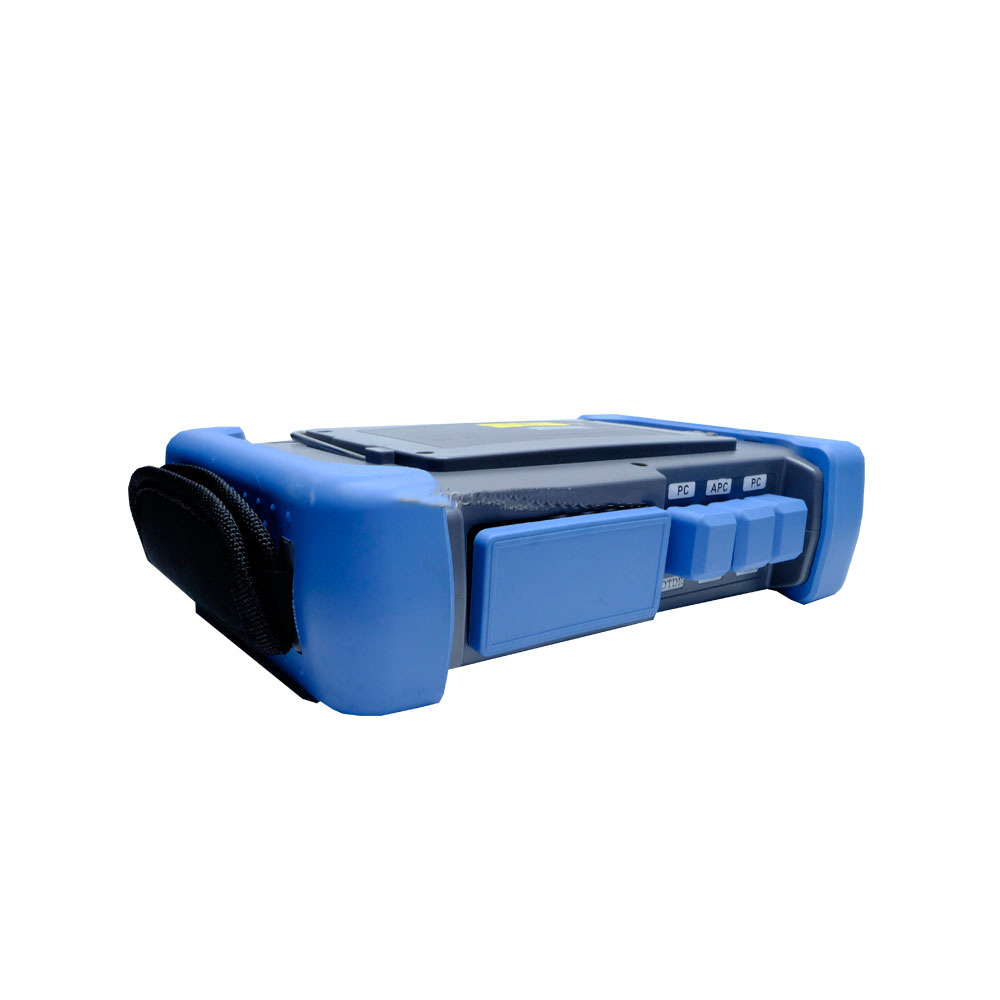

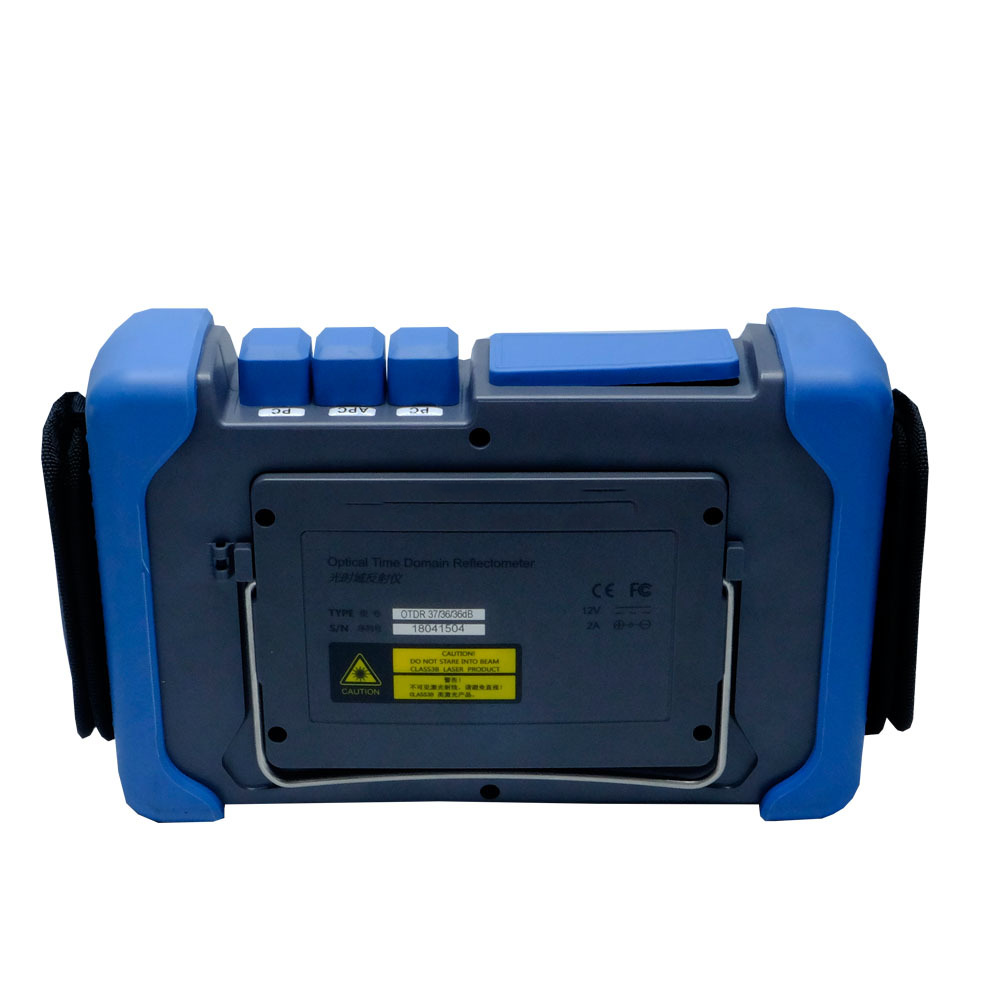

Details Images
Feature
Integrated design, smart and rugged；
IP65 protection level, outdoor enhanced；
7-inch anti-reflection LCD screen；
PON online test module (1625nm) is optional；
Support multi-language display and input
IP65 protection level, outdoor enhanced；
7-inch anti-reflection LCD screen；
PON online test module (1625nm) is optional；
Support multi-language display and input
