- Products Status:Stock
- Ports:10
- Transmission Rate:10/100Mbps
- Function:POE, QoS, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.8G

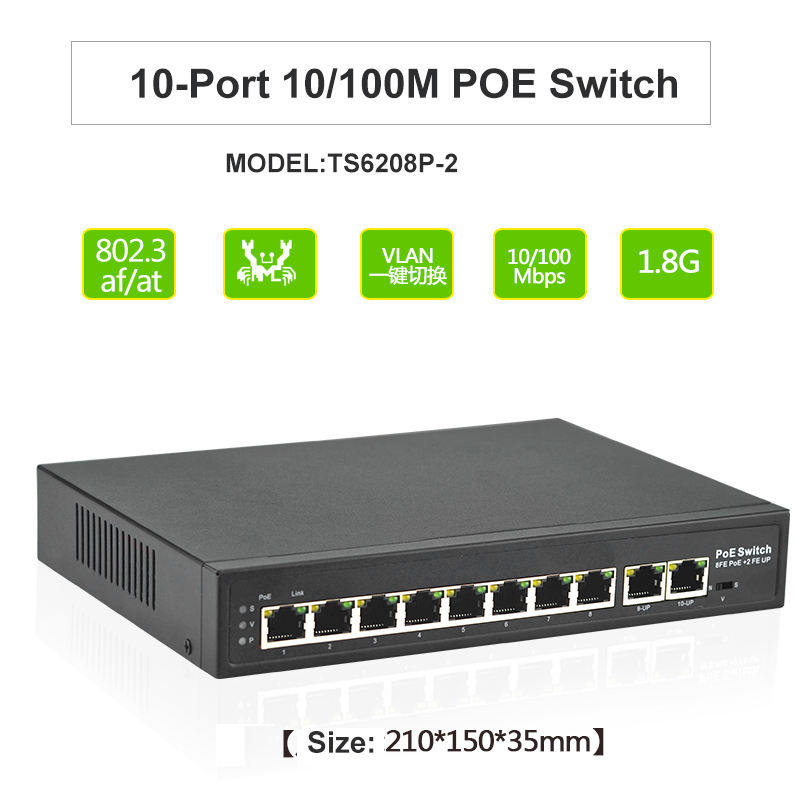

- Model Number:TS6208P-2
- Place of Origin:Guangdong, China
- PoE Standard:IEEE802.3af /IEEE802.3at
- PoE power:52VDC 2.5A
- Product Name:8 Port PoE Switch
- PoE Ports:1-8 Port Support PoE
- Uplink Ports:2*10/100Mbps Uplink Ports
- Applications:Support PoE IP Cameras
- Warranty:1 Year
- Manufacturer:Gxcom Technology
- Keywords:8 10 port PoE switch
- Certification:CE FCC
- Selling Units:Single item
- Single package size: 27X18X3 cm
- Single gross weight:1.500 kg
- Package Type:carton
- Picture Example:
- Lead time:Quantity(pieces)1 – 23 – 100101 – 500>500Lead time (days)51520To be negotiated

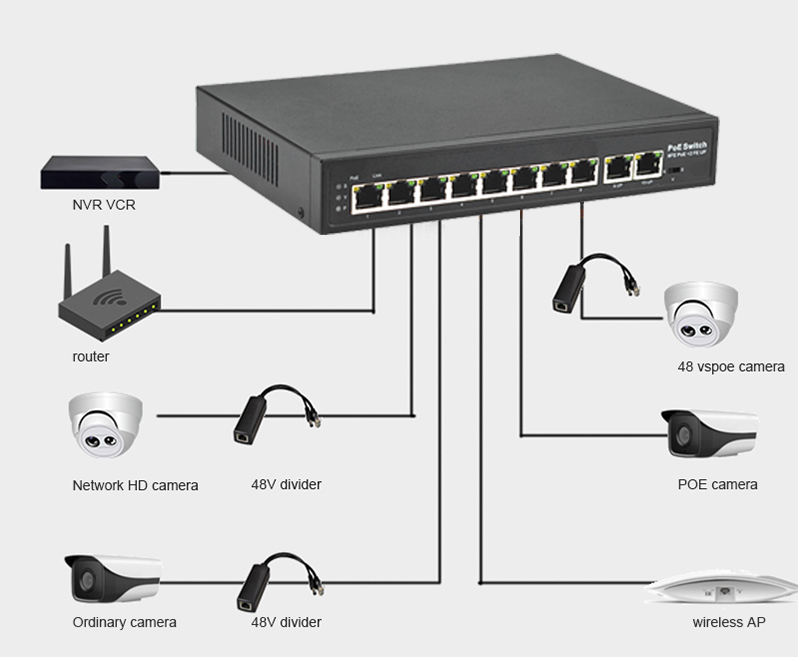

Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
* IP Camera
* IP Phone
* Computer Networks
|
Technical items
|
Description
|
|
Ports
|
10*10/100Mbps RJ45
|
|
PoE standard
|
IEEE 802.3af/IEEE 802.3at
|
|
Power pin
|
Both 1/2+,3/6- and 4/5+,7/8-
|
|
Power supply
|
≤120W (52V 2.3A)
|
|
Transmission rate
|
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network media
|
10/100BASE-TX:5 class and above non shielded twisted pair
|
|
Performance
|
Bandwidth: 1.6Gbps
MAC: 1K Delay: <3ms |
|
Transmission method
|
Store and forward
|
|
Environmental
|
Working Temperature: -10℃～55℃
Storage temperature: -40℃～70℃ Working Humidity ：10%～90% RH non-condensing Storage Humidity：5%～90% RH non-condensing |
|
Certificate
|
CE,FCC
|
|
Warranty
|
1 year
|
|
Dimension
|
270*180*44mm
|
|
Gross Weight
|
1.5kg
|
Detailed Images
