- Private Mold:NO
- Products Status:Stock
- Ports:8
- Transmission Rate:10/100/1000Mbps
- Function:POE
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:5.6G
- Brand Name:HTF
- Model Number:HT-POE8610G
- Place of Origin:Guangdong, China
- Interface:1~8 port 10/100/1000Mbps PoE ports
- 1000M:2 UPLINK port
- PoE Standard:IEEE 802.3af
- PoE Port Power:15.4W for each POE port
- Transfer Method:Store and Forward
- Metal Case:Desktop/Wall-mounted
- Manufacturer:Shenzhen
- Brand:Accept OEM
- Warranty:12 months
- Selling Units:Single item
- Selling Units:Single item
- Single package size: 23.8X11.3X7 cm
- Single gross weight:1.200 kg
- Package Type:Neutral gift box
- Lead time:Quantity(pieces)1 – 23 – 500501 – 1000>1000Lead time (days)71520To be negotiated
Feature
IEEE 802.3af power on up to 8 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
8*10/100/1000m +2*10/100/1000Mbps Ports with Auto Uplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 150W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch with auto-learning and auto-aging
LED indicators for monitoring power, link
Support Vlan and Extend Function
Internal power adapter supply
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
8*10/100/1000m +2*10/100/1000Mbps Ports with Auto Uplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 150W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
1K entry MAC address table of the PoE Switch with auto-learning and auto-aging
LED indicators for monitoring power, link
Support Vlan and Extend Function
Internal power adapter supply
Product Description
|
Technical parameter list
|
|
|
Product Name
|
10-Ports PoE Switch with 8 PoE Ports and 2 Uplink
|
|
Connector Type
|
8x 10/100/1000M+2*10/100/1000 copper cable RJ45 ports(8 PoE ports+2 Uplink)
|
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
|
|
Bandwidth
|
5.6Gbps (non-blocking)
|
|
Address Database Size
|
1K
|
|
MTBF
|
190,000 hours (about 21 years)
|
|
Forwarding Mode
|
Store-And-Forward
|
|
Network Protocols
|
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
|
LED Display
|
System: power supply; Every Port: connecting, PoE working status
|
|
Power Supply
|
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
|
|
PoE Ports
|
Port1-8 support POE
|
|
PoE Port Power
|
15.4W for each POE port
|
|
PoE Standard
|
IEEE 802.3af
|
|
Led indicator
|
Green: Ethernet
SW: On: VLAN, 100meters Flashing: VLAN, 250meters Off: VLAN Closed,100meters Flashing: VLAN Closed, 250meters |
|
Working Environment
|
Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;
Operating Humidity: 10% ~ 95%, non-condensing |
|
Certification
|
CE Mark ,commercial; CE/LVD EN60950, RoHS
|
|
Radiation
|
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
|
|
Transmission Distance
|
Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
|
|
Warranty
|
1 year warranty(1 yeas warranty for power adapter)
|

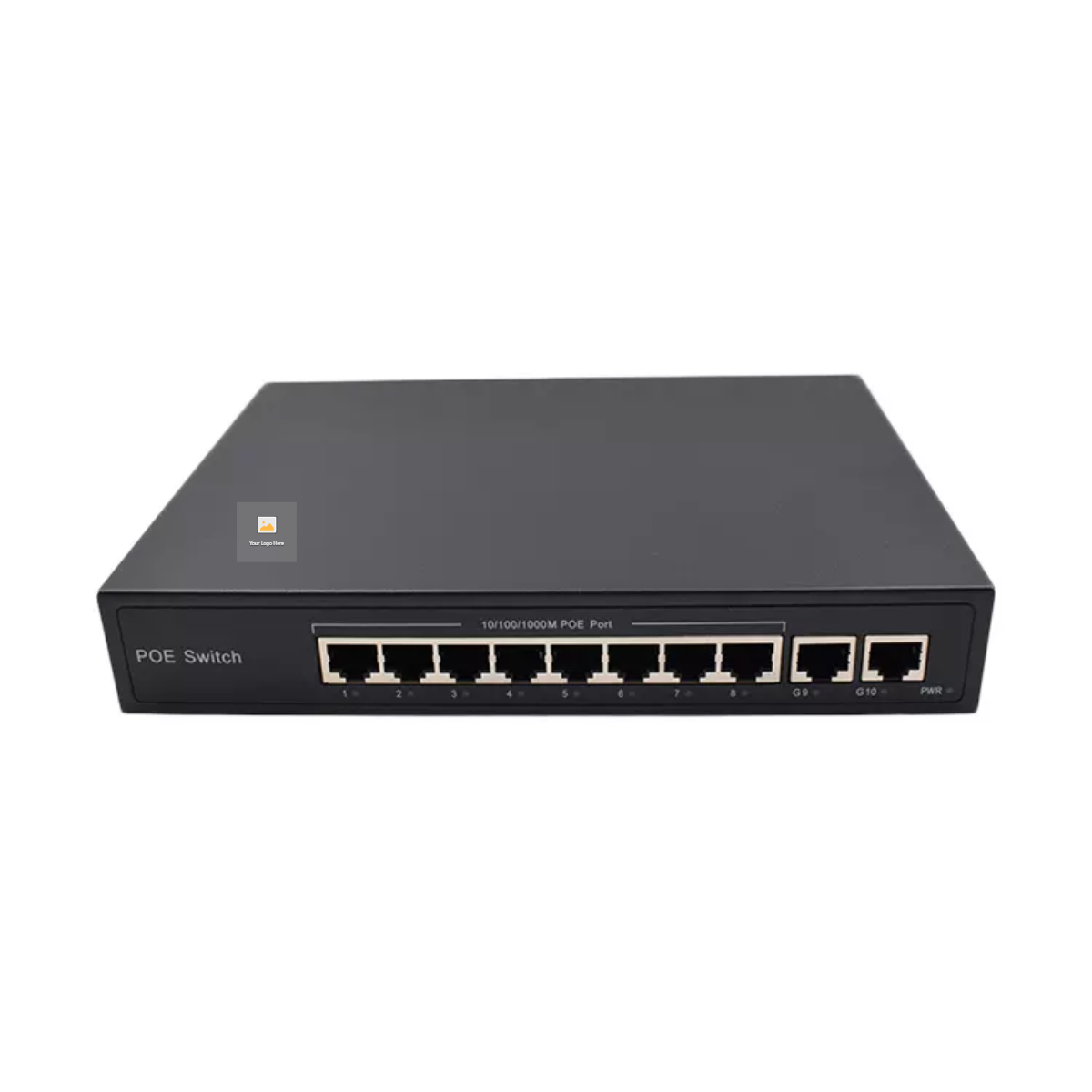

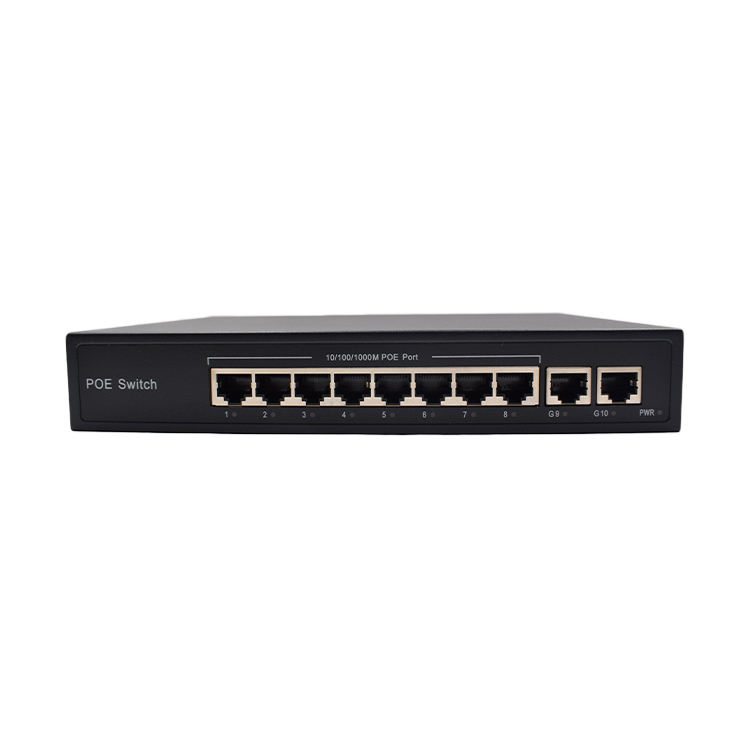

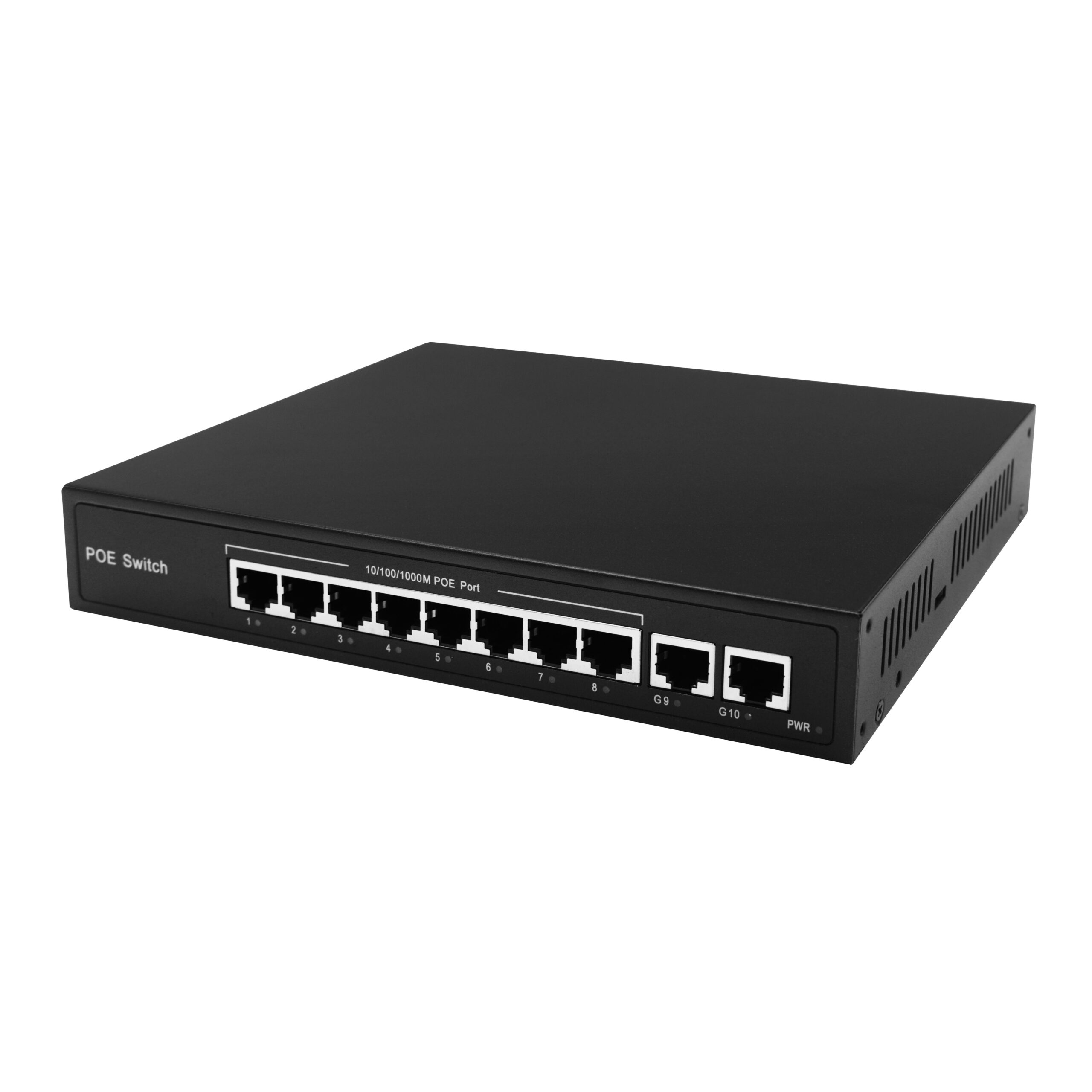

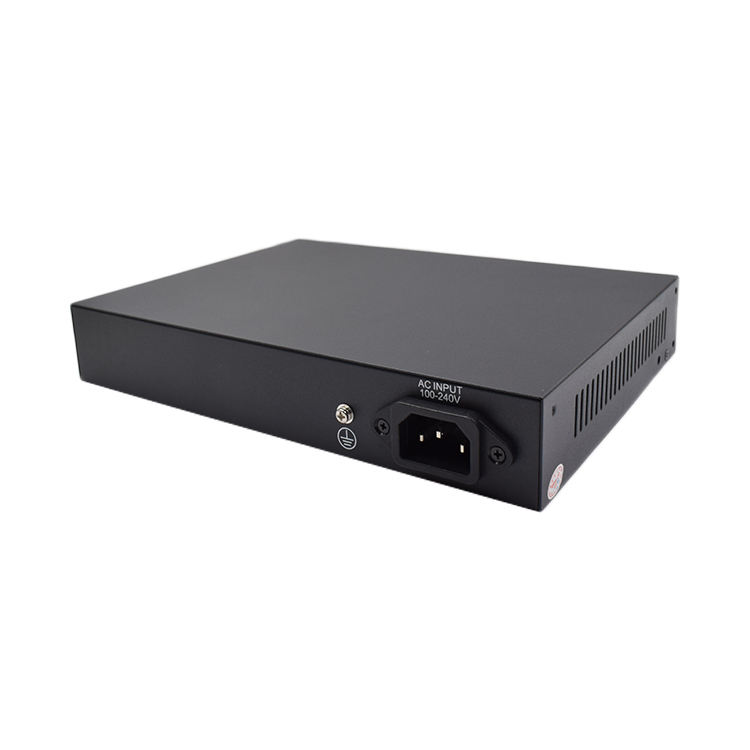

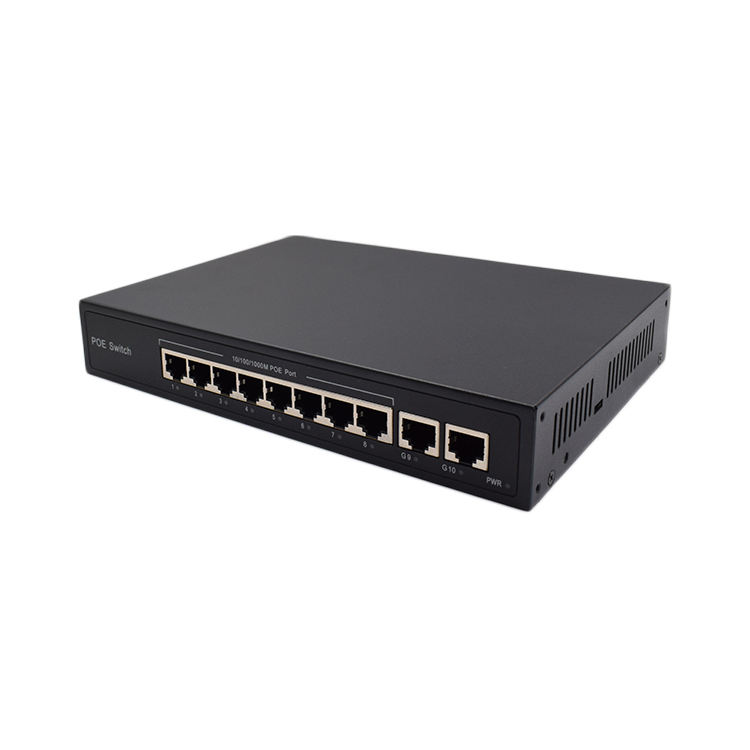

Product Photos

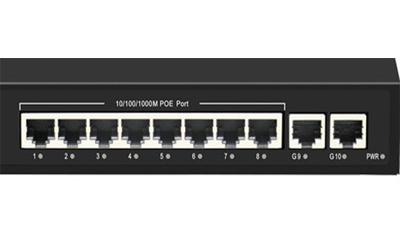

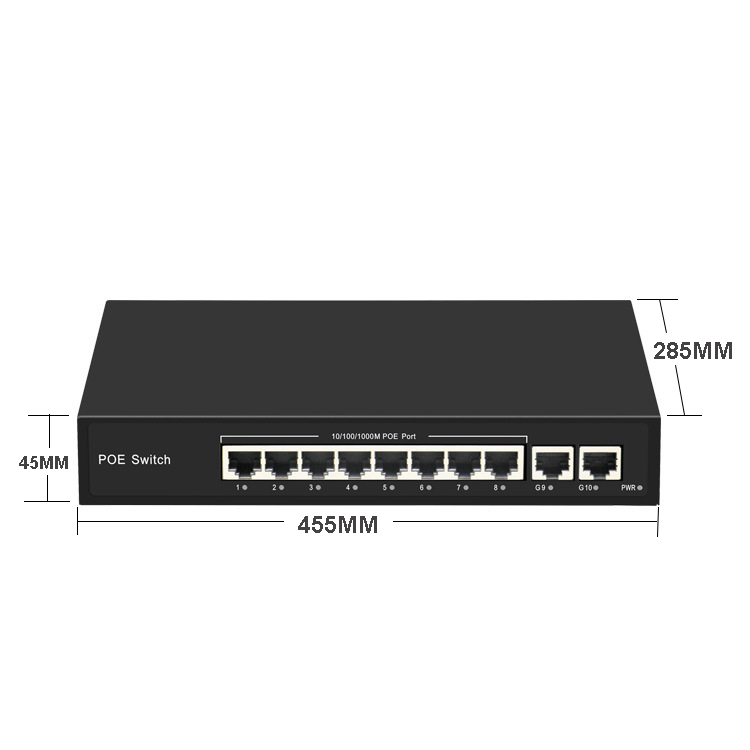

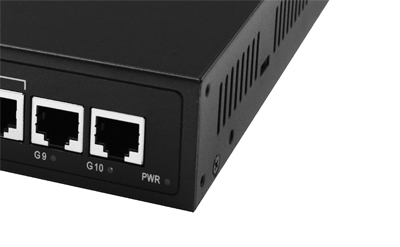

Details Images
