SKU 1600478017683 Categories ,
  • Private Mold:Yes
  • Products Status:Stock
  • Ports:10
  • Transmission Rate:10/100Mbps
  • Function:POE, QoS, VLAN Support
  • Communication Mode:Full-Duplex & Half-Duplex
  • Switch Capacity:16Gbps
  • Model Number:TS6208P-2G
  • Place of Origin:Guangdong, China
  • Product Name:8 Port PoE switch
  • PoE Standard:IEEE802.3af/at
  • PoE Port:8*10/100Mbps
  • Uplink Ports:2*1Gb RJ45
  • PoE Power:52V/3A
  • Power Consumption:Optional 120W/150W
  • Device Type:Switch – 8 Ports – Unmanaged

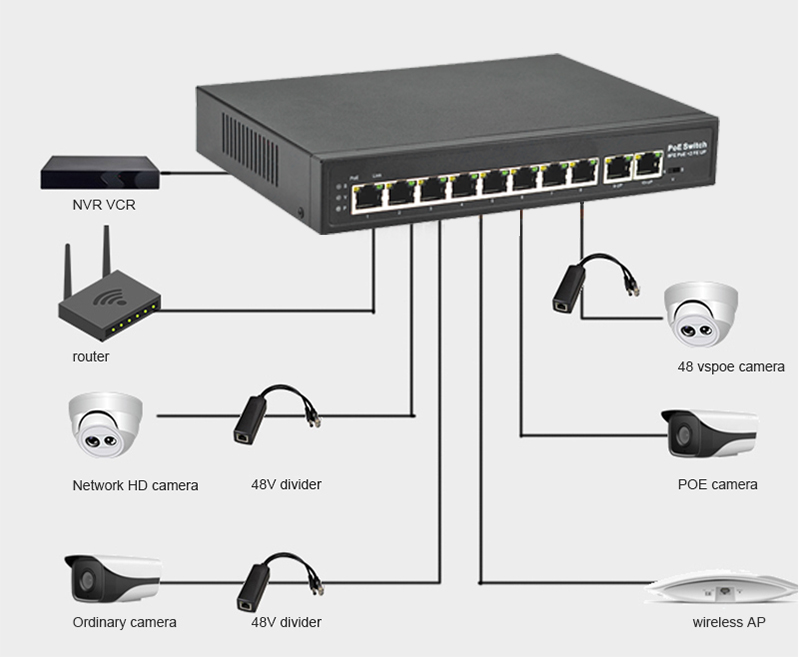

  • Applications:CCTV Security System
  • Certification:CE FCC
  • Warranty:1 year
  • Supply Ability
    5000 Unit/Units per Month
  • Packaging Details

    ESD bag+kraft paper box+outer carton

  • Port

    Guangzhou,Shenzhen

  • Picture Example:
  • Lead time:Quantity(pieces)1 – 1011 – 200201 – 500>500Lead time (days)51520To be negotiated
Product Description



8 x 10/100Mbps port 48V active PoE with 2 x gigabit uplink 120W unmanaged Ethernet PoE+switch for CCTV



Overview

TS6208P-2G is one 8 ports 10/100Mbps PoE switch. 1-8 ports support IEEE802.3af/at PoE standard. The max. power of each port is up to 30W. There are 2 gigabit copper RJ-45 uplink ports. The total power consumption is120w or 150W according to different application.


Main Features


* 8*10/100mbps POE port;2*100/1000mbps UP Link port* 250m Distance; Vlan Support* REALTEK Chipset* Support IEEE802.3AF/AT* Whole Power:120W(52V 2.3A)* All port supported by MDI/MDIX auto flip and self negotiation* Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.* Each port max. power supply reached 30W


Specifications

Technical items
Description
Model no.
TS6208P-2G
Chip Solution
Realtek

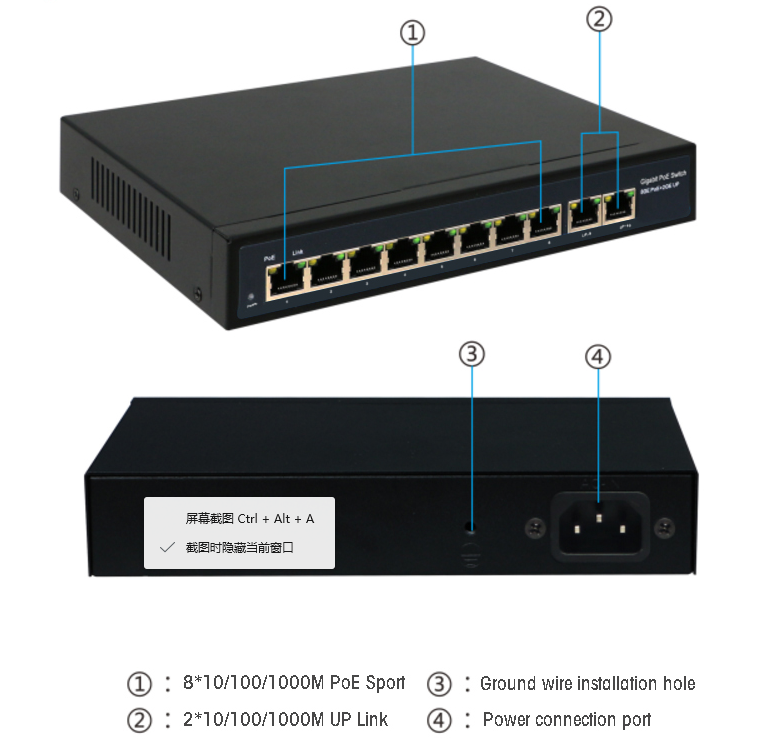

Interface
8*10/100Mbps LAN PoE

2*10/100/1000Mbps Copper RJ-45 uplink
PoE port
Port 1-8
PoE power
Max. 30W per port

120W in total
52V/2.3A
PoE standard
IEEE802.3af / IEEE802.3at
Transmission mode
Store and forward
Transmission distance
Max. 250 meters
Network medium
100/1000BASE-TX: 5 class and above non shielded
twisted pair
Hardware performance
Bandwidth – 16Gbps

MAC address table – 2K
Forwarding rate – 14800pps
LED indicator
LINK/ACT. 100Mbps;POE Status indicator; POWER
indicator;EXTENDER indicator
Working Tem.
0℃-40℃

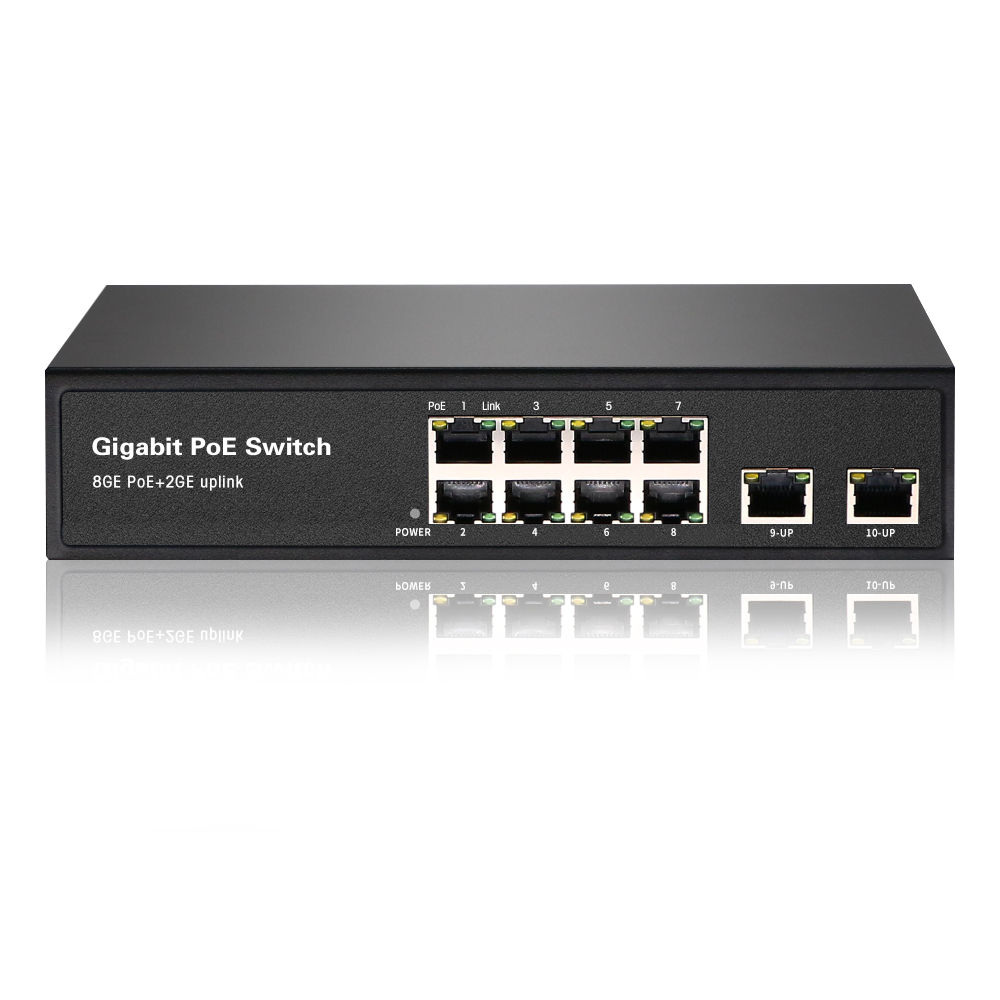

Product Images
