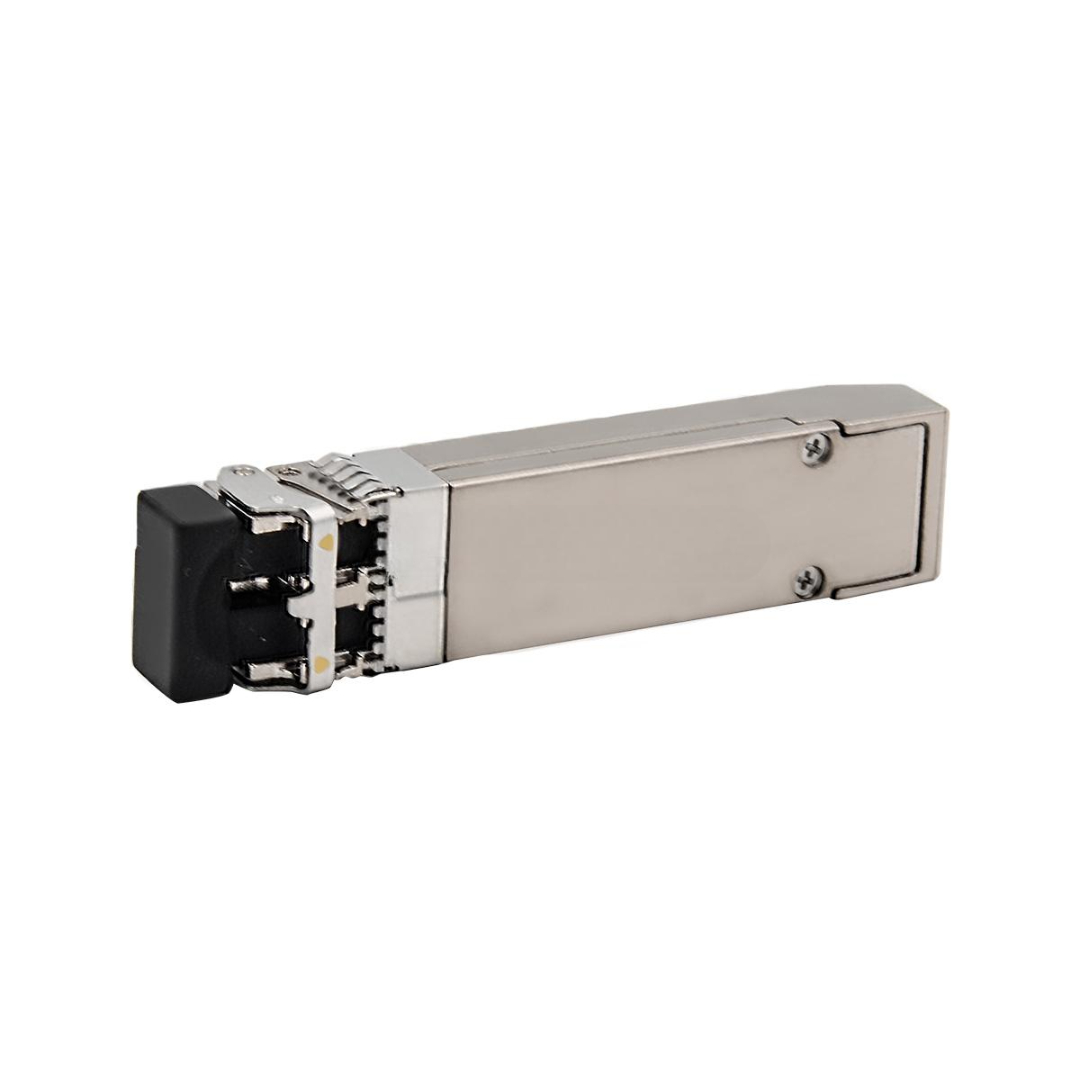

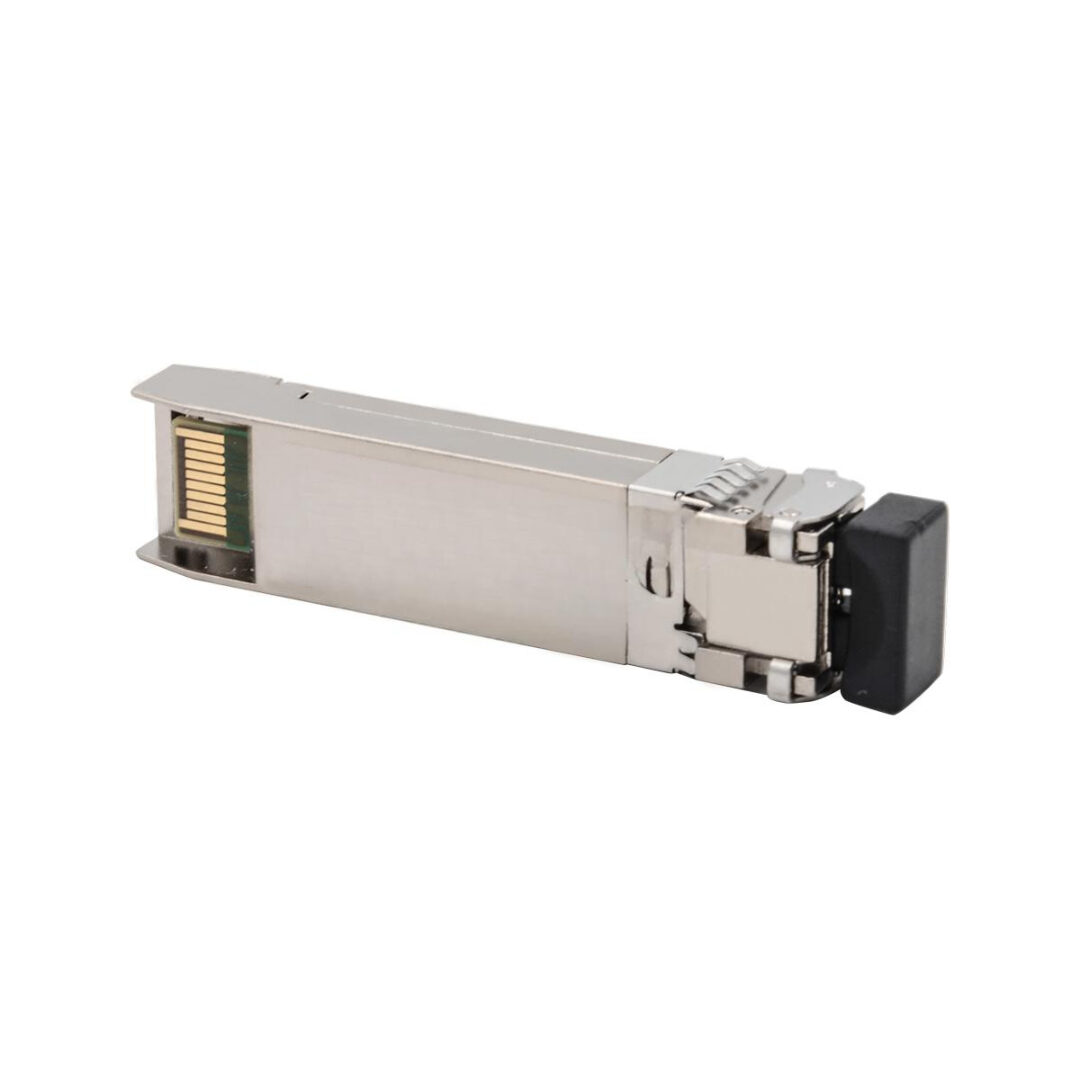

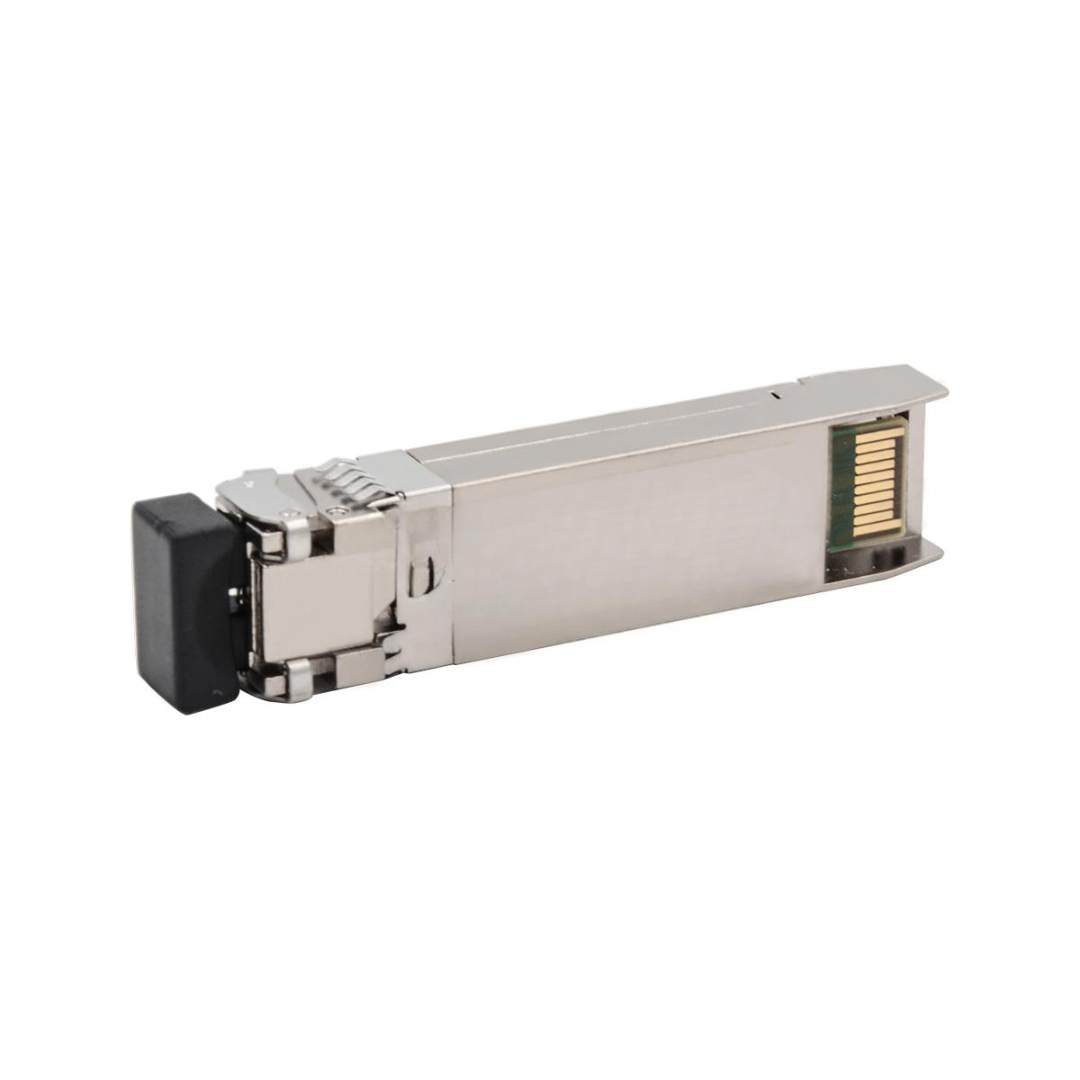

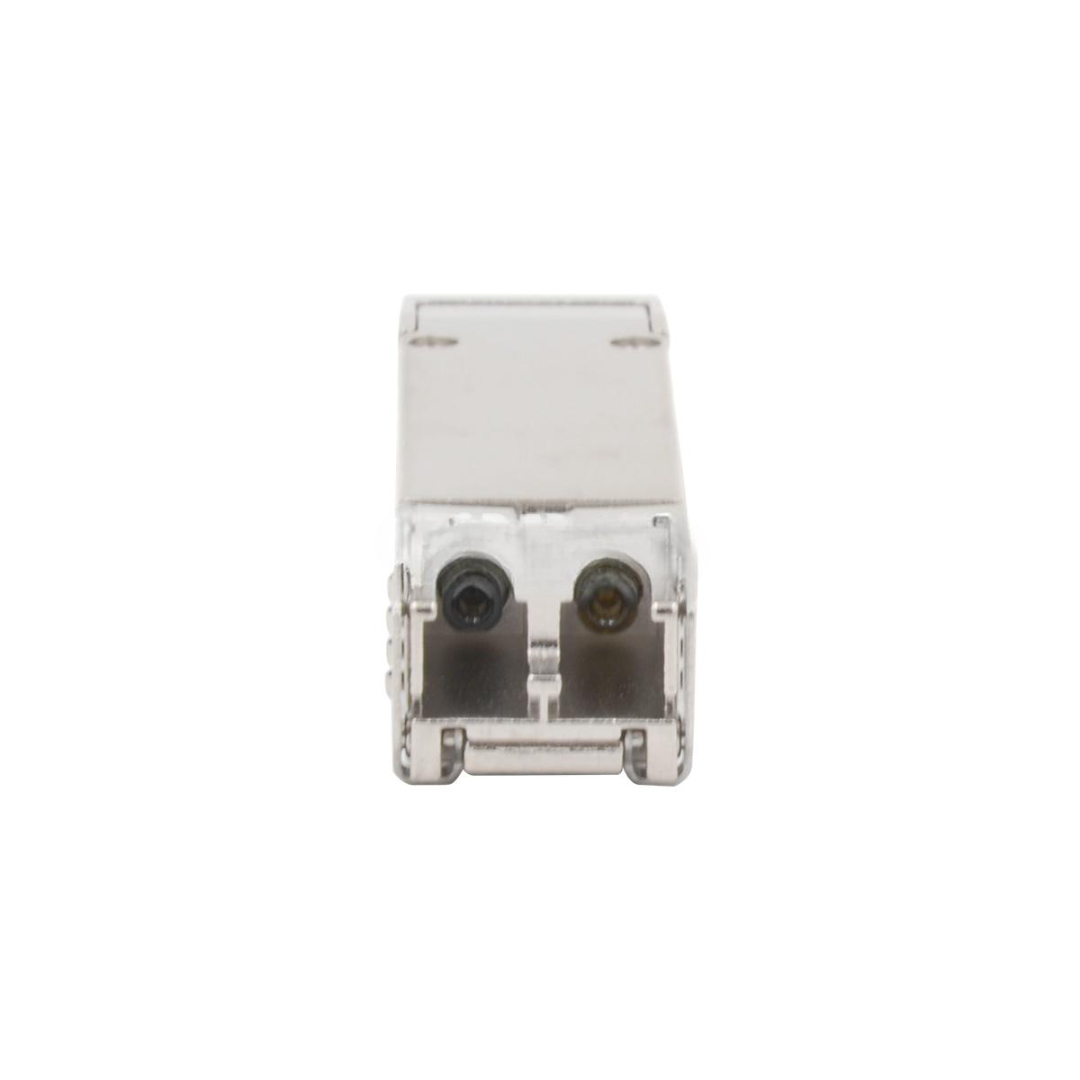

850nm 0.3km MM HXB Huawei 10G High Quality SFP+ Transceiver
The 850nm 0.3km MM HXB is a Huawei high-quality 10G SFP+ transceiver, engineered for short-range, high-speed data transmission over multimode fiber (MMF). With a wavelength of 850 nm and a maximum transmission distance of 300 meters, this module is optimized for data centers, enterprise core switches, and high-performance computing networks that require low latency and high throughput.
This hot-pluggable SFP+ transceiver supports 10G Ethernet and complies with SFF-8431 and IEEE 802.3ae standards. It integrates Digital Diagnostics Monitoring (DDM) features for real-time status reporting and ensures stable, energy-efficient operation.
Key Features
- Model: 850nm 0.3km MM HXB
- Condition: 100% Brand New, Original Huawei OEM
- Data Rate: 10 Gbps (10G Ethernet)
- Wavelength: 850 nm
- Transmission Distance: Up to 300 meters
- Fiber Type: Multimode Fiber (OM3/OM4 recommended)
- Connector Type: LC Duplex
- DDM (Digital Diagnostic Monitoring): Supported
- Form Factor: SFP+
- Hot-Pluggable: Yes
- Compliance: IEEE 802.3ae, SFF-8431, RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Model | 850nm 0.3km MM HXB |
| Form Factor | SFP+ |
| Data Rate | 10 Gbps |
| Wavelength | 850 nm |
| Transmission Distance | 300 meters (OM3), 400 meters (OM4) |
| Fiber Type | Multimode Fiber (MMF) |
| Connector Interface | LC Duplex |
| Laser Type | VCSEL |
| TX Power | -7.3 to -1 dBm |
| Receiver Sensitivity | < -11.1 dBm |
| DDM/DOM | Supported |
| Power Supply Voltage | 3.3V |
| Power Consumption | < 1W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Standard Compliance | IEEE 802.3ae, SFF-8431, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
850nm 0.3km MM HXB Applications
- Data Centers — High-throughput connections between servers, switches, and routers
- Enterprise LAN — Short-distance backbone connectivity within campus buildings
- SAN/NAS Systems — High-speed links for storage networking infrastructure
- High-Performance Computing — Low-latency optical interconnects for compute clusters
- Cloud Environments — Optimized for VM-to-VM traffic and hyperconverged architectures
Customization & OEM Options
- Private Labeling — Your company branding and serial number pre-applied
- Multi-Vendor EEPROM Encoding — Compatible with Cisco, HP, Dell, etc.
- Custom Testing Services — Factory validation of link performance and BER tests
- Packaging Customization — Available in bulk trays or retail-ready formats
- Industrial Temp Versions — Special request for extended temperature operation
- Localized Compliance — CE, FCC, or country-specific documentation available
Wholesale & Global Supply Information
- Original Huawei Transceiver — Direct OEM-quality from certified sources
- Bulk Order Fulfillment — Ample stock for data center and ISP deployment
- Global Export Support — Fully compliant with optical component shipping laws
- Fast Delivery Worldwide — Secured packaging and priority logistics
- Volume Discounts — Attractive pricing for large orders and distributors
- Technical Support Team — Assistance for compatibility, setup, and deployment
Why Choose the 850nm 0.3km MM HXB
High-Speed 10G Ethernet — Ultra-fast short-range transmission
Multimode Optimization — Perfect for OM3/OM4 fiber in local networks
Low Power Consumption — Ideal for dense switch and server environments
Huawei OEM Quality — Designed for mission-critical enterprise use
Plug-and-Play — Seamless integration into existing SFP+ ports
Contact Us for Pricing, Bulk Orders & Technical Datasheets
Enhance your network with the Huawei 850nm 0.3km MM HXB SFP+ Transceiver — trusted for performance, reliability, and global compatibility.
Request your quote today for wholesale pricing, OEM services, and fast delivery.
