- Measurement system:Metric
- Place of Origin:Zhejiang, China
- Model Number:PAM-08
- Material:Aluminum Alloy Body
- Standard or Nonstandard:Standard
- Loop length:260 mm
- Cable diameter with insulation:3-6 mm
- Maximum working load:3.0 kN
-
- Supply Ability
- 30000 Piece/Pieces per Week
-
- Packaging Details
Normal Package
-
- Port
Ningbo
- Lead time:Quantity(pieces)1 – 500>500Lead time (days)10To be negotiated
![](http://s.alicdn.com/@sc04/kf/H192b5a754e9746e0ad3abd9d5521d141b/241615430/H192b5a754e9746e0ad3abd9d5521d141b.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H1ee49217950f46d585812754b701bd2be/241615430/H1ee49217950f46d585812754b701bd2be.jpg?quality=close)
![](http://s.alicdn.com/@sc04/kf/H0e07090ac41543f9a5546ad11d97d4676/241615430/H0e07090ac41543f9a5546ad11d97d4676.jpg?quality=close)

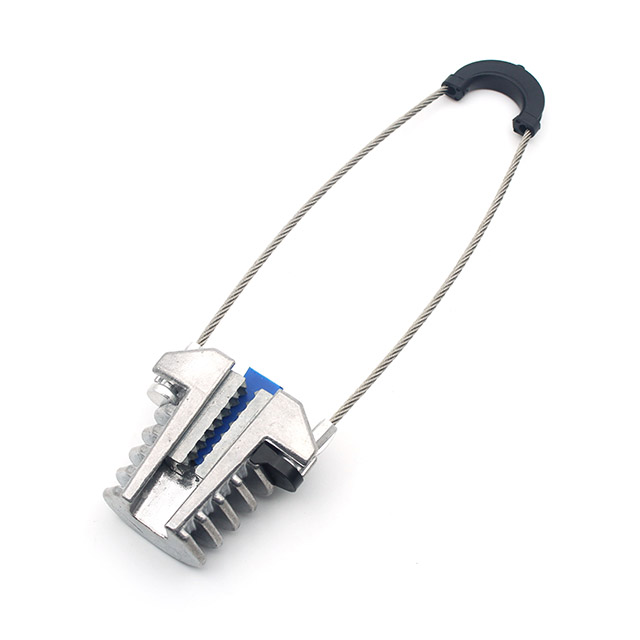

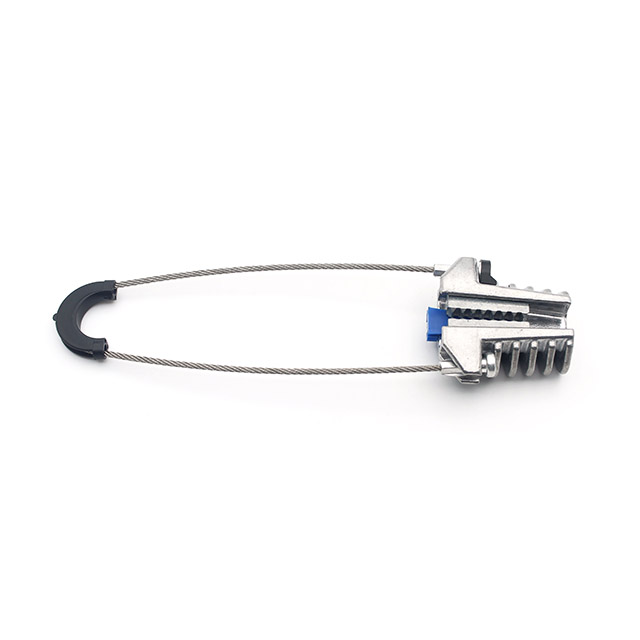

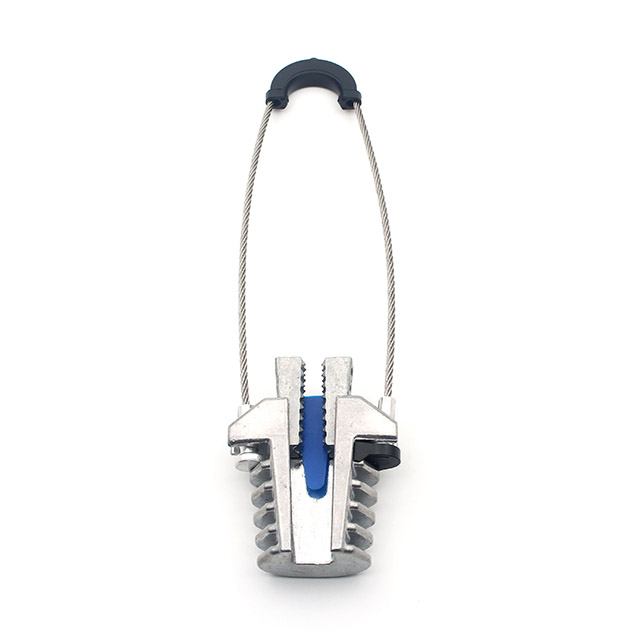

PAM-08 is a kind of optical fiber cabling fitting, and it is used to hold the Figure 8 cable with steel wire (φ5-6.8mm diameter). In ODN aerial cable installation, the product is widely used in overhead FTTH installation.
Material
|
Aluminium alloy
|
Cable Size
|
φ5~6.8mm
|
Tensile Load
|
6KN
|
Working Temp.
|
-40℃~+60℃
|
![](http://s.alicdn.com/@sc04/kf/H8a9e95e49922498eb7c0922a1d6afebeJ/241615430/H8a9e95e49922498eb7c0922a1d6afebeJ.png?quality=close)
![](http://s.alicdn.com/@sc04/kf/H5e40b24ded1945b9b6f5411194eba0a1P/241615430/H5e40b24ded1945b9b6f5411194eba0a1P.jpg?quality=close)
