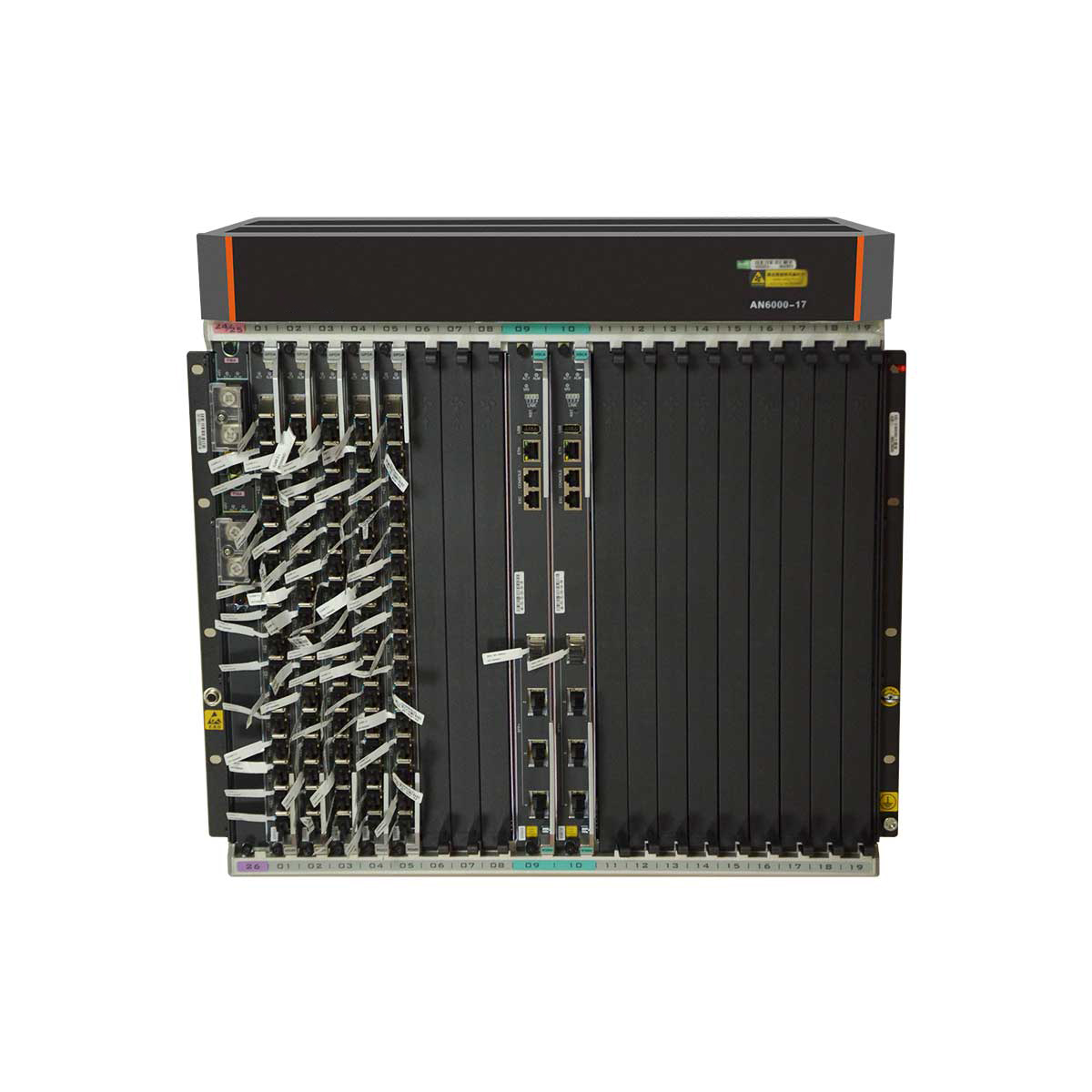

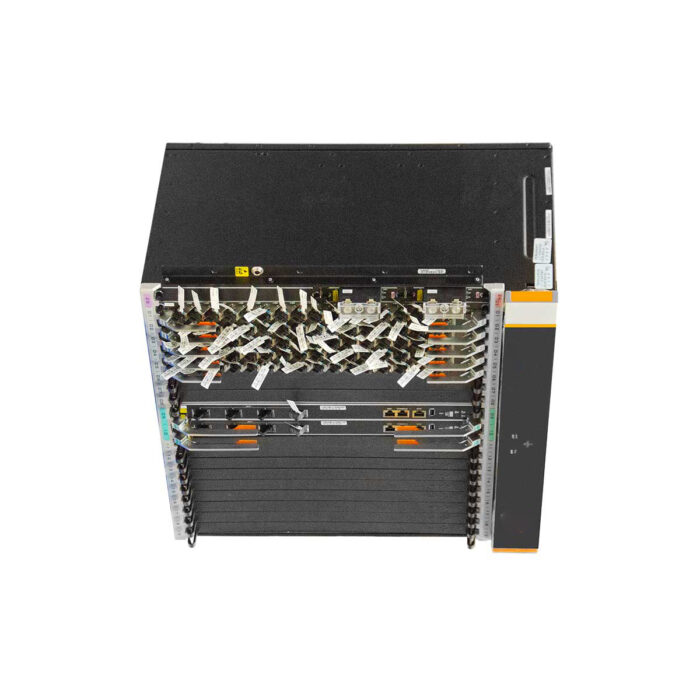

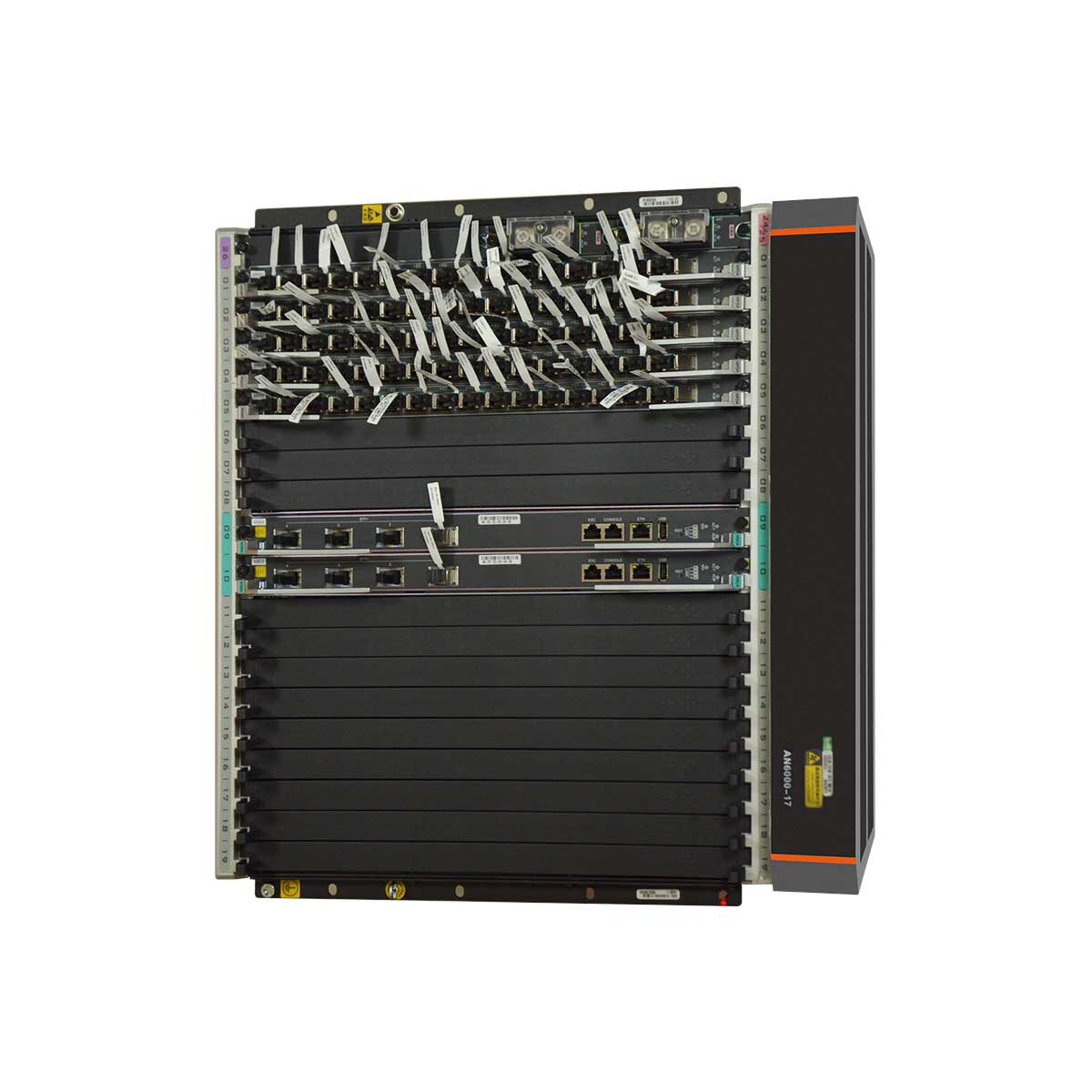

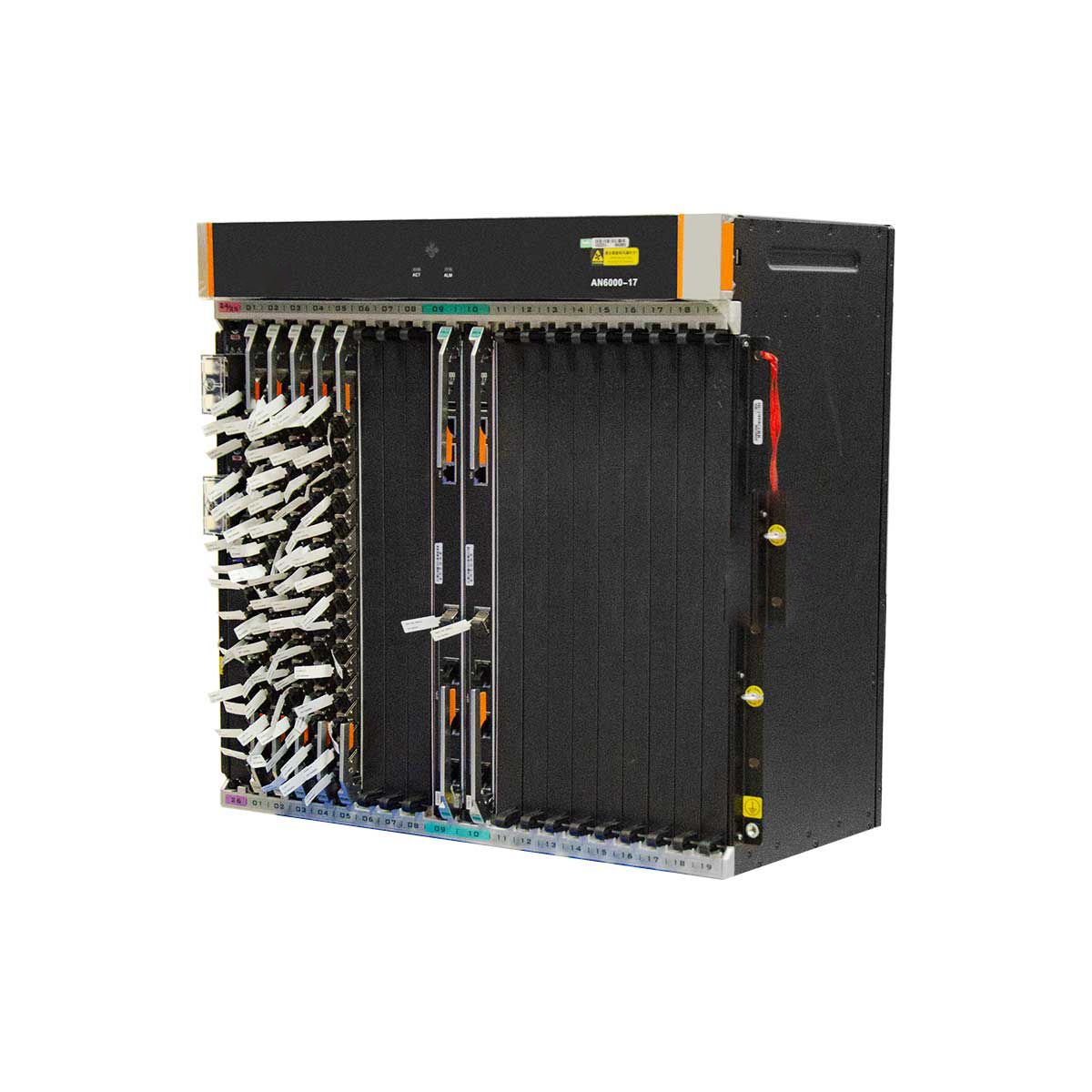

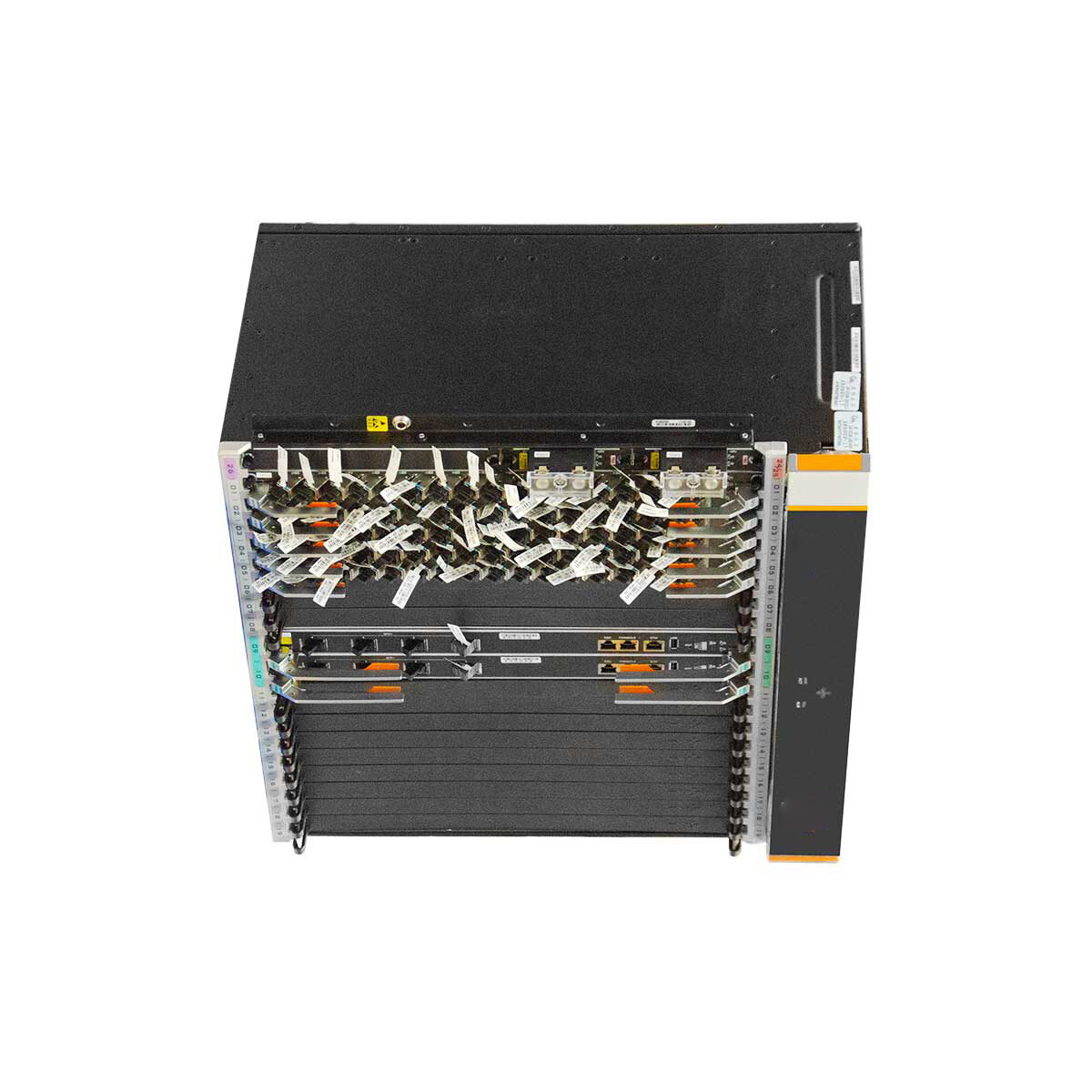

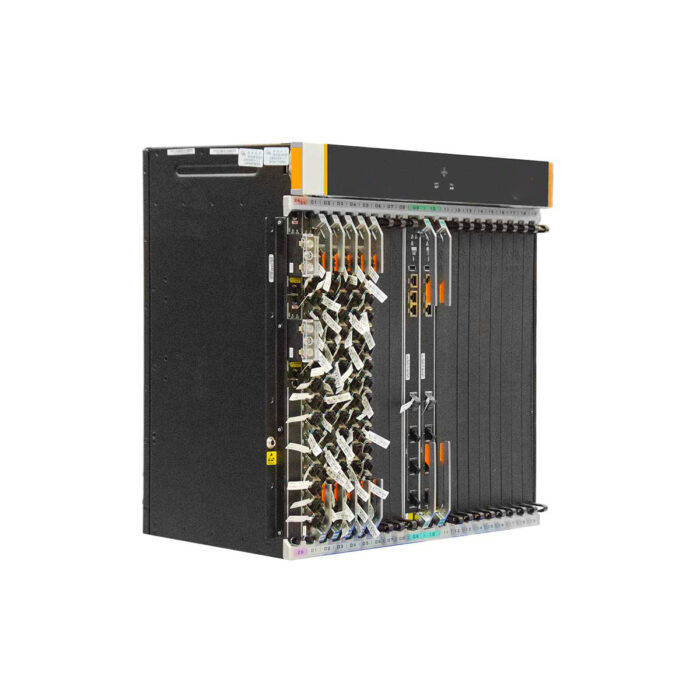

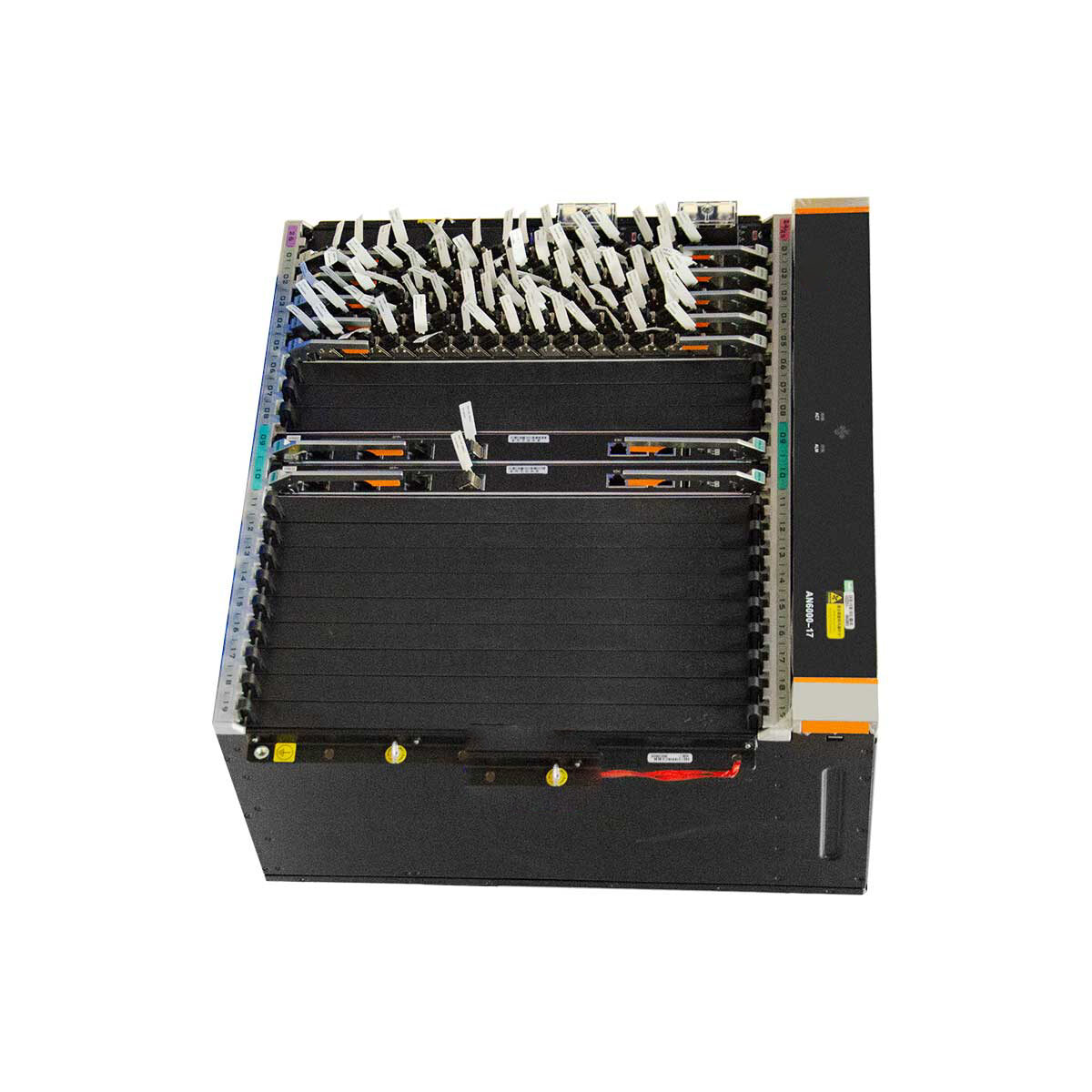

AN6000-17 OLT – Brand New Chassis with 17 Service Slots
The AN6000-17 is a carrier-grade Optical Line Terminal (OLT) designed to support ultra-dense GPON, XGS-PON, EPON, and 10G-EPON access networks. Featuring 17 flexible service slots, the AN6000-17 offers high capacity, scalability, and performance, making it ideal for large-scale FTTH, FTTO, and multi-service broadband deployments.
Equipped with 10GE/GE uplink interfaces, the AN6000-17 ensures seamless connectivity to the core network and supports various service scenarios including triple-play, enterprise access, mobile backhaul, and smart city infrastructure.
Tech Specs
| Item | Specification | |
| User-side Interface | GPON/XG(S)-PON/P2P | |
| Power supply mode | DC (2xPIBA) | |
| Slot configuration | Two slots for core switch cards (slots 9 and 10) Two slots for uplink cards (slots 18 and 19) One slot for the fan unit (slot 23) Two slots for power cards (slots 24 and 25) One slot for the common interface card (slot 26) |
|
| Slot bandwidth(bit/s) | 200G | |
| Exchange Capacity (bit/s) | 6.8T | |
| Backplane Capacity (bit/s) | 13.6T | |
| Multicast Users | 17K | |
| Connected ONUs | 17K | |
| GPON Ports | 272 | |
| XG(S)-PON Ports | 272 | |
| Dimension (H/W/D)(mm) | 486*530*282 | |
| Weight of empty subrack (Including the FAN) | 19 | |
Key Specifications AN6000-17
| Specification | Details |
|---|---|
| Model | AN6000-17 |
| Service Slots | 17 x hot-swappable slots for PON or Ethernet cards |
| Uplink Interfaces | 10GE / GE SFP+ ports (number depends on control board configuration) |
| PON Types Supported | GPON, XGS-PON, EPON, 10G-EPON |
| Switching Capacity | Carrier-grade (up to Tbps depending on control board) |
| Redundancy | Supports control board and power supply redundancy |
| Management Interfaces | CLI, SNMP, Web UI, Telnet, EMS/NMS |
| Power Supply Options | AC or DC, dual redundant supported |
| Cooling | Front-to-rear airflow, intelligent fan management |
| Chassis Form Factor | Standard rack-mountable (19-inch) chassis |
| Mounting Size | 17U height |
| Backplane Bandwidth | High-speed interconnect for all service slots |
Key Features AN6000-17
-
17 Service Slots: High-density support for large subscriber bases
-
Flexible Uplink Options: Built-in 10GE and GE uplink ports for core connectivity
-
Modular Design: Easy to scale with swappable PON and Ethernet line cards
-
Multi-PON Ready: Supports coexistence of GPON, XGS-PON, and EPON technologies
-
High Reliability: Redundant control and power modules for 99.999% uptime
-
Carrier-Class Management: Integrated support for EMS/NMS, TR069, and SNMP
-
Broad Deployment Compatibility: Works with ONU/ONT from various vendors
-
Energy-Efficient Design: Intelligent cooling, low power consumption per port
Applications
-
FTTH (Fiber to the Home) deployments for residential subscribers
-
FTTO (Fiber to the Office) for business broadband and VoIP
-
Triple-Play Services: Supports voice, video, and high-speed internet
-
Smart City & Surveillance: Reliable transport layer for sensor/camera networks
-
Mobile Backhaul: High-throughput PON for 4G/5G fronthaul and backhaul
-
Campus Networks: Aggregates fiber to dormitories, offices, or buildings
