- Model Number:GTGH
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:zte olt
- Warranty Time:1 year
- Supply Ability
- 1000 Piece/Pieces per Week
- Packaging Details
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

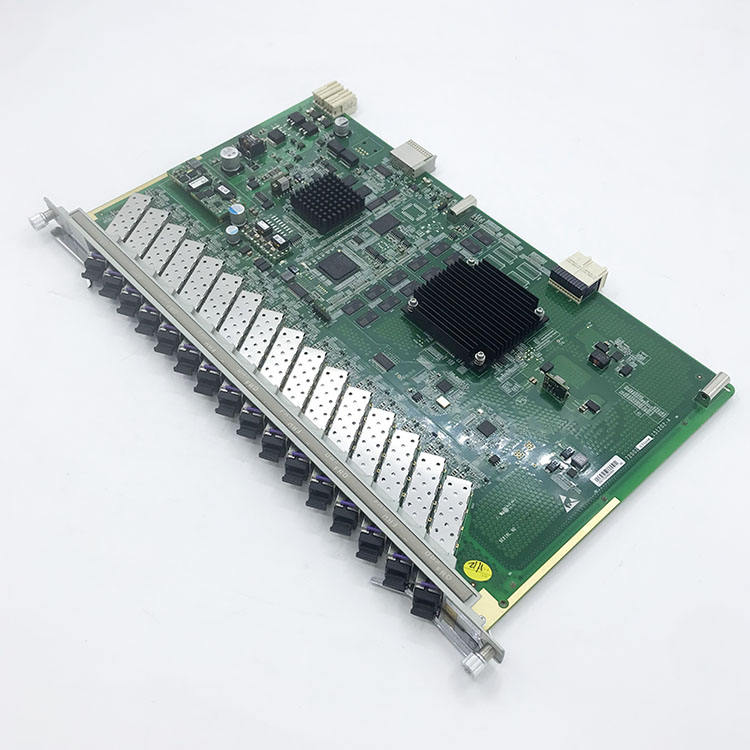

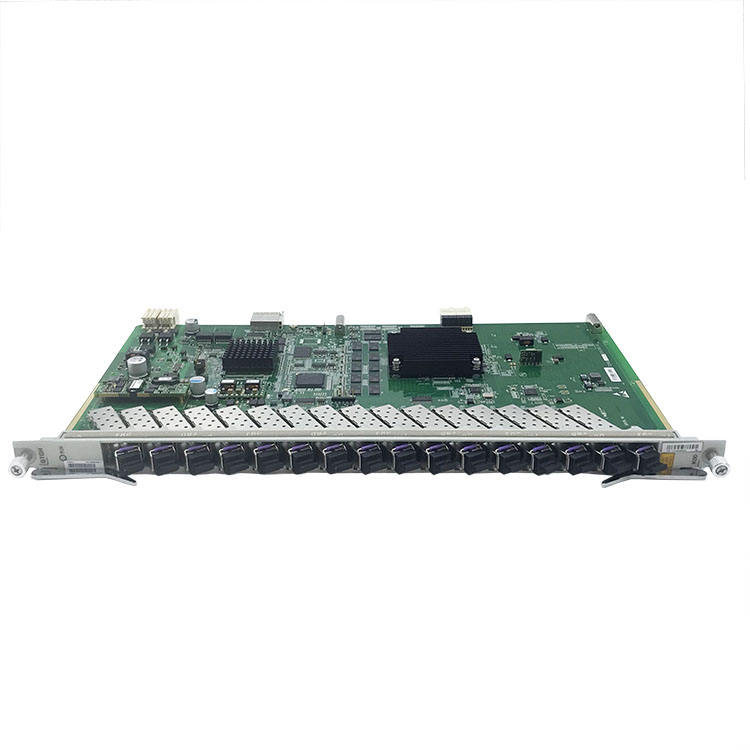

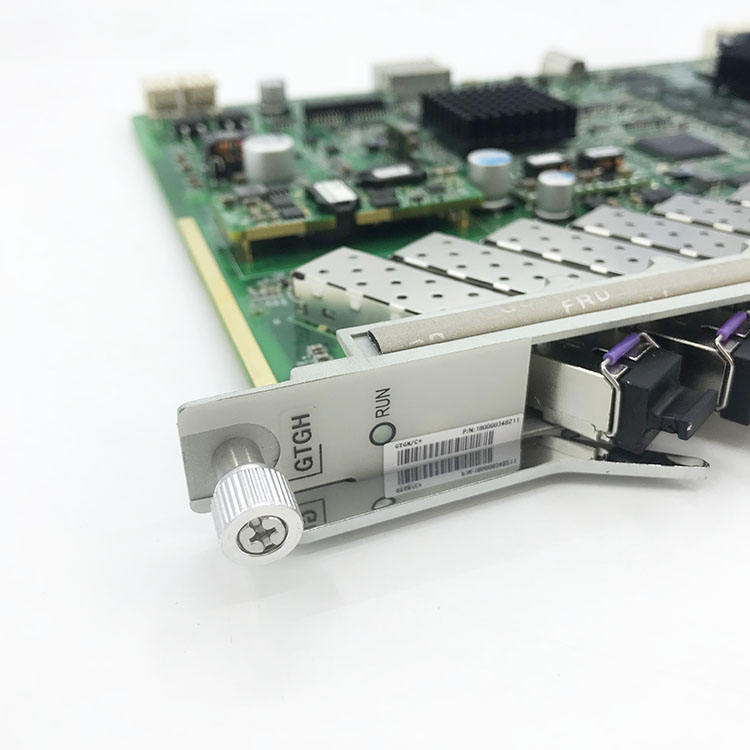

GTGH is an 16-Port GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.
ZTE GTGH positioning for the next generation network platform for the large capacity xPON gathering access, HSI, VoIP, TDM for the next generation network, IPTV, CATV, mobile 2 g / 3 g and WiFi access convergence of the whole business and management control, and provide the QoS and the safety reliability of the telecommunication level security.
Product features ZTE GTGH large capacity, high density, high performance and flat, Conform to the “large capacity, high density, satisfy” large capacity, less bureau “network evolution and deployment requirements, enhance the capacity of access, conform to the requirements of the network flat. High density interface board, provide large ratio and long distance application scenario special solution.
|High Density||16 GPON ports per card, up to 1:128 split ratio|
|GPON function||support ONU power saving management defined in G.987.3|
|1024 T-CONTs per PON port, 4096 GEM ports per PON port|
|High TM performance||support H-QOS|
|1024 queues and 256 schedulers per PON port|
|support color-sensitive RED and WRED discard algorithm|
|Colck/time function||receive 1PPS+TOD signals and send them to the ONU through a PON channel|
|Low power consumption||newly-developed lower power GPON MAC chip|
|reduce 30% power consumption on industry average|
