- Model Number:GTGH
- Type:OLT
- Place of Origin:Guangdong
- Brand Name:ZTE
- Use:zte olt
- Warranty Time:1 year
- Network:None
-
- Supply Ability
- 1000 Piece/Pieces per Week
-
- Packaging Details
cartons
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)15To be negotiated

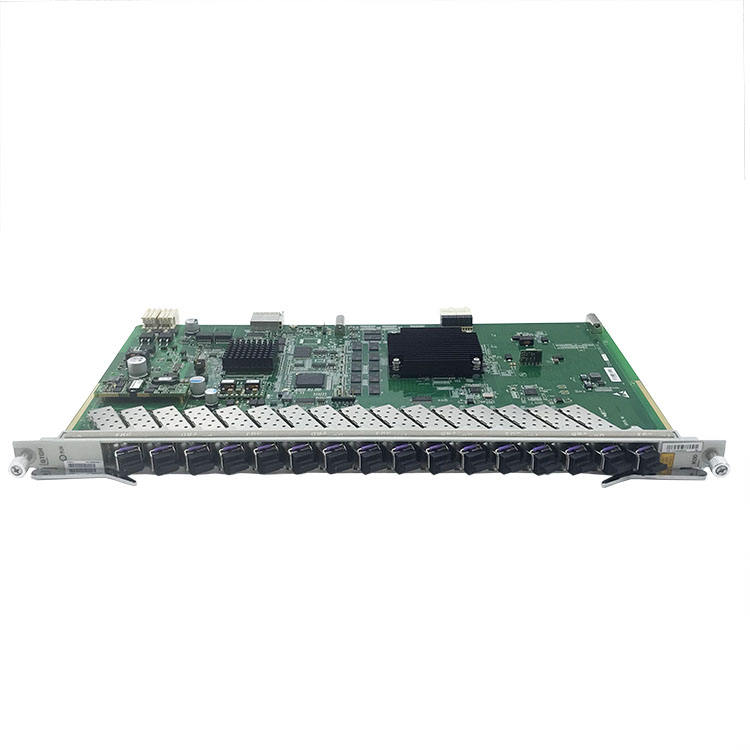

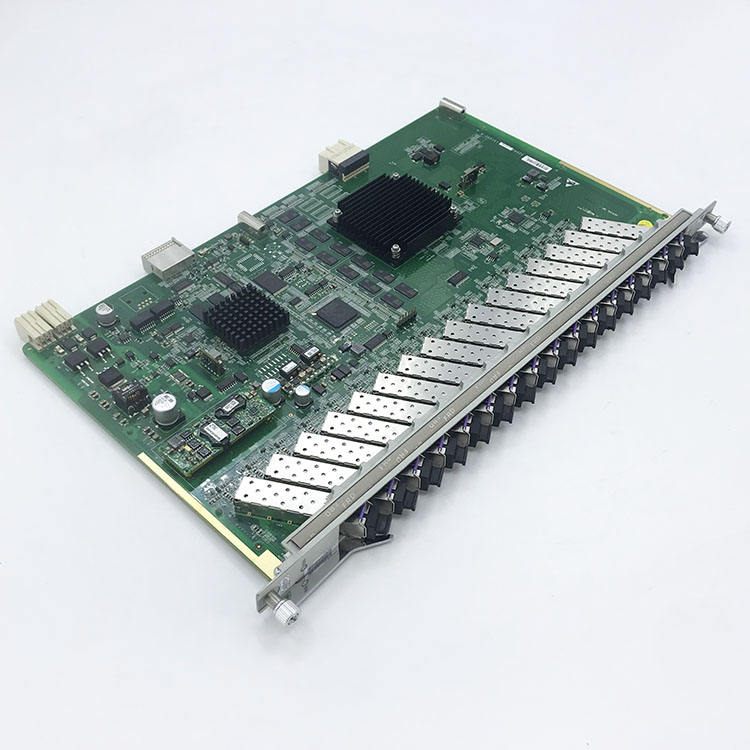

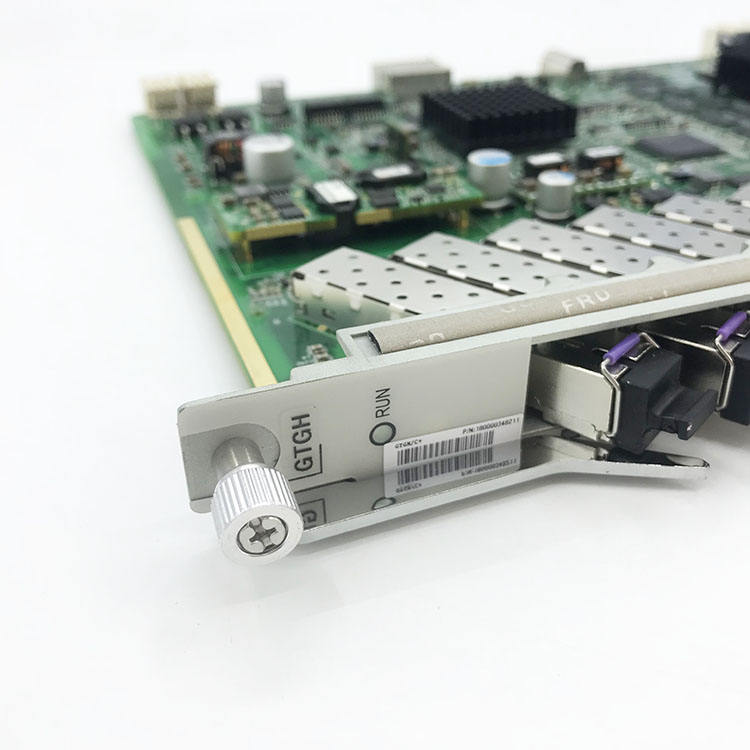

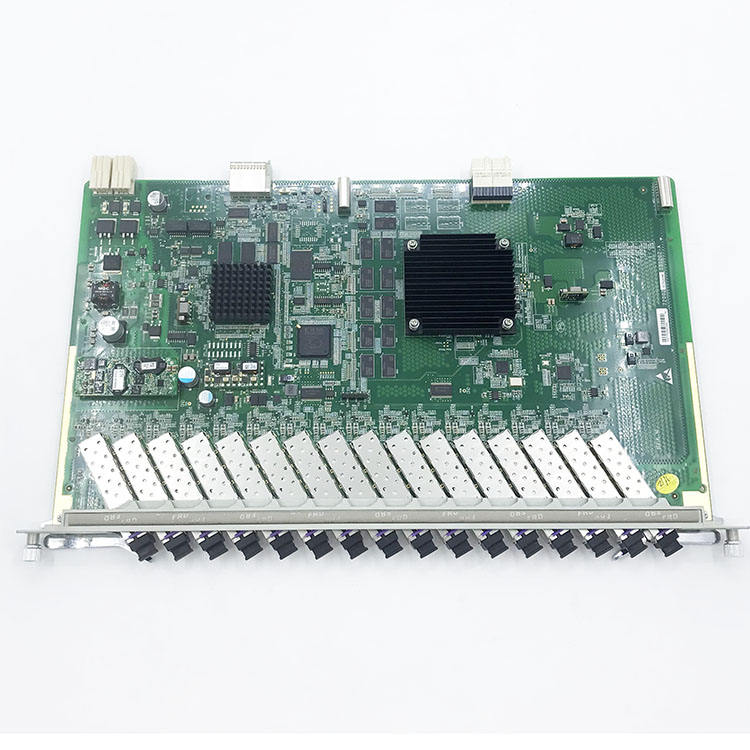

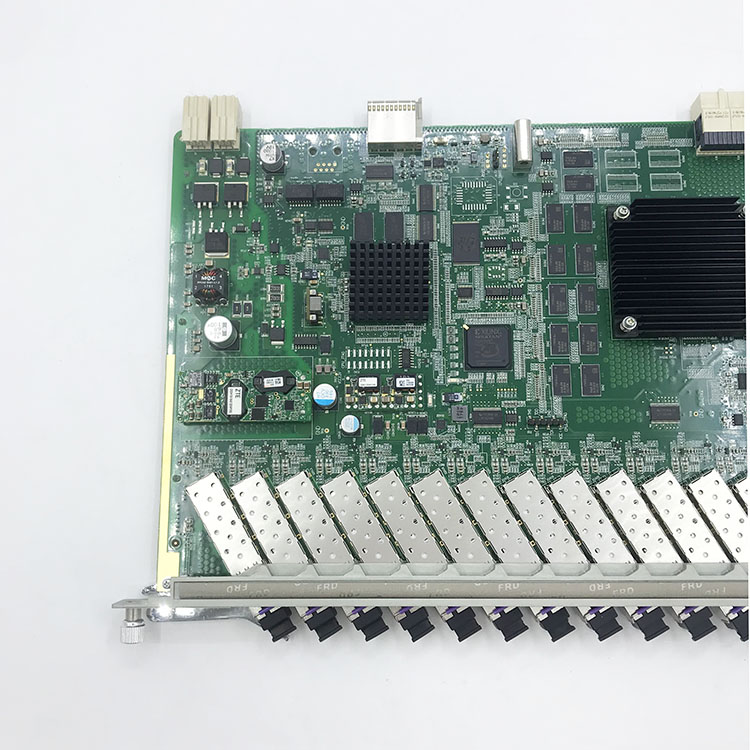

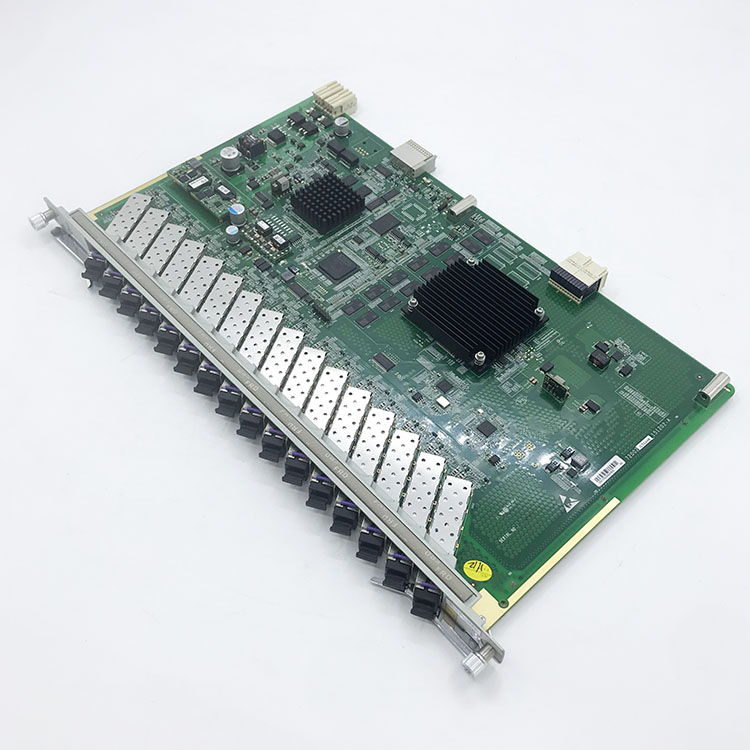

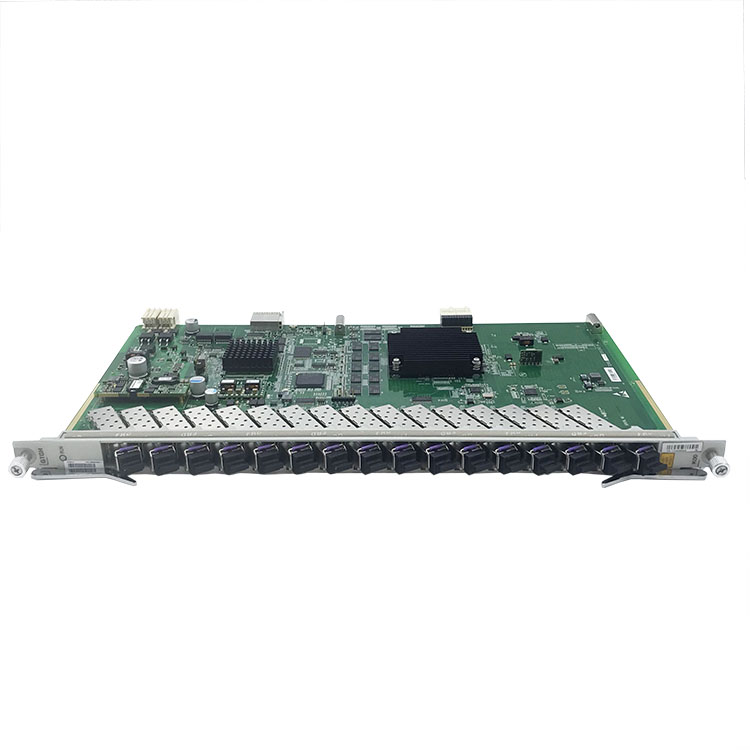

Specification
|
Brand
|
ZTE
|
|
Model
|
GTGH
|
|
GPON Port
|
16-GPON Port
|
|
Type
|
C++ Module: Single Fiber Bidirectional Optical Module, Class C++
|
|
Operating Wavelength
|
Tx: 1490 nm, Rx: 1310 nm
|
|
Encapsulation Type
|
SFP
|
|
Port Rate
|
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
|
|
Minimun Output Optical Power
|
C++ Module : 4.50 dBm
|
|
Maximum Output Optical Power
|
C++ Module : 8.00 dBm
|
|
Maximum Receiver Sensitivity
|
C++ Module : -30 dBm @10E-10
|
|
-32 dBm @10E-10
|
|
|
Optical Connector Type
|
SC/PC
|
|
Optical Fiber Type
|
Single-mode
|
|
Reach
|
20.00 km
|
|
Overload Optical Power
|
C++ Module : -12.0 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Weight
|
1kg
|
|
Dimensions (W x D x H)
|
22.86 mm x 237.00 mm x 395.40 mm
|
|

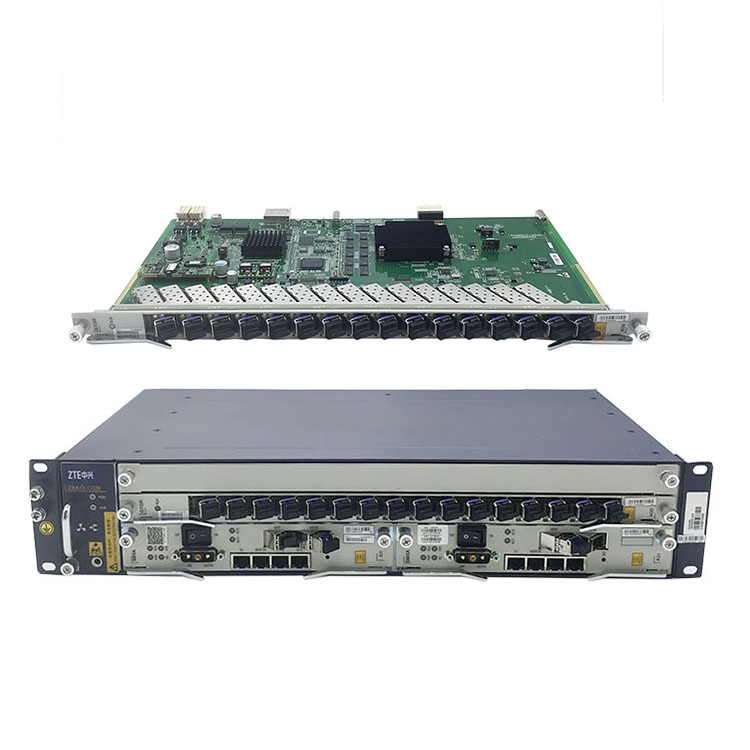

ZTE GTGH Service Board and More Models
|
|
|
GTGO
|
8 ports GPON board with 8 B+ modules
|
|
GTGO
|
8 ports GPON board with 8 C+ modules
|
|
GTGO
|
8 ports GPON board with 8 C++ modules
|
|
GTGH
|
16 ports GPON board with 16 B+ modules
|
|
GTGH
|
16 ports GPON board with 16 C+ modules
|
|
GTGH
|
16 ports GPON board with 16 C++ modules
|
|
GTTO
|
8 ports 10G GPON board with 8 10G GPON modules
|
|
GTXO
|
8 ports 10G GPON board with 8 10G GPON modules
|
|
ETGO
|
8 ports EPON board with 8 modules
|
|
ETGH
|
16 ports EPON board with 16 modules
|
|
ETTO
|
8 ports 10G EPON board with 8 10G EPON modules
|
