- Model Number:GPON /EPON ONU
- Type:GPON ONU ONT
- Place of Origin:Guangdong, China
- Brand Name:GPON ONU
- Use:FTTH
- Model:H2-2
- Dimensions (H x W x D):152 x 105 x 30 mm
- Weight:0.27KG
- Operating Temperature:0°C to +40°C
- Operating Humidity:5% RH to 95% RH (non-condensing)
- Power Adapter Input:100 V to 240 V AC, 50 Hz/60 Hz
- System Power Supply:11 V to 14 V DC, 1.5 A
- Optical Connector:SC/APC SC/UPC
- Indicators:Power/PON/LOS/LAN/TEL/WLAN/WPS
- Ports:1GE+3FE+1TEL+CATV+Wifi
-
- Supply Ability
- 5000 Piece/Pieces per Week
-
- Packaging Details
Carton box,Best price H2-2 Dualband WIFI XPON ONU 4GE +1Voice +1USB + 2.4G/5.8G Wi-Fi AC ONU GPON ONT XPON Network Terminal
-
- Port
shenzhen
- Lead time:Quantity(pieces)1 – 2000>2000Lead time (days)5To be negotiated
FTTH GPON EPON ONU

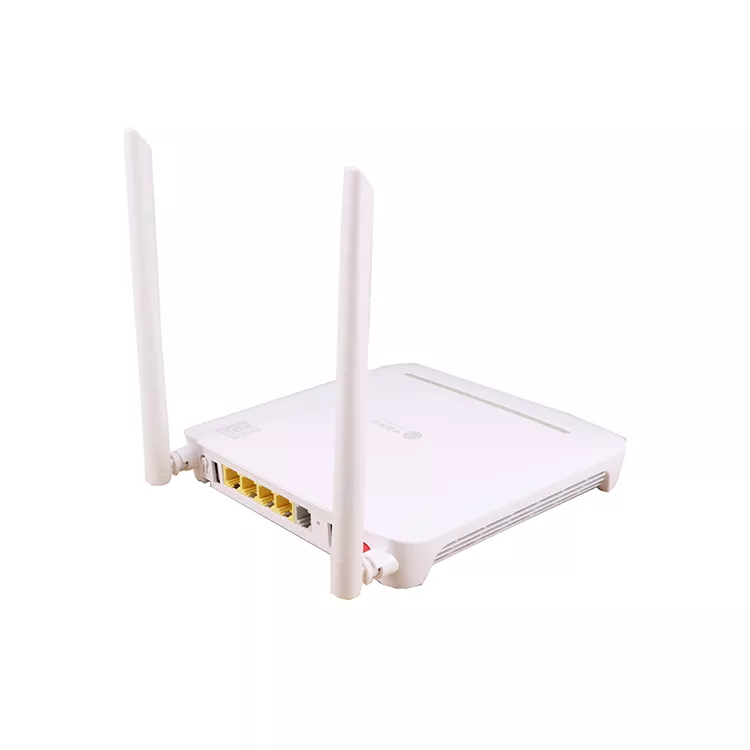

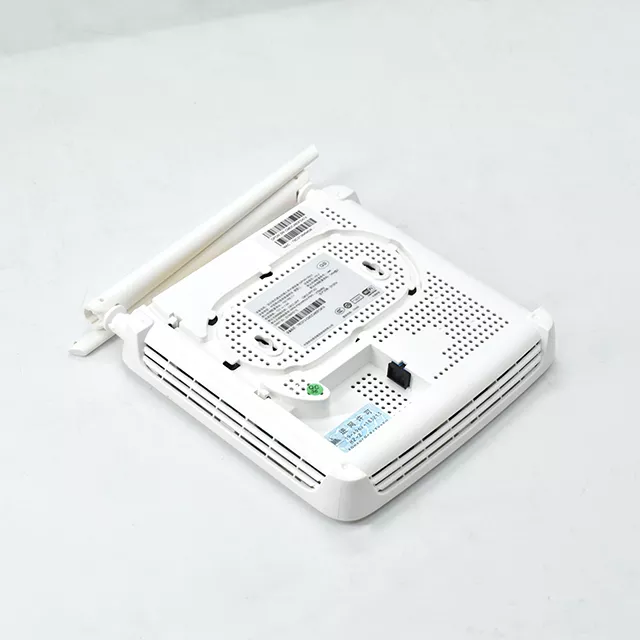

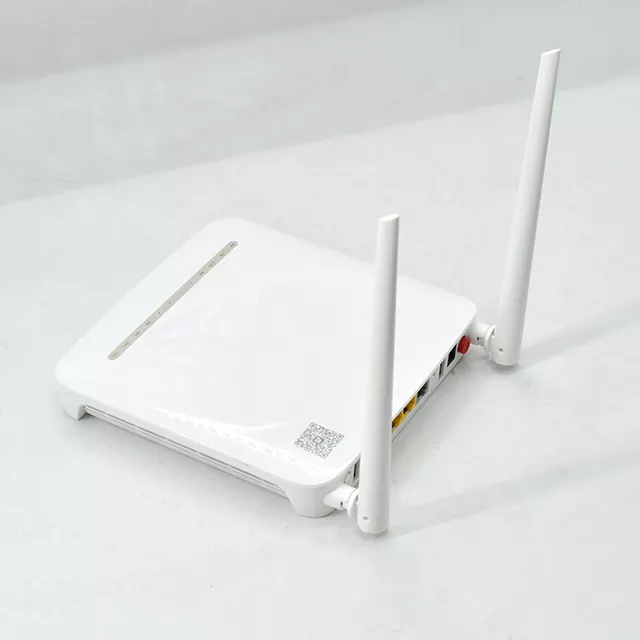

Best price H2-2 Dualband WIFI XPON ONU 4GE +1Voice +1USB + 2.4G/5.8G Wi-Fi AC ONU GPON ONT XPON Network Terminal
Brief Introduction :
H2-2 is a XPON optical network terminal used in FTTH scenarios. It supports L3 functions and helps users build smart home
networks. H2-2 provides a XPON interface to connect the OLT with an ODN. Support voice VOIP service, and can support two
connection modes: routing and bridging.
Product Specification :
|
Parameters
|
H2-2 XPON AC ONU ONT
|
|
Dimensions (H x W x D)
|
370*175*115mm(length*width*height)
|
|
Weight
|
≤0.5Kg
|
|
Operating Temperature
|
Working temperature: -0-+40℃ working humidity:5-95%(non-condensation
|
|
Configuration method
|
NMS, Web, or TR069
|
|
DC power
|
Adapter input: 100-240 V AC, 50 – 60 Hz ; Adapter output: 11 – 14 V DC, 1 A
|
|
System Power Supply
|
11 V to 14 V DC, 1.5 A
|
|
Transmission rate
|
Uplink 1.25G; Down link 2.5G
|
|
Wavelength
|
Uplink:1310nm; Downlink:1490nm
|
|
Ports
|
4GE +1Voice +1USB + 2.4G/5.8G Wi-Fi Network
|
|
Optical Connector
|
SC/UPC OR SC/APC
|
|
ONT Detection and Isolation of Active/Passive Hooligans
|
YES
|
