Product Description
Best Price HG8546M WIFI ONT GPON
GPON ONT HG8546M optical network terminal (ONT) is a indoor optical network terminal in FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides three FE Ethernet ports, one GE Ethernet port, one POTS port and one USB. HG8546M has WiFi function, support 802.11 b/g/n.
Application and Advantage:
1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
Specification
|
Features / filters
|
||
|
Number of LAN ports
|
4x 10/100BaseTX (RJ45)
|
|
|
PON standard
|
GPON
|
|
|
Wireless network standards
|
IEEE 802.11g, IEEE 802.11n, IEEE 802.11b,
|
|
|
USB port
|
1x USB
|
|
|
VoIP ports
|
1x POTS
|
|
|

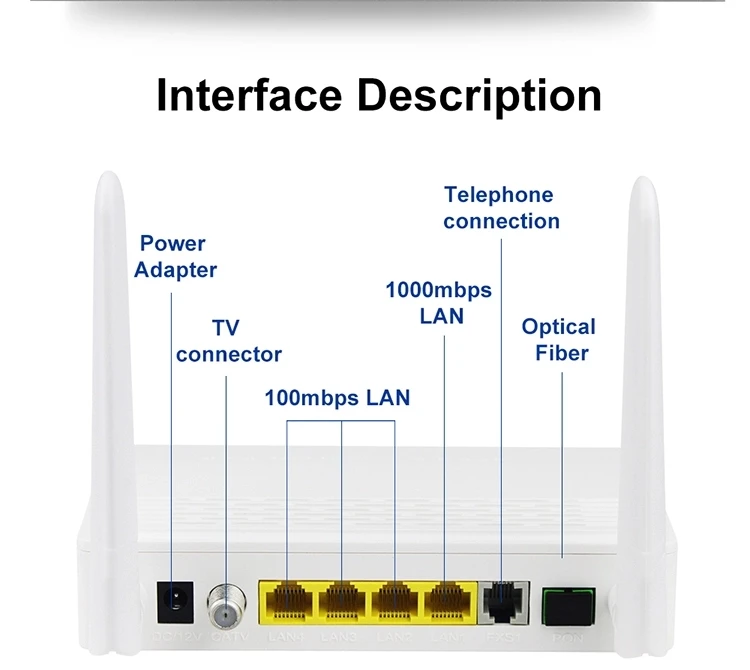

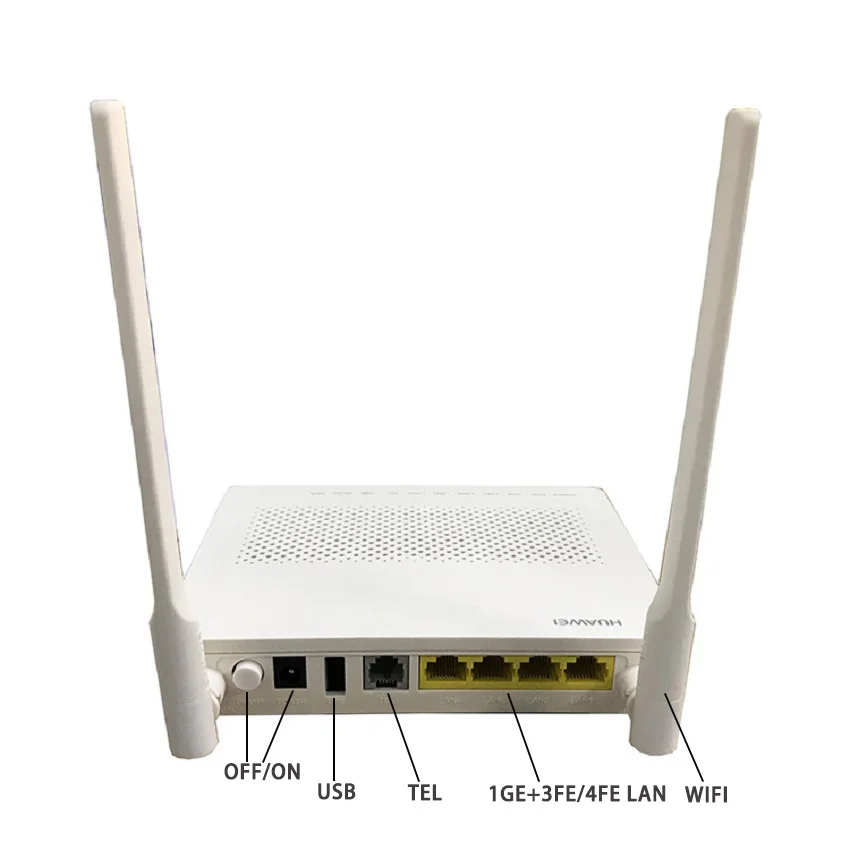

Interfaces
|
||
|
GPON port |
1 SC/UPC GPON port Class B+
Sensitive reception: -27 dBm Wavelength: US 1310nm, DS 1490nm WBF Flexible mapping between the GEM and TCONT ports G.984.3 Double-sided FEC SR-DBA and NSR-DBA |
|
|
Ethernet port |
1 port 10/100/1000BASE-T (RJ45);
3 ports 10/100BASE-T (RJ45) Transparent VLAN transmission |
|
|
POTS port |
Maximum REN: 4
G.711A/u, G.729a/b and G.722 T.30 / T.38 / G.711 fax DTMF Emergency calls (via SIP protocol) |
|
|
USB port
|
1 USB 2.0 port
Possibility to create a network drive based on FTP |
|
|
WLAN |
IEEE 802.11 b/g/n
2×2 MIMO Antennas with 2 dBi gain WMM Many SSIDs WPS |
|
|
Connection type
|
SC/UPC
|
|
|
Physical characteristics
|
||
|
Dimensions
|
176x138x28 mm (without antenna)
|
|
|
Weight
|
< 500 g
|
|
|
Permissible operating temperature
|
0 to 40 degrees C
|
|
|
Permissible air humidity
|
5%-95% RH non-condensing
|
|
|
Power input
|
100 – 240 V AC, 50-60 Hz
|
|
|
System power supply
|
11 – 14 V DC, 1 A
|
|
|
Static power consumption
|
4.5 W
|
|
|
Maximum power consumption
|
12 W
|
|
|
LEDs
|
POWER / PON / FATE / LAN / TEL / USB / WLAN / WPS
|
|
|
Functionality
|
||
|
Intelligent connection
|
Intelligent WIFI coverage (support V300R015C10)
Adaptive SIP / H.248 Any port Any service Parental control (support V300R015C10) |
|
|
Intelligent operation and maintenance
|
OMCI
Active passive ONT detection and isolation Call up simulation / internal test, external PPPoE / DHCP simulation test WLAN simulation |
|
|
Multicast
|
IGMP v2 / v3 snooping
IGMP v2 proxy server IGMP v3 proxy server (support V300R015C10) MLD v1 / v2 snooping WIFI provides multicast services |
|
|
QoS
|
Ethernet port speed limit
Priority 802.1 SP/YYYY / SP + YYYYY Limit on packet transmission speed |
|
|
O & M
|
OMCI / Web UI / TR069
Double backup and restore software |
|
|
Security
|
SPI firewall
Anti-DoS attack MAC / IP / URL filtering |
|
Product Details:
