- Model Number:Huawei HG8546M
- Type:ONU
- Place of Origin:Guangdong
- Brand Name:Huawei
- Use:FTTH
- Warranty Time:1 year
- Network:Wired LAN, wifi, 4g
-
- Supply Ability
- 5000 Piece/Pieces per Week
-
- Packaging Details
Cartons
-
- Port
Shenzhen
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)15To be negotiated
Overview

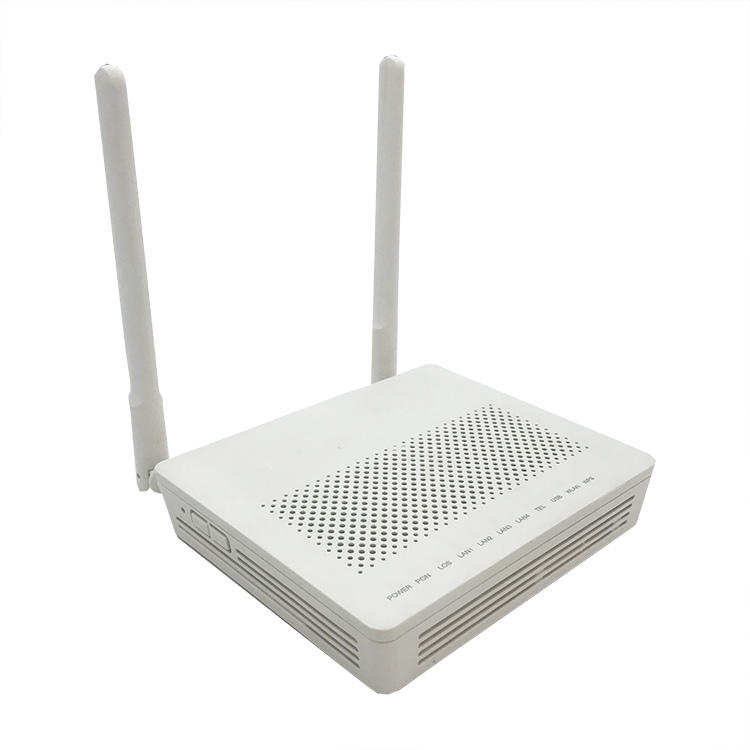

Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video.
Specification
| Brand | Huawei |
| Model | HG8546M |
| Power supply | 12V,1.5A |
| Power consumption (full loaded) | ≤15W |
| Outline dimensions (mm) (W*D*H) | 240*160*35mm |
| Weight (in maximum configuration) | ≤0.5kg |
| WIFI | Antenna 2×2, 5dBi external antenna |
| EIRP Max 25dBm | |
| VoIP | REN Max 5REN |
| Connector 1x RJ11 | |
| Ringing 65V RMS ringing voltage | |
| USB | Max 1A for each port |
| Environmental requirements | Working temperature:0ºC~50ºC |
| Storage temperature:-40ºC~70ºC | |
| Working humidity:5%~90% Storage temperature:5%~95% no condensing | |
| Ethernet | Standard;IEEE802.3 IEEE802.3au IEEE802.3x |
| Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45
Auto negotiation Auto MDI/MDIX |
