- Model Number:SCXN
- Type:OLT card, OLT cards
- Place of Origin:China
- Brand Name:ZTE
- Use:FTTX
- Product name:SCXN
- Color:Green
- Warranty:1 Year / 12 Months
- Ports:4 ports
- Keywords:Ftth Gpon
- Brand:ZTE Original
- Connector Type:SC FC LC ST
- MOQ:1 Pcs
- Package:Carton Box
-
- Supply Ability
- 2500 Piece/Pieces per Week
-
- Packaging Details
carton Package
-
- Port
Shenzhen
- Picture Example:
- Lead time:Quantity(pieces)1 – 50>50Lead time (days)15To be negotiated
Product Description
|
Control and switching cards
|
SCTM – Suitable for XGPON1, supports 16 port GPON cards, higher switching power, 4x 10GE uplink interface, 2x management interface
|
|
SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface
|
|
|
SCXM– supports 480 Gbps switching capacity and 32 K MAC address table.
|
|
|
SCXL – No uplink interfaces, 2x management interface
|
|
|
GPON cards
|
GTXO – 4/8 XGPON1 ports, split ratio up to 1:256
|
|
GTGO – 8 GPON ports, split ratio up to 1:256
|
|
|
GTGH – 16 GPON ports, split ratio up to 1:128
|
|
|
FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibres for uplink/downlink)
|
|
|
Uplink cards
|
GUFQ – 4x SFP (GE)
|
|
GUSQ – 2x SFP (GE), 2x RJ45 (GE)
|
|
|
XUTQ – 4x SFP (10GE)
|
|
|
HUTQ – 4x SFP (2x10GE, 2xGE)
|
|
|
HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE)
|
|
|
Power consumption
|
SCXL (without uplink interfaces): 90 W
|
|
SCXM (with uplink interfaces): 70 W
|
|
|
SCXN (without uplink interfaces): 62 W
|
|
|
Dimensions
|
395.5 mm × 25 mm × 225 mm (Height × Width × Depth)
|
|
Weight
|
SCXL: 1.14 kg
|
|
SCXM: 1.132 kg
|
|
|
SCXN: 1.132 kg
|
|
|

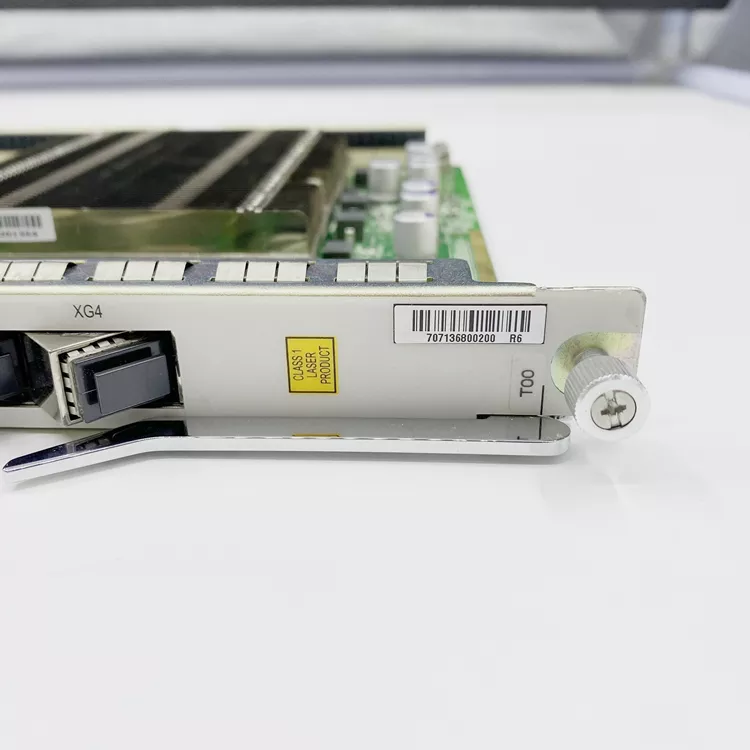

GE1–GE4/XG1–XG4
|
GE/10GE optical interface, for uplink
|
|
SD
|
SD socket, for importing/exporting data
|
|

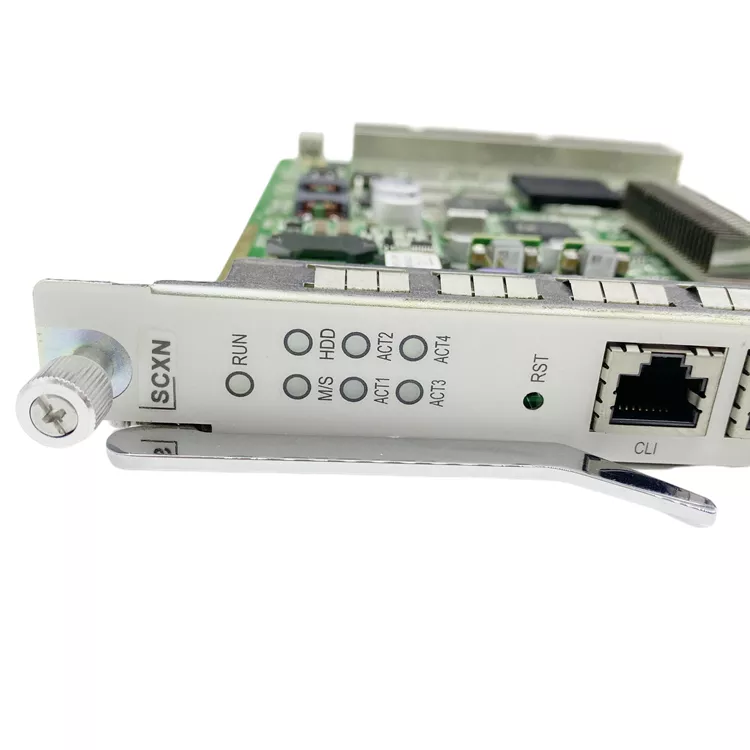

CLI
|
RS-232 port, for local debugging
|
|
10/100M
|
RJ45 interface, for out-of-band network management
|
|
DIAG
|
RJ45 interface, for mirroring service traffic
|

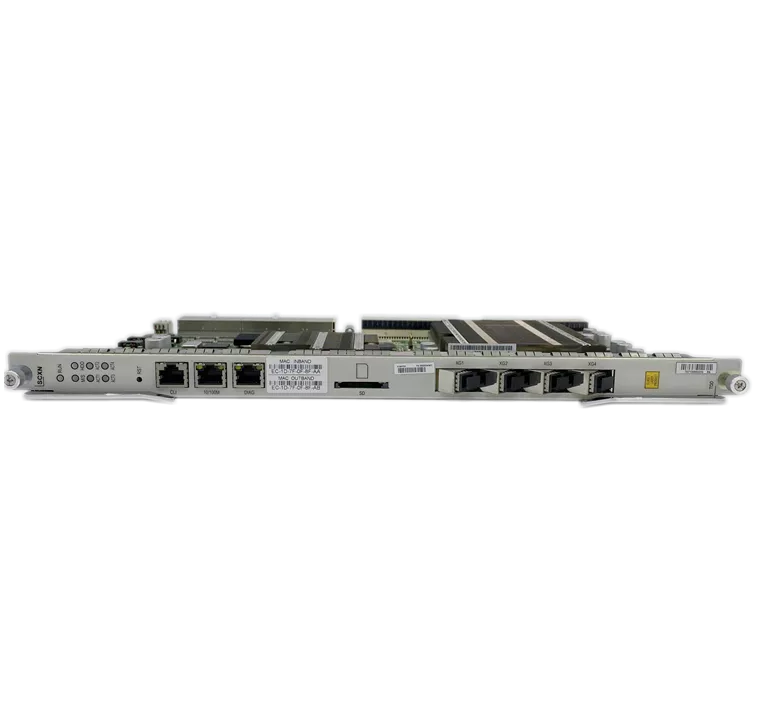

ZTE SCXN Control Card is control and switch card for C300 supporting 16 port GPON cards, 4x GE uplink interface, 2x management interface
ZTE ZXA10 SCXN is the core part for ZXA10 C300, and it monitors and controls the entire system and performs non-blocking switching of all line cards
SCXN: supports 480 Gbps switching capacity, 64 K MAC address table, and VoIP function (with VoIP daughter-card).
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance.
ZTE ZXA10 SCXN is the core part for ZXA10 C300, and it monitors and controls the entire system and performs non-blocking switching of all line cards
SCXN: supports 480 Gbps switching capacity, 64 K MAC address table, and VoIP function (with VoIP daughter-card).
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance.
