- Model Number:Huawei EG8120L
- Type:ONU
- Place of Origin:Zhejiang, China, Hangzhou,China
- Brand Name:Huawei
- Use:FTTX
- Warranty Time:1 year
- Network:Wireless Lan, wifi, 4g
- Product name:GPON ONU
- Brand:HUAWEI
- Model:EG8120L
- Color:White
- Package:Box
- Warranty:1year
- Ports:1GE +1FE+1POT
- Package WITH:1Pcs/Box, with Power Plug
- Compatible:Transition Networks
-
- Supply Ability
- 10000 Piece/Pieces per Month
-
- Packaging Details
box
-
- Port
Hangzhou
- Picture Example:
- Lead time:Quantity(pieces)1 – 1>1Lead time (days)7To be negotiated
Product Description

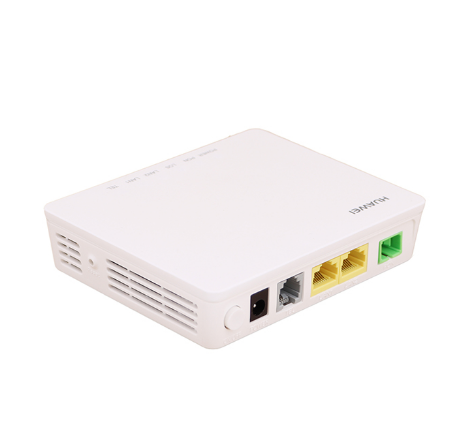

The EG8120L, an optical network terminal(ONT), is a high-end home gateway in FTTH solution. By using the GPON technology,ultra-broadband access is provided for home and SOHO users. The EG8120L provides 1*POTS ports, 1*FE auto-adapting Ethernet ports.The EG8120L features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the EG8120L provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment deliver FTTH access.
Product details
Application
Specification
|
Model
|
EG8120L
|
|
Dimensions (H x W x D)
|
30 mm x 115 mm x 94 mm
|
|
Weight
|
About 155g
|
|
Operating Temperature
|
0°C to +40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Power Adapter Input
|
100V to 240V AC, 50/60 Hz
|
|
System Power Supply
|
11V to 14V DC, 1A
|
|
Static Power Consumption
|
3.8W
|
|
Maximum Power Consumption
|
4.9W
|
|
Ports
|
1 POTS + 1 GE + 1 FE
|
|
Indicators
|
POWER/PON/LOS/LAN/TEL
|
